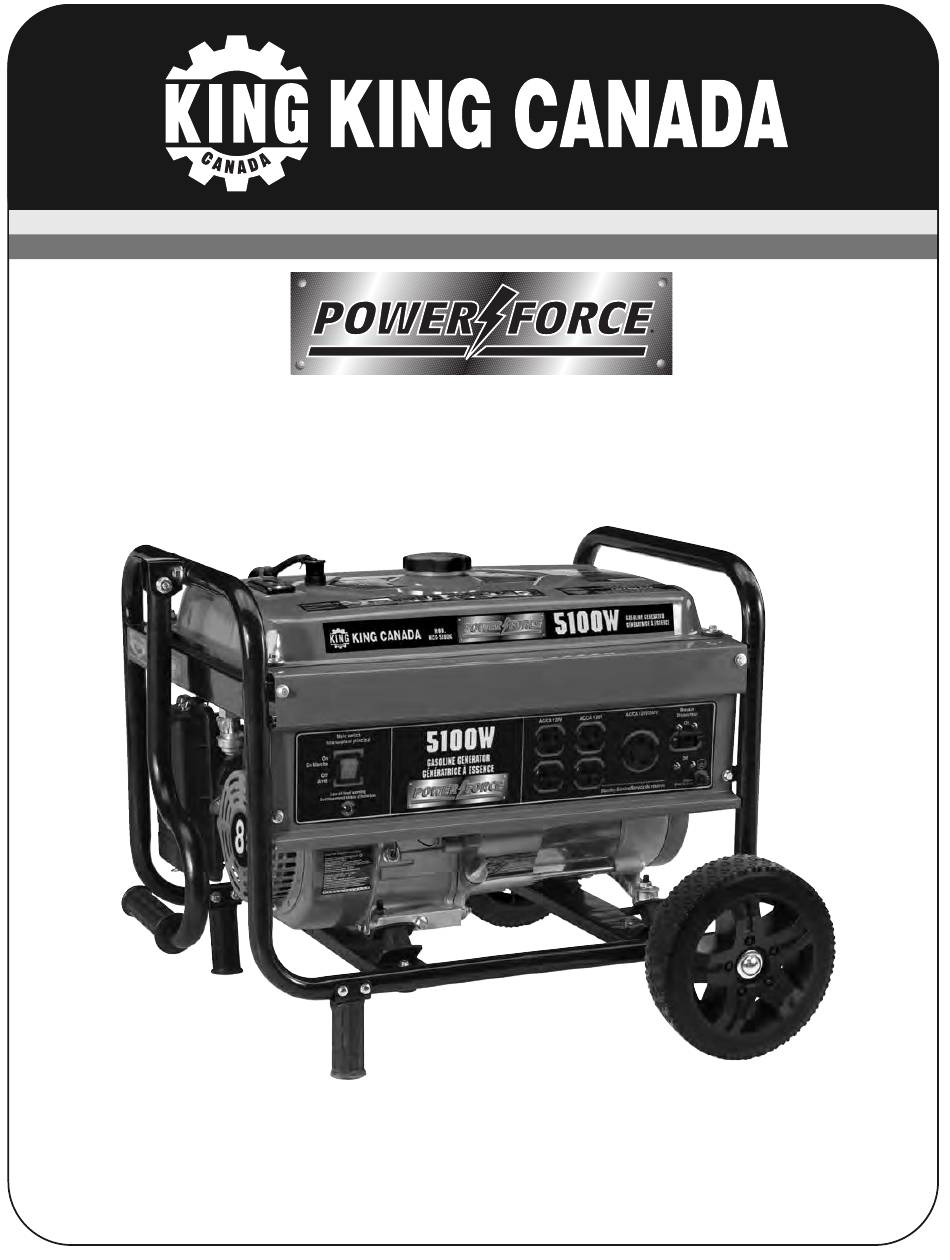

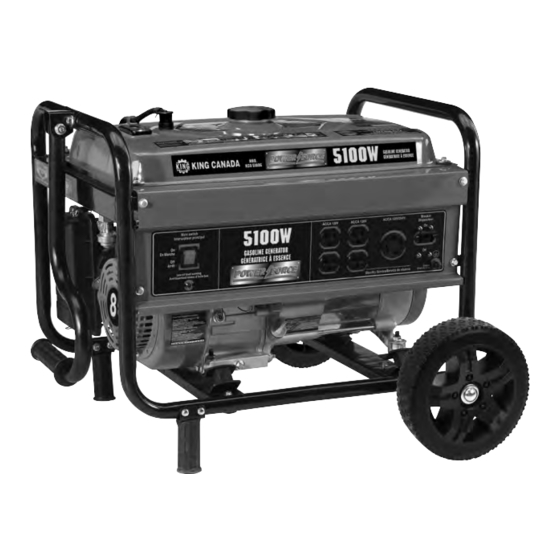

- Page 1 WITH WHEEL KIT Read this manual. Do not attempt to operate this generator until you have read and understood the safety, operation, and maintenance instructions MODEL: KCG-5100G INSTRUCTION MANUAL COPYRIGHT © 2021 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty And Service Information
LIMITED TOOL WARRANTY KING CANADA makes every effort to ensure that this product meets high quality and durability standards. KING CANADA warrants to the original retail consumer a 1-year limited warranty as of the date the product was purchased at retail and that each product is free from defects in materials. - Page 3 BASIC & SPECIFIC SAFETY PRECAUTIONS BE CAREFUL! DO NOT USE DO NOT CONNECT TO KEEP FLAMMABLE DO NOT USE IN IN YOUR HOUSE MATERIALS AWAY WET CONDITIONS HOUSEHOLD CIRCUIT WHEN REFUELING: STOP ENGINE! NO SMOKING! DO NOT SPILL GASOLINE! BASIC SAFETY INFORMATION touching the engine or muffler while they are still hot.
-
Page 4: Specific Safety Precautions
SPECIFIC SAFETY PRECAUTIONS OPERATION OF GENERATOR IN RAIN, WET, ICY, OR FLOODED RISK OF BREATHING - INHALATION HAZARD CONDITIONS. Operate generator in clean, dry, well ventilated area. Never operate Water is an excellent conductor of electricity! Water which comes in unit in enclosed areas such as garages, basements, storage, sheds, or contact with electrically charged components can transmit electricity to in any location occupied by humans or animals. - Page 5 GETTING TO KNOW YOUR GENERATOR 1. Fuel level indicator window with float gauge. shut-off and the indicator light is ON, check oil level with dipstick 2. Fuel cap. Make sure the fuel cap is always screwed on tightly. (#9) and fill to recommended level with SAE 10W30 engine oil. 3.
-
Page 6: Pre-Start Check
ASSEMBLY & PRE-START CHECK WARNING! To prevent permanent damage to generator or any appliances, you MUST check oil level, fuel level, air cleaner filter and unplug any load from the generator before starting. ASSEMBLY Remove all the contents from the carton and proceed to the following assembly steps: Wheels To install a wheel (C) Fig.1 to the right end of the frame, first insert the bushing (A) into the mounting hole in the frame. -
Page 7: Starting Procedures
PRE-START CHECK & STARTING PROCEDURES PRE-START CHECK AIR CLEANER FILTER The air cleaner filter should be checked before every start-up and after prolonged storage, the following steps should be done when checking air cleaner filter: 1) Loosen and remove the cover knob (A) Fig.3 and then remove the air cleaner cover (B). 2) Remove the air cleaner filter (C), wash filter in kerosene, squeeze kerosene out, soak filter in engine oil and squeeze engine oil out. -
Page 8: Stopping Procedures
Overloading the generator will cause power fluctuations and can damage equipment and appliances. King Canada will not be responsible for equipment damaged as a result of voltage surges, improper operation or improper installation of the generator. -
Page 9: Wattage Calculations
WATTAGE CALCULATIONS WATTAGE CALCULATIONS DETERMINING WATTAGE REQUIREMENTS IMPORTANT! Never exceed the rated capacity of your generator. Note: Volts X Amps = Watts Serious damage to the generator or appliance could result from an Example: 120V X 10 Amps = 1200 Watts overload. -
Page 10: Maintenance And Storage
MAINTENANCE & STORAGE MAINTAINING YOUR GENERATOR Engine Oil Replacement Engine oil should be replaced after the first 20 hours of operation or after the first month of use, it should be replaced every 100 hours or 6 months after. To replace engine oil: 1) Loosen the oil gauge dipstick (A) Fig.8. -
Page 11: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE CORRECTION Engine will not start 1. Low on fuel or oil. 1. Add fuel or oil. 2. Ignition switch in "Off" position. 2. Turn to "ON" position. 3. Faulty spark plug. 3. Replace spark plug. 4. Choke in wrong position. 4. - Page 12 Bolt seal hangs in the air. Fuel cup seal PARTS DIAGRAM & PARTS LISTS Order# Description Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list. 73-51001700 High altitude parts kit...
