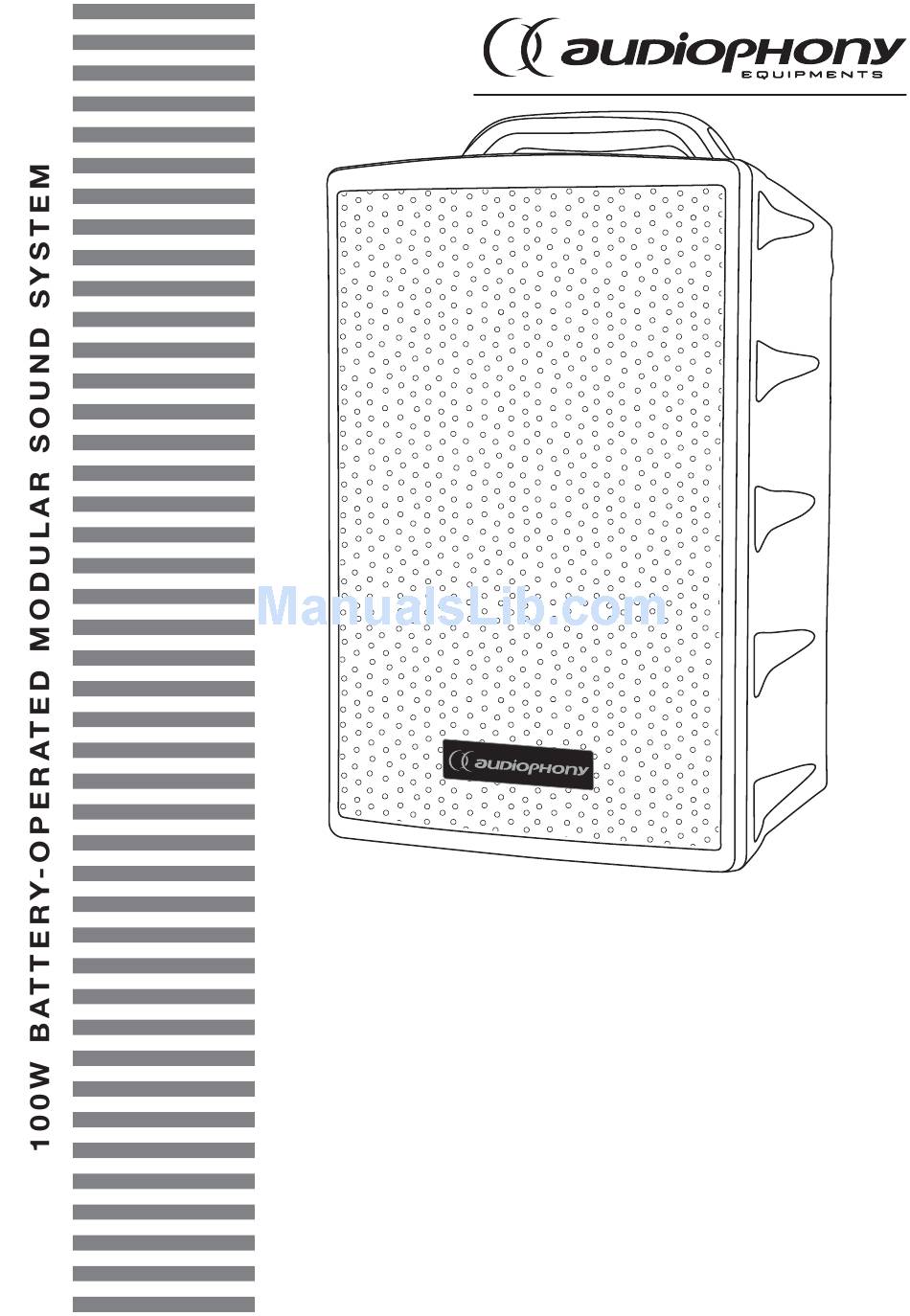

- Page 1 RUNNER SYSTEMS 9836 : RUNNER-102 9976 : RUNNER-One-V102 9590 : PASSRUN 9982 : USB-RUN 9993 : CD-RUN 9980 : EMET-HAND 9981 : EMET-HEAD 9811 : RUNTROLL 9987 : COV-RUN USER GUIDE December 2012 Version 1.0...
-
Page 2: Safety Information
English RUNNER - 100W BATTERY-OPERATED MODULAR SOUND SYSTEM 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, This product contains non-isolated electrical components. Do not or extremely cold/hot locations. Failure to follow these safety ins- undertake any maintenance operation when it is switched on as tructions could result in fire, electric shock, injury, or damage to it may result in electric shock. - Page 3 English RUNNER - 100W BATTERY-OPERATED MODULAR SOUND SYSTEM Instructions and recommendations 12 - Cleaning precautions : 1 - Please read carefully : Unplug the product before attempting any cleaning We strongly recommend to read carefully and understand operation. This product should be cleaned only with the safety instructions before attempting to operate this unit.
- Page 4 English RUNNER - 100W BATTERY-OPERATED MODULAR SOUND SYSTEM 2 - Introduction Thank you for purchasing a RUNNER series product. The RUNNER series was designed around a battery-operated amplified system delivering 100W of high-quality sound. Many options are available to allow everyone to build the perfect sound system. This user guide will allow you to understand and use all the functions of the your system.
- Page 5 English RUNNER - 100W BATTERY-OPERATED MODULAR SOUND SYSTEM 3 - Description of the RUNNER 1 - Transport handle 2 - Control panel 3 - Horn including the thermal dissipation elements of the amplifier (only with the RUNNER-One-V102 and RUNNER-102) 4 - 8" broadband loudspeaker 5 - Metal protection grille 4 - The modules 1 - Power input socket: 100-240V 50-60Hz...
-
Page 6: Description Of The Modules
English RUNNER - 100W BATTERY-OPERATED MODULAR SOUND SYSTEM 5 - Description of the modules 5-1 : Description of the volume control zone (B) B1 - Line output: Allows you to retrieve the RUNNER signal (including the HF and wired mic and CD player). B2 - Echo volume control fader. - Page 7 English RUNNER - 100W BATTERY-OPERATED MODULAR SOUND SYSTEM 5-4 : Description of the UHF handheld microphone (EMET-HAND) H1 - Grille : Protects the capsule. H2 - Capsule: converts the sound pressure into a signal. H3 - Lockring. H4 - Battery charge level indicator. Flashes then stays lit when the batteries are empty.
- Page 8 English RUNNER - 100W BATTERY-OPERATED MODULAR SOUND SYSTEM 5-6 : Description of the CD/USB player (CD-RUN) PLAY PAUSE -SKIP- STOP EJECT POWER FUNC FOLDER SPEED + SD/MMC CARD POWER PLAY PAUSE D1- POWER: Turns the player ON. D2 - EJECT: Ejects the CD. STOP D3 - STOP: Stops the current track (CD/USB/SD).
-
Page 9: Power Management
English RUNNER - 100W BATTERY-OPERATED MODULAR SOUND SYSTEM 5-7 : Description of the USB player (USB-RUN) D1 - Volume control fader: From OFF to maximum (clockwise). D2 - Stop button: Stops the playback and goes back to the beginning of the track. D3 - EQ/Repeat Button: - Allows you to choose one of the 7 preset equalization modes: NORMAL/POP/ROCK/JAZZ/CLASSICAL/COUNTRY. - Page 10 English RUNNER - 100W BATTERY-OPERATED MODULAR SOUND SYSTEM 6 - 2 : Replacing the RUNNER batteries 1 - Turn OFF your RUNNER. Black 2 - Open the rear access hatch as described on Figure 1. 3 - Remove the used batteries. 4 - Install the new batteries in their compartment.
-
Page 11: Spare Parts And Accessories
English RUNNER - 100W BATTERY-OPERATED MODULAR SOUND SYSTEM 7 - Spare parts and accessories Cover The RUNNER is supplied with a protective and transport cover. RUW8-100 Loudspeaker: 100 W - 4 - 8" RUNTROL RUNTR Optional transport trolley for RUNNER systems. Designed to be attached to the rear fixations of the RUNNER. - Page 12 Because AUDIOPHONY® takes the utmost care in its products to make sure you only get the best possible quality, our products are subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations.
