Step
antenna "circle", with the box's tripod receptacle facing downward. Connect one
terminal strap of the Alpha Match Box to the bottom left element of the semi-circle.
Connect the other terminal strap of the Alpha Match Box to the bottom right
element of the semi-circle. Use four screws and nuts to fasten.
Tighten all screws and nuts securely so that the assembled antenna does not come apart
12
during operation.
Locate the tripod, extend the tripod sections, and then screw the base of the antenna's
13 Alpha Match box to the tripod. Position the antenna in a location where it cannot touch
other objects such as lamps, desks, poles, wires, power lines, ladders, people, etc.).
Connect a PL-259 connector with 50 Ohm coax transmission line to the Black Feed Line
14
Box as depicted in Figure 1 above and test the antenna before operating on the air.
Assembly Operation

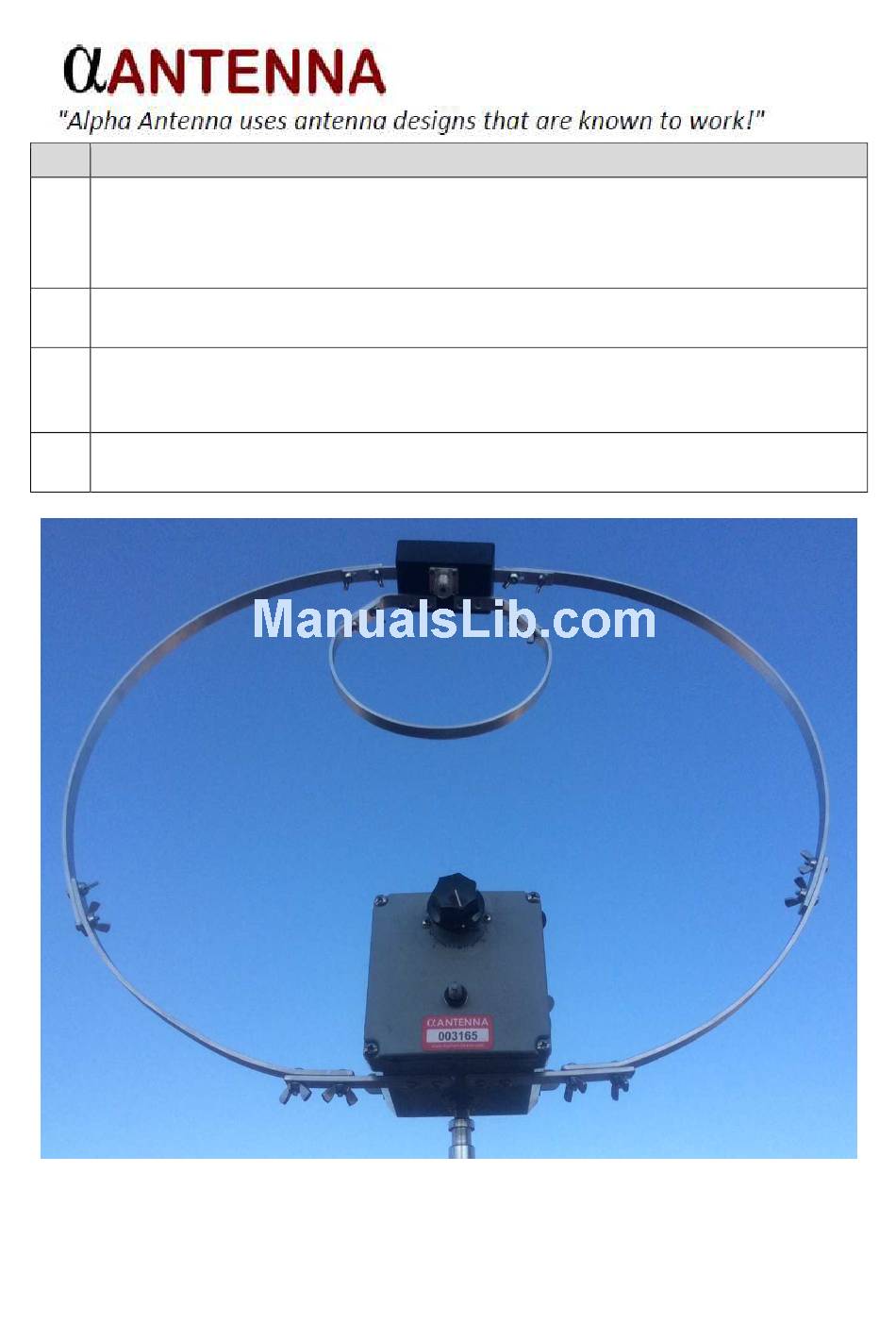

Figure 3 (10-12 Meter Setup)
