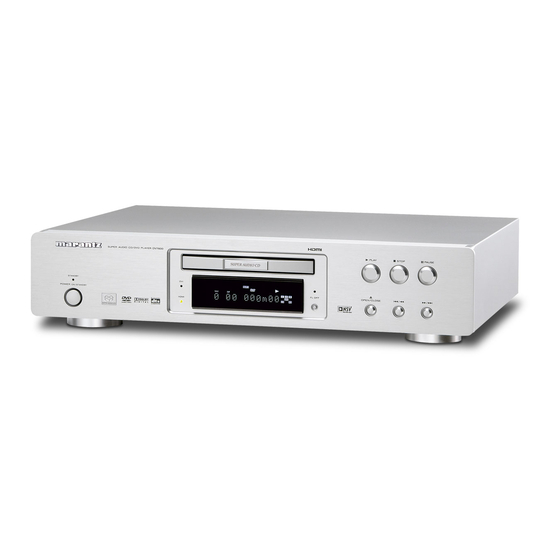

Model DV7600 User Guide
Super Audio CD/DVD Player

Advertisement

Table of Contents
loading

Related Manuals for Marantz DV7600

Summary of Contents for Marantz DV7600

  • Page 1 CLASS 1 LASER PRODUCT LUOKAN 1 LASERLAITE KLASS 1 LASERAPPARAT Model DV7600 User Guide Super Audio CD/DVD Player...

  • Page 2: Copy Protection

    CONGRATULATIONS ON YOUR PURCHASE OF THIS FINE MARANTZ PRODUCT. MARANTZ is on the leading edge of Super Audio CD, DVD research for consumer products and this unit incorporates the latest technological developments. We are sure you will be fully satisfied with the Super Audio CD, DVD player.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ BEFORE OPERATING EQUIPMENT (for U. S. A only) This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of. Read Instructions –...

  • Page 4: Disc Storage

    - When the switch is in the OFF position, the equipment is not completely switched off from MAINS. WARRANTY For warranty information, contact your local Marantz distributor. RETAIN YOUR PURCHASE RECEIPT Your purchase receipt is your permanent record of a valuable purchase.

  • Page 5: Table Of Contents

    Table Of Contents 1 Before You Start Features ... 6 What’s in the box ... 7 Putting the batteries in the remote control ... 7 Using the remote control ... 7 Discs compatible with this player ... 8 DVD-Video regions ... 9 MP3 compatibility information ...

  • Page 6: Before You Start

    CDs and DVDs. Superlative audio performance with Super Audio CD, DVD-Audio, Dolby* Digital and DTS Logos: The DV7600 delivers breathtaking sound quality with Super Audio CD, DVD-Audio, Dolby Digital and DTS discs. SRS TruSurround Logo: When used with stereo sources, SRS...

  • Page 7: What's In The Box

    Before You Start What’s in the box Thank you for buying this MARANTZ prod- uct. Please confirm that the following accessories are in the box when you open it. • Remote control • AAA/AR03 dry cell batteries x2 • Audio/Video cable (yellow/red/white) •...

  • Page 8: Discs Compatible With This Player

    MP3 audio files. *Some copy-controlled CDs may not conform to official CD standards. They are special discs and may not play on the DV7600. *DV7600 does not support the non-DVD side of a Dual Disc. Video CD compatibility: • Logo: •...

  • Page 9: Dvd-Video Regions

    All DVD-Video discs carry a region mark on the case somewhere that indicates which region(s) of the world the disc is compatible with. Your DVD player also has a region mark, which you can find on the rear panel. Discs from incompatible regions will not play in this player.

  • Page 10: Connecting Up

    Remote switch • When using this DVD player independently, set this switch to INT. (INTERNAL). When using this DVD player in a system with a Marantz receiver equipped with a remote sensor, set the switch to EXT. (EXTERNAL).

  • Page 11: Home Theater Video Connections

    • When connecting the component is turned on, do not unplug the power cord of this DVD player from the wall outlet. The speaker may be damaged.

  • Page 12: Home Theater Audio Connections

    Connecting Up Home theater audio connections This player outputs multi-channel audio in both analog and digital form. Check the manual for your amplifier/receiver to see what equipment it is compatible with (especially which digital formats—Dolby Digital, DTS, etc.—it can decode). If your amplifier has stereo inputs only, connect them here.

  • Page 13: Controls & Displays

    Controls & Displays Front panel 1 STANDBY indicator • Lights when the unit is in standby. 2 Disc tray • Place the disc here. 3 3 (PLAY) • Begin the disc play. 4 7 (STOP) • Stops the disc play. 5 8 (PAUSE) •...

  • Page 14: Display

    Controls & Displays Display 2 3 4 5 6 7 8 SRS TS RNDM DOFF TITLE PROG ¡ – Lights during a camera-angle section of a DVD-Video disc PRGSVE – Lights when unit is outputting progres- sive scan (non-interlaced) video GRP –...

  • Page 15: Remote Control

    Controls & Displays Remote control • This remote control supports two remote control codes: DVD1 and DVD2. • When the unit is shipped from the factory, the remote control is set to DVD1. • To set the remote control to DVD2, hold down both 7 (STOP) button and 2 number button on the remote control for at least five seconds.

  • Page 16: Getting Started

    Getting Started Playing discs The basic playback controls for playing discs are covered here. Further functions are detailed in the next chapter. Note • Throughout this manual, the term ‘DVD’ means DVD- Video, DVD-Audio and DVD-R/RW. If a function is specific to a particular kind of DVD disc, it is specified.

  • Page 17: Navigating Dvd Disc Menus

    Getting Started Navigating DVD disc menus Many DVD discs contain menus. Sometimes these are displayed automatically when you start playback; others only appear when you press MENU or TOP MENU. For DVD Audio discs, use TOP MENU. Note • Some DVD-Audio discs feature a ‘Bonus Group’ . To access this group you have to input a password, which you can find on the disc’s packaging.

  • Page 18: Playing Discs Introduction

    Playing Discs Introduction • Many of the functions covered in this chapter apply to DVD discs, Video CDs, Super Audio CDs and CDs, although the exact operation of some varies slightly with the kind of disc loaded. • When playing DVD discs, if the when you try to use a particular function, either the player or the disc doesn’t allow the use of that function.
  • Page 19 Playing Discs Example: To select Title/chapter 2, press 0 and 2. To select a scene 2 hours 30 minutes 10 seconds from the beginning of the selected title, press 023010. To select Track 5, press 5. To select Track 12, press 1 and 2. To select a part 1 minute 10 seconds from the beginning of the selected track, press 1, 1, 0.

  • Page 20: Still Frame/Slow Play/Frame Advance Playback

    Playing Discs Still Frame/Slow Play/Frame Advance Playback The video images on DVD can be viewed as a still frame, played back at slow speeds and even advanced frame by frame (Forward only). Viewing a Pausing Picture Press 8 (PAUSE). To return to normal playback When the picture playback is paused, pressing 3 (PLAY) restores normal playback operation.

  • Page 21: Using The Page

    Playing Discs Using the Page Press the PAGE button on the remote control during playback. You may select the image you want by moving the cursor button (2/3). Note • Some discs don’t allow the Page function. Using the Random Play Use the random play function to play tracks in a random order.

  • Page 22: Using The Repeat Play

    Playing Discs Using the Repeat Play You can set the player to repeat individual tracks on CDs or Video CDs, Super Audio CDs, chapters or titles on DVD discs, or the whole disc. It's also possible to loop a section of a disc. You can’t use any repeat mode or looped play with a Video CD playing in PBC mode.

  • Page 23: Switching Super Audio Cd Mode

    Playing Discs • • • Switching Super Audio CD Mode • Default setting: Stereo Super Audio CD discs can be divided up into several different areas – stereo audio, Multi channel audio and, for hybrid Super Audio CDs, standard CD audio. The Super Audio CD Play setting enables you to select which area of the disc you want to play with the S.MODE button.

  • Page 24: Switching Audio Language

    Playing Discs Switching Audio Language When playing a DVD-Video disc recorded with dialog in two or more languages, you can switch audio language anytime during playback. • To display/switch the audio language, press AUDIO repeatedly. The current audio language is shown on-screen. the total number of the audio included on the disc sound recording system : 5.1ch...
  • Page 25 Playing Discs Press the DISPLAY button repeatedly during playback to display different information about the disc. The display on screen change as follows: current title current chapter elapsed time of the number number current title total number of titles total number of chapters on the disc in the current title /8ENG...

  • Page 26: Making A Program List

    Playing Discs Making a program list This feature lets you program the play order of tracks on a disc. You make a program list via display on the front panel, using the number buttons to enter tracks. Note that programmed playback is not available for DVD.
  • Page 27 Playing Discs Note • When in VCD 2.0 mode (PBC ON mode), this function does not work. • You cannot program the CD area of a Super Audio CD. Playing MP3s This player can play MP3 files on a CD-ROM disc.

  • Page 28: Video Adjust

    Playing Discs Playing JPEG 1 When a JPEG disc is loaded, directories will be shown on the screen. PLAY MODE : Folder ROOT FOLDER1 0640 FOLDER2 0641 FOLDER3 0642 FOLDER4 0643 FOLDER5 0644 0645 2 Select a directory by pressing the cursor buttons (5/∞/2/3) and press the 3 (PLAY) button or ENTER button.
  • Page 29 Playing Discs Creating your own setting 1 Press the VIDEO ADJ. button on the re- mote control. 2 Select “Setup” and then press ENTER. Video Adjustment Memory Select Standard Setup 3 Use the cursor buttons (2/3) to select a Memory (Memory 1, 2, 3) to change/store a picture quality parameter.

  • Page 30: Dvd Setup Menu

    * Factory setting Press ENTER you want to set. The menu select is set. • The DVD player support two remote control codes: DVD 1 and DVD 2. • Set the remote control code of the Remote Control to the same setting.

  • Page 31: Using The Setup Menu

    DVD Setup Menu Using the Setup Menu Before using the player, you should specify the settings to be used in accordance with the conditions under which the player is to be used. Note that once changed, the settings will be saved and remain the same even after the power has been turned off until the settings are changed again.

  • Page 32: Subtitle

    DVD Setup Menu Black dot ( ) indicates the default setting * It can be set only during STOP . Video (page 33) TV Aspect (page 33) 4:3 Pan Scan 4:3 L-Box 16:9 Wide 16:9 Squeeze TV System (page 35) NTSC MULTI Slide show Mode (page 35)

  • Page 33: Setting Up The Video Setup

    DVD Setup Menu Setting up the Video Setup VIDEO HDMI AUDIO SPEAKER SP LEVEL DISC SYSTEM TV Aspect 16:9 Wide TV System MULTI Slide show Mode Random Angle Mark Components Out Interlace Scart Video Out Video Move : Select : Enter TV Aspect •...
  • Page 34 DVD Setup Menu When viewing on a standard TV or monitor Screen format of disc 16:9 When viewing on a widescreen TV or monitor Screen format of disc 16:9 Choose this setting if you have a progressive scan-compatible TV and the aspect ratio cannot be changed. (This setting only has any effect with progressive output.)

  • Page 35: Slide Show Mode

    DVD Setup Menu TV System • Default setting: MULTI The default setting of this player is MULTI, and unless you notice that the picture is distorted when playing some discs, you should leave it set to MULTI. If you experience picture distortion with some discs, set the TV system to match your country or region’s system.
  • Page 36 DVD Setup Menu Components Out • Default setting: Interlace Compared to a standard interlaced TV picture, a progressive scan TV is capable of stable, flicker- free images. Set only if you connected the COMPONENT VIDEO OUT to a progressive scan-compatible TV or monitor.

  • Page 37: Setting Up The Hdmi Setup

    DVD Setup Menu Setting up the HDMI Setup This setting is used when the unit is con- nected by HDMI or DVI with a TV or projec- tor. This setting is enabled only when the HDMI option of the FL menu is On. (page 30) VIDEO HDMI AUDIO...

  • Page 38: Audio

    DVD Setup Menu Setup Examples Resolution Disc Recorded in Squeeze Ratio (HDMI Setting) Aspect (HDMI Setting) 480p/576p (525p/625p) 16:9 Wide 720p/1080i 16:9 Squeeze (750p/1 125i) Some monitors may use setting names that are different than those shown here. Audio • Auto: Audio is output as a bit stream when the connected device is set to Dolby Digital, DTS, or MPEG.

  • Page 39: Setting Up The Audio Setup

    DVD Setup Menu Setting up the Audio Setup VIDEO HDMI AUDIO SPEAKER SP LEVEL DISC SYSTEM Digital out Bitstream MPEG Out PCM Down Sample Audio Out 2 Channel (Stereo) Audio DRC Move : Select : Enter * You only need to make Digital Out, MPEG Out and PCM Down Sample setting if you connected this system to another component (AV amplifier, etc.) using one of the digital outputs.
  • Page 40 DVD Setup Menu PCM Down Sample* • Default setting: On If the digital input of your AV amplifier (or other connected component) is compatible with high sampling rates (96kHz), set this to Off, otherwise set it to On (96kHz audio is converted to a more compatible 48kHz).

  • Page 41: Audio Out

    Dolby Surround- compatible AV amplifier. • TruSurround If you connected your DVD player using only the stereo analog outputs, you can simulate surround sound. Note • Works with DVD-Video and VCD only.

  • Page 42: Audio Drc

    DVD Setup Menu About source audio output When the source output mode has been switched between the 5.1 Channel and 2 Channel (Stereo or Lt/Rt) mode settings using the Audio Out setting in the Setup screen Audio menu, audio output for each source will be as shown in the following table.

  • Page 43: Setting Up The Speaker Setup

    DVD Setup Menu Setting up the Speaker Setup VIDEO HDMI AUDIO SPEAKER SP LEVEL DISC SYSTEM Front L/R Size Large Center Size Large Rear LS/RS Size Large LFE (Sub Woofer) Front L/R Distance 10 ft/3.0 m Center Distance 10 ft/3.0 m 10 ft/3.0 m Rear LS/RS Distance LFE (Sub Woofer) Distance...

  • Page 44: Setting Up The Sp Level Setup

    DVD Setup Menu Setting up the SP Level Setup VIDEO HDMI AUDIO SPEAKER SP LEVEL DISC SYSTEM Test Tone Front L Level Center Level Front R Level Rear RS Level Rear LS Level LFE (Sub Woofer) Level Move : Select : Enter You may want to make this setting if you connected this player to your amplifier using the 5.1 channel analog outputs.

  • Page 45: Language Code List

    DVD Setup Menu Language code list Code Language Code 6565 Afar 7079 Faroese 6566 Abkhazian 7082 French 6570 Afrikaans 7089 Frisian 6577 Ameharic 7165 Irish 6582 Arabic 7168 Scots Gaelic 6583 Assamese 7176 Galician 6588 Aymara 7178 Guarani 6590 Azerbaijani 7185 Gujarati 6665...

  • Page 46: Setting Up The System Setup

    DVD Setup Menu Setting up the System Setup VIDEO HDMI AUDIO SPEAKER SP LEVEL DISC OSD Language Parental Rating Level Parental Password Defaults Bonus Group Input Password On 30 min Auto Power Off Move : Select : Enter OSD Language If you set the OSD Language in advance, it will come up automatically every time you watch a movie.

  • Page 47: Resetting The Player

    This will usually reset the unit for proper operation. If this does not correct the problem, please consult your nearest MARANTZ service center. • If this operation is performed, all memories in which the Program Memory (page 26) and Video Adjust’s Memory (page 28) have been...

  • Page 48: Additional Information

    Use of shaped discs is not recommended for this product. Cleaning the pickup lens The DVD player’s lens should not become dirty in normal use, but if for some reason it should malfunction due to dust or dirt, consult your nearest MARANTZ-authorized service center.

  • Page 49: Hints On Installation

    A damaged power cord can cause a fire or give you an electric shock. Check the power cord once in a while. If you find it damaged, ask your nearest MARANTZ authorized service center or your dealer for a replacement.

  • Page 50: Glossary

    Additional Information Glossary Analog audio An electrical signal that directly represents sound. Compare this to digital audio which can be an electrical signal, but is an indirect representation of sound. See also Digital audio. Aspect ratio The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the screen is almost square);...
  • Page 51 Additional Information MPEG video The video format used for Video CDs and DVDs. Video CDs uses the older MPEG-1 standard, while DVD uses the newer and much better quality MPEG-2 standard. Multi-session A CD-R/RW that contains two or more ‘sessions’ . Each session is a complete recording process, so each session is read as a complete disc.

  • Page 52: Troubleshooting

    Inspect the other components and electrical appliances being used. If the trouble cannot be rectified after checking the items below, ask your nearest MARANTZ authorized service center or your dealer to carry out repair work. The disc is ejected automatically after loading.

  • Page 53: Menu

    Additional Information Picture disturbance during playback or dark. • This player is compatible with Macro-Vision System copy guard. Some discs include a copy prevention signal, and when this type of disc is played back, stripes etc., may appear on some sections of the picture depending on the TV.

  • Page 54: Setup

    Additional Information Noticeable difference in DVD and CD volume. • DVDs and CDs use different recording methods. This is not a malfunction. Cannot play multi-channel audio. • Make sure that 5.1 Channel is selected in the Audio Out menu (pages 41-42). •...

  • Page 55: Specifications

    Additional Information Specifications General System DVD-Video, DVD-Audio, DVD-R/RW, Video CD, Super Audio CD, CD, MP3 files and JPEG files Power requirements ... USA AC120 V, 60Hz/Europe AC230 V, 50/60Hz Power consumption ... USA 28 W/Europe 29 W Weight ... 4.6 kg (10 lb 2 oz) Dimensions ...
