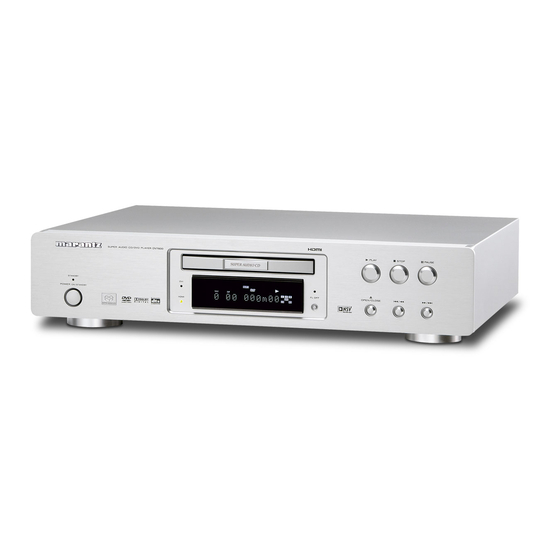

Marantz DV7600 Service Manual

Super audio cd / dvd player
Hide thumbs Also See for DV7600:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Downloaded From DvDPlayer-Manual.com Marantz Manuals

Advertisement

Table of Contents
loading

Related Manuals for Marantz DV7600

Summary of Contents for Marantz DV7600

  • Page 1 Downloaded From DvDPlayer-Manual.com Marantz Manuals...

  • Page 2: Table Of Contents

    15. EXPLODED VIEW AND PARTS LIST ................. 57 16. ELECTRICAL PARTS LIST ....................62 Please use this service manual with referring to the user guide ( D.F.U. ) without fail. DV7600 Part no. 90M25BW855010 First Issue 2005.05 Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 3 MARANTZ Parts for your equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specifi ed.

  • Page 4: Technical Specifications

    20 18 16 14 12 10 8 6 4 2 21 19 17 15 13 11 9 7 5 3 1 PIN no. Audio 2/R out G out Audio 1/L out R or C out B out Video out or Y out Status Downloaded From DvDPlayer-Manual.com Marantz Manuals...

  • Page 5: Discs Compatible With This Player

    *Some copy-controlled CDs may not conform to • Single layer or dual layer discs official CD standards. They are special discs and may not play on the DV7600. • Dolby Digital, DTS, MPEG or Linear PCM digital audio Video CD compatibility: •...

  • Page 6: Jpeg Compatibility Information

    CD-R/RW disc because of the charac- • This player can recognize about total 250 files/ teristics of the disc being used or because of folder. dirt or scratches on the disc. • Not compatible with variable bit-rate (VBR) files. Downloaded From DvDPlayer-Manual.com Marantz Manuals...

  • Page 7: Service Hints And Tools

    Max. diameter disc (58.0 mm) 4822 397 60141 Torx screwdrivers Set (straight) 4822 395 50145 Set (square) 4822 395 50132 13th order filter 4822 395 30204 DVD test disc (PAL) 4822 397 10131 DVD test disc (NTSC) ALMEDIO TDV-540 Downloaded From DvDPlayer-Manual.com Marantz Manuals...

  • Page 8: Warning And Laser Safety Instructions

    VORSICHT SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETSEN DANGER VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID DIRECT EXPOSURE TO BEAM ATTENTION RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D'OUVERTURE EXPOSITION DANGEREUSE AU FAISCEAU 030804ecm Downloaded From DvDPlayer-Manual.com Marantz Manuals...

  • Page 9: Emergency Disc Eject

    4. EMERGENCY DISC EJECT Remove the top cover of the player. Remove two screws shown in the picture above. Remove the cover of the drive unit with pressing the latches. Now you can remove the disc. Downloaded From DvDPlayer-Manual.com Marantz Manuals...

  • Page 10: Caution (Optical Pick Up And Servo Board)

    5. CAUTION (Optical pick up and Servo Board) When removing the fl at wire between Optical pick up and Servo Board, Solder the three lands pointed by arrows to short the circuit. Otherwise the LASER DIODE may be damaged by static electricity. Downloaded From DvDPlayer-Manual.com Marantz Manuals...

  • Page 11: Back End / Front End Software (Firmware) Version Check

    5. The following information is displayed on the TV screen. The firmware version is shown. BACK END version FRONT END version 6. Press the POWER ON/STANDBY button to quit 6. POWER ON/STANDBY SERVICE MODE. Downloaded From DvDPlayer-Manual.com Marantz Manuals...

  • Page 12: The Update Disc Creation Procedure

    6. Press PROGRAM button by remote control. 8. FL "LOADING" 7. The tray closes. 8. "LOADING" is displayed on the front display. "READING" 9. The update fi le name is displayed on the monitor. And TRAY next, "READING" is displayed. Downloaded From DvDPlayer-Manual.com Marantz Manuals...

  • Page 13: Updates Front End Firmware Procedure

    POWER ON/STANDBY 18 Press POWER ON/STANDBY button while depressing STOP button on the unit. "RESET OK MARANTZ (The FL display shows "RESET OK → MARANTZ → INiTiAL OK 0 00" INiTiAL OK → 0:00") 19 POWER ON/STANDBY 19 Press POWER ON/STANDBY button to turn off the unit.

  • Page 14: Wiring Diagram

    10. WIRING DIAGRAM Only N version FRONT(POWER SWITCH) PART Downloaded From DvDPlayer-Manual.com Marantz Manuals...

  • Page 15: Block Diagram

    11. BLOCK DIAGRAM HOST μ-P Downloaded From DvDPlayer-Manual.com Marantz Manuals...

  • Page 16: Schematic Diagram

    12. SCHEMATIC DIAGRAM AUDIO PWB (CX21) FTRONT PWB (CN41) SACD LOADER(JS5) SACD LOADER(JS2) SACD LOADER(JS3) MAIN PWB SACD LOADER (JS4) HOST MICOM SMPS (CN41) Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 17 MAIN PWB HDMI (JW11) SACD LOADER CONV. (JS6) HDMI (JW12) SACD LOADER (JS5) Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 18 MAIN PWB VIDEO ENCODER VIDEO ENCODER (RGB) Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 19 VIDEO DRIVE MAIN PWB S-VIDEO VIDEO DRIVE AUDIO (CN43) VIDEO AMP. VIDEO DRIVE Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 20 HDMI PWB MAIN (CX11) QW01/ MAIN (CX12) Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 21 AUDIO + FRONT PWB FROM MAIN BOARD (CN21) SMPS (CN91) Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 22 AUDIO + FRONT PWB MAIN (BN43) SACD LOADER (JS1) Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 23 HDMI PWB QT01/ Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 24 FTRONT PWB (CUP11778Z-2) POWER SW MAIN PWB (CY41) Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 25 SMPS PWB AUDIO (BN92) MAIN (BN93) Downloaded From DvDPlayer-Manual.com Marantz Manuals...

  • Page 26: Parts Location

    IC23 Q215 Q207-Q204 Q214 Q101 - Q106 IC20 IC21 IC22 IC11 IC12 Q109-Q111 IC92 IC46 IC59 IC52 IC13 IC14 IC93 IC94 Q902 Q910-Q912 Q915-Q918 IC53 IC55 IC51 IC54 IC56 IC57 Q914 Q913 Q701 IC96 IC47 Q909-Q907 IC95 Q901 Q906-Q903 Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 27 Q752 - Q749 Q748 - Q745 Q744 - Q742 IC84 IC16 Q780 Q781 Q764 - Q761 Q760 - Q757 Q755 - Q735 IC81 IC11 IC82 Q775 - Q722 Q771 - Q768 Q767 - Q765 IC85 IC17 IC18 Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 28 HDMI A HDMI B QT02 QT05 QT51 QW82 QW03 Q703 QT06 QW02 QW83 QW01 QT01 QW81 POWER SWITCH (FRONT2) A Q404 FRONT A Q403 Q402 IC42 Q401 Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 29 SMPS A IC92 Q901 IC98 - IC95 IC91 Q903 Q902 IC93 IC94 Q910 Q933 Q932 Q914 Q913 Downloaded From DvDPlayer-Manual.com Marantz Manuals...

  • Page 30: Microprocessor And Ic Data

    : ANALOG REF VOLTAGE 11.VSSA PIN.22 : ANALOG GND 12.TLI PIN.56 : NO USE 13.OSC1_IN PIN.59 : OSC(4MHZ) 14.OSC2_OUT PIN.58 : OSC(4MHZ) 15.PE2 PIN.63 : NO USE 16.PA5 PIN.50 : NO USE 17.EVD PIN.55 : NO USE Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 31 FSDATAN1 — PCM Audio Data Input One Digital-audio data input that can accept from one compressed line or 2 channels of PCM data. FSDATAN1 can be sampled with either edge of FSCLKN1, depending on how FSCLKN1 has been configured. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 32 DSP C. DSP C. SCS — Host Serial SPI Chip Select SPI mode active-low chip-select input signal. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 33 VDD[7:1] — 2.5V Supply Voltage 2.5V supply voltage. VSS — 2.5V Ground 2.5V ground. NC[5:1] — No Connect Recommended tie to ground. VDDSD[4:1] — 3.3V SDRAM/SRAM/EPROM Interface Supply 3.3V SDRAM/SRAM/EPROM supply. VSSSD — 3.3V SDRAM/SRAM/EPROM Interface Ground 3.3V ground. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 34 Multifunctional Input. Real time control (RTC) input, timing reset input, subcarrier reset input. This input pin must be tied high (V ) for the ADV7310/ADV7311 to interface over the I C port. DD_IO GND_IO Digital Input/Output Ground. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 35 Bias Cb in High Cb out 75Ω Driver 150kΩ MUTE Bias 13.5MHz Cr out Cb in GND2 Cr in High 6.75MHz MUTE2 Cr out 75Ω *: Don't care Driver 150kΩ Bias 13.5MHz Cr in GND2 Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 36 IC22 : NJM2584M (VIDEO SW.) IC24 : NJM2580M (VIDEO AMP.) Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 37 AA7/G13 the “Grid register load” instruction. AA8/G12 Pull-down resistors are built in. Grid outputs G1 to G11 Pull-down resistors are built in. LSI testing TEST This pin must be connected to V during normal operation. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 38 IC51 : CD0040AF (I/P SCAN CONVER.) MPU Interface Configuration Registers Timing Generator Video Processing Engine Digital Out SDRAM SDRAM Interface SDRAM IC53-IC57 : 74AHC541 FUNCTION TABLE (each buffer/driver) INPUTS OUTPUT To Seven Other Channels Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 39 IC79 - IC81 : CS4398 (DAC WITH VOL. CONT.) Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 40 8bit C BUS Buffer Controller Shift Register Pin No. Pin name Type Function A0~A2 (pull-up) Address input 9~12 Open Dorain output Q0~Q7 Not connected Serial clock input I / O Serial data input/output Power supply Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 41 • Monitor detection supported through hot plug and receiver detection Documentation Power Management • User’s Guide • 3.3V core provides low-power • Data Sheets operation • Application Notes • Flexible power-down modes • Standby mode consumes less than 10mW Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 42 AVD2 112 39 DI7 N.C. 113 38 DI6 PH2 114 37 DI5 PLLEN 115 36 DI4 OVDDE4 116 35 DI3 DCLK 117 34 DI2 OVSS1 118 33 DI1 DCLKP 119 32 DI0 VDDI 120 31 VSS Downloaded From DvDPlayer-Manual.com Marantz Manuals...

  • Page 43: Exploded View And Parts List

    MECHA LOADER 35 MECHA TRAVERSE F/K/L/U VERSION N VERSION DVD + SACD PWB MODULE S VERSION MECHA TRAVERSE L,K,S VER. SMPS PWB HDMI PWB MAIN PWB N VER. POWER SWITCH PWB AUDIO PWB FRONT PWB Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 44 00M25BW063010 00M25BW063010 ESCUTCHEON ORNAMENT, DOOR CGR1A365MBC13 14 /N1S 00M25BW063110 00M25BW063110 ESCUTCHEON ORNAMENT, DOOR CGR1A365MBC22 14 /S1G 00M25BW063010 ESCUTCHEON ORNAMENT, DOOR CGR1A365MBC13 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 45 00M25BW122010 00M25BW122010 STICKER TAPE, WINDOW CHP1A063 BUFFER SMPS, CUSHION KHG1A321 PLATE PLATE, PWB EARTH CMC1A272 PLATE PLATE, WINDOW EARTH CMC1A273 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 46 CORD, PIN CJS4M009X 90M-ZD000460R CONN. CORD CINCH CABLE 1M (YELLOW) CJS4M033Z 90M-ZD000450R CONN. CORD CINCH CORD 1M GOLD (W/R) CJS4N016Z NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...

  • Page 47: Electrical Parts List

    Capacity value shock hazard. 0.001 µF (1000 pF) ..102 0.1 µF ..104 0.0018 µF ......182 0.56 µF ..564 0.01 µF ......103 1 µF ..105 0.015 µF ......153 040623ecm Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 48 POLYPROPYLENE FILM (APS) HCMP2A221JT AUDIO C724 00MDD95330300 CER. CAP. 33PF 50V JA 1608SIZE HCUS1H330JA AUDIO C725 90M-OA000250R ELECT. CAP. 220UF/16V(AHS CAP) HCEA1CAHS221T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 49 DAN202K BVDDAN202K AUDIO D712 00MHZ20002210 00MHZ20002210 CHIP DIODE DAN202K BVDDAN202K AUDIO D713 00MHZ20007210 00MHZ20007210 CHIP DIODE IMN10 (SMD6 PACKAGE) BVDIMN10 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 50 FET (N-CH) AUDIO HVT2SK369BLT AUDIO Q735 90M-HX800060R 90M-HX800060R CHIP TRS. KTC4379Y HVTKTC4379Y AUDIO Q736 00MHX600081A0 00MHX600081A0 CHIP TRS. KTA1517SGR HVTKTA1517SGR NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 51 00MNN05103610 CHIP RES. 10 KOHM CRJ10DJ103T AUDIO R181 00MNN05103610 CHIP RES. 10 KOHM CRJ10DJ103T AUDIO R182 00MNN05103610 CHIP RES. 10 KOHM CRJ10DJ103T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 52 00MNN05330610 CHIP RES. 33 OHM CRJ10DJ330T AUDIO R324 00MNN05330610 CHIP RES. 33 OHM CRJ10DJ330T AUDIO R325 00MNN05330610 CHIP RES. 33 OHM CRJ10DJ330T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 53 AUDIO R726 00MNN05151610 CHIP RES. 150 OHM 1/10W J CRJ10DJ151T AUDIO R727 00MNN05151610 CHIP RES. 150 OHM 1/10W J CRJ10DJ151T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 54 00MNN05224610 CHIP RES. 220 KOHM CRJ10DJ224T AUDIO R793 00MNN05101610 CHIP RES. 100 OHM CRJ10DJ101T AUDIO R794 00MNN05222610 CHIP RES. 2.2 KOHM CRJ10DJ222T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 55 00MNN05224610 CHIP RES. 220 KOHM CRJ10DJ224T AUDIO R860 00MNN05101610 CHIP RES. 100 OHM CRJ10DJ101T AUDIO R861 00MNN05222610 CHIP RES. 2.2 KOHM CRJ10DJ222T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 56 90M-HI101040R L.E.D. SLR342VCTB7T089 HVD342VCTB7T089 FRONT D402 90M-HI101110R 90M-HI101110R L.E.D. L.E.D , GREEN HVD342MCTB7T089 FRONT D403 90M-HI101040R 90M-HI101040R L.E.D. SLR342VCTB7T089 HVD342VCTB7T089 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 57 00MDD95101300 CER. CAP. 100PF 50V JA 1608SIZE HCUS1H101JA HDMI CT52 00MDK96104300 CER. CAP. 0.1UF HCUS1H104ZF HDMI CT54 90M-DK900050R CER. CAP. HCUS1E105ZF NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 58 REGULATOR 3.3V(SOT-23-5) HVIRN5RZ33BA HDMI QW83 00MHC10228210 00MHC10228210 IC REGULATOR 2.5V (TO252-5) BVIBA25BC0WFPE2 HDMI RT01 00MNN05000610 CHIP RES. 0 OHM CRJ10DJ0R0T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 59 WIRE ASS'Y CWB1C907170GN MAIN BN13 CORD WIRE ASS'Y CWZDV7500BN13 MAIN BN14 CORD WIRE ASS'Y CWZDV7500BN14 MAIN BN16 CORD WIRE ASS'Y CWZDV7500BN16 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 60 0.1UF HCUS1H104ZF MAIN C211 00MOA10701620 ELECT. CAP. 100UF 16V ZF CCEA1CH101T MAIN C212 00MOA10701620 ELECT. CAP. 100UF 16V ZF CCEA1CH101T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 61 330PF 50V J HCUS1H331JA MAIN C281 00MDD95331300 CER. CAP. 330PF 50V J HCUS1H331JA MAIN C282 00MDK96104300 CER. CAP. 0.1UF HCUS1H104ZF NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 62 00MDK96104300 CER. CAP. 0.1UF HCUS1H104ZF MAIN C558 00MOA10701620 ELECT. CAP. 100UF 16V ZF CCEA1CH101T MAIN C559 00MDK96104300 CER. CAP. 0.1UF HCUS1H104ZF NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 63 MAIN IC47 90M-HC109360R 90M-HC109360R IC HI-SPEED 2 INPUT AND GATE HVIKIC7SH08FU MAIN IC51 00MHC10019660 00MHC10019660 IC I/P CONVERTER (LQFP-144) HVICD0040AF NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 64 2012(0805)600E, 1.5A,POWER HLZ9R001Z MAIN L508 90M-FC900380R 90M-FC900380R FERRITE CORE 2012(0805)600E, 1.5A,POWER HLZ9R001Z MAIN L509 90M-FC900380R 90M-FC900380R FERRITE CORE 2012(0805)600E, 1.5A,POWER HLZ9R001Z NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 65 90M-HX600060R CHIP TRS. KRA302 HVTKRA302 MAIN Q905 90M-HX600060R 90M-HX600060R CHIP TRS. KRA302 HVTKRA302 MAIN Q906 90M-HT800110R 90M-HT800110R TRS. KTC4075GR HVTKTC4075GR NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 66 R152 /U1B 00MNN05221610 CHIP RES. 220 OHM CRJ10DJ221T MAIN R153 /F N 00MNN05470610 CHIP RES. 47 OHM 1/10W J CRJ10DJ470T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 67 00MNN05330610 CHIP RES. 33 OHM CRJ10DJ330T MAIN R221 00MNN05390610 CHIP RES. 39 OHM CRJ10DJ390T MAIN R222 00MNN05330610 CHIP RES. 33 OHM CRJ10DJ330T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 68 00MNN05103610 CHIP RES. 10 KOHM CRJ10DJ103T MAIN R323 00MNN05121610 CHIP RES. 120 OHM CRJ10DJ121T MAIN R324 00MNN05121610 CHIP RES. 120 OHM CRJ10DJ121T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 69 MAIN R917 00MNN05220610 CHIP RES. 22 OHM 1/10W J CRJ10DJ220T MAIN R918 00MNN05220610 CHIP RES. 22 OHM 1/10W J CRJ10DJ220T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 70 90M-BW000390R 90M-BW000390R RES. COMPO. RES, ARRAY, 100R (1608) CRJ104DJ101T MAIN RN56 90M-BW000390R 90M-BW000390R RES. COMPO. RES, ARRAY, 100R (1608) CRJ104DJ101T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 71 D922 90M-HD201950R DIODE 11EQ06T SCHOTTKY (60V/1A) HVD11EQ06T SMPS D923 90M-HD201960R DIODE 1N4937T RECTIFIERS HVD1N4937T SMPS D924 90M-HD201990R DIODE 31DQ06 HVD31DQ06H NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 72 22K OHM 1/5W J CRD20TJ223T SMPS R913 RES. 4.7 OHM 1/5W J CRD20TJ4R7T SMPS R914 RES. 1K OHM 1/5W J CRD20TJ102T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
  • Page 73 10 KOHM CRJ10DJ103T P-SW R416 00MNN05331610 CHIP RES. 330 OHM/1608/5% 00200-0117 CRJ10DJ331T P-SW S401 90M-SP001210R 90M-SP001210R PUSH SW SKHV10910G TACT CST1A012ZT NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Downloaded From DvDPlayer-Manual.com Marantz Manuals...
