Summary of Contents for Olympia Protect 9XXX Series

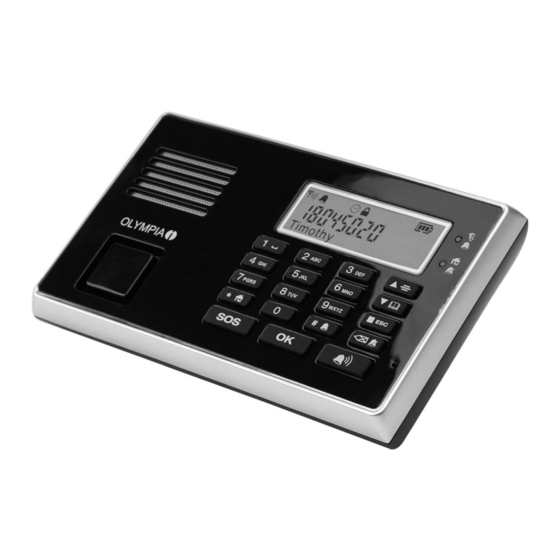

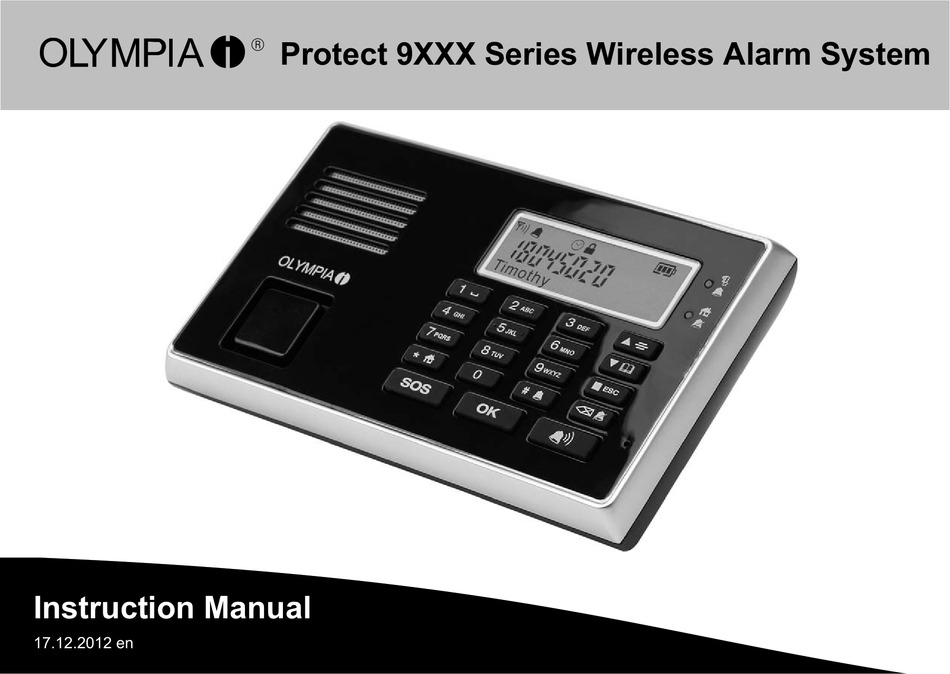

- Page 1 Protect 9XXX Series Wireless Alarm System Instruction Manual 17.12.2012 en...
- Page 2 Olympia Business Systems Vertriebs GmbH Zum Kraftwerk 1 45527 Hattingen...
-
Page 3: Table Of Contents
Contents Introduction ........Operating Elements and Indicators . - Page 4 Contents Switching the Monitoring Functions On/Off ..Information on Disposal ......Alarm Mode .
-
Page 5: Introduction
Introduction Introduction User Information The alarm system is a passive security product and has been conceived Warranty as a deterrent. Additional measures are necessary to prevent and hinder burglary and theft. You can obtain all the necessary information on this Dear Customer, from your local police station. -
Page 6: Product Features
Handsfree function on the base unit in the case of an SOS. system into operation! In such cases, contact your sales outlet, with your Telephone (silent) alarm/siren alarm can be set individually or com purchase receipt to hand, or the OLYMPIA service centre. bined. NOTE:... -
Page 7: Safety Information
Safety Information Safety Information Important Safety Information Please observe the following safety information to ensure the wireless Significance of the Symbols alarm system can be used safely and reliably: WARNING: Indicates potentially dangerous situations If you are uncertain or have any doubts about the functioning which could lead to fatal or severe personal method of the equipment during assembly and installation, contact injury if the information is ignored. -
Page 8: Gsm Telephone Dialling Unit
GSM Telephone Dialling Unit GSM Telephone Dialling Unit Unlocking the SIM Card SIM cards are normally locked against unauthorised use by means of a Function of the GSM Telephone Dialling Unit 4-digit PIN. The GSM telephone dialling unit (dual band, 900/1800 MHz) establishes a When the SIM card is used for the first time, it must be unlocked. -
Page 9: Reminder Function
GSM Telephone Dialling Unit Reminder Function Preventing the SIM Card Being Locked Most prepaid cards must be used at a charge within a certain period of Check SIM $ appears in the display on 31st March, 30th June, time, otherwise they are blocked. You can use the function requesting the 30th September and 31st December. -
Page 10: Installation
Installation Installation Examples of sources of interference Metallic objects Source of electrical interference Information on Selecting the Installation Location Radiators Loudspeaker systems The base unit should be installed or positioned in a central location Mirrors Motors (e.g. in the hallway of an apartment/house) in relation to the area to be monitored in order to keep all transmission paths as short as Concrete steel Unshielded electrical apparatus... -
Page 11: Preparing And Connecting The Base Unit
Installation Preparing and Connecting the Base Unit 6. Insert three AAA alkaline batteries in the battery compartment (pay attention to correct polarity). Power socket 7. If the alarm system is to be operated without the external antenna (option), the antenna switch must be switched to the left and set to Int. -
Page 12: Testing The Gsm Telephone Dialling Unit
Installation Testing the GSM Telephone Dialling Unit Positioning the Base Unit It is possible to setup the device in a user-friendly, inclined position on a NOTE: Test the GSM telephone dialling unit to ensure table or desk. To do this, insert the two legs (1) supplied in the recesses for that the alarm function is activated via the mo... -
Page 13: Wall Installation
Installation Wall Installation After having found a suitable location for the base unit, you can begin with the installation. WARNING: Risk of fatal injury through electric shock or gas explosion. Pay attention that you do not damage electric cables or gas pipes. NOTE: Also pay attention to water pipes. -
Page 14: Operating Elements And Indicators
Operating Elements and Indicators Operating Elements and Indicators Function Assignment to Buttons, Base Unit The base unit is equipped with an SOS (emergency call) button for emer gency situations and a Panic button in the event of a direct threat. The wireless remote control unit is provided with a button which can be con... -
Page 15: Display Icons
Operating Elements and Indicators Display Icons At Home mode: The system is activated; on burglary: the acoustic alarm signal is issued 0-9, *, # Digit keys: On pressing the # button >3 sec., a 2 sec. dialling pause is activated In Text mode: Switch between upper and lower case à... -
Page 16: Overview Of Leds
Operating Elements and Indicators Function Assignment to Buttons, Remote Control Memory location- Indicates the memory location of the display. phone number. Save icon Battery indicator Battery capacity of base unit is low. Overview of LEDs With power supply Without power supply Top LED Bottom LED Top LED... -
Page 17: Menu Structure
Menu Structure Menu Structure Review Open Sensor01 Voice Record Remote:1 Voice Record Register Search… Open Sensor01 Voice Record Remote:1 Voice Record Trigger Delay Delay: 0-240S Duration Trigger Tone Arming Delay Delay: 0-240S Flood & Smoke Standard Activate Remote Key Remote: SOS Remote: PANIC Entry Code 1234 OPERATING... - Page 18 Menu Structure Key Tone Key Tone-On Key Tone-Off Contrast Contrast-1-5 Language Deutsch Español Nederlands Dansk Português English Français Date/Time 01-01-2010 00:00 Alarm period Time:1-10Min Check SIM $ SIM Service # OPERATING INSTRUCTIONS Page...
-
Page 19: Configuration
Configuration Configuration Selecting the Language There is a range of languages available for selection: General Information 1. Enter the device-specific Entry Code. Confirm it by pressing O. 2. The menu is opened by pressing the Menu button A briefly. NOTE: Before beginning to operate the base unit, de... -
Page 20: Setting The Date/Time
Configuration 3. Select the Review menu option. Confirm it by pressing O. Setting the Date/Time 4. Select the respective sensor required by pressing the A and 1. Enter the device-specific Entry Code. Confirm it by pressing O. B buttons. Confirm it by pressing O. 2. -
Page 21: Activating The Gsm Internal Telephone Dialling Unit With Ogm Function
Configuration Memory locations 0-9 (buttons 0 to 9) are available to enter up Activating the GSM Internal Telephone Dialling to 10 phone numbers. Each phone number can be composed of up to 24 Unit with OGM Function characters/digits. In addition, a name with up to 13 characters/letters can NOTE: A SIM card must be installed in order to use be assigned to each phone number. -
Page 22: Saving An Sos (Emergency Call) Number
Configuration After having entered phone numbers, ensure that they are correct in re Saving an SOS (Emergency Call) Number spect of the alarm calls. You can do this by triggering a silent alarm. The You can save an SOS (emergency call) number which is subsequently telephone numbers you have entered are dialled in succession in the pro... -
Page 23: Trigger Delay
Configuration Trigger Delay Arming Delay The alarm is triggered after a delay so that if someone enters through the You can set an activation delay between 0 and 240 seconds. The alarm main door, they can disarm the alarm system before the acoustic alarm system is armed after this period has expired. -
Page 24: Alarm Period
Configuration Alarm Period Key Tone On/Off The base unit is equipped with an integrated siren. The duration of the It is possible to switch the key tone feature for the base unit on and off: acoustic alarm can be selected between a minimum of 1 minute to a max 1. -
Page 25: Remote Control
Configuration Remote Control Flood and Smoke Detectors You can set-up the base unit so that flood and smoke detectors trigger an alarm when the base unit is disarmed. 1. Enter the device-specific Entry Code. Confirm it by pressing O. 2. The menu is opened by pressing the Menu button A briefly. 3. -
Page 26: Overview Of Monitoring Functions
Monitoring Functions Overview of Monitoring Functions Switching the Monitoring Functions On/Off NOTE: Before switching any functions on, inform all Monitoring Acoustic Internal GSM telephone the other people living in the residence regard function alarm signal dialling unit activated. ing the location and method of operation of the wireless alarm system. -
Page 27: Alarm Mode
Monitoring Functions You can define the required type of alarm as follows using either the base At Home Mode unit or the remote control unit supplied: NOTE: During the night, when you are asleep, you NOTE: If an outdoor siren is registered on the base should activate At Home mode. -
Page 28: Disarmed Mode
Monitoring Functions Disarmed Mode Emergency Call (SOS) You can trigger the SOS (emergency call) function by pressing the S NOTE: When alarm system is disarmed, you can move freely within the living quarters without trigger button on the base unit or the button on the remote control unit, de... -
Page 29: Remote Access Via Telephone
Remote Access Via Telephone Remote Access Via Telephone Function The wireless alarm system can be operated by remote access using a Activate the handsfree function telephone. You can use a telephone to activate or deactivate the alarm Activate the screening function (in the system and switch the handsfree and screening functions on. -
Page 30: Resetting The Factory Settings (Reset)
Resetting the Factory Settings (RESET) Resetting the Factory Settings (RESET) NOTE: Please note that when carrying out a RESET, all the user settings are deleted. The registra tion of the sensors is retained! After a RESET has been executed, the 4-digit Entry Code is 1-2-3-4! Proceed as follows to reset the factory settings on the wireless alarm sys... -
Page 31: Registering Sensors
You can rename the sensor, if necessary. Confirm it by www.olympia-vertrieb.de pressing O. 6. Voice Record appears in the display. Press C to retain the standard message or press O to record an individual message. -
Page 32: Changing The Batteries
Changing the Batteries Changing the Batteries Remote Control 1. Use a precision screwdriver to loosen the screw in the battery com If the battery charge of the sensors is low or practically empty, one of the partment on the underside of the remote control unit. following status messages appear in the display: 2. -
Page 33: Regular Maintenance And Servicing
Regular Maintenance and Servicing Regular Maintenance and Servicing Base Unit 1. Disconnect the base unit from the power outlet before cleaning it! 2. Clean the surface of the housing with a soft, lint-free cloth. Never use any chemicals or scouring agents. NOTE: Never immerse the equipment in water! OPERATING... -
Page 34: Information On Disposal
Information on Disposal Information on Disposal The implementation of European law in national laws and direct ives obliges you to dispose of consumable goods appropriately. This serves to protect both persons and the environment. The adjacent symbol indicates that electrical and electronic appar atus and batteries no longer required must be disposed of sep... -
Page 35: Technical Data
Technical Data Technical Data Remote Control Weight: ....24 g The wireless alarm systems in the Protect 9XXX-Series operate within the Dimensions (WxHxD): ..(40 x 60 x 14.5) mm frequency band specially reserved for security technology in the 868 MHz frequency range. -
Page 36: Ce Mark
CE-Mark CE Mark The device fulfils the requirements stipulated in the EU Directive: 1999/5/EC (R&TTE) The CE Mark on the device confirms conformity. OPERATING INSTRUCTIONS Page... - Page 37 Empty Page...
- Page 38 Empty Page 6HLWH...
- Page 39 Empty Page...
- Page 40 Keep this operating manual in a safe place away from the wireless alarm system! Please note that the Copyright of this operating instruction manual is by Olympia and, therefore, must not be further copied, published or sold in any form.
