Olympia Protect 9 Series Operating Manual

Wireless alarm system

Advertisement

Quick Links

Protect 9xxx Wireless Alarm System
Operating Manual
01.2016 en
rev.03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Protect 9 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Olympia Protect 9 Series

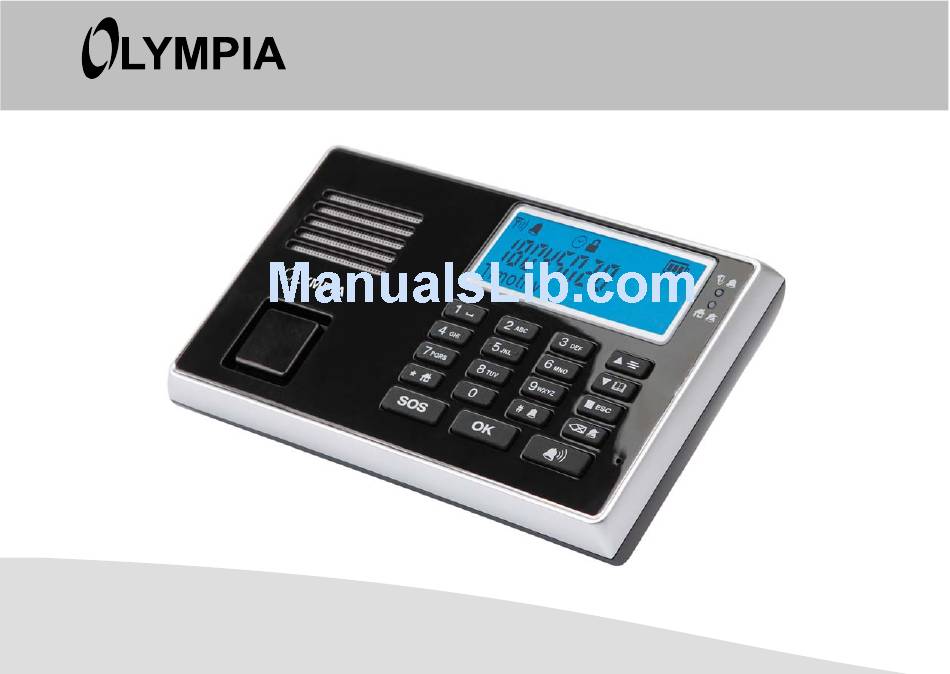

  • Page 1 Protect 9xxx Wireless Alarm System Operating Manual 01.2016 en rev.03...
  • Page 2 Olympia Business Systems Vertriebs GmbH Zum Kraftwerk 1 45527 Hattingen...
  • Page 3: Table Of Contents

    Introduction ..... . Configuration ....Guarantee .
  • Page 4 Monitoring Functions ... . . Appendix ......Switching the Monitoring Functions On/Off System Extension .
  • Page 5: Introduction

    Introduction Introduction Exemption From Liability We cannot guarantee that the information which relates to Guarantee the technical properties of the product or to the product it­ self contained in this document is correct. The product and Dear Customer, its accessories described in this document are subject to we are pleased that you have chosen this equipment.
  • Page 6: Intended Use

    Introduction Intended Use Product Features The wireless alarm systems from the Protect 9XXX Series • Wireless alarm system with emergency call, panic, enable you to monitor rooms and buildings as long as the screening and handsfree functions. local conditions are such that they enable a reliable trans­ •...
  • Page 7: Scope Of Delivery

    Warnings Scope of Delivery Warnings Please check the contents of the package carefully. If any­ The following warning information applies to the entire doc­ thing is missing or has been damaged during transport, DO ument. Read and observe all the warning information to NOT put the wireless alarm system into operation! protect yourself and the environment from any harm.
  • Page 8 Warnings The following warning information indicates potentially dan­ WARNING! gerous situations which could lead to property damage if • Risks to health through batteries! the information is ignored. Keep batteries out of reach of children. Do not swallow batteries. If any type of battery is swallowed, seek medi­ ATTENTION! cal attention immediately.
  • Page 9: Installation

    Installation Installation Antenna switch DC IN LOCK Ext. Ant RESET microUSB port RESET SIM card...
  • Page 10: Information On Selecting The Installation Location

    Installation Information on Selecting the Installation Location Preparing and Connecting the Base Unit Do not place the base unit on or in the direct vicinity of 1. Use a screwdriver to loosen the screw in the battery and large metallic objects or electrical sources of interference connection socket compartment on the underside of the which could impair the function of the base unit.
  • Page 11: Positioning The Base Unit

    Installation The use of batteries serves as a safeguard against fail­ Installing the Base Unit on a Wall ure. In the case of normal power supply using the power After having found a suitable location for the base unit, you adapter plug, the batteries are not affected.
  • Page 12: Operating Elements And Indicators

    Operating Elements and Indicators Operating Elements and Indicators Keys on the Base Unit The base unit is equipped with an SOS (emergency call) button S for use in emergency situations and a Panic button Q for use in the event of a direct threat. The remote control unit is provided with a button which can be configured either as an Emergency Call or Panic button (refer to "Configuring the Remote Control").
  • Page 13 Operating Elements and Indicators Open the save mode for phone numbers; à á â Ç navigate in the menu; reduce the loudspeak­ 0, 1 Special characters er volume in Handsfree mode A B C 2 Ä Æ Å à á â Ç Disarmed mode: the system is deactivated;...
  • Page 14: Display Icons

    Operating Elements and Indicators Display Icons Alarm mode When the alarm system is triggered, an acoustic alarm is issued; GSM dialling unit is active. At Home mode When the alarm system is triggered, an acoustic alarm is issued. Emergency call GSM dialling unit is active.
  • Page 15: Overview Of Leds

    Operating Elements and Indicators Overview of LEDs Buttons on the Remote Control Operation via Operation via power adapter battery Bottom Bottom Silent mode Flashes On Flashes Alarm mode Flashes Off Flashes Off At Home mode Disarmed mode Function Emergency call or panic function (can be configured on the base unit) Alarm mode: When the alarm system is trig­...
  • Page 16: Menu Structure

    Menu Structure Menu Structure Review Open Sensor01 Voice Record (Open the menu) Remote:1 Voice Record ê Register Search… Open Sensor01 Voice Record Remote:1 Voice Record ê Trigger Delay Duration Delay: 0-240S Trigger Tone ê Arming Delay Delay: 0-240S ê Flood & Smoke Standard Activate ê...
  • Page 17 Menu Structure ê Key Tone Key Tone-On Key Tone-Off ê KeyLock Delay 20S - 40S ê Contrast Contrast-1-5 ê Language ** Deutsch Deutsch Deutsch Deutsch Deutsch English English English English English Français Polski Türkçe Polski česky Nederlands Русский česky Slovenski Slovenski Español Română...
  • Page 18: Configuration

    Configuration Configuration Date and Time 1. Enter your PIN. Confirm it by pressing O. Navigating Through the Menu 2. Press A to open the menu. Press A to open the menu. 3. Select the Date/Time menu option. Confirm it by pressing O. Press A and B to navigate in the menu.
  • Page 19: Key Lock

    Configuration For reasons of security, we recommend that you Time for Automatic Key Lock change the predefined PIN and enter your own personal You can define the period of time which should elapse be­ PIN. fore the key lock is automatically activated when you do not 1.
  • Page 20: Gsm Dialling Unit

    Configuration 3. Select the Review menu option. GSM Dialling Unit Confirm it by pressing O. Function of the GSM Dialling Unit 4. Select the respective sensor required by pressing the The GSM dialling unit (quad band) establishes a connection A and B buttons. between the Protect 9XXX Series alarm system and the Confirm it by pressing O.
  • Page 21 Configuration Unlocking the SIM Card (Entering the SIM PIN) Checking the SIM Card SIM cards are normally protected against unauthorised ac­ Check SIM $ appears in the display on 1st January, 1st cess by a 4-digit PIN. When the SIM card is used for the April, 1st July and 1st October.
  • Page 22 Configuration 5. Enter the number of your conventional phone or mobile Saving Phone Numbers phone. Confirm it by pressing O. The number is Save the phone numbers of your contact person in the dialled. memory locations 0 - 9 (assigned to keys 0 to 6.
  • Page 23 Configuration Do not save any public emergency call numbers! The display lights up yellow and indicates which sensor Unjustified requests for police, fire and rescue services has been triggered. The GSM dialling unit is activated. are liable for costs! The subscriber called lifts the receiver and hears the 1.
  • Page 24: Trigger Delay

    Configuration Trigger Delay Arming Delay You can define that the alarm to be triggered should be ac­ You can set the alarm system to be armed following a de­ tually sounded after a delay. fined delay. This provides you with sufficient time to enter your apart­ This provides you with sufficient time to leave your apart­...
  • Page 25: Key Tone

    Configuration Observe any locally applicable regulations regarding Remote Control limitation of alarm times from burglar alarms. 4. Use the A and B buttons to set the required alarm time. Confirm it by pressing O. Key Tone It is possible to switch the key tone feature for the base unit on and off.
  • Page 26: Water Leak (Flood) And Smoke Detectors

    Configuration The s button on the remote control can be configured as Standard Activate an Emergency Call or Panic button via the base unit. Phone Alarm Phone Alarm 1. Enter your PIN. Confirm it by pressing O. call signal call signal 2.
  • Page 27: Deregistering Sensors

    Configuration More detailed information is provided in the operating Resetting the Factory Settings (RESET) manual supplied with the respective sensor. Please note that on restoring the factory settings, all the 5. Open Sensor01 or SmokeSensor01 appears in the user settings will be deleted. The registration of the sen­ display, for example.
  • Page 28: Monitoring Functions

    Monitoring Functions Monitoring Functions Switching the Monitoring Functions On/Off Before switching any functions on, inform all the other people living in the residence regarding the location and Monitoring Acoustic GSM dialling unit method of operation of the wireless alarm system. functions alarm signal active...
  • Page 29: Alarm Mode

    Monitoring Functions depends on the type of alarm set and the setting de­ Base Unit fined in the Flood & Smoke menu option. 1. Enter your PIN. Confirm it by pressing O. If an outdoor siren is registered on the base unit, the 2.
  • Page 30: Silent Mode

    Monitoring Functions Silent Mode Base Unit When you leave your apartment or house, you can activate 1. Enter your PIN. Confirm it by pressing O. . Silent mode instead of Alarm mode. Before doing so, check that all the doors and windows provided with a door/window Remote Control contact are closed.
  • Page 31: Emergency Call (Sos)

    Monitoring Functions Emergency Call (SOS) Remote Access Via Telephone You can trigger the SOS (emergency call) function by The wireless alarm system can be operated by remote ac­ pressing the S button on the base unit or the s but­ cess using a telephone.
  • Page 32: Appendix

    1. bAtt Lo appears in the display. The sensor affected is displayed. www.olympia-vertrieb.de If you activate the alarm system, 5 successive, short acoustic signals are issued. Change the batteries! A connection between the sensor...
  • Page 33 Appendix Remote Control a power failure, the base unit is battery powered until the power supply is restored. ATTENTION! The u icon in the display indicates that the batteries in the • Property damage through the use of inappropriate bat­ base unit are almost fully discharged.
  • Page 34: Regular Maintenance And Service

    Regular Maintenance and Service Regular Maintenance and Service Information on Disposal The adjacent symbol indicates that electrical and Disconnect the base unit from the power outlet before electronic apparatus and batteries no longer cleaning it! required must be disposed of separate from do­ Clean the surface of the housing with a soft, lint-free mestic waste in accordance with legal directives.
  • Page 35: Technical Data

    Technical Data Technical Data Main base The wireless alarm systems in the Protect 9XXX Series Weight 228 g (without batteries) operate within the frequency band specially reserved for Dimensions 172 x 105 x 31 [mm] security technology in the 868 MHz frequency range. Frequency 868 MHz This ensures that interference to the alarm system through...
  • Page 36: Technical Modifications

    GERMANY cording to national requirements. CE Mark Olympia Business Systems Vertriebs GmbH, Zum Kraftwerk 1, 45527 Hattingen hereby declares that this device fulfils the requirements and com­ plies with the regulations stipulated in the Direc­...
  • Page 40 Keep this operating manual in a safe place away from the wireless alarm system! Please note that the Copyright of this operating instruction manual is by Olympia and, therefore, must not be further copied, published or sold in any form. The information contained in the operating instruction manual is only intended for personal use.
