Summary of Contents for Zodiac MX6

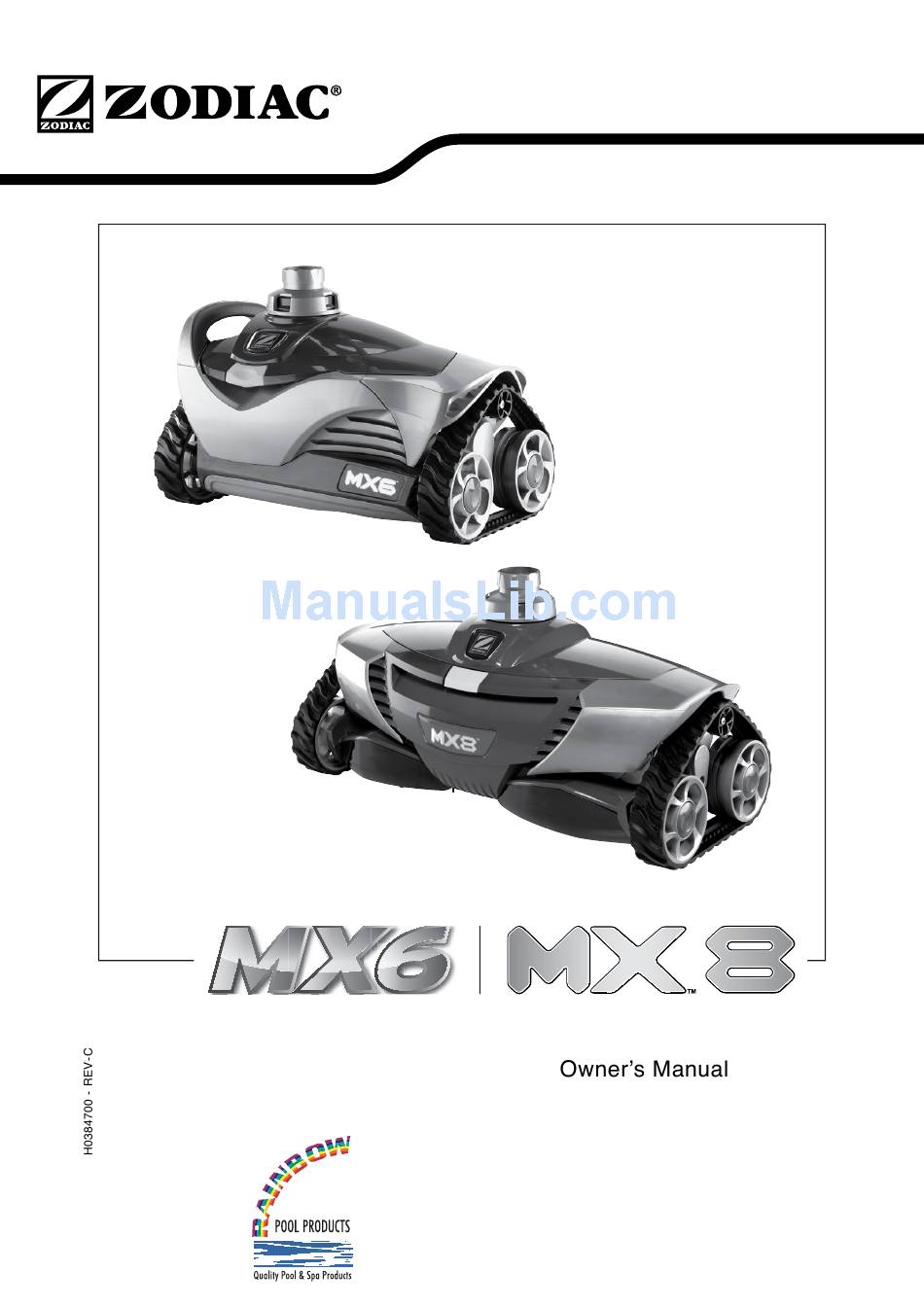

- Page 1 Rainbow Pool Products PO Box 2388, Mansfield Qld 4122 Telephone STD 61-7-3849 5385 Facsimile STD 61-7-3849 5384 Email: info@rainbowpoolproducts.com.au Web: www.rainbowpoolproducts.com.au...
- Page 2 Zodiac Group Australia Pty Ltd (Zodiac) will not be responsible for liner damage caused by a cleaner which is in disrepair, pattern removal from a vinyl liner, or a cleaner used in a pool having an aged or deteriorated liner.
- Page 3 ® replacement parts. Non-Zodiac parts are not made to our specifications. They may have an adverse effect on the operation of your Zodiac MX6/MX8 or may even damage it. Zodiac MX6/MX8 Complete Cleaner 5. Twist-Lock Hose Section MX8 (11) MX6 (9) 1.
-
Page 4: Installation
Installation 1. Before You Start For best Zodiac pool cleaner performance, you will need to follow the following steps of the installation. 1.1 Following manufacturer’s instructions, clean the filter and empty the skimmer and the pump strainer basket. 1.2 If your main drain is connected to the skimmer box, block off access. - Page 5 Installation 4th case: with any other type of Skimmer Box and Vac plate Simply insert the AD Flow valve directly into the AD Flow valve universal weir cuff which will then fit into the top of the Vac plate. Universal Weir Cuff Note: The AD Flow valve has three settings: High (3), Medium (2) and Low (1).
-
Page 6: Check Cleaner Flow
4. Connecting Cleaner head to Flow Regulator Valve 4.1 Remove orange sticker off leader hose 4.2 Attach the Flow Regulator Valve to the leader hose and connect MX6/MX8 cleaner head to the Flow Regulator Valve. 5. Re-Connecting to skimmer box 5.1 Temporarily disconnect hose from skimmer, turn on pool filter pump... -
Page 7: Care And Maintenance
During each coverage pattern cycle, the MX8 cleaner travels both forward and backwards, and pivots to the right and left, where the MX6 cleaner only moves forward and pivots to the left. The power scrubbers underneath the cleaner create down force for climbing and stability as well as directing debris into the cleaner mouth. - Page 8 If you are experiencing high levels of larger debris that clog the throat of the cleaner simply remove the inlet throat adaptor to enhance the size of the Zodiac MX8’s throat inlet, thus allowing larger debris to be picked up by the cleaner.
-
Page 9: Troubleshooting
Troubleshooting If you experience a problem with your Zodiac MX6/MX8, please follow the troubleshooting steps below to restore performance. If further assistance is required, contact Zodiac ® Technical Support Department at 1800 688 552. Please have your serial number and date of purchase available when you call. -
Page 10: Zodiac Australia - Express Warranty And Guarantees
Purchasers should register their Products as soon as conveniently possible after purchase by completing a Product that the Zodiac MX6/MX8 will be free from defects in materials Warranty Registration Form and posting it to Zodiac Australia and workmanship for the period of two (2) years from date of at the address shown on the Form or by registering online at purchase.
