7. Move the elevator stick all the way up and down and check the tilt direction of the swash plate. When you move
the stick forwards, the swash plate must tilt forwards (in the direction of flight) and vice versa.

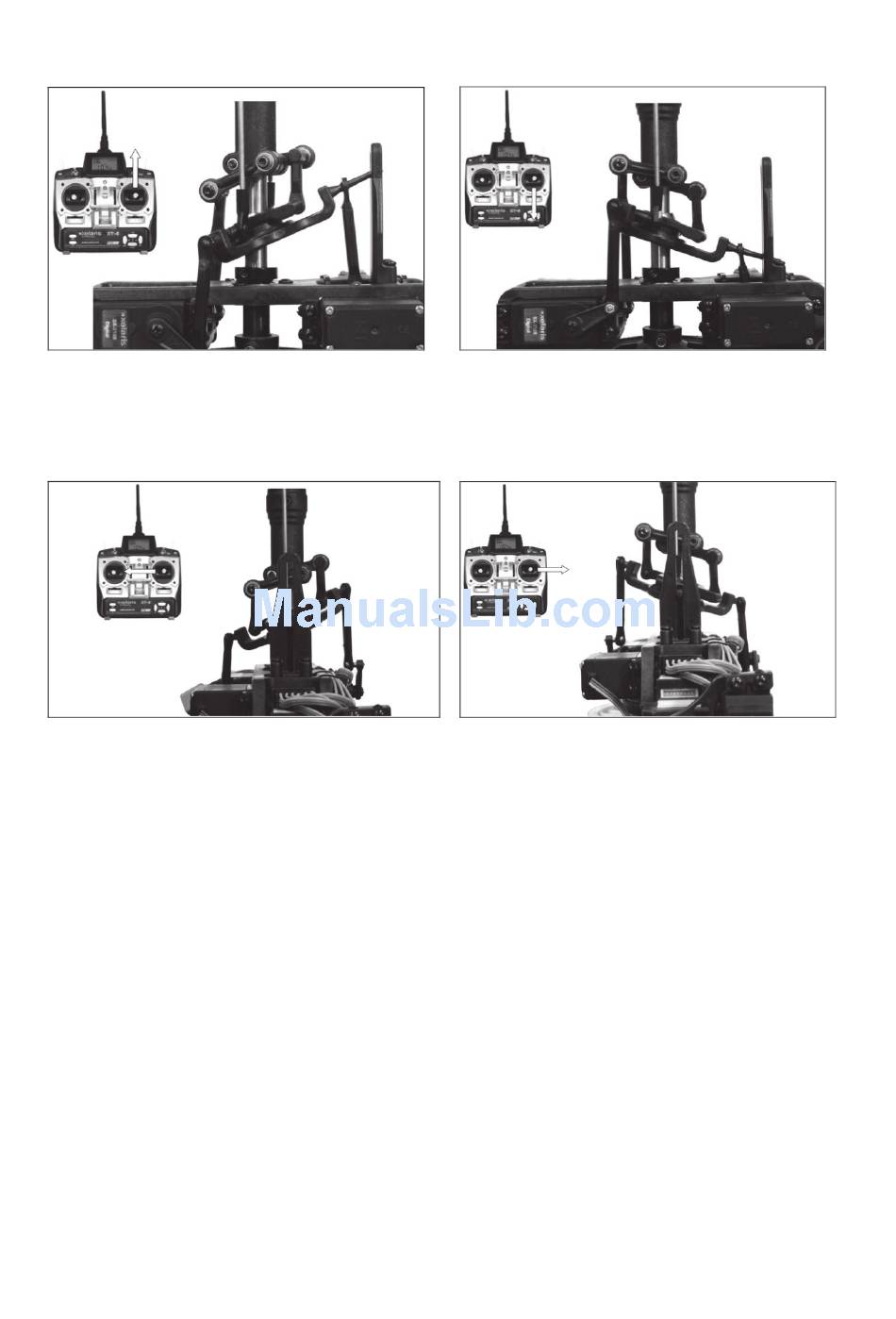

Mode 2: Topmost position of the elevator stick (seen
from the left side in direction of flight).
8. Move the aileron/roll stick all the way from left to right and check the tilt direction of the swash plate. When you
move the stick to the left, the swash plate must tilt to the left (in the direction of flight) and vice versa.
Mode 2: Left position of the aileron stick (seen from
behind the swash plate in direction of flight).
www.heli-professional.com
Mode 2: Lowest position of the elevator stick (seen
from the left side in direction of flight).
Mode 2: Right position of the aileron stick (seen from
behind the swash plate in direction of flight).
