Heli-Professional REVOLUTION 500E User Manual page 11

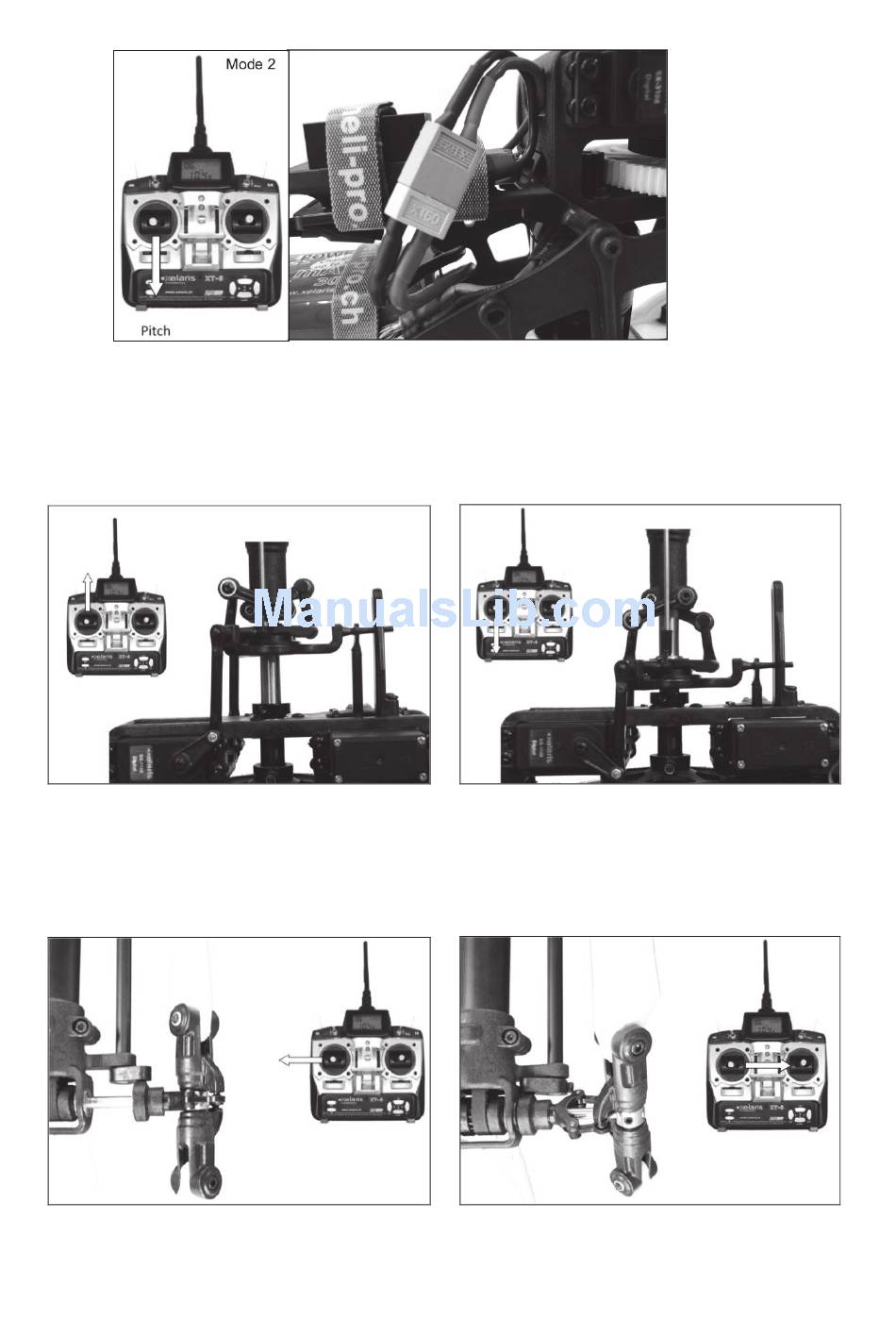

2. Put the pitch/throttle stick into its lowest position and switch on the transmitter.
3. Connect the flight battery and the ESC and wait until both the ESC and the FBL-3X have initialized.
4. Put the autorotation switch into the position "Lock"!
5. Move the pitch stick all the way up and down and check the vertical movement of the swash plate on the main
rotor shaft as well as the ease of movement of all linkage rods.
Mode 2: Topmost position of the pitch/throttle stick
(seen from the left side in direction of flight).
6. Check the rudder/tail rotor pitch function by moving the stick all the way from left to right. Check the ease of
movement of the tail pitch control lever on the tail rotor shaft. When you move the stick to the left, the tail pitch
control lever must move to the right and vice versa.
Mode 2: Left position of the rudder/tail rotor pitch stick. Mode 2: Right position of the rudder/tail rotor pitch stick.
www.heli-professional.com
Mode 2: Lowest position of the pitch/throttle stick.
(seen from the left side in direction of flight).
11
