Chapter 2 : STARTING (continued)
2-8. DISPLAY OUTPUT
The OCTO-QUATTRO
provide an RGBHV (H & V Separate Sync.), an RGB/S (Composite Sync.) or a RGsB (SOG) output signal.
2-9. AUDIO INPUTS

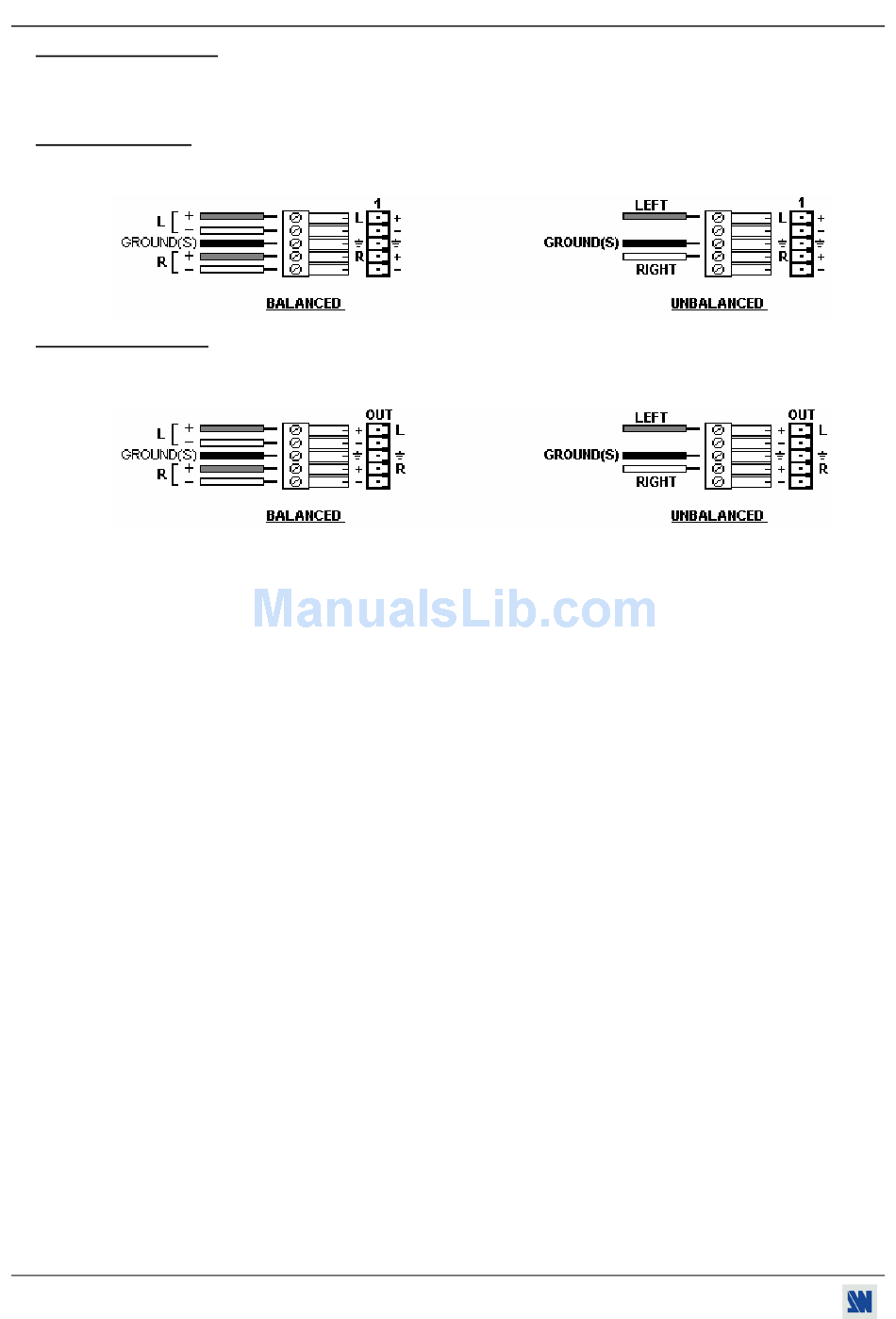

Each audio is equipped with a 5-pin MCO male connector. This connector allows connecting BALANCED or
UNBALANCED audio inputs. Connect your audio sources as follow:
2-10. AUDIO OUTPUT
The audio output is equipped with a 5-pin MCO male connector. This connector allows connecting BALANCED or
UNBALANCED audio systems.
PAGE 10
™
is equipped with a data outputs on HD15 female connector. The OCTO-QUATTRO
OCTO-QUATTRO™
™
can
