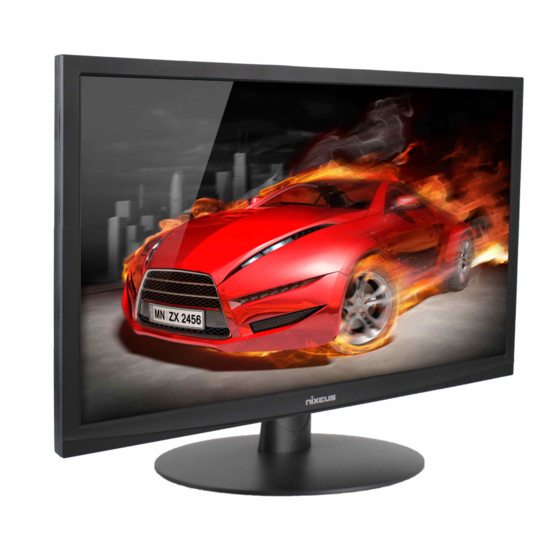

Nixeus NX-VUE 24A User Manual

24" monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

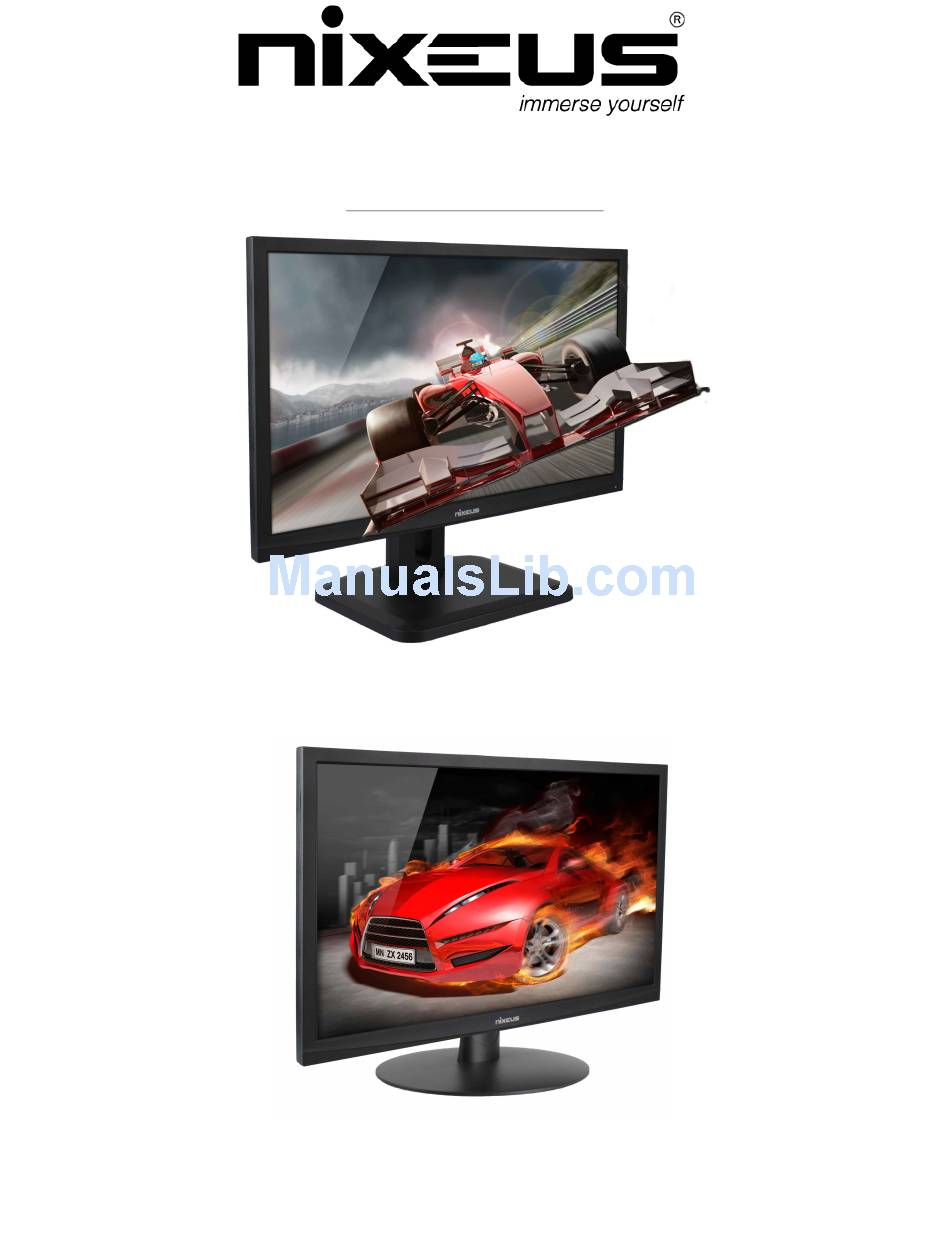

USER   M ANUAL

NX-­‐VUE   2 4A
NX-­‐VUE   2 4B
1


Advertisement

Table of Contents
loading

Related Manuals for Nixeus NX-VUE 24A

Summary of Contents for Nixeus NX-VUE 24A

  • Page 1 USER   M ANUAL     NX-­‐VUE   2 4A   NX-­‐VUE   2 4B   1    ...

  • Page 2: Table Of Contents

    Time Out On Screen Display (OSD) - Setup Sub-Menu Language Input Display Size Reset Volume Audio Input OD (Over Drive) Warranty Information 40 - 41 Electronics Recycling and Proper Electronics Disposal Nixeus Technology, Inc - Contact Information   2    ...

  • Page 3: Important Information

    DC power line wires for normal operation. 6) Please use only approved power line and power adapters provided by Nixeus. If any power connections are missing, please contact Nixeus for a replacement. Using un-authorized power connectors may damage your monitor and void your warranty.
  • Page 4 “brand,” “incidental image” or “after image” will gradually disappear. Also by displaying a pure white image for the entire screen for the same duration that you had the static image that caused the image persistence may remove the image persistence. Please contact Nixeus if you need assistance in removing image persistence.

  • Page 5: Getting Started

    Getting Started Box Contents: • Nixeus Vue 24” 1920x1080 FreeSync™ 144Hz Gaming Monitor (NX-VUE24) • Stand Base x 1 (with 4 screws) • Stand Shaft x 1 (with 4 screws) • Black DisplayPort to DisplayPort Cable x 1 • Power Adapter & Power Cable x 1 •...

  • Page 6: Input And Connection Ports

    Input and Connection Ports 6    ...

  • Page 7: Monitor & Stand Adjustment

    The included DisplayPort to DisplayPort cable is for connecting the NX-VUE24 for DisplayPort output devices/hardware. For Audio/Sound: With a DisplayPort connection, you can transmit audio from your computer to the NX- VUE24A/B monitor by adjusting your operating system's audio playback settings. If you are using a DVI or VGA connection, you will need to use the included 3.5mm AUX cable and configure your operating system's audio playback settings.
  • Page 8 NX-VUE24A - Monitor Tilting Foward/Back: Use both hands, hold the top and bottom or right and left to tilt the monitor forward or backward by up to 15°. NX-VUE24A - Monitor Tilting Height Adjustment: Use both hands, press down the locking button, the slide the monitor up and down the stand shaft for your desired height by up to 4 inches.
  • Page 9 NX-VUE24A - Monitor Pivot to 90° Portrait Mode: Using both hands, first raise the monitor to the highest point. Next pivot the monitor clock wise into portrait mode. NOTE: All Above Monitor and Stand Adjustments is for the NX-VUE24A model with a full feature premium stand.

  • Page 10: Enabling Amd Freesync Technology

    To enable AMD FreeSync™ Technology: 1) First, you must have an AMD Radeon or AMD APU that is compatible with AMD FreeSync™ technology. Below is a list of AMD hardware that is compatible with FreeSync™. AMD Hardware Compatible With FreeSync AMD Radeon R9 200 Series Graphics Card Radeon R7 260x...
  • Page 11 2) Second, you must install or have already installed an AMD Catalyst graphics drivers that have AMD FreeSync™ technology (at minimum AMD Catalyst 15.7 Graphics Driver). For updated FreeSync™ enabled AMD graphics drivers, please visit: http://support.amd.com/en-us/download 3) Third, connect the NX-VUE24 monitor to your AMD FreeSync™ enabled hardware using the included DisplayPort cable.
  • Page 12 5) In the AMD Catalyst Control Center menu, click on the "My Digital Flat-Panels" section the left side then select the "Properties (Digital Flat-Panel) sub-menu. You should see the "Properties (Digital Flat-Panel)" pictured below: 12    ...
  • Page 13 6) In the AMD Catalyst Control Center menu in the "Properties (Digital Flat-Panels)" sub-menu, click and check on the box "Enable" in the AMD FreeSync™ technology (or DP Adaptive-Sync) section. For reference, see picture below: 13    ...
  • Page 14 FreeSync™. The Adaptive-Sync (FreeSync) range is 30Hz to 144Hz. If you need additional assistance, please contact us toll free at 888-983- 4128 or e-mail techsupport@nixeus.com 14  ...

  • Page 15: Monitor Button Operations - Legends And Functions

    1) Monitor Button Operations - Legends and Functions Button Functions when not navigating in the On Screen Display (OSD) Main Menu Button #1 - Shows Main Menu On Screen Display (OSD)/ or EXIT from Main Menu Press and Hold to OSD LOCKED, Press and Hold to OSD UNLOCKED Down Button Adjust LOW BLUE RAY (Blue Light Mode) from STRONGEST, STRONG, MEDIAN, WEAKEST or OFF.

  • Page 16: Button Functions And Features For On Screen Display (Osd) Main Menu

    Button Functions and Features for On Screen Display (OSD) Main Menu Shows Main Menu On Screen Display (OSD)/ Exit Sub-Menu or Exit Selection/Back NOTE: Pressing more than once or multiple times will exit out of Sub-menu and/or exit MAIN MENU for OSD. Navigate or Move Down/ Adjust Down Navigate or Move Up/ Adjust Up Confirm feature or OSD Menu Selection/OK...

  • Page 17: On Screen Display (Osd) Picture Sub-Menu

    2) On Screen Display (OSD) PICTURE SUB-MENU PICTURE (Sub-Menu) - BRIGHTNESS a) To bring up the OSD Main Menu, press b) Make sure the PICTURE sub-menu is highlighted in red (see picture) and press to confirm selection. Highlight BRIGHTNESS and press to enter into BRIGHTNESS adjustment.

  • Page 18: Contrast Adjustment

    PICTURE (Sub-Menu) - CONTRAST The CONTRAST Feature allows you to set your preferred static contrast ratio of the luminance of the brightness color (white) to that of the darkest color (black). a) In the PICTURE sub-menu, use the arrow buttons to highlight CONTRAST and press confirm selection.

  • Page 19: Gamma Adjustment

    PICTURE (Sub-Menu) - GAMMA NOTE: With GAMMA settings on OFF, the GAMMA is default at 2.6. With GAMMA settings ON the setting is 2.2. (For accurate color production or critical color work, we recommend setting GAMMA to ON to enable Gamma 2.2 and to set Brightness at 50 first as a starting point before beginning to adjust the Color Temperature, Brightness and Contrast settings using a Colorimeter.) a) In the PICTURE sub-menu, use the arrow buttons to navigate and to highlight GAMMA.

  • Page 20: Dynamic Contrast Ratio Adjustment (Dcr)

    PICTURE (Sub-Menu) - DYNAMIC CONTRAST RATIO (DCR) The DCR (DYNAMIC CONTRAST RATIO) feature allows you to display a dark image or dark scene by increasing the contrast ratio dynamically. Enabling this feature may affect the accuracy of picture color or be over exposed (we recommend leaving this feature off).

  • Page 21: On Screen Display (Osd) Color Sub-Menu

    3) On Screen Display (OSD) COLOR SUB-MENU COLOR (Sub-Menu) - COLOR TEMPERATURE The NX-VUE24 has four preset color temperatures for your professional use, general use and gaming needs - 5400K, 6500K, 9300K and sRGB. a) To bring up the OSD Main Menu, press b) Use the arrow buttons to navigate to the "COLOR"...

  • Page 22: Preset Color Temperatures

    COLOR TEMPERATURE (Sub-Menu) - PRESET Color Temperature NOTE: Default preset color temperature is 6500K. We recommend using 6500K or sRGB for best preset color reproduction. a) In the COLOR TEMPERATURE sub-menu, use the arrow buttons to navigate and to highlight the desired preset color temperature to use for your environment.
  • Page 23 COLOR TEMPERATURE (Sub-Menu) - USER DEFINE (Color Calibration) NOTE: Only Custom Calibrate the Monitor's Color Temperature if you have a Colorimeter. The NX-VUE24 has a premium feature to allow you to custom calibrate the color temperature and color settings for RED, GREEN, and BLUE without the assistance or need of your computer's operating system or graphics card.

  • Page 24: User Define (Red, Green, Blue Adjustment For Color Calibration)

    COLOR (Sub-Menu) - USER DEFINE a) In the COLOR TEMPERATURE sub-menu, use the arrow buttons to navigate and to highlight USER DEFINE. b) Press once to confirm selection and exit to the COLOR sub-menu. The RED, GREEN, and BLUE are now selectable for custom configuration.
  • Page 25 a) To adjust the RED setting, highlight RED and press b) Use the arrow buttons to adjust between 0 to 100 for the RED temperature settings. c) Once you set your desired RED settings, press to confirm selection and exit to COLOR sub-menu to adjust the next color settings.
  • Page 26 a) To adjust the GREEN setting, Use the arrow buttons to navigate and highlight GREEN and press b) Use the arrow buttons to adjust between 0 to 100 for the GREEN temperature settings. c) Once you set your desired GREEN settings, press to confirm selection and exit to COLOR sub-menu to adjust the next color settings.
  • Page 27 a) To adjust the BLUE setting, Use the arrow buttons to navigate and highlight GREEN and press b) Use the arrow buttons to adjust between 0 to 100 for the GREEN temperature settings. c) Once you set your desired GREEN settings, press to confirm selection and exit to COLOR sub-menu to continue to adjust the next color settings.

  • Page 28: On Screen Display (Osd) - Osd Settings Sub-Menu

    4) On Screen Display (OSD) - OSD Settings Sub-Menu OSD SETTINGS (Sub-Menu) - HORIZONTAL The HORIZONTAL feature allows you to set the OSD MENU (On Screen Display Menu) to either the left or right of your monitor. [ ]. a) To bring up the OSD Main Menu, press Nextuse the arrow buttons to navigate to the OSD SETTINGS sub-menu and press...
  • Page 29 OSD SETTINGS (Sub-Menu) - VERTICAL The VERTICAL feature allows you to set the OSD MENU (On Screen Display Menu) to either towards the top or bottom of your monitor. a) Make sure the VERTICAL selection is highlighted in red (see picture) and press to confirm selection.

  • Page 30: Transparency

    OSD SETTINGS (Sub-Menu) - TRANSPARENCY The TRANSPARENCY feature allows you to make the OSD Menu more solid or transparent. [ ]. a) To bring up the OSD Main Menu, press Nextuse the arrow buttons to navigate to the OSD SETTINGS sub-menu and press to confirm selection.

  • Page 31: Time Out

    OSD SETTINGS (Sub-Menu) - TIME OUT The TIME OUT feature allows you to set how long or how short the OSD Menu remains on screen. If you [ ]. want the OSD Menu to immediately to go away you can always press [ ].

  • Page 32: On Screen Display (Osd) - Setup Sub-Menu

    4) ON SCREEN DISPLAY - SETUP SUB-MENU SETUP SUB-MENU [ ]. a) To bring up the OSD Main Menu, press Nextuse the arrow buttons to navigate to the SETUP sub-menu and press to confirm selection to enter and access the SETUP sub-menu. In the SETUP sub menu you have the options of configuring the OSD Language, selecting the INPUT for video/picture, Display Size, RESET, VOLUME, AUDIO INPUT, and OD (Over Drive).

  • Page 33: Language

    SETUP - LANGUAGE a) Use the arrow buttons to navigate to LANGUAGE. Make sure selection is highlighted (see picture) and press to confirm selection. b) Use the arrow buttons to navigate to the preferred "LANGUAGE. Make sure selection is highlighted (see picture) and press to confirm selection.

  • Page 34: Input

    SETPUP - INPUT a) Use the arrow buttons to navigate to INPUT. Make sure selection is highlighted (see picture) and press to confirm selection. b) Use the arrow buttons to navigate to the preferred INPUT. Make sure selection is highlighted (see picture) and press to confirm selection.

  • Page 35: Display Size

    SETUP - DISPLAY SIZE The DISPLAY SIZE setup allows you to switch between FULL SCREEN and a 4:3 Aspect Ratio (640 x 480 resolution). We recommend to not adjust the DISPLAY SIZE and to leave it at the default setting of FULL SCREEN.

  • Page 36: Reset

    SETUP - RESET The RESET feature in the SETUP sub-menu will allow you to reset all On Screen Display (OSD) configurations or changes you have made - back to the monitors default settings. a) In the SETUP sub-menu, use the arrow buttons to navigate to RESET.

  • Page 37: Volume

    SETUP - VOLUME The VOLUME feature in the SETUP sub-menu configures the audio volume for the monitors internal speakers. To use the monitor's internal speaker, you must use either an HDMI connection or DisplayPort connection - both connection types can transmit audio to the monitor. When using a DVI connection, you must use the included 3.5mm AUX audio cable to connect to the 3.5mm audio input of the monitor (DVI does not transmit audio to the monitor by itself).

  • Page 38: Audio Input

    SETUP - AUDIO INPUT The NX-VUE24 allows you to choose your preferred audio input for the monitor's internal speakers. These are the recommended OSD setting for AUDIO input depends on the connection you are using: DIGITAL = when using a DisplayPort or HDMI connection. ANALOG = when using the 3.5mm AUX audio cable with a DVI or VGA connection a) In the SETUP sub-menu, use the arrow buttons to navigate to AUDIO INPUT.

  • Page 39: Od (Over Drive)

    On Screen Display by pressing again NOTE: When using AMD FreeSync technology, the recommended OD setting is MEDIAN or Strong. If you need additional assistance, please contact Nixeus toll free at 888-983-4128 or e-mail techsupport@nixeus.com 39    ...

  • Page 40: Warranty Information

    Nixeus   T echnology,   I nc.   ( “Nixeus”)   p rovides   t his   L imited   Warranty:   • Only to the person or entity that originally purchased the product from Nixeus or its authorized reseller or distributor, and •...
  • Page 41 Nixeus’s Office. Nixeus will ship back the repaired or replacement package any common carrier selected by Nixeus. Return shipping fees shall be paid by Nixeus, if a United States address is used, otherwise the product will be shipped to you using freight collect. Expedited shipment methods are available at Customers (End Users) expense upon request.

  • Page 42: Electronics Recycling And Proper Electronics Disposal

    Nixeus branded products and is subject to product verification and approval. Once approved, we will provide you with a prepaid UPS return shipping label to ship back your Nixeus electronic device or to ship to a designated recycling/collection facility.

  • Page 43: Nixeus Technology, Inc - Contact Information

    Nixeus Technology accepts all our products for recycling/collection from large businesses and large entities – but may charge a fee for recycling and collection. All unwanted and end of life Nixeus products mailed back will become the sole property of Nixeus Technology, Inc.
