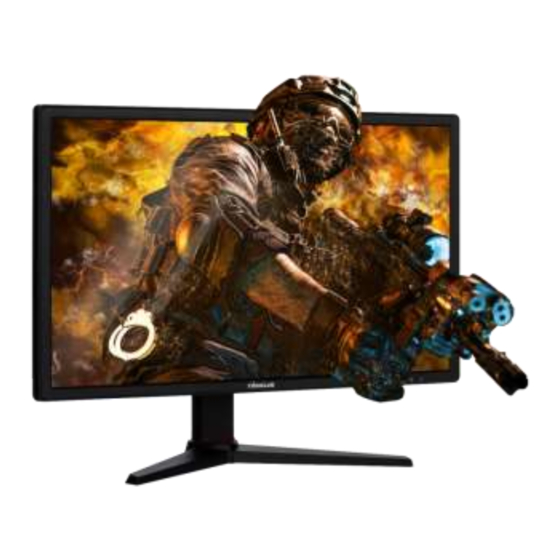

Nixeus NX-EDG24S User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
NX-EDG24
NX-EDG24S
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NX-EDG24S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nixeus NX-EDG24S

Summary of Contents for Nixeus NX-EDG24S

  • Page 1 USER MANUAL NX-EDG24 NX-EDG24S...

  • Page 2: Table Of Contents

    Over Drive Low Blue Ray On Screen Display (OSD) - OSD Settings Sub-Menu Language Menu Time Horizontal and Vertical Adjustment 34 - 35 Transparency Reset Electronics Recycling and Proper Electronics Disposal 38 - 40 Nixeus Technology, Inc. - Contact Information...

  • Page 3: Important Information

    DC power line wires for normal operation. 6) Please use only approved power line and power adapters provided by Nixeus. If any power connections are missing, please contact Nixeus for a replacement. Using un-authorized power connectors may damage your monitor and void your warranty.
  • Page 4 LED technology that allows more light and higher brightness to produce more vibrant colors and brighter pictures. If your monitor needs replacement parts, warranty service, and repairs please do not attempt to do it yourself! Doing so may void the warranty. Please contact techsupport@nixeus.com for warranty support. For more information please visit www.nixeus.com...

  • Page 5: Getting Started

    NX-EDG24 includes a premium height adjustable stand NX-EDG24S has a tilt only base stand Box Contents:  Nixeus EDG 24” 1920x1080 FreeSync™ 144Hz Gaming Monitor (NX-EDG24)  Black DisplayPort to DisplayPort Cable x 1  Power Adapter & Power Cable x 1 ...

  • Page 6: Adjusting The Monitor Stand Adjustment

    Adjusting the Monitor Stand (NX-EDG24) NX-EDG24 - Monitor Swivel Left/Right: Make sure the NX-EDG24 is on a stable level surface. Holding the base shaft with your hand, carefully twist the monitor shaft left or right to desired orientation. NX-EDG24 - Monitor Tilting Forward/Back: Use both hands, hold the top and bottom or right and left to tilt the monitor forward or backward by up to 15°.
  • Page 7 Using both hands, first raise the monitor to the highest point. Next pivot the monitor clock wise into portrait mode. NOTE: All Above Monitor and Stand Adjustments is for the NX-EDG24 model with a full feature premium stand. The NX-EDG24S model only includes a base stand with tilt feature.

  • Page 8: Input And Connection Ports

    Input and Connection Ports DC: Power Input HDMI 2: HDMI 2.0 Input HDMI 1: HDMI 2.0 Input DisplayPort: DisplayPort 1.2 Input NOTE: All inputs support native resolutions of 1920 x 1080 and refresh rates up to 144Hz. All inputs also support AMD Radeon FreeSync Premium Technology and Adaptive Sync Technology with compatible AMD Radeon Graphics with AMD Radeon Graphics Drivers.

  • Page 9: To Enable Amd Freesync Technology

    To enable AMD FreeSync™ Technology 1) First, you must have an AMD Radeon or AMD APU that is compatible with AMD FreeSync™ technology. Below is a list of AMD hardware that is compatible with FreeSync™. For an updated list of AMD hardware that is compatible with AMD FreeSync™ technology, please visit: http://www.amd.com/en-us/innovations/software-technologies/technologies-gaming/freesync 2) Second, you must install or have already installed an AMD Radeon graphics drivers that have AMD FreeSync™...
  • Page 10 (unless you want to disable FreeSync™). If you disconnect the NX-EDG24 via DisplayPort cable from the computer, you may have to go through this process again to enable FreeSync™. The Adaptive-Sync (FreeSync) range is 30Hz to 144Hz. If you need additional assistance, please contact us toll free at 888-983-4128 or e-mail techsupport@nixeus.com...

  • Page 11: Monitor Button Operations - Legends And Functions

    1) Monitor Button Operations - Legends and Functions Button Functions when not navigating in the On Screen Display (OSD) Main Menu Button #1 – Shows Main Menu On Screen Display (OSD)/ or EXIT from Main Menu Press and Hold to OSD LOCKED, Press and HOLD to OSD UNLOCKED Down Button –...

  • Page 12: Hot Key - Input

    HOT KEY - INPUT a) Press [2] to open the INPUT settings menu. Pressing [2] again closes the menu. b) Use the arrow buttons [∇] or [∆] to navigate to the preferred INPUT. Make sure selection is highlighted (see picture) and press [1] to confirm selection. The default "INPUT" is the input being used to transmit the current video to your monitor.

  • Page 13: Button Functions And Features For On Screen Display (Osd) Main Menu

    Button Functions and Features for On Screen Display (OSD) Main Menu Button #1 – Shows Main Menu On Screen Display (OSD) / Confirm feature/ or Exit Selection Down Button – Navigate or Move Down / Adjust Down Up Button – Navigate or Move Up / Adjust Up Button #2 –...

  • Page 14: On Screen Display (Osd) Picture Sub-Menu

    On Screen Display (OSD) PICTURE SUB-MENU PICTURE (Sub-Menu) – Brightness a) To bring up the OSD Main Menu, press [1] b) Make sure the PICTURE sub-menu is highlighted in red (see picture) and press [1] to confirm selection. Highlight BRIGHTNESS and press [1] to enter into BRIGHTNESS adjustment. c) Press [∇] to make brightness lower or press [∆] to make brightness higher (Default BRIGHTNESS is at 50).

  • Page 15: Contrast Adjustment

    PICTURE (Sub-Menu) – CONTRAST The CONTRAST Feature allows you to set your preferred static contrast ratio of the luminance of the brightness color (white) to that of the darkest color (black). a) In the PICTURE sub-menu, use the arrow buttons [∇] or [∆] to highlight CONTRAST and press [1] to confirm selection.

  • Page 16: Sharpness Adjustment

    PICTURE (Sub-Menu) – ASPECT RATIO The ASPECT RATIO Feature allows you to set your preferred aspect ratio the image or video that is appearing on your display. We recommend leaving this feature at the default “FULL” setting – as changing this setting will switch the monitor into using a non-native aspect ratio.
  • Page 17 PICTURE (Sub-Menu) - SHARPNESS The SHARPNESS Feature allows you to set your preferred sharpness of the images and texts that are appearing on your display. We recommend leaving this feature at the default 2 setting – as increasing or decreasing this number may distort the texts or images.

  • Page 18: Ultra Vivid

    PICTURE (Sub-Menu) – ULTRA VIVID The ULTRA VIVID Feature allows you to set your preferred combination of Brightness/Contrast of the images and texts that are appearing on your display. We recommend leaving this feature at the default OFF setting – as increasing or decreasing this number may distort the texts or images.

  • Page 19: Active Contrast (Dynamic Contrast Ratio)

    PICTURE (Sub-Menu) – ACTIVE CONTRAST The ACTIVE CONTRAST feature allows you to display a dark image or dark scene by increasing the contrast ratio dynamically. Enabling this feature may affect the accuracy of picture color or be over exposed and may increase input lag in games (we recommend leaving this feature off).

  • Page 20: On Screen Display (Osd) Color Sub-Menu

    3) On Screen Display (OSD) COLOR SUB-MENU COLOR (Sub-Menu) - COLOR TEMPERATURE The NX-EDG24 has several presets COLOR EFFECT for your professional use, general use and gaming needs - STANDARD, VIVID, MOVIE, PHOTO and GAME. For regular general purpose use we recommend to using the default setting of STANDARD.

  • Page 21: Saturation

    COLOR (Sub-Menu) – SATURATION The SATURATION Feature allows you to set your preferred color saturation from warmer to cooler. a) In the COLOR sub-menu, use the arrow buttons [∇] or [∆] to highlight SATURATION and press [1] to confirm selection. b) Press [∇] to make SATURATION cooler or press [∆] to make SATURATION warmer.

  • Page 22: Gamma

    COLOR (Sub-Menu) – GAMMA NOTE: With GAMMA settings on OFF, the GAMMA is default at 2.2. With GAMMA settings ON the setting is 2.2. (For accurate color production or critical color work, we recommend setting GAMMA to ON to enable Gamma 2.2 and to set Brightness at 50 first as a starting point before beginning to adjust the Color Temperature, Brightness and Contrast settings using a Colorimeter.) a) In the COLOR sub-menu, use the arrow buttons [∇] or [∆] to navigate and to highlight GAMMA.

  • Page 23: Color Temperature (Preset Color Temperature Settings)

    COLOR TEMPERATURE (Sub-Menu) - PRESET Color Temperature NOTE: Default preset color temperature is 6500K. We recommend using 6500K or sRGB for best preset color reproduction. a) In the COLOR TEMPERATURE sub-menu, use the arrow buttons [∇] or [∆] to navigate and to highlight the desired preset color temperature to use for your environment.

  • Page 24: Color Temperature (User Define - Red, Green, Blue)

    COLOR TEMPERATURE (Sub-Menu) - USER DEFINE (Color Calibration) NOTE: Only Custom Calibrate the Monitor's Color Temperature if you have a Colorimeter. The NX-EDG24 has a premium feature to allow you to custom calibrate the color temperature and color settings for RED, GREEN, and BLUE without the assistance or need of your computer's operating system or graphics card.
  • Page 25 COLOR (Sub-Menu) - USER DEFINE – R, G, B Settings NOTE: Make sure TEMPERATURE is at USER setting a) To adjust the RED setting, Use the arrow buttons [∇] or [∆] to navigate and highlight R and press [1]. b) Use the arrow buttons [∇] or [∆] to adjust between 0 to 100 for the RED temperature settings. c) Once you set your desired RED settings, press [1] to confirm selection and exit to COLOR sub-menu to continue to adjust the next color settings.
  • Page 26 a) To adjust the GREEN setting, Use the arrow buttons [∇] or [∆] to navigate and highlight G and press [1]. b) Use the arrow buttons [∇] or [∆] to adjust between 0 to 100 for the GREEN temperature settings. c) Once you set your desired GREEN settings, press [1] to confirm selection and exit to COLOR sub-menu to continue to adjust the next color settings.
  • Page 27 a) To adjust the BLUE setting, Use the arrow buttons [∇] or [∆] to navigate and highlight B and press [1]. b) Use the arrow buttons [∇] or [∆] to adjust between 0 to 100 for the BLUE temperature settings. c) Once you set your desired BLUE settings, press [1] to confirm selection and exit to COLOR sub-menu to continue to adjust the next color settings.

  • Page 28: Advance (Osd) Sub-Menu

    ADVANCE (Sub-Menu) VOLUME The VOLUME feature in the ADVANCE sub-menu configures the audio volume for the monitor’s internal speakers. To use the monitor's internal speaker, you must use either an HDMI connection or DisplayPort connection - both connection types can transmit audio to the monitor. a) In the OSD Menu, use the arrow buttons [∇] or [∆] to navigate to ADVANCE.

  • Page 29: Mute

    MUTE a) In the ADVANCE sub-menu, use the arrow buttons [∇] or [∆] to navigate to MUTE. Make sure selection is highlighted (see picture) and press [1] to confirm selection. b) Use the arrow buttons [∇] or [∆] to configure to the preferred MUTE setting from "OFF" to "ON." c) Press [1] once to confirm preferred settings and exit to the ADVANCE sub-menu to begin the next adjustment or to completely exit out of the On Screen Display by pressing [2] twice.

  • Page 30: Over Drive

    OVER DRIVE The Over Drive feature is designed to improve the NX-EDG24's response time and eliminate or minimize ghosting for PC gaming. By default, the OVER DRIVE setting is on LOW. Depending on the type of PC Game, you may have to adjust the OVER DRIVE according to your preference.

  • Page 31: Low Blue Ray

    LOW BLUE RAY The LOW BLUE RAY feature helps eliminate eye strain by lowering the amount of blue light/colors the monitor is projecting. Please note when this setting is enable the color accuracy may be affected. a) In the ADVANCE sub-menu, use the arrow buttons [∇] or [∆] to navigate to LOW BLUE RAY. Make sure selection is highlighted (see picture) and press [1] to confirm selection.

  • Page 32: On Screen Display (Osd) - Osd Settings Sub-Menu

    OSD (ON SCREEN DISPLAY) – SUB-MENU Language a) Use the arrow buttons [∇] or [∆] to navigate to LANGUAGE. Make sure selection is highlighted (see picture) and press [1] to confirm selection. b) Use the arrow buttons [∇] or [∆] to navigate to the preferred "LANGUAGE. Make sure selection is highlighted (see picture).

  • Page 33: Menu Time

    Menu Time The MENU TIME feature allows you to set how long or how short the OSD Menu remains on screen. If you want the OSD Menu to immediately to go away you can always press [2]. a) To bring up the OSD Main Menu, press [1]. Next use the arrow buttons [∇] or [∆] to navigate to the OSD sub-menu and press [1] to confirm selection.

  • Page 34: Horizontal And Vertical Adjustment

    OSD H POSITION – HORIZONTAL POSITION The HORIZONTAL feature allows you to set the OSD MENU (On Screen Display Menu) to either the left or right of your monitor. a) To bring up the OSD Main Menu, press [1]. Next use the arrow buttons [∇] or [∆] to navigate to the OSD sub-menu and press [1] to confirm selection.
  • Page 35 OSD V POSITION – VERTICAL POSITION The VERTICAL feature allows you to set the OSD MENU (On Screen Display Menu) to either towards the top or bottom of your monitor. a) Make sure the OSD V Position is highlighted (see picture) and press [1] to confirm selection. b) Use the arrow buttons [∇] or [∆] to adjust between 0 to 100 for the VERTICAL placement of the OSD MENU towards the TOP or BOTTOM of the display.

  • Page 36: Transparency

    TRANSPARENCY The TRANSPARENCY feature allows you to make the OSD Menu look more solid or transparent. a) To bring up the OSD Main Menu, press [1]. Next use the arrow buttons [∇] or [∆] to navigate to the OSD sub-menu and press [1] to confirm selection. b) Use the arrow buttons [∇] or [∆] to navigate to TRANSPARENCY.

  • Page 37: Reset

    In the SETUP sub-menu, use the arrow buttons [∇] or [∆] to navigate to RESET. Make sure selection is highlighted (see picture) and press [1] to confirm selection. Once selected, the screen will turn off and then turn back on. If you need additional assistance, please contact Nixeus toll free at 888-983-4128 or e-mail techsupport@nixeus.com...
  • Page 38 Nixeus Technology, Inc. (“Nixeus”) provides this Limited Warranty: • Only to the person or entity that originally purchased the product from Nixeus or its authorized reseller or distributor, and • Only for products purchased and delivered within the United States, the District of Columbia, U.S. Possessions or Protectorates, U.S.
  • Page 39 • The Customer (End User) is responsible for all incoming shipping charges to Nixeus. RMA replacements need be fully insured by the customer expense and shipped to Nixeus Technology, Inc., 4801 Little John Street, Suite E, Baldwin Park, CA 91706. Nixeus will not be held responsible for lost packages shipped during transit to Nixeus’...

  • Page 40: Electronics Recycling And Proper Electronics Disposal

    Nixeus Customers can recycle or send back their end of life or unwanted Nixeus electronic devices with us anytime. There are no fees or charges for this service. Simply contact us at recycle@nixeus.com or call us at 888-983-4128. This free electronics recycling/collection mail back program is limited to only Nixeus branded products and is subject to product verification and approval.

  • Page 41: Nixeus Technology, Inc. - Contact Information

    If you have any questions or need additional assistance regarding Donation, Collection or Recycling your end of life Nixeus products please e-mail us at recycle@nixeus.com. Nixeus Technology, Inc. 4801 Little John Street, Suite E...
