Summary of Contents for Nixeus FreeSync EDG 27

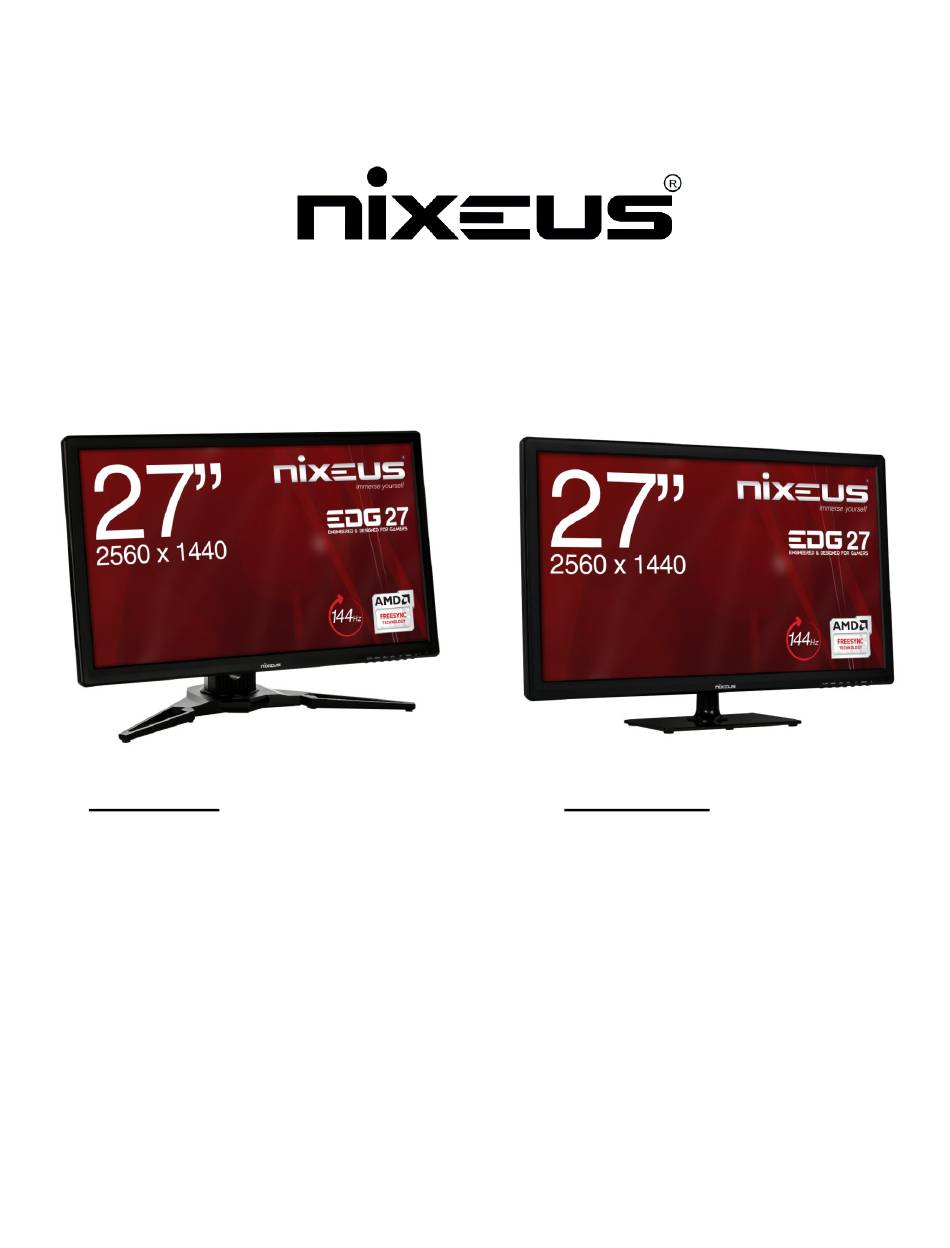

- Page 1 NX-EDG27 NX-EDG27S Nixeus EDG 27" IPS (AHVA) 2560 x 1440 AMD FreeSync™ 144Hz Gaming Monitor USER MANUAL Version 8.31.2017 www.nixeus.com...
-
Page 2: Table Of Contents
Language Menu Time OSD H Position (Horizontal) OSD V Position (Vertical) Transparency OSD Rotate Reset Enabling AMD FreeSync™ Technology 38 - 39 Warranty Information 40 - 41 Electronics Recycling and Proper Electronics Disposal Nixeus Technology, Inc - Contact Information Disclaimer... -
Page 3: Important Information
DC power line wires for normal operation. 6) Please use only approved power line and power adapters provided by Nixeus. If any power connections are missing, please contact Nixeus for a replacement. Using un-authorized power connectors may damage your monitor and void your warranty. - Page 4 “brand,” “incidental image” or “after image” will gradually disappear. Also by displaying a pure white image for the entire screen for the same duration that you had the static image that caused the image persistence may remove the image persistence. Please contact Nixeus if you need assistance in removing image persistence.
-
Page 5: Getting Started
NX-EDG27S Box Contents: for NX-EDG27 (With Height Adjustable, Pivot, Tilt, and Swivel Stand) • Nixeus EDG 27” IPS 2560x1440 AMD FreeSync 144Hz Gaming Monitor (NX-EDG27) • Stand Base x 1 (with 4 screws) • Stand Shaft x 1 (with 4 screws) - preinstalled. -
Page 6: Input And Connection Ports
Input and Connection Ports DC-IN: External power connector for Power Adapter DVI: Dual Link DVI HDMI 2: HDMI 1.4 HDMI 1: HDMI 2.0 (Supports 2560x1440 Resolution with Refresh Rates up to 144Hz with HDMI 2.0 compliant output device and cable) DP: DisplayPort 1.2a (Supports 2560x1440 Resolution with Refresh Rates up to 144Hz and with AMD FreeSync) Green Audio Input Port: For connecting the audio cable from the audio output of your computer (when using... -
Page 7: Monitor & Stand Adjustment
Monitor and Stand Adjustment Monitor Tilting Forward/Back (NX-EDG27 and NX-EDG27S): Make sure the NX-EDG27 is on a stable level surface. Use both hands, hold the top and bottom of the frame to tilt the monitor forward or backward by up to 15°. Monitor Swivel Left/Right (NX-EDG27): Make sure the NX-EDG27 is on a stable level surface. - Page 8 Monitor Pivot to 90° Portrait Mode (NX-EDG27): Make sure the NX-EDG27 is on a stable level surface. Using both hands, first raise the monitor to the highest point. Next pivot the monitor clock wise into portrait mode.
-
Page 9: Monitor Button Operations - Legends And Functions
Monitor Button Operations - Legends and Functions Button Functions when NOT navigating in the On Screen Display (OSD) Main Menu "AUTO" - Press to AUTO detect video inputs. Also brings up the video INPUT menu for DP, HDMI 2.0, HDMI 1.4 and DVI for switching to different video source. "MENU"... -
Page 10: Video Source Input Select
Video Source Input Selection The NX-EDG27 supports multiple video source devices with DisplayPort 1.2, HDMI 2.0, HDMI 1.4, and Dual Link DVI connections. a) To bring up the INPUT sub menu, press "AUTO." b) Press "VOL+" to move right or press "VOL-" to move left to select the input for your current video output source and press "MENU"... -
Page 11: Volume
VOLUME The NX-EDG27 includes two built in stereo speakers. A) To adjust the volume press "VOL+" to move right or press "VOL-" to move left to select the desired volume. -
Page 12: Brightness
Brightness A) To adjust the BRIGHTNESS press "UP" to move right or press "DOWN" to move left to select the desired BRIGHTNESS for the display. -
Page 13: Button Functions And Features For On Screen Display (Osd) Main Menu
Button Functions and Features for On Screen Display (OSD) Main Menu "AUTO" - Press to go back to previous or to exit. "MENU" Press to confirm or for ok. "VOL+" Press to increase setting status bar. Press to navigate forward or go to next (to the right). "VOL-"... -
Page 14: On Screen Display (Osd) Picture Sub-Menu
On Screen Display (OSD) PICTURE SUB-MENU PICTURE (Sub-Menu) - BRIGHTNESS a) To bring up the OSD Main Menu, press "MENU" b) Make sure the PICTURE sub-menu is highlighted (see picture) and press "MENU" to confirm selection. Highlight BRIGHTNESS and press "MENU" to enter into BRIGHTNESS adjustment. c) Press "VOL-"... -
Page 15: Contrast Adjustment
PICTURE (Sub-Menu) - CONTRAST The CONTRAST Feature allows you to set your preferred static contrast ratio of the luminance of the brightness color (white) to that of the darkest color (black). a) In the PICTURE sub-menu, use the arrow buttons "DOWN" or "UP" to highlight CONTRAST and press "MENU"... -
Page 16: Sharpness Adjustment
PICTURE (Sub-Menu) - SHARPNESS The SHARPNESS feature allows you to set your preferred sharpness for your text, video, and picture content. a) In the PICTURE sub-menu, use the arrow buttons "DOWN" or "UP" to highlight SHARPNESS and press "MENU" to confirm selection. b) Press "VOL -"... -
Page 17: Aspect Ratio Adjustment
PICTURE (Sub-Menu) - ASPECT RATIO The ASPECT RATIO feature allows you to set your preferred ASPECT RATIO for your monitor's video, and picture content. Available ASPECT RATIO settings are FULL (16:9), 4:3, and 1:1 a) In the PICTURE sub-menu, use the arrow buttons "DOWN" or "UP" to highlight ASPECT RATIO and press "MENU"... -
Page 18: Ultra Vivid Adjustment
PICTURE (Sub-Menu) - ULTRA VIVID The ULTRA VIVID feature allows you to set your preferred settings for more vivid or vibrant colors for your text, video, and picture content. Available settings is OFF, LOW, MEDIUM, and HIGH. Enabling this feature may affect the accuracy of picture color, affect picture/video quality, or add input lag in PC games (we recommend leaving this feature off for PC Gaming). -
Page 19: Dynamic Contrast Ratio Adjustment (Dcr)
PICTURE (Sub-Menu) - DYNAMIC CONTRAST RATIO (DCR) The DCR (DYNAMIC CONTRAST RATIO) feature allows you to see more of a dark image or dark scene by increasing the contrast ratio dynamically. Enabling this feature may affect the accuracy of picture color, affect picture/video quality, or add input lag in PC games (we recommend leaving this feature off for PC Gaming). -
Page 20: On Screen Display (Osd) Color Sub-Menu
On Screen Display (OSD) COLOR SUB-MENU NOTE: Only Custom Calibrate the Monitor's COLOR SETTINGS if you have a Colorimeter. COLOR (Sub-Menu) - COLOR EFFECTS The NX-EDG27 has five preset COLOR EFFECTS for your professional use, general use and gaming needs - STANDARD, GAMING, MOVIES, PHOTO, and VIVID. -
Page 21: Saturation
COLOR (Sub-Menu) - SATURATION The NX-EDG27 has SATURATION settings to allow you to adjust color saturations for your professional use, general use and gaming needs. a) In the COLOR sub-menu, use the arrow buttons "DOWN" or "UP" to highlight SATURATION and press "MENU"... -
Page 22: Gamma
COLOR TEMPERATURE (Sub-Menu) - GAMMA NOTE: Only Custom Calibrate the Monitor's GAMMA and COLOR TEMPERATURE if you have a Colorimeter. The NX-EDG27 has five preset GAMMA for your professional use, general use and gaming needs - OFF, 1.8, 2.0, 2.2 and 2.4. a) In the COLOR sub-menu, use the arrow buttons "DOWN"... -
Page 23: Temperature - Presets
COLOR (Sub-Menu) – TEMPERATURE The NX-EDG27 has a premium feature to allow you to custom calibrate the color temperature and color settings for RED, GREEN, and BLUE without the assistance or need of your computer's operating system or graphics card color temperature calibration features. This feature allows you to create more accurate colors for content creation, print work, photography and graphic design. - Page 24 TEMPERATURE - USER (Custom Color Temperature Adjustments) a) To adjust the RED settings, highlight R and press "MENU". b) Use the arrow buttons "DOWN" or "UP" to adjust between 0 to 100 for the RED temperature settings. c) Once you set your desired RED temperature settings, press "MENU" to confirm selection and press "AUTO"...
- Page 25 NOTE: Only Custom Calibrate the Monitor's GAMMA and COLOR TEMPERATURE if you have a Colorimeter. a) To adjust the BLUE settings, Use the arrow buttons "DOWN" or "UP" to navigate and highlight B and press "MENU". b) Use the arrow buttons VOL -" or "VOL+" to adjust between 0 to 100 for the BLUE temperature settings. c) Once you set your desired BLUE temperature settings, press "MENU"...
-
Page 26: On Screen Display (Osd) - Advance Sub-Menu
ADVANCE (OSD) - SETTINGS VOLUME a) In the ADVANCE sub-menu, use the buttons "DOWN" or "UP" to highlight VOLUME and press "MENU" to confirm selection. b) Press "VOL -" to make the VOLUME lower or press "VOL+" to make the VOLUME higher (Default VOLUME is at 50). -
Page 27: Audio Source
AUDIO SOURCE The AUDIO SOURCE settings gives you the option to select which connection source to transmit audio to the NX-EDG27 internal speakers. By default, the AUDIO SOURCE will be set the cable connection transmitting Video or picture. Only DisplayPort and HDMI can transmit video and audio to the NX-EDG27. The NX- EDG27 also includes a 3.5mm audio cable for an "Line In"... -
Page 28: Dp Option
DP OPTION – DISPLAYPORT OPTION The NX-EDG27 two DP OPTION (DisplayPort Options) for your DisplayPort cable and DisplayPort source version type. The default setting is DP 1.2, which is required for the NX-EDG27 to have a resolution of 2560x1440, AMD FreeSync and 144Hz refresh rate. The alternative setting of DP 1.1 can only support 2560x1440 resolution with 60Hz refresh rate. -
Page 29: Over Drive
OVER DRIVE – ANTI-GHOSTING The NX-EDG27 has three OVER DRIVE settings of LOW, MEDIUM, and HIGH to help minimize ghosting in PC Games. The recommended setting is LOW due to MEDIUM or HIGH may be too strong for some games. a) In the ADVANCE sub-menu, use the buttons "DOWN"... -
Page 30: Low Blue Ray
LOW BLUE RAY – LOW BLUE LIGHT DISPLAY FEATURE The NX-EDG27 has three LOW BLUE RAY settings of LOW, MEDIUM, and HIGH to help minimize blue light transmission from the monitor to help prevent eye strain or eye damage due to prolong use. Lowering the blue light transmission will affect the accuracy of color for professional or gaming use of the display. -
Page 31: On Screen Display (Osd) - Osd Settings Sub-Menu
On Screen Display (OSD) - OSD Settings Sub-Menu OSD SETTINGS (Sub-Menu) - LANGUAGE The NX-EDG27 supports multiple languages for its On Screen Display (OSD) Menu. a) To bring up the OSD Main Menu, press "MENU" Next use the arrow buttons "VOL -" or press "VOL+" to navigate to the OSD SETTINGS sub-menu and press "MENU"... -
Page 32: Menu Time
OSD SETTINGS (Sub-Menu) - MENU TIME The MENU TIME feature allows you to set how long or how short the OSD Menu remains on screen. If you ." want the OSD Menu to immediately to go away you can always press "AUTO a) To bring up the OSD Main Menu, press "MENU"... -
Page 33: Osd H Position (Horizontal)
OSD SETTINGS (Sub-Menu) - OSD H POSITION The OSD H POSITION and features allows you to set the OSD MENU (On Screen Display Menu) to either towards the left or right of your monitor's screen. a) Make sure the OSD H POSITION selection is highlighted in red (see picture) and press "MENU" to confirm selection. -
Page 34: Osd V Position (Vertical)
OSD SETTINGS (Sub-Menu) - OSD V POSITION The OSD V POSITION and features allows you to set the OSD MENU (On Screen Display Menu) to either towards the top or bottom of your monitor. a) Make sure the VERTICAL selection is highlighted in red (see picture) and press "MENU" to confirm selection. -
Page 35: Transparency
OSD SETTINGS (Sub-Menu) - TRANSPARENCY The TRANSPARENCY feature allows you to make the OSD Menu more solid or transparent. a) To bring up the OSD Main Menu, press "MENU" Next use the arrow buttons to navigate to the OSD SETTINGS sub-menu and press "MENU" to confirm selection. b) Use the arrow buttons "DOWN"... -
Page 36: Osd Rotate
OSD SETTINGS (Sub-Menu) - OSD ROTATE The OSD ROTATE feature allows you to rotate the orientation of the OSD Menu on the screen. a) To bring up the OSD Main Menu, press "MENU" Next use the arrow buttons "VOL -" or press "VOL+" to navigate to the OSD SETTINGS sub-menu and press "MENU"... -
Page 37: Reset
OSD SETTINGS (Sub-Menu) - RESET The RESET feature in the OSD SETTINGS sub-menu will allow you to reset all On Screen Display (OSD) configurations or changes you have made - back to the monitors default settings. a) In the OSD SETTINGS sub-menu, use the "DOWN" or "UP" to navigate to RESET. Make sure selection is highlighted (see picture) and press "MENU"... -
Page 38: Enabling Amd Freesync™ Technology
AMD FreeSync™ Technology To enable FreeSync, you must first install a FreeSync compatible AMD Radeon Graphics Card and newest AMD Radeon Graphics Drivers in your computer. For more information regarding AMD FreeSync™ technology, please visit: http://www.amd.com/en-us/innovations/software-technologies/technologies-gaming/freesync The NX-EDG27 and NX-EDG27S has FreeSync enabled by default. FreeSync can be turned OFF or ON using the newest Radeon Software Settings: a) After installing the newest AMD Graphics Drivers for your computer - restart your computer. - Page 39 Please refer to the latest AMD Radeon Graphic Driver release notes for more information at: http://support.amd.com/en-us/download YouTube Tutorial Video on "How to Enable AMD FreeSync with your Nixeus FreeSync Monitor:" https://www.youtube.com/watch?v=74mwr4hzMDI If you need additional assistance, please contact Nixeus toll free at 888-983-4128 or e-mail techsupport@nixeus.com...
-
Page 40: Warranty Information
• After an RMA number is assigned, the defective/malfunctioning product must be packaged securely in the original or other suitable shipping package to ensure that it will not be damaged in transit to Nixeus Technology, Inc. The RMA number must be visibly and clearly marked on the outside of the package. Do not include any manuals or accessories in the shipping package, Nixeus will only replace/repair the defective/malfunctioning product and will not ship back any accessories. -
Page 41: Electronics Recycling And Proper Electronics Disposal
Computer Hardware and Electronics Recycling: Nixeus Technology, Inc is committed to a greener environment by encouraging all our Nixeus customers to recycle our covered electronic devices (CEDs) and accessories. It is illegal to throw away your electronic devices in regular garbage and landfills. -
Page 42: Disclaimer
Disclaimer: Nixeus Technology, Inc is not responsible for any misspellings, typographical errors or omissions to this user manual. The contents of this user manual is subject to revisions and changes at anytime. AMD, Radeon, FreeSync and all mentioned brands and logos used...
