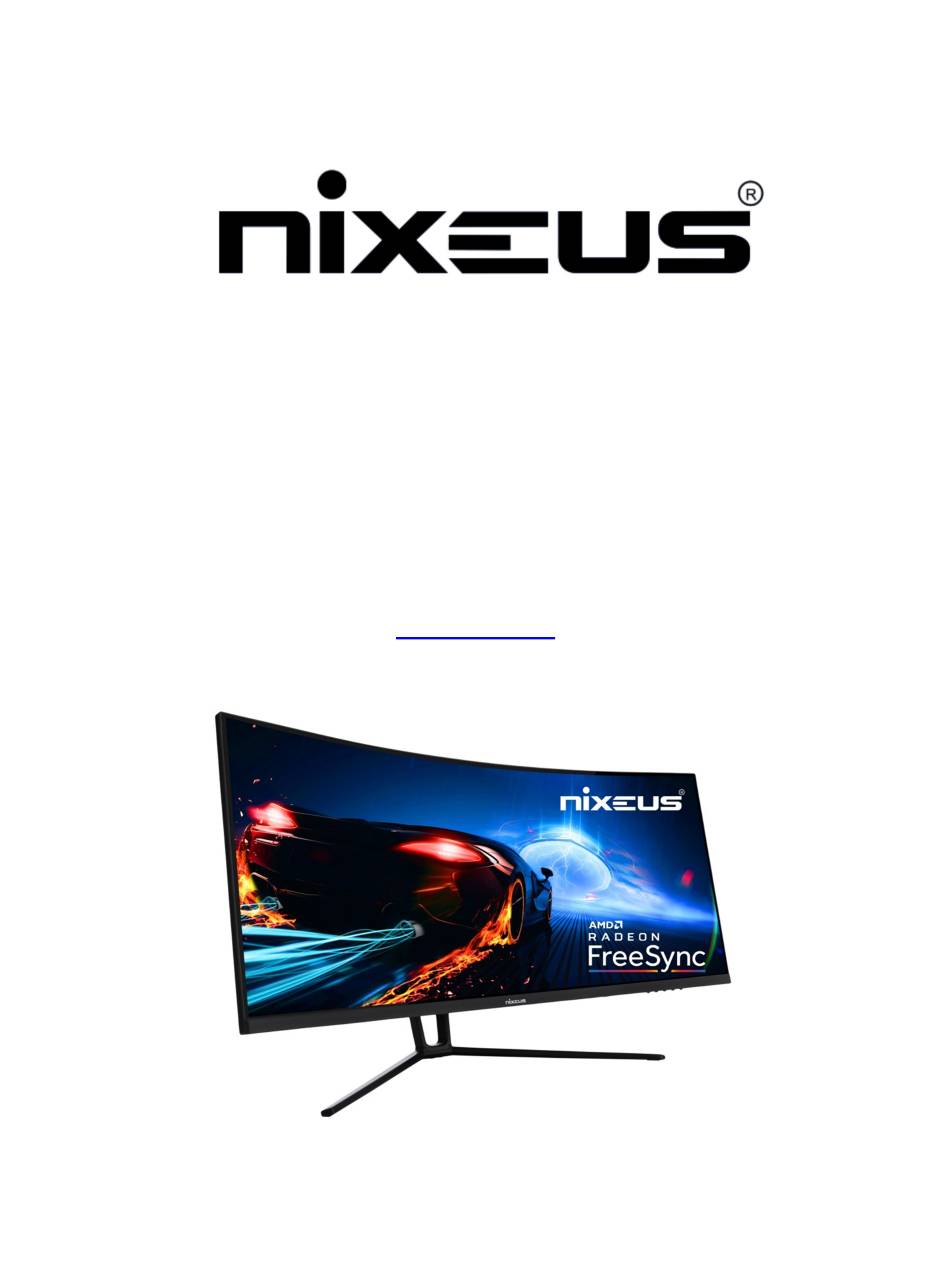

NX-EDG34S
User Manual
Version 11.30.19
www.nixeus.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NX-EDG34S and is the answer not in the manual?

Questions and answers

Related Manuals for Nixeus NX-EDG34S

Summary of Contents for Nixeus NX-EDG34S

  • Page 1 NX-EDG34S User Manual Version 11.30.19 www.nixeus.com...

  • Page 2: Table Of Contents

    Table of Contents Important Information Getting Started/Box Contents Product Overview Stand Installation Installing the 75mm x 75mm Adapters Basic Setup and FreeSync Monitor Buttons Button Functions (Without OSD Menu Enabled) Button Functions and Features for On Screen Display (OSD) Main Menu On Screen Display (OSD) Input Source SUB-MENU On Screen Display (OSD) Brightness/Contrast Sub-Menu Brightness Adjustment...
  • Page 3 DP Version AMD FreeSync™ Technology 44 - 46 Reset Warranty Information 49 - 50 Electronics Recycling and Proper Electronics Disposal Nixeus Technology, Inc - Contact Information Disclaimer...

  • Page 4: Important Information

    3440x1440 resolution at 144Hz refresh rates. Avoid using 3rd party cable adapters/convertors to connect the NX-EDG34S to HDMI, VGA, and DVI output devices - we cannot guarantee they will be compatible with the NX-EDG34S. If you are not sure, please contact your computer hardware’s manufacturer. Please read this manual before using NX-EDG34S with your computer.
  • Page 5 LED technology that allows more light and higher brightness to produce more vibrant colors and brighter pictures. If your monitor needs replacement parts, warranty service, and repairs please do not attempt to do it yourself! Doing so may void the warranty. Please contact techsupport@nixeus.com for warranty support. For more Information, please visit www.nixeus.com...

  • Page 6: Getting Started/Box Contents

    Getting Started Box Contents: 75mm x 75mm Adapters Quick Start Guide...

  • Page 7: Product Overview

    7) Power Connector: Insert the power cable to supply power to the monitor. 8) Audio Output: Insert one end of the Audio cable into the computer’s Audio output to receive the Audio signals from your monitor. (The NX-EDG34S does not have internal speakers and require headphones or external speakers to transmit audio).

  • Page 8: Stand Installation

    Stand Installation 1) Open the package, take out the product with foam still attached, and gently place it on a desktop or table. 2) Remove the extra parts and the foam covering the back of the monitor. Then press the button to remove the stand plate. 3) Use the screwdriver and three screws to fasten the base to the stem.

  • Page 9: Installing The 75Mm X 75Mm Adapters

    Installing the 75mm x 75mm Adapters for VESA Stands or Wall Mounting 1. Open the package, take out the product with foam still attached, and gently place it on a desktop or table. Remove the extra parts and the foam covering the back of the monitor. If the monitor is already attached to the stand, remove the stand.

  • Page 10: Basic Setup And Freesync

    Basic Setup 1) Insert one end of the DP cable into your PC’s graphics card. A HDMI cable may also be used. A HDMI cable is not included. 2) Connect the other end of the cable to the corresponding connector on your monitor. 3) Connect the power cable to your monitor then connect the other end to your power source.

  • Page 11: Monitor Buttons

    Monitor Buttons [1] Menu Button: Press to display the OSD menu or enter sub-menus. Down Button: Press to move down in the menus. [∇] Up Button: Press to move up in the menus. [∆] [2] Exit Button: Press to Exit or Open Input source menu. [ ] Power Button: Press to turn the monitor on/off.

  • Page 12: Button Functions (Without Osd Menu Enabled)

    [1] to confirm. VOLUME The NX-EDG34S includes a built-in audio output port for connecting your desktop speakers, sound bar, or any other audio speaker device. ∆...

  • Page 13: Button Functions And Features For On Screen Display (Osd) Main Menu

    Button Functions and Features for On Screen Display (OSD) Main Menu Press to select/confirm. ∇ - Press to move down in the menus or decrease setting status bar. ∆ Press to move up in the menus or increase setting status bar. - Press to exit.

  • Page 14: On Screen Display (Osd) Input Source Sub-Menu

    On Screen Display (OSD) Input Source SUB-MENU You may also adjust the input source within the OSD menu if you have more than one device connected to the monitor. a) To bring up the OSD Main Menu, press [1]. ∆ ∇...

  • Page 15: On Screen Display (Osd) Brightness/Contrast Sub-Menu

    On Screen Display (OSD) BRIGHTNESS/CONTRAST Brightness/Contrast (Sub-Menu) – BRIGHTNESS a) To bring up the OSD Main Menu, press [1]. ∆ ∇ b) Using the buttons, navigate to BRIGHTNESS/CONTRAST and make sure it is highlighted (see picture) and press [1] to confirm selection. Highlight BRIGHTNESS and press [1] to enter into BRIGHTNESS adjustment. ∆...

  • Page 16: Black Level Adjustment

    Brightness/Contrast (Sub-Menu) – Blacklevel Blacklevel allows you to adjust the appearance of black in your pictures and videos. ∆ ∇ a) In the BRIGHTNESS/CONTRAST sub-menu, use the arrow buttons to highlight BLACKLEVEL and press [1] to confirm selection. ∆ ∇ b) Press to decrease the black level or press to increase the black level.

  • Page 17: Contrast Adjustment

    Brightness/Contrast (Sub-Menu) – Contrast The CONTRAST Feature allows you to set your preferred static contrast ratio of the luminance of the brightness color (white) to that of the darkest color (black). ∆ ∇ a) In the BRIGHTNESS/CONTRAST sub-menu, use the buttons to highlight CONTRAST and press [1] to confirm selection.

  • Page 18: Dynamic Contrast Ratio (Dcr) Adjustment

    BRIGHTNESS/CONTRAST (Sub-Menu) – DYNAMIC CONTRAST RATIO (DCR) Dynamic Contrast Ratio uses the monitor’s internal process to greatly multiply the contrast ratio of the luminance of the brightness color (white) to that of the darkest color (black) to the millions. ∆ ∇...

  • Page 19: On Screen Display (Osd) Color Setting Sub-Menu

    COLOR SETTING (Sub-Menu) - GAMMA The NX-EDG34S has five presets for GAMMA for your professional use, general use and gaming needs – 1.8, 2.0, 2.2, 2.4, and 2.6. ∆ ∇ a) In the COLOR SETTING sub-menu, use the buttons to highlight GAMMA and press [1] to confirm selection.

  • Page 20: Picture Mode

    Color Setting (Sub-Menu) – Picture Mode The NX-EDG34S has six preset picture modes for your professional use, general use and gaming needs - STANDARD, PHOTO, MOVIE, GAME, FPS, and RTS. ∆ ∇ a) In the COLOR SETTING sub-menu, use the buttons to highlight PICTURE MODE and press [1] to confirm selection.

  • Page 21: Color Temperature - Presets

    COLOR SETTING (Sub-Menu) – COLOR TEMPERATURE - PRESETS The NX-EDG34S has two preset color temperature modes for your preference – Warm and Cool. ∆ ∇ to navigate to COLOR TEMPERATURE and press [1] a) In the COLOR SETTING sub-menu, use the buttons to enable COLOR TEMPERATURE selection.

  • Page 22: User Settings (Red, Green, Blue Adjustment For Color Calibration)

    COLOR SETTING (Sub-Menu) – COLOR TEMPERATURE – USER SETTINGS The NX-EDG34S has a premium feature to allow you to custom calibrate the color temperature and color settings for RED, GREEN, and BLUE without the assistance or need of your computer's operating system or graphics card color temperature calibration features.
  • Page 23 Color Temperature – USER (Custom Color Temperature Adjustments) ∆ ∇ a) To adjust the RED settings, use the buttons to highlight Red and press [1] to confirm selection. ∆ ∇ b) Use the buttons to adjust between 0 to 100 for the RED temperature settings. c) Once you set your desired RED temperature settings, press [1] to confirm selection and exit to COLOR SETTING sub- menu to adjust the next color settings.
  • Page 24 ∆ ∇ a) To adjust the BLUE settings, Use the buttons to navigate and highlight Blue and press [1] to confirm selection. b) Use the buttons [∇] or [∆] to adjust between 0 to 100 for the BLUE temperature settings. c) Once you set your desired BLUE temperature settings, press [1] to confirm selection and exit to COLOR SETTING sub-menu to adjust the next color settings.

  • Page 25: Low Blue Light

    COLOR SETTING – LOW BLUE LIGHT The NX-EDG34S has a LOW BLUE LIGHT setting to help minimize blue light transmission from the monitor to help prevent eye strain or eye fatigue due to prolong use. Lowering the blue light transmission will affect the accuracy of color for professional or gaming use of the display.

  • Page 26: Hue

    COLOR SETTING (OSD) - Hue ∆ ∇ a) In the COLOR SETTING sub-menu, use the buttons to highlight HUE and press [1] to confirm selection. ∆ ∇ b) Press to decrease or to increase the HUE setting. Default HUE is at 50. c) Once you finish adjusting the HUE settings to your desired setting, press [1] once to confirm and exit to the COLOR SETTING sub-menu.

  • Page 27: Saturation

    Color Setting – Saturation The NX-EDG34S has SATURATION settings to allow you to adjust color saturations for your professional use, general use and gaming needs. ∆ ∇ a) In the COLOR SETTING submenu, use the buttons to highlight SATURATION and press [1] to confirm selection.

  • Page 28: On Screen Display (Osd) - Picture Quality Setting Sub-Menu

    Picture Quality Setting – Sharpness The SHARPNESS feature allows you to set your preferred sharpness for your text, video, and picture content. ∆ ∇ a) In the PICTURE QUALITY SETTING submenu use the buttons to highlight SHARPNESS and press [1] to confirm selection.

  • Page 29: Response Time

    Picture Quality Setting – Response Time The Response Time settings allow you to adjust the Over Drive (Anti-Ghosting) setting of the monitor. ∆ ∇ a) In the PICTURE QUALITY SETTING submenu, use the buttons to highlight RESPONSE TIME and press [1] to confirm selection. ∆...

  • Page 30: Noise Reduction

    Picture Quality Setting – Noise Reduction ∆ ∇ a) In the PICTURE QUALITY SETTING submenu, use the buttons to highlight NOISE REDUCTION and press [1] to confirm selection. ∆ ∇ b) Use the buttons to adjust the response time setting to either Off, High, Middle, or Low. c) Once you adjust the NOISE REDUCTION settings to your desired level, press [1] once to confirm and exit to the PICTURE QUALITY SETTING sub-menu.

  • Page 31: Dynamic Luminous Control

    Picture Quality Setting – Dynamic Luminous Control Dynamic Luminous Control is a setting that uses the monitor’s internal processing to make the monitor appear brighter. ∆ ∇ a) In the PICTURE QUALITY SETTING submenu, use the buttons to highlight DYNAMIC LUMINOUS CONTROL and press [1] to confirm selection.

  • Page 32: On Screen Display (Osd) - Display Sub-Menu

    Display – Aspect Ratio ∆ ∇ a) To adjust the Aspect Ratio of the monitor, in the DISPLAY submenu, use the buttons to highlight Aspect Ratio and press [1] to confirm selection. ∆ ∇ b) Use the buttons to adjust the Aspect Ratio setting to either Wide Screen, 4:3, 1:1 or Auto. The default setting is Wide Screen.

  • Page 33: Ledmode

    Display – LEDMode e) To adjust the behavior of the LED lights on the back of the monitor, in the DISPLAY submenu, use the ∆ ∇ buttons to highlight LEDMODE and press [1] to confirm selection. ∆ ∇ f) Use the buttons to adjust the LEDMODE setting to either Normal, Off, or Flicker.

  • Page 34: On Screen Display (Osd) -Audio Sub-Menu

    Audio – Mute The NX-EDG34S includes the feature to mute all audio. ∆ ∇ a) In the AUDIO sub-menu, use the buttons to highlight MUTE and press [1] to confirm selection. ∆ ∇ b) Press to change the MUTE setting to OFF or ON.

  • Page 35: Volume

    Audio – Volume ∆ ∇ a) In the AUDIO sub-menu, use the buttons to highlight VOLUME and press [1] to confirm selection. ∇ ∆ b) Press to decrease or to increase the VOLUME setting from 0 to 100. c) Once you finish adjusting the MUTE settings to your desired setting, press [1] once to confirm and exit to the AUDIO sub-menu.

  • Page 36: Audio Source

    Audio – Audio Source ∆ ∇ a) In the AUDIO sub-menu, use the buttons to highlight AUDIO SOURCE and press [1] to confirm selection. ∆ ∇ b) Press to adjust the audio source from HDMI 1, HDMI 2, DP 1, or DP 2. c) Once you finish adjusting the AUDIO SOURCE settings to your desired setting, press [1] once to confirm and exit to the AUDIO sub-menu.

  • Page 37: On Screen Display (Osd) - Osd Sub-Menu

    OSD – Language The NX-EDG34S supports multiple languages for its On-Screen Display (OSD) Menu. ∆ ∇ a) In the OSD sub-menu, use the buttons to highlight Language and press [1] to confirm selection. ∆ ∇ b) Press to adjust the language to your desired setting.

  • Page 38: Osd H Position

    OSD – OSD H-Position The OSD H-Position allows you to position and move the OSD Menu horizontally on in the monitor. ∆ ∇ a) In the OSD sub-menu, use the buttons to highlight OSD H-Position and press [1] to confirm selection.

  • Page 39: Osd V Position

    OSD – OSD V-Position The OSD V-Position setting allows you to move and position the OSD Menu vertically in the monitor. ∆ ∇ a) In the OSD sub-menu, use the buttons to highlight OSD V-Position and press [1] to confirm selection.

  • Page 40: Osd Transparency

    OSD – OSD Transparency The OSD Transparency setting allows you to adjust the transparency of the OSD Menu. ∆ ∇ a) In the OSD sub-menu, use the buttons to highlight OSD Transparency and press [1] to confirm selection. ∆ ∇ b) Press to adjust the OSD Transparency to your desired setting.

  • Page 41: Osd Timeout

    OSD – OSD Time Out The OSD Time Out setting allows you to set how long do you want the OSD Menu to stay active on the monitor. ∆ ∇ a) In the OSD sub-menu, use the buttons to highlight OSD Time Out and press [1] to confirm selection. ∆...

  • Page 42: Osd Rotation

    OSD – OSD Rotation The OSD Rotation setting allows you to rotate the orientation of the OSD Menu. ∆ ∇ a) In the OSD sub-menu, use the buttons to highlight OSD Rotation and press [1] to confirm selection. ∆ ∇ b) Press to adjust the OSD Rotation to your desired setting.

  • Page 43: On Screen Display (Osd) - Other Sub-Menu

    Other – DP Version DP version allows you to apply the DisplayPort version to use with the monitor. ∆ ∇ a) In the OTHER sub-menu, use the buttons to highlight DP Version and press [1] to confirm selection. ∆ ∇ b) Press to adjust the DisplayPort (DP) Version to your desired setting.

  • Page 44: Amd Freesync™ Technology

    To enable FreeSync, you must first install a FreeSync compatible AMD Radeon Graphics Card and newest AMD Radeon Graphics Drivers in your computer. For more information regarding AMD Radeon FreeSync™ technology, please visit: https://www.amd.com/en/technologies/free-sync The NX-EDG34S has FreeSync OFF by default. To use this feature, it must be turned on in the OSD settings. ∆ ∇...
  • Page 45 After installing the newest AMD Graphics Drivers for your computer - restart your computer. b) Open Radeon Settings and click on the DISPLAY tab. c) Navigate the mouse curser to the AMD FreeSync section for the NX-EDG34S. d) Click on the button to turn FreeSync ON or OFF.
  • Page 46 Windowed, Borderless Full Screen, or Exclusive Full Screen Windowed Mode may not be optimal at this time. Please refer to the latest AMD Radeon Graphic Driver release notes for more information at: http://support.amd.com/en-us/download YouTube Tutorial Video on "How to Enable AMD FreeSync with your Nixeus FreeSync Monitor:" https://www.youtube.com/watch?v=74mwr4hzMDI...

  • Page 47: Hdr

    Other – HDR ∆ ∇ a) In the OTHER sub-menu, use the buttons to highlight HDR and press [1] to confirm selection. ∆ ∇ b) Press to adjust the HDR to your desired setting. c) Once you finish adjusting the HDR to your desired setting, press [1] once to confirm and exit to the OTHER sub-menu.

  • Page 48: Reset

    Other – Reset The RESET feature in the OTHER sub-menu will allow you to reset all On Screen Display (OSD) configurations or changes you have made - back to the monitors default settings. ∆ ∇ a) In the OTHER sub-menu, use the buttons to navigate to RESET.

  • Page 49: Warranty Information

    • After an RMA number is assigned, the defective/malfunctioning product must be packaged securely in the original or other suitable shipping package to ensure that it will not be damaged in transit to Nixeus Technology, Inc. The RMA number must be visibly and clearly marked on the outside of the package.
  • Page 50 Improper or incorrectly performed service maintenance or repairs voids this Limited Warranty. Products that Nixeus’ judge to have been subjected to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty installation, repair or service in any way that is not contemplated in the documentation for the product, or if the model or serial number has been altered, tampered with, defaced or removed, product failures due to power outages, and cosmetic damage, and does not limit damage that are caused by shipment, due to act of God.

  • Page 51: Electronics Recycling And Proper Electronics Disposal

    Disclaimer: Nixeus Technology, Inc is not responsible for any misspellings, typographical errors or omissions to this user manual. The contents of this user manual is subject to revisions and changes at any time. AMD, Radeon, FreeSync and all mentioned brands and logos used...
