Manitowoc K00194 Installation Instructions

1. Note: Bin must be level before installation of ice machines.
A. Remove the foam tape from the front and sides of the bin where the support angle will be located. Use the front
angle to reference the areas where the tape should be removed.
B. Place the support angle on the front edge of the bin and position as far forward as possible.
C. Locate the four pieces of the 2" long, 3/4" wide foam tape in the front corners, as shown.
D. Place the adapter panel onto the bin, as shown.
E. Note: It is recommended to RTV the tape intersections and along the inside of the foam tape to prevent water
tracking.
2. Refer to ice machine installation manual for ice machine installation procedures.
Support Angle
S-970 Bin
Manitowoc Ice, Inc.

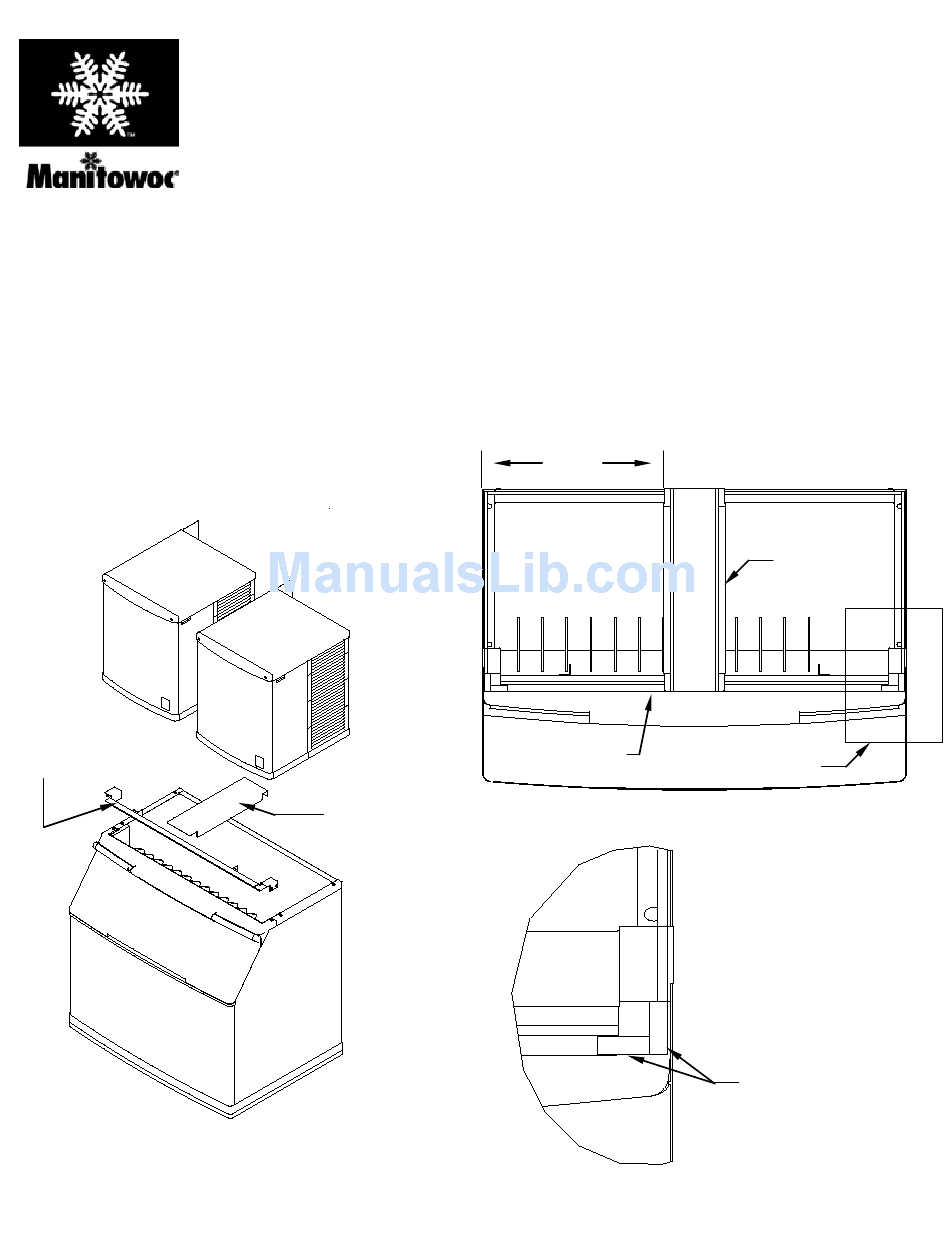

TWO QC0700/QF0800 MACHINES ON AN S-970 BIN
Adapter Panel
Detail A
K00194 ADAPTER KIT
Installation Instructions
20.500
Support Angle
Adapter Panel
See Detail A
Foam Tape
(3/4" Wide x 2.00 lg.)
Typ - Both Front Corners
