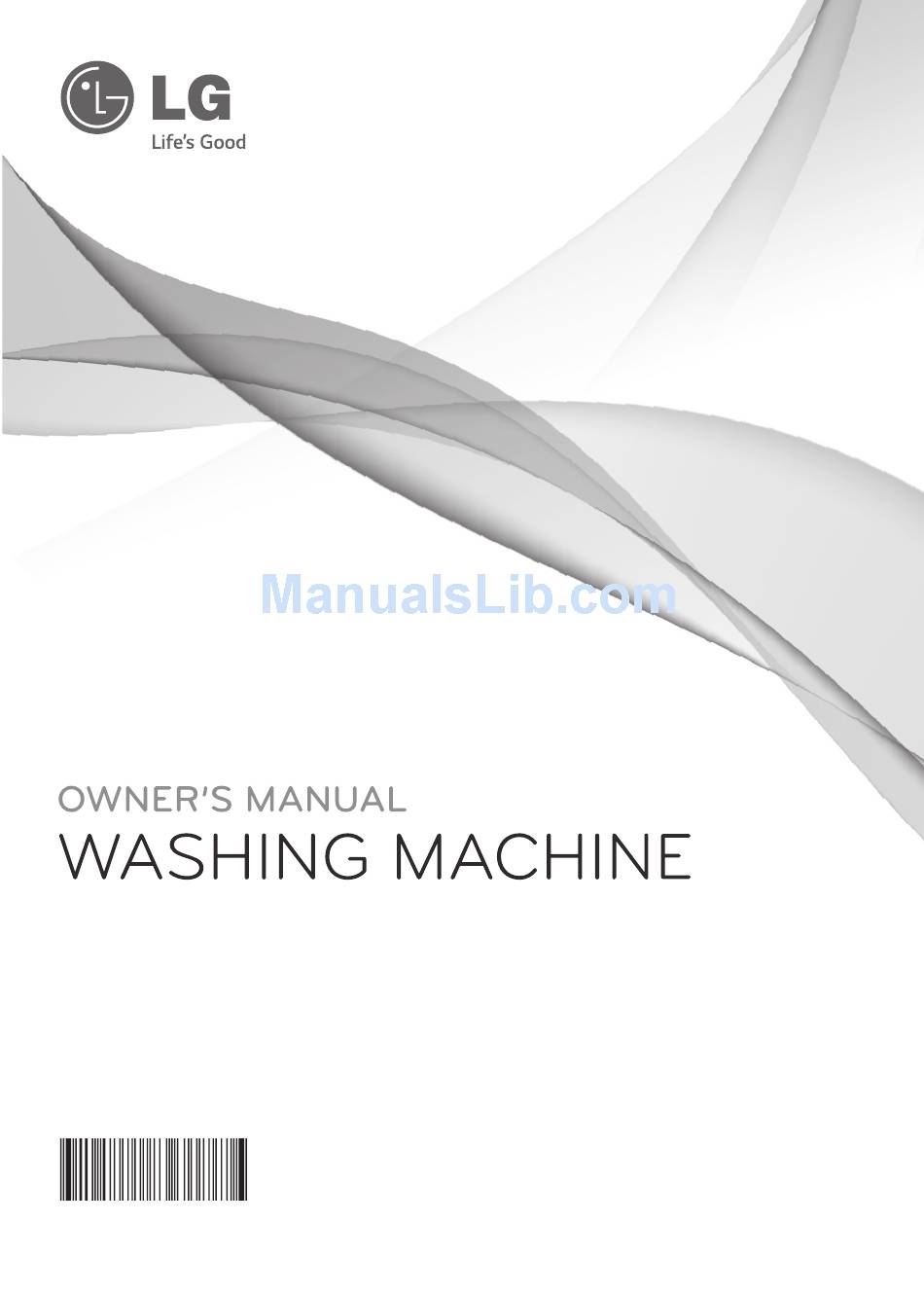

- Page 1 Please read this manual carefully before operating your washing machine and retain it for future reference. WTG9532VH WTG9532WH WTG8532WH www.lg.com MFL68019741...
-
Page 2: Product Features
Product Features The Turbo Drum DD washing machine does not operate with the lid open. If the lid is opened during wash, rinse and spin cycles, the machine will stop automatically. Please close the door gently. Closing the door in an agressive manner can cause damage and or injury. -
Page 3: Table Of Contents
Contents READ THIS MANUAL Inside you will find many helpful hints on how to use and maintain your washer properly. Just a lit- tle preventive care on your part can save you a great deal of time and money over the life of your washer. -
Page 4: Safety Information
Safety Information Read carefully and thoroughly through this booklet as it contains important safety information that will protect the user from unexpected dangers and prevent potential damages to the product. This booklet is divided into 2 parts : Warning and Caution. : This is a warning sign specifying user’s applications which might be dangerous. - Page 5 Safety Information Warning YOUR LAUNDRY • Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemical, etc. AREA Operating with such materials around the machine may trigger explosion or fire. • Close supervision is necessary if this appliance is used by or near children. Do not allow children to play on, with, or inside this or any other appliance.
- Page 6 Safety Information WARNING WHEN USING THE WASHER Do not use a plug socket and wiring equipment for more than their rated capacity. Exceeding the limit may lead to electric shock, fire , break down, and/or deformation of parts. Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover. Mixing different chemicals can produce toxic gases which may cause death.
-
Page 7: Identification Of Parts
Identification of Parts Body * Picture might be different by model. WATER SUPPLY HOSE Make sure the water SOFT SAFETY DOOR does not leak. (some models only) TEMPERED GLASS POWER PLUG POWDER AND LIQUID If the supply cord is DETERGENT BOX damaged, it must be replaced by the BLEACH... -
Page 8: Function Information
Function Information Different types of laundry washing Our machine provides various washing methods which suits various conditions and types of laundry. Use this Program for everyday washing e.g. sheets, towels, T-shirts. (refer to page 16) Cotton Wash Washing is the best temperature (40 degrees) by heating the clean clothes when you want to use. (refer to page 16) Stain Care Wash (Proper Water Temp. -
Page 9: Preparation Before Washing
Use nylon nets for long, DELICATE items. For laundry with long strings or long length, a net will prevent tangling during washing. Fasten zippers, hook, and strings to make sure that these items don't snag on other clothes. ※ Nylon net is not supplied by LG. -
Page 10: Use Of Water, Dispenser Drawer, Detergent, Bleach And Softener
Use of Water, Dispenser Drawer, Detergent, Bleach and Softener Using Water Amount of WATER LEVEL • This machine detects the weight of the of laundry automatically, then sets the Water Level and indicates the recommended amount of detergent to be added by the detergent level indicator. •... -
Page 11: Using Detergent
Using Detergent Detergent Follow the Detergent package directions. Using too little Detergent is a common cause of laundry problems. Use more Detergent if you have hard water, large loads, greasy or oily soils or lower Water Temperature. Choosing the right Detergent We recommend the use of domestic Detergent, (powder, liquid or concentrated). - Page 12 Use of Water, Dispenser Drawer, Detergent, Bleach and Softener Using Liquid Bleach • Check clothing care label for special instructions and separate the laundry to be bleached Bleach dispenser • Dilute liquid chlorine bleach. • Measure the recommended amount of liquid bleach carefully following instructions on the bottle.
-
Page 13: Special Guide For Stain Removal
Special Guide for Stain Removal WARNING Do not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid or ■ products containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death. To reduce the risk of fire or serious injury to persons or property, comply with the basic warnings listed below: •... -
Page 14: Function Of Each Button
Function of each Button Wash Status display Remaining wash, reservation Time Delay time, and error message display (Reservation) button • Laundry progress is indicated here. • Use for laundry • During operation this indicates the • A flashing indicator means that the reservation. - Page 15 SmartDiagnosis Air dry START/PAUSE button Power button Function Display • To shorten dry time. • Use to start or pause • Use to turn the power • It marks the place on or off. • Press the Spin button the washing process. to put the phone to •...
-
Page 16: Eco Cotton
Washing Programs Washing Add the Programs laundry the Detergent Used for Cotton wash loads, this • The water will commence mode automatically selects the most filling when the wash cycle appropriate conditions and completes begins. the sequence in one operation. The built-in sensor detects the weight of the load and the ideal wash power and wash, rinse and spin times are set... - Page 17 Close the lid Finish Caution & Note • If water is already in the tub, or putting wet laundry into the tub before starting will increase the Water Level. • With lightweight bulky loads, Water Level can be set low. •...
-
Page 18: Quick Wash
Washing Programs Washing Add the Programs laundry the Detergent • Add the appropriate quantity Select the • Use this cycle when washing of Detergent as indicated by Quick Wash lightly soiled clothes for a short the Detergent level indicator. program on time. - Page 19 Close the lid Finish Caution & Note • Lay out onto a cool floor or on a hanger covered by a towel to dry these type of clothes. • The Spin intensity or spinning time cannot be changed in this cycle as higher spin speeds can damage delicate clothing.
-
Page 20: Favourites Wash
Favourites Wash Press the POWER button to turn power on. Load the laundry and Press the Program button to Select Favourites Wash Press the Intensive Wash button if desired for increased Agitation intensity. Program. (Medium intensity will be the default setting if nothing is selected) •... -
Page 21: Soak Wash
Soak Wash Press the POWER button to turn power on. Load the clothes and Press the Program button to select the Soak is not selectable with the Stain Care, Allergy Care, Delicates, Washing Program. Quick Wash and Tub clean programs. •... -
Page 22: Intensive Rinse
Intensive Rinse Press the POWER button to turn power on. Load the clothes and Press the Program button to Select the Washing Intensive Rinse can only be selected with the Cotton Wash, Extra Rinse, and Program. Favourites courses. • Press the Rinse button to scroll through the number of Rinses. The Intensive Rinse will be selected on every second press of the Rinse button and indicated by the Intensive indicator.( times... -
Page 23: Tub Clean
Tub Clean If scrud is allowed to build-up in the machine it can result in stains on your clothes or an unpleasant smell in your washer. Scrud is the way build-up that can occur within any washer when the fabric softener comes into contact with Detergent, water quality and temperature will also contribute to the build up of this substance. -
Page 24: Air Dry
Air Dry Press the POWER button to turn power on. Then load up to 2kg of damp or moist clothes into the tub. This function will have no effect on clothes that are soaking wet. Press the Spin button Other functions cannot be selected during Air Dry. for 3 seconds to select Air Dry. -
Page 25: Option Washing
Option Washing When you only need the Wash, Wash/Rinse or Rinse cycles, these can be set manually. Press the POWER button to turn power on. Wash Only Spin Only Rinse Only Press the Wash button to Press the Rinse button to Press the Spin button to select the desired wash select the desired number... -
Page 26: Time Delay (Reservation) Wash
Time Delay (RESERVATION) Wash Press the POWER button to turn power on. Load the clothes and add the powdered detergent to the soap dispenser Do not use liquid detergent in the soap dispenser drawer. Doing so will cause it to and Press the Program button to select the desired Washing Program. -
Page 27: Other Useful Functions
Other Useful Functions Child Lock Function If you want to lock all the keys to prevent settings from being changed by a child, you can use the child lock option. How to Lock Press the POWER button. • Turn Power on. Press the START/PAUSE button to start washing. -
Page 28: Placing And Leveling
Placing and Leveling Please ensure any foam transit restraint has been removed from the machines packaging before operating your machine. We suggest a minimum clearance of 2 cm to the Place the machine on a flat and firm surface which allows proper clearance. right and left sides of the machine for ease of more than 10 cm installation. -
Page 29: Connecting Water Supply Hose
Connecting Water Supply Hose Before connecting the Water Supply Hose to the water tap, check the hose type and then choose the correct instruction here under. Note that the Water Supply Hose supplied may vary from country to country, Make sure to connect the blue inlet hose to the COLD water tap, and the orange inlet hose to the HOT water tap. - Page 30 Middle Fixed Sticker Pressing Rod Connector Pressing Handle Middle Pressing Rod Fixed Sticker Water Supply Hose Connector Connecting Water Supply Hose Pressing Handle Water Supply Hose Pressing Rod Middle Fixed Sticker (Normal tap without thread & one touch type inlet hose.) Connector Pressing Handle Pressing Rod...
- Page 31 Water tap Water tap Water tap Rubber Packing Screw Type Rubber Packing Water Supply Hose Rubber Packing Water Supply Hose Water tap Push the water supply hose up so that the rubber Attach the water supply hose to the tap. Water Supply Hose washer within the hose is properly seated to the tap.
-
Page 32: Connecting The Drain Hose
Connecting the Drain Hose Before connecting the Drain Hose, check your Drain Hose model and choose the correct instructions. Pump Model Fit the end of the drain hose to the outlet of the Hose drain pump and secure the clamp. Guide Hose Guide... -
Page 33: Cleaning And Maintenance
Cleaning and Maintenance • If you always use COLD water, we recommend that a WARM or HOT wash be used at a regular Cold water washing intervals e.g. every 5th wash should be at least a WARM one. • Turn off taps to prevent the chance of flooding should a hose burst. When you have finished •... - Page 34 Cleaning and Maintenance When there is a fear of freezing • Close the water taps and remove the Water Supply Hose. • Remove the water which remains in the water supply. • Lower the drain hose and drain the water in the bowl and the drain hose by spinning. If frozen •...
-
Page 35: Soft Safety Door (Where Fitted)
Soft Safety Door (where fitted) •Using tempered glass, the inside of the washer can be seen safely during a wash. •To prevent sudden close of door, it has a dampened hinge so the door closes softly. • Door is heavy. Be careful not to place hands in the door closing area when operating. It might cause injury or damage to the product. -
Page 36: Common Washing Problems
Common washing problems Many washing problems involve poor soil & stain removal, Lint and scum residue, and fabric damage. For satisfactory washing results, follow these instructions. WASH PROBLEM Problems Solutions & Preventive Measures Possible Causes • Use correct amount of Detergent for load size, amount of soil and •... -
Page 37: Troubleshooting
In this case, you will see the Tub Clean message again after a few more wash cycles. Once the Tub Clean cycle is performed, will disappear until the next reminder to Reminder clean the tub. • Please call your nearest LG Electronics service center for help. -
Page 38: Smartdiagnosis
Accordingly, LG does not guarantee that Smart Diagnosis can accurately troubleshoot any given issue. -
Page 39: Specification
Specification WTG9532VH WTG9532WH WTG8532WH Model 230V~, 50 Hz Power supply 9.5 kg 8.5 kg Wash capacity 1650 W Rated input 50 kg Weight 632(W) × 670(D) × 1020(H) mm Size 100 kPa ~ 600 kPa Water tab pressure IPX4 P No. (Degree of Protection)
