OWNER'S MANUAL
WASHING
MACHINE
Before beginning installation, read these instructions carefully.
This will simplify installation and ensure that the product is
installed correctly and safely. Leave these instructions near the
product after installation for future reference.
EN ENGLISH

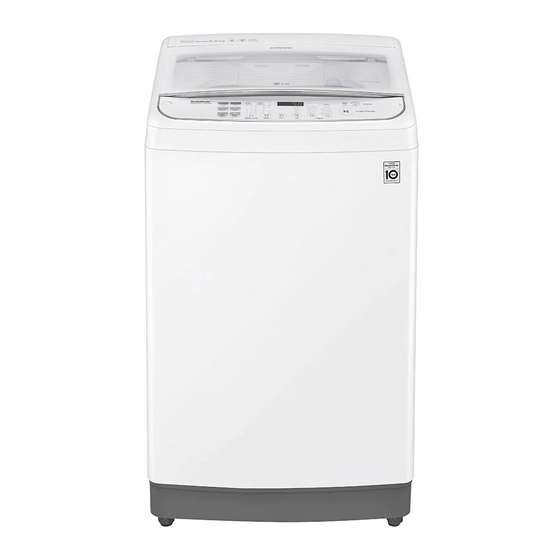

WTG6534W
MFL67568786
Rev.01_061919
Copyright © 2019 LG Electronics Inc. All Rights Reserved
www.lg.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LG WTG6534W
Summary of Contents for LG WTG6534W
- Page 1 This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference. EN ENGLISH WTG6534W www.lg.com MFL67568786 Rev.01_061919 Copyright © 2019 LG Electronics Inc. All Rights Reserved...
-
Page 3: Table Of Contents
Adding Detergents, Softeners and Bleaches ........18 Control Panel..................... 20 Programme ....................22 Extra Options and Functions..............24 SMART FUNCTIONS .............28 Using LG SmartThinQ Application ............28 Using Smart Diagnosis................30 MAINTENANCE ..............31 Cleaning after Every Wash............... 31 Cleaning the Appliance Periodically ............31 TROUBLESHOOTING............34... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below. Safety Messages This symbol is displayed to indicate matters and operations that can cause risk. - Page 5 SAFETY INSTRUCTIONS • Children should be supervised to ensure that they do not play with the appliance. • If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Page 6 SAFETY INSTRUCTIONS • Do not plug the appliance into multiple outlet sockets, power boards, or an extension power cable. • Do not modify the power plug provided with the appliance. If it does not fit the power outlet, have a proper outlet installed by a qualified electrician.
- Page 7 • In case of a water leak from the appliance, disconnect the power plug and contact the LG Electronics customer information centre. • Turn off water taps to relieve pressure on hoses and valves and to minimize leakage if a break or rupture should occur.
- Page 8 • Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance. Contact an LG Electronics customer information centre if you move and install the appliance in a different location.
- Page 9 SAFETY INSTRUCTIONS • Dispose of all packaging materials (such as plastic bags and styrofoam) away from children. The packaging materials can cause suffocation. • Remove the door before disposing of or discarding this appliance to avoid the danger of children or small animals getting trapped inside.
-
Page 10: Installation
INSTALLATION INSTALLATION Parts and Specifications NOTE • Appearance and specifications may change without notice to improve the quality of the appliance. Front View * This feature is only available on some models. Door Tempered Glass Detergent Dispenser Drawer Bleach Dispenser Drum Levelling Feet Drain Hose*... - Page 11 * This feature is only available on some models. Cold and Hot Water Inlet Hoses Drain Hose* Tie Strap* Specifications Model WTG6534W Power Supply 220 - 240 V~, 50 Hz Dimension 540 mm X 540 mm X 945 mm (Width X Depth X Height) Product Weight Approx.
-
Page 12: Installation Place Requirements
Contact your local WARNING authorised LG repairer. • The power plug must be plugged into an • This appliance must only be used for domestic appropriate outlet socket that is installed and... -
Page 13: Connecting The Water Inlet Hoses
INSTALLATION Connecting the Water Inlet Connecting the Hose to the Water Tap Hoses Connecting Screw-Type Hose to Tap with Thread Before connecting the water inlet hose to the water Screw the hose connector onto the water supply tap, check the hose fitting type and then choose tap. -
Page 14: Installing The Drain Hose
INSTALLATION Installing the Drain Hose Connecting the Hose to the Appliance Before connecting the drain hose, check your drain hose model and choose the correct instruction. Screw the water inlet hose to the water inlet valve on the back of the appliance. Installing the Drain Hose with the Elbow Bracket The drain hose must not be placed higher than 120... -
Page 15: Levelling The Appliance
INSTALLATION Levelling the Appliance Checking the Level Levelling the appliance prevents unnecessary noise and vibration. Check whether the appliance is perfectly level after installation. • If the appliance rocks when pushing the top plate of the appliance diagonally, adjust the feet again. -
Page 16: Operation
OPERATION OPERATION Operation Overview End of cycle. • When the cycle is finished, a melody will sound. Immediately remove your clothing Using the Appliance from the appliance to reduce wrinkling. Before the first wash, select the Cotton Wash programme and add a half amount of detergent. NOTE Start the appliance without laundry. - Page 17 OPERATION Checking the Fabric Care Label can cause irreparable damage to both your appliance and clothes. This will tell you about the fabric content of your clothes and how it should be washed. Symbols on the Care Labels Symbol Wash / Fabric type •...
-
Page 18: Adding Detergents, Softeners And Bleaches
OPERATION Adding Detergents, CAUTION Softeners and Bleaches • Using liquid detergent without diluting, or leaving laundry for a long time after pouring Detergent Dosage diluted liquid detergent into the drum might cause the clothes to be damaged, bleached, • Detergent should be selected according to fabric discoloured. - Page 19 OPERATION Adding Fabric Softeners Adding Liquid Bleaches • Add a fabric softener to the maximum fill line. • Before starting the appliance, pour the measured amount of bleach directly into the bleach dispenser . Avoid splashing or overfilling. • Mix powdered bleach with water to a liquid •...
-
Page 20: Control Panel
OPERATION Control Panel Control Panel Features For Non-Vapour Mode Models POWER Button • Press the POWER button to turn on or off the appliance. • The appliance automatically turns off once a certain time has passed after the wash has completed. START/PAUSE Button •... - Page 21 OPERATION Display • The display shows the settings, remaining estimated time, options, and status messages. When the appliance is turned on, the default settings in the display will light up. • : When a programme is selected, the default time for that programme is displayed. The time 18:88 can change as options are selected.
-
Page 22: Programme
OPERATION Programme Information for Energy Test Select the water temperature to suit wash cycles. Wash programmes are designed for the best wash Always follow clothes manufacturer's care label or performance for different types of clothes. instructions when washing. • Press the Program button to select the desired •... - Page 23 If the items float during the wash or • You can check the default programme in the LG spin, it may damage the appliance and the SmartThinQ application.
-
Page 24: Extra Options And Functions
OPERATION Extra Options and Intensive Rinse Functions Use this option to remove detergents more effectively. You can use the extra options and functions on • When the Rinse button is pressed, Intensive some programmes to customize the cycle. Rinse option is selected. Water Level •... - Page 25 • To activate this option, press and hold the Turbo Clean™ button for 3 seconds. • Press and hold Time Delay button for 3 seconds to register the appliance in the LG SmartThinQ • To change the soak time on the display or application.
- Page 26 OPERATION Hot Wash / Cold Wash Unlocking the Control Panel Turn on the power. • Press the Hot Wash and/or Cold Wash buttons to select hot water, cold water, or hot and cold water (warm water). Press and hold the Water Level and Spin •...
- Page 27 OPERATION Manual Washing When you need a rinse and spin, spin only, rinse only or wash only cycle, these can be set manually. Rinse and Spin Spin only Rinse only Wash only Press the POWER button. Press the Rinse Press the Spin Press the Rinse Press the Wash button.
-
Page 28: Smart Functions
Internet service provider or refer to your wireless router manual. This feature is only available on the model with • LG SmartThinQ is not responsible for any logo. network connection problems or any faults, malfunctions, or errors caused by network Before Using the LG connection. - Page 29 Tub Clean Coach seconds to enable this function. This function shows how many cycles remain before running the Tub Clean function. Start a cycle from the LG SmartThinQ application on your smartphone. Energy Monitoring This function checks the energy consumption of the recently used cycles and monthly average.
-
Page 30: Using Smart Diagnosis
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of... -
Page 31: Maintenance
MAINTENANCE MAINTENANCE WARNING • Unplug the appliance before cleaning to avoid the risk of electric shock. Failure to follow this warning may result in serious injury, fire, electric shock, or death. • Never use harsh chemicals, abrasive cleaners, or solvents to clean the appliance. They may damage the finish. - Page 32 MAINTENANCE Remove the water inlet filter with small pliers WARNING and then clean the filter using a medium bristle tooth brush. • Leave the door open to dry the drum interior but only if it is safe and any children are supervised. NOTE •...
- Page 33 MAINTENANCE Remove any foreign objects and fluff inside • In case the appliance must be installed outside pump casing and from the filter. on a porch or in other outdoor conditions, make sure to check the following. How to Keep the Appliance from Freezing After closing the tap, disconnect the cold water inlet hose from the tap, and remove water while keeping the hose facing downwards.
-
Page 34: Troubleshooting
You can remedy most of the problems by yourself, consequently save time and money, since you do not need to call LG Electronics service centre. The following table should assist you by troubleshooting. - Page 35 TROUBLESHOOTING Symptoms Possible Cause & Solution Foreign objects, such as coins, pins, clips, etc.,are caught between the pulsator and the inner drum. FOREIGN OBJECTS ERROR • Turn off the appliance and then press the POWER button. Press the Spin button without selecting a cycle to drain and spin the laundry. When the spin is complete, remove the clothes and then find and remove any objects caught in the pulsator gap.
- Page 36 TROUBLESHOOTING Symptoms Possible Cause & Solution Sensor for clothes-sensing is defective. CLOTHES SENSING • Manually redistribute the laundry if laundry have become tangled. ERROR Motor’s revolution is too low. Contact-point of Connector is defective. • Unplug the appliance and wait 60 seconds. Reconnect power and try again.
- Page 37 TROUBLESHOOTING Operation Symptoms Possible Cause & Solution Water leaking Water inlet hose connection is loose at tap or appliance. • Check hoses for leaks, cracks and splits. • Tighten hose connections. House drain pipes are clogged. • The appliance pumps out water very rapidly. Check for water backing up out of the drain pipe during drain.
- Page 38 TROUBLESHOOTING Symptoms Possible Cause & Solution Appliance will not Control panel has powered off due to inactivity. operate. • This is normal. Press the POWER button to turn on the appliance. Appliance is unplugged. • Make sure that the cord is plugged securely into a working outlet. Water supply is turned off.
- Page 39 TROUBLESHOOTING Symptoms Possible Cause & Solution Appliance is not filling Filter is clogged. properly. • Make sure the inlet filters on the fill valves are not clogged. Supply hoses may be kinked. • Check that supply hoses are not kinked or clogged. Insufficient water supply.
- Page 40 TROUBLESHOOTING Symptoms Possible Cause & Solution Staining Bleach or softener dispensed too soon. • Dispenser compartment is overfilled causing bleach or softener to dispense immediately. ALWAYS measure bleach to prevent overfilling. • Close the dispenser drawer gently. Bleach or softener was added directly to the laundry in the drum. •...
- Page 41 • Find the Wi-Fi network connected to your smartphone and remove it, then not connected to the register your appliance on LG SmartThinQ. Wi-Fi network. Mobile data for your smartphone is turned on. • Turn off the Mobile data of your smartphone and register the appliance using the Wi-Fi network.
- Page 42 Memo...
- Page 43 Memo...
