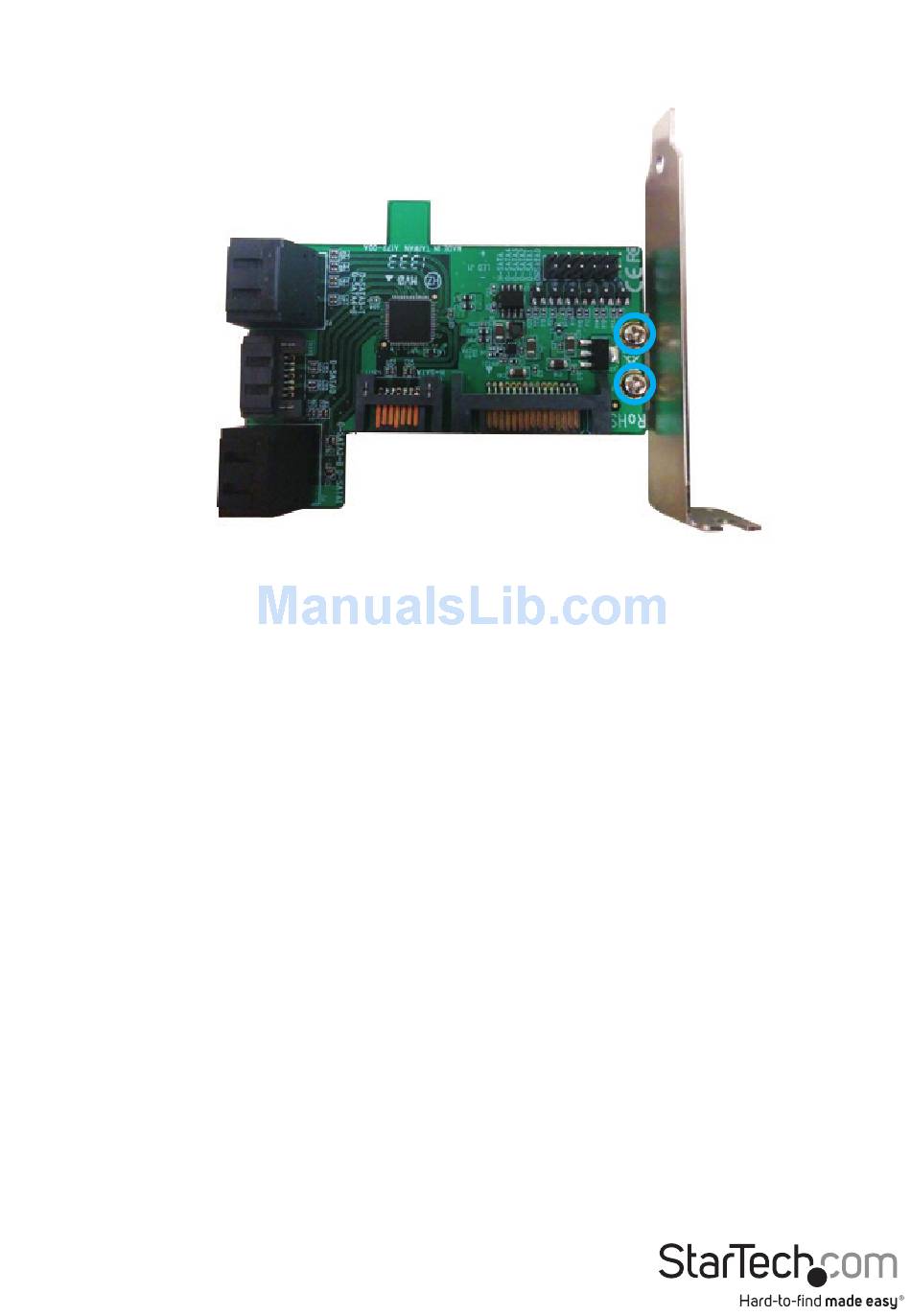

3. Drive the screws through the bracket holes on the ST521PMINT into the mounting

holes on your desired bracket using the small Philips head screw driver.

4. Your desired bracket has now been installed.

System Installation

Note: The SATA controller that the ST521PMINT is connected to must support Port

Multiplier.

1. Open your computer case (refer to the computer case user manual for details), and

place the ST521PMINT into an available expansion slot.

2. Using a computer case screw (not included) and the appropriate corresponding

screw driver (not included), drive the screw into the computer case through the case

mounting hole on the mounting bracket (refer to the computer case user manual

for details).

3. Connect the included SATA cable from your motherboard to the Host computer

SATA connection port on the ST521PMINT.
