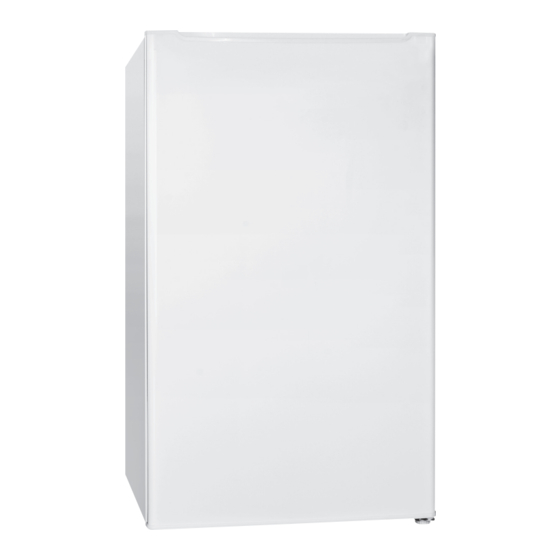

- Page 1 50 CM UNDERCOUNTER FRIDGE I N ST R UC T I O N MA NUA L C U R50W 12 CUR50W12_IB_121121_RC_Pauline.indd 1 21/11/2012 11:27 AM...
- Page 2 CUR50W12_IB_121121_RC_Pauline.indd 2 21/11/2012 11:27 AM...
-
Page 3: Table Of Contents
Contents Unpacking ............................ 4 Installation ........................... 5 Location ..................................5 Reversing the Door Swing ........................... 5 Reversing the Freezer Compartment Door Swing ..................7 Levelling the Unit ..............................7 Cleaning Before Use .............................. 8 Before Using Your Unit ............................8 Interior Accessories .............................. -
Page 4: Unpacking
Thank you for purchasing your new Currys Essentials Fridge. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 5: Installation
Installation INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 38°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. - Page 6 INSTALLATION 2. Remove the upper hinge cap (1). 3. Remove the two upper screws and hinge bracket (2) from the unit top. 4. Carefully lift the door up and remove it from the unit. Place door on a padded surface to prevent from scratching.
-
Page 7: Reversing The Freezer Compartment Door Swing
INSTALLATION Reversing the Freezer Compartment Door Swing 1. Open the freezer compartment door a little way. Using a small screwdriver, press the spring in the opening of the lower door bearing slightly upwards and take the door bearing out complete with the door. -
Page 8: Cleaning Before Use
INSTALLATION Cleaning Before Use Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a ‘wrung-out’ sponge or cloth. Wash the shelves and salad bin in warm soapy water and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth. -
Page 9: Product Overview
Product Overview Freezer Compartment Internal Light and Thermostat Control Dial Door Adjustable Glass Shelves Shelf Glass Shelf Salad Bin Lower Door Shelf Levelling Feet Ice Tray CUR50W12_IB_121121_RC_Pauline.indd 9 21/11/2012 11:27 AM... -
Page 10: Operation
Operation Switching On Your Unit 1. Before connecting the unit to the mains supply make sure that the thermostat control dial is set at position 0. This is located on the right side of the cabinet. Connect the mains cable to the mains socket. -
Page 11: Noises Inside The Unit
Noises Inside the Unit! You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them! These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. -
Page 12: Preparations For Freezing
Preparations for Freezing • Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better. • Leave cooked food to cool completely. Chill food before freezing if possible. • Consider how you will want to cook the food before freezing it. -
Page 13: Cleaning
Cleaning Defrosting Frost might build up in the unit after it has been used for a period of time. Scrape away the frost using a plastic scraper (not included). Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical appliances to aid defrosting. -
Page 14: Maintenance
Maintenance Changing the Internal Light 1. Before carrying out the bulb replacement always adjust the thermostat control dial to Position 0, then disconnect the mains supply. 2. To change the light bulb (220~240V, max. 15W), undo the screw. 3. Press the light bulb cover as shown and slide it backwards. -
Page 15: Specifications
Specifications Model CUR50W12 Fresh Food Storage Compartment Volume Frozen Food Storage Volume Storage Temperature - Fridge 0°C - 8°C, average ≤ 4°C Storage Temperature - Freezer ≤ -18°C Energy Consumption 0.476kWh / 24h Energy consumption 173 kwh per year, based on standard test results for 24 hours. -
Page 16: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual. • Keep ventilation openings in the unit enclosure clear of obstructions. - Page 17 Normal energy Increased energy consumption consumption Installation site In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not situated near to a heat source Situated near to a heat source (radiator, oven). (radiator, oven). Where the ideal ambient room Where there is a high ambient room temperature is approx 20°C.
- Page 18 CUR50W12_IB_121121_RC_Pauline.indd 18 21/11/2012 11:27 AM...
- Page 19 CUR50W12_IB_121121_RC_Pauline.indd 19 21/11/2012 11:27 AM...
- Page 20 NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Adjustable Glass Shelf 1098935 Salad Bin Cover 1098933 Salad Bin 1096010 Upper Door Shelf 1110359 Lower Door Shelf 1110358 Ice Tray 1051965...
