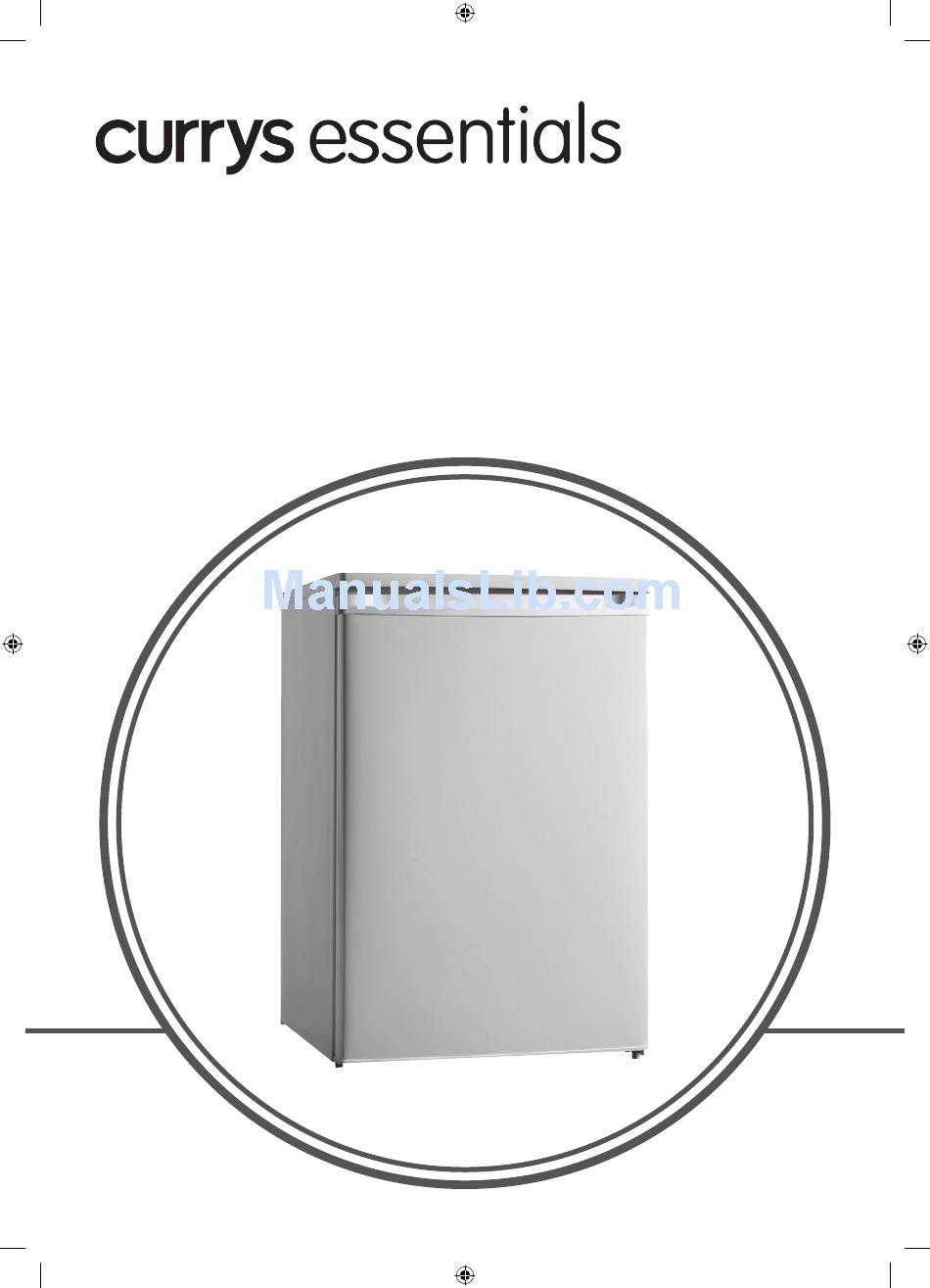

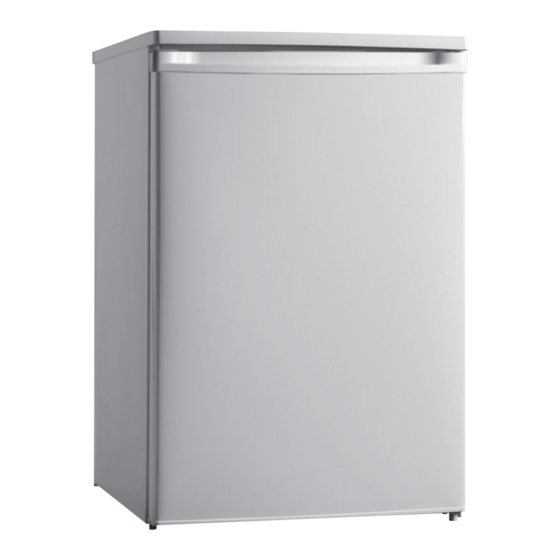

- Page 1 UNDERCOUNTER FRIDGE I N ST R UC T I O N MA NUA L C U R55W 12 CUR55W12_IB_121121_RC_Pauline.indd 1 21/11/2012 11:29 AM...
- Page 2 CUR55W12_IB_121121_RC_Pauline.indd 2 21/11/2012 11:29 AM...
-
Page 3: Table Of Contents
Contents Unpacking ............................ 4 Installation ........................... 5 Location ..................................5 Reversing the Door Swing ........................... 5 Levelling the Unit ..............................8 Cleaning Before Use .............................. 8 Before Using Your Unit ............................8 Interior Accessories ..............................8 Product Overview ........................9 Operation ........................... -
Page 4: Unpacking
Thank you for purchasing your new Currys Essentials Undercounter Fridge. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 5: Installation
Installation INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 38°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. - Page 6 INSTALLATION 2. Remove the 2 screw covers first, then undo the screws underneath. 3. Remove the 2 screws on the back. 4. Lift the top cover away from the fridge. 5. Remove the screws, then remove the upper hinge that hold the door in place. Lift the door and place it on a padded surface to prevent it from scratching.
- Page 7 INSTALLATION 8. Remove the screw-type adjustable feet from another side of the unit bottom and transfer it to the corresponding position on the opposite side of the unit bottom. 9. Reattach the two lower screws, hinge bracket and adjustable feet to the opposite side of the unit bottom.
-
Page 8: Levelling The Unit
INSTALLATION Levelling the Unit To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the door and magnetic seal alignments will not be covered properly. Cleaning Before Use Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a ‘wrung-out’... -
Page 9: Product Overview
Product Overview Freezer Compartment Internal Light and Thermostat Control Dial Door Adjustable Glass Shelves Shelf Glass Shelf Salad Bin Lower Door Shelf Levelling Feet Egg Tray Ice Tray CUR55W12_IB_121121_RC_Pauline.indd 9 21/11/2012 11:29 AM... -
Page 10: Operation
Operation Switching On Your Unit 1. Before connecting the unit to the mains supply make sure that the thermostat control dial is set at position OFF. This is located on the right side of the cabinet. Connect the mains cable to the mains socket. -
Page 11: Shopping For Chilled Foods
Shopping for Chilled Foods • Take a quick look at the chilled food package and make sure it is in perfect condition. • Try to keep chilled food together whilst shopping and on the journey home as this will help to keep the food cold. -
Page 12: Preparations For Freezing
Preparations for Freezing • Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better. • Leave cooked food to cool completely. Chill food before freezing if possible. • Consider how you will want to cook the food before freezing it. -
Page 13: Cleaning
Cleaning Defrosting Frost might build up in the unit after it has been used for a period of time. Scrape away the frost using a plastic scraper (not included). Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical appliances to aid defrosting. -
Page 14: Maintenance
Maintenance Changing the Internal Light 1. Before carrying out the bulb replacement always adjust the thermostat control dial to Position 0, then disconnect the mains supply. 2. To change the light bulb (220~240V, max. 15W), undo the screw. 3. Press the light bulb cover as shown and slide it backwards. -
Page 15: Specifications
Specifications Model CUR55W12 Fresh Food Storage Compartment Volume Frozen Food Storage Volume Freezer: ≤ -18°C Storage Temperature Fridge: 0°C - 8°C Average: ≤ 4°C Energy Consumption 0.47kwh / 24hr Energy consumption 172 kwh per year, based on standard test results for 24 hours. -
Page 16: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual. • Keep ventilation openings in the unit enclosure clear of obstructions. - Page 17 Normal energy Increased energy consumption consumption Installation site In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not situated near to a heat source Situated near to a heat source (radiator, oven). (radiator, oven). Where the ideal ambient room Where there is a high ambient room temperature is approx 20°C.
- Page 18 CUR55W12_IB_121121_RC_Pauline.indd 18 21/11/2012 11:29 AM...
- Page 19 CUR55W12_IB_121121_RC_Pauline.indd 19 21/11/2012 11:29 AM...
- Page 20 There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Ltd • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England (P.N.: CUR55W12-002) CUR55W12_IB_121121_RC_Pauline.indd 20 21/11/2012 11:29 AM...
