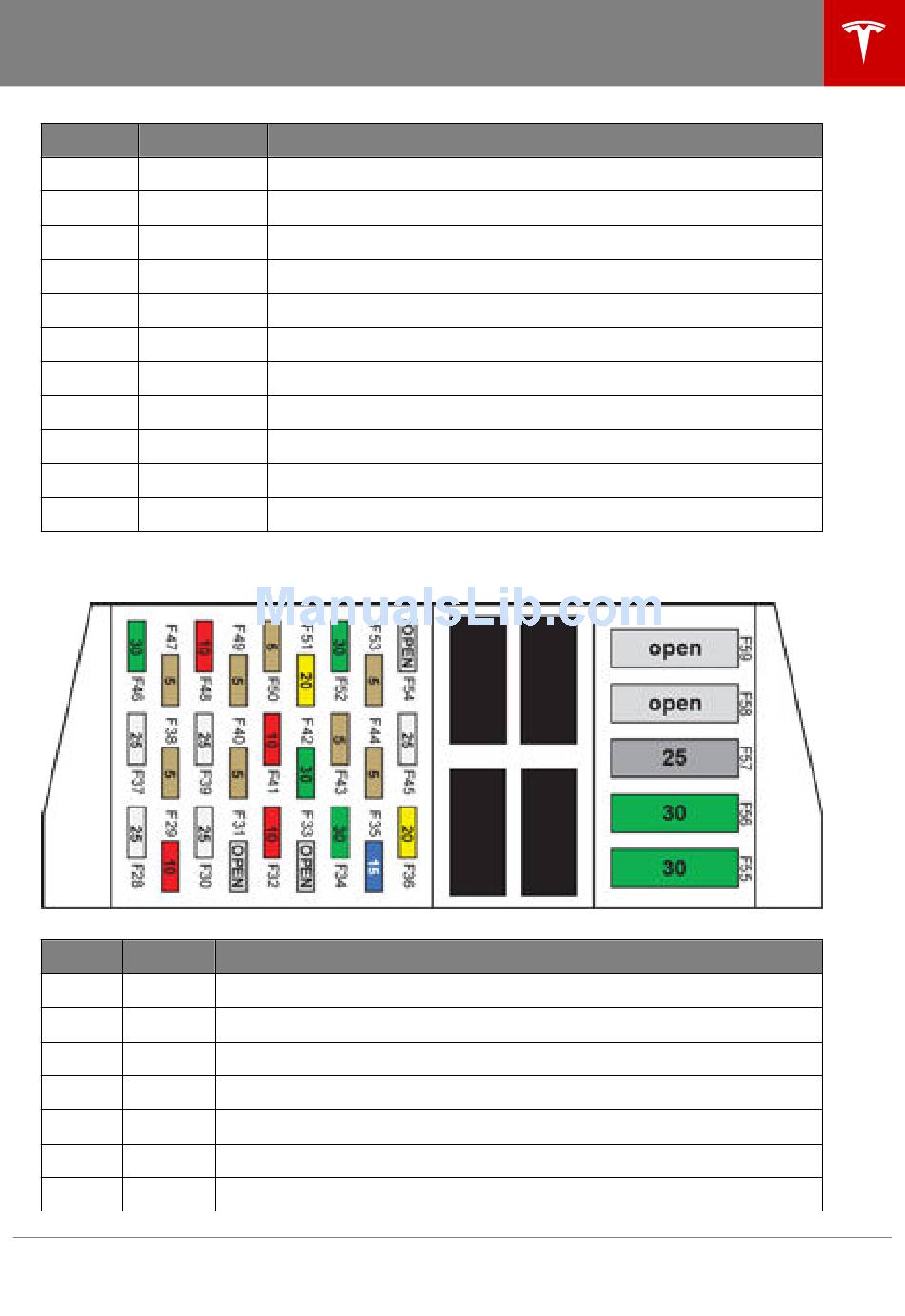

Fuses
Fuse Rating
17 20 A
18 5 A
19 5 A
20 5 A
21 15 A
22 5 A
23 15 A
24 5 A
25 15 A
26
27 10 A
Fuse Box 2
Fuse Rating
28 25 A
29 10 A
30 25 A
31 -
32 10 A
33 -
34 30 A
110
Circuit Protected
Electric parking brake
Not used
In-vehicle HVAC sensor
Cabin air heater logic
Battery coolant pump 1
Inlet actuators
Powertrain coolant pump
Cabin climate control
Battery coolant pump 2
- Not used
Thermal controller
Circuit Protected
Window lift motor (right rear)
Contactor power
Window lift motor (right front)
Not used
Door controls (right side)
Not used
Rear center seat heaters, washer/wiper de-ice (cold weather option)
