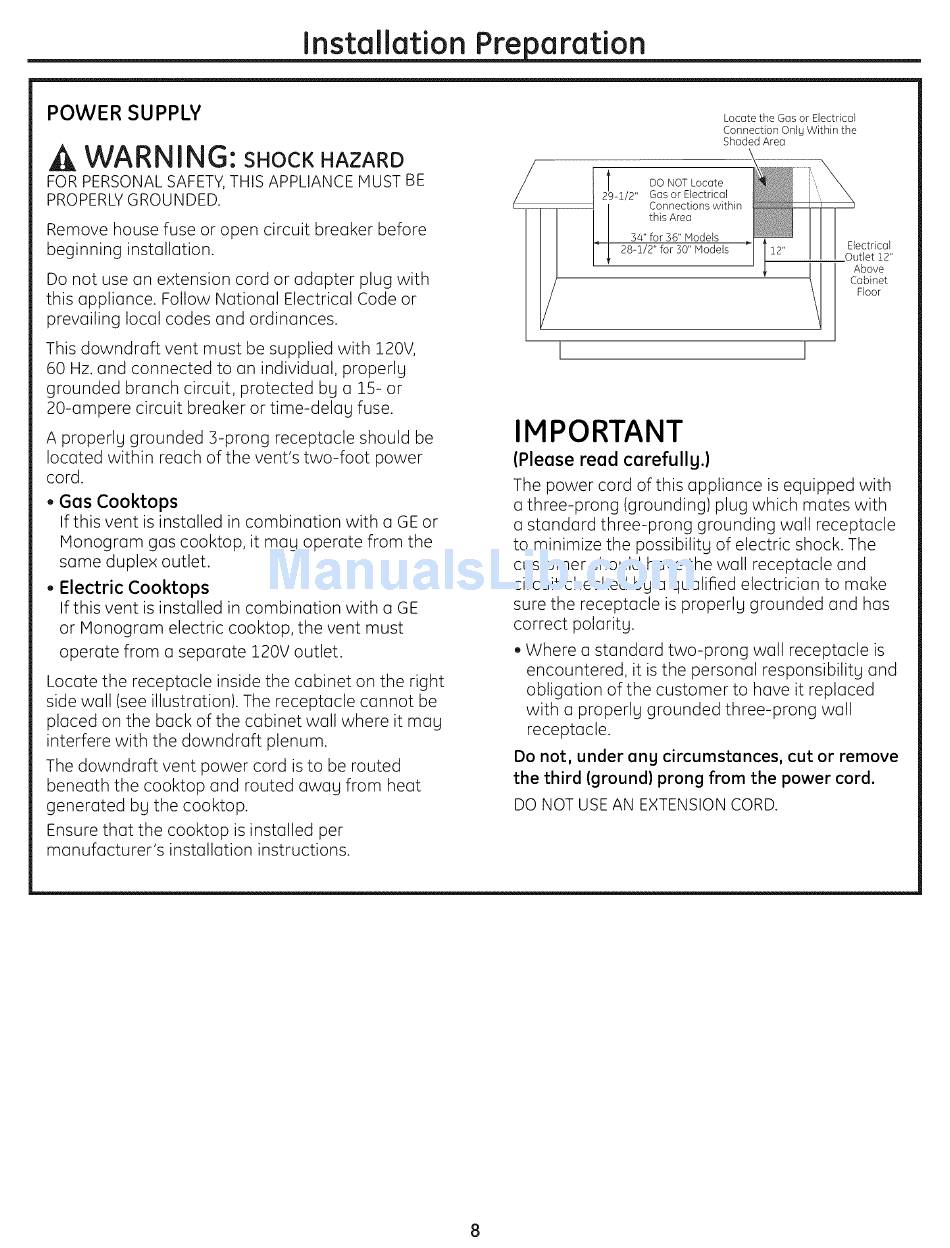

Installation Preparation
POWER SUPPLY
A WARNING: SHOCK HAZARD
FOR PERSONAL SAFETY,THIS APPLIANCE MUST BE
PROPERLYGROUNDED.
Remove house fuse or open circuit breaker before
beginning installation.
Do not use an extension cord or adapter plug with
this appliance. Follow National Electrical Code or
prevailing local codes and ordinances.
This downdraft vent must be supplied with 120V,
60 Hz. and connected to an individual, properlg
grounded branch circuit, protected bg a 15- or
20-ampere circuit breaker or time-delag fuse.
A properlg grounded 3-prong receptacle should be
located within reach of the vent's two-foot power
cord.
, Gas Cooktops
If this vent is installed in combination with a GE or
Monogram gas cooktop, it mag operate from the
same duplex outlet.
, Electric Cooktops
If this vent is installed in combination with a GE
or Monogram electric cooktop, the vent must
operate from a separate 120V outlet.
Locate the receptacle inside the cabinet on the right
side wall (see illustration). The receptacle cannot be
placed on the back of the cabinet wall where it mag
interfere with the downdraft plenum.
The downdraft vent power cord is to be routed
beneath the cooktop and routed awag from heat
generated bg the cooktop.
Ensure that the cooktop is installed per
manufacturer's installation instructions.
Locate the Gas or Electrical
Connection Onlg Within the
Shaded Area
/
/
I J DO NOT Locate
9- "
1/2 Gas or Electrical
Connections within
this Area
34" for 36" Models
' 28-1/2" for 30" Models
Electrical
Outlet 12"
Above
Cabinet
Floor
I I
IMPORTANT
(Please read carefullg.)
The power cord of this appliance is equipped with
a three-prong (grounding) plug which mates with
a standard three-prong grounding wall receptacle
to minimize the possibilitg of electric shock. The
customer should have the wall receptacle and
circuit checked bg a qualified electrician to make
sure the receptacle is properlg grounded and has
correct polaritg.
• Where a standard two-prong wall receptacle is
encountered, it is the personal responsibilitg and
obligation of the customer to have it replaced
with a properlg grounded three-prong wall
receptacle.
Do not, under ang circumstances, cut or remove
the third (ground) prong from the power cord.
DO NOT USE AN EXTENSION CORD.
