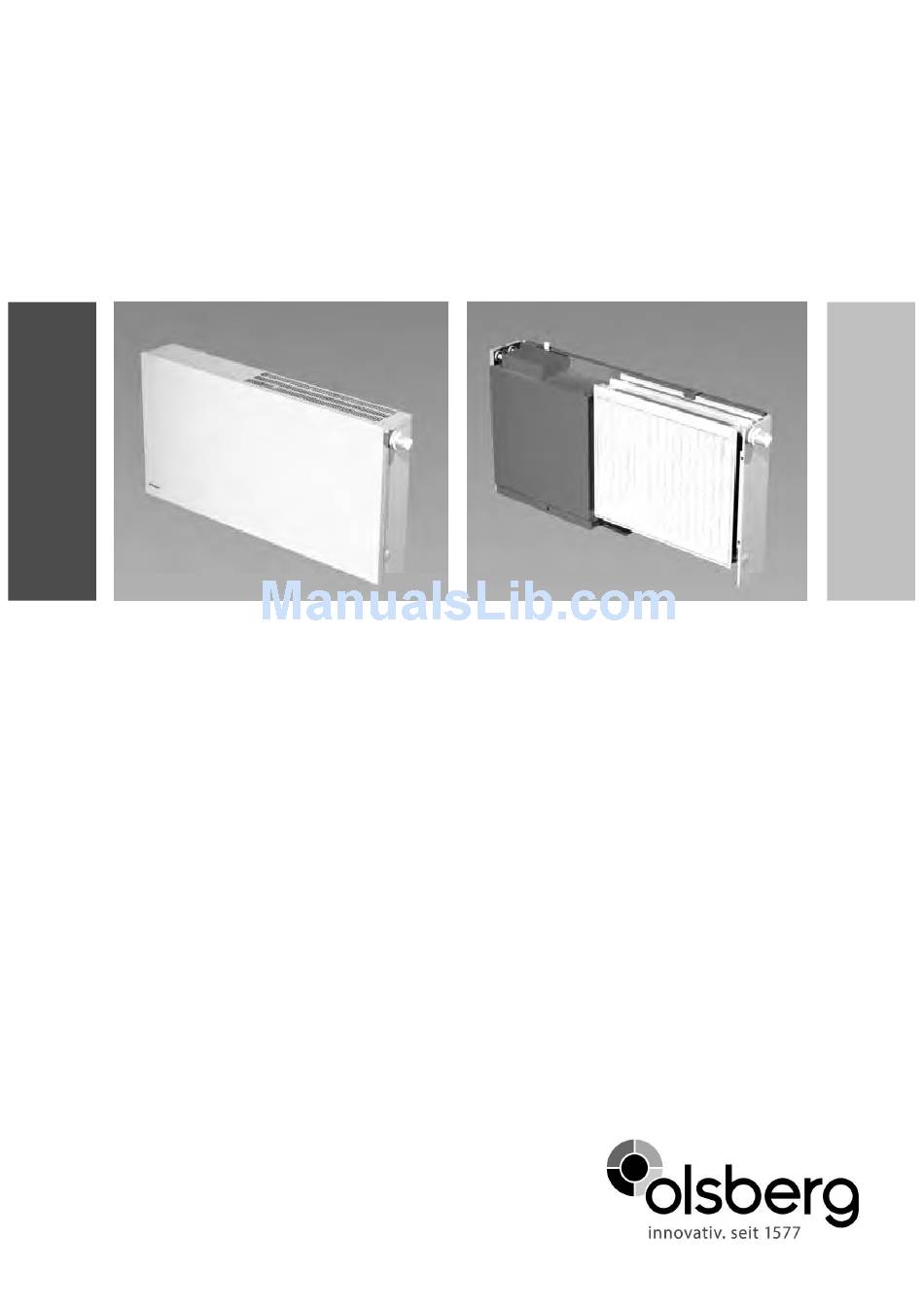

- Page 1 OLSBERG Instruction Manual OLSBERG AirCom Zentral Heating and ventilation system...
-
Page 2: Table Of Contents
Table of Contents • Decentralised ventilation ..... Page 24 Room quality ............24 Energy saving ............24 Easy installation ............ 24 • How it works ........... 25 Basic principle diagram ........25 • General .............. 26 Delivery, Packaging, Recycling ......26 Instructions for the installer •... -
Page 3: Decentralised Ventilation
CO pollution Easy installation • The decentralised apartment ventilation system from OLSBERG can be installed room-by-room, in combina- tion with a central heating system and with little installa- tion effort • Retroactive combination with an existing central heating system is easily possible •... -
Page 4: How It Works
How it works / construction diagram Heat recuperation (W) The OLSBERG AirCom Zentral has two fans which at a room temperature of 20°C simultaneously purge exhausted air from, and intro- duce fresh air to the room. The exhaust fan removes the stale air from the room through a cross-flow heat exchanger. -
Page 5: General
Delivery, Packaging, Recycling To facilitate transport and handling, the ventilation unit and radiator cabinets are packaged separately. The packaging of your high-quality OLSBERG heat- ing-ventilation system has been limited to the mini- mum necessary for safe transport and is made en- tirely of recyclable materials. -
Page 6: Instructions For The Installer
The top and • Local safety regulations must be adhered to. front panels are only loosely fitted! • In bathrooms, the AirCom Zentral is to be posi- • Unpack the appliance. tioned in such a way that the electrical switch and retractable rotary knobs cannot be touched by •... -
Page 7: Minimum Clearances
Minimum clearances Flow and return pipework The AirCom Zentral shall be mounted flush to the wall. Suitable heating pipework (DN15) is to be installed for the flow and return connections to the radiator. The Following minimum clearances must be adhered to: connection to the radiator (all connections G½“-... -
Page 8: External Air Ducting
External air ducting Earthed plug and socket 230V~ Before the appliance is installed, the appropriate ex- The appliance is of the plug-in type. An earthed ternal air passages must be made in the outside wall. socket 230V~ is thus to be installed at a maximum This is done –... - Page 9 Template (accessory) Wall-mounting strip Fresh air Exhaust air Floor X: Dimension of radiator connector (angle fitting) from middle of heating pipework to lower edge of radiator fittings Number Type of holes Fig.3 Wall-mounting strip / Installation template Exhaust Fresh Floor inside thread ½“...
- Page 10 inside thread ½“ Fresh Exhaust Exhaust Fresh Type Floor Fig.5 Configuration Air ducts / Radiator connectors / Heating pipes - Connection from side Lower edge of appliance Floor Type Fig.6 Location of earthed socket...
-
Page 11: Assembly
Assembly Opening the appliance Remove the front panel of the appliance. To do Wall-mounting strip fixing screws this, push the front panel approx. 1cm towards the top side of the appliance and pull it forward and away. Remove the top panel of the appliance. To do this, pull the top panel on the right hand and left hand side approx. - Page 12 Hang the AirCom Zentral cabinet onto the wall- mounting strip in such a way that the upper edge of the appliance rear panel lies behind the upper edge of the wall-mounting strip. Align the cabinet approximately in the middle of...
- Page 13 Remove the transport packaging and the pro- tective caps from the radiator. If the heater pipework runs in from below, screw both fittings ½“ x ¾“ (with internal hexagonal thread) firmly into the flow and return connec- tors of the valve-controlled radiator so that they form a good seal.
-
Page 14: Electrical Connection
The AirCom Zentral is factory delivered as a plug-in Electrical connection appliance. The cable is at the lower left of the appliance / ventila- tion module and is secured for transport with a cable binder. Only plug the device plug into the protected earthed... -
Page 15: Rating Label
The rating label contains all technical data specific to Rating Label the appliance. The rating label is found on the sealing panel of the ventilating module (remove the front panel to get at it). Type number Heating rating of Air volume the radiator Current rating of the fans... -
Page 16: Accessories
Accessories Round duct standard set; Wall-mounting strip (Picture 2a, Page 32) Flat duct standard set The wall-mounting strip, which is separately packed, With the round duct standard set, as well as the flat serves as a marker for the position of the air ducts duct standard set, short, straight outside air connec- during the construction phase. -
Page 17: Commissioning
Commissioning Re-assembly The following operations are to be tested once the Appliances that have already been in operation or appliance has been finally installed. For this the venti- have been taken apart and repositioned must be re- lation module must be closed, otherwise the module is installed according to these instructions. -
Page 18: Operating Instructions For The User Operation
Operating Instructions for the User The operation of the ventilation radiator is done by Operation means of rotary knobs on the left hand side of the appliance. A light press of the rotary knob causes it to Closing the fresh air ducts spring out;... -
Page 19: Care And Maintenance
• The care and maintenance intervals for the AirCom Zentral are very dependent upon the lo- cation and operating conditions to which they are subjected. It is recommended, however, that this work be done at least once a year. -
Page 20: Filter Monitoring And Filter Changing
Filter monitoring and changing Cleaning the external wall ducting The rate at which the filter becomes dirty is essen- In order to clean the air ducting in the external wall, tially dependent on the conditions under which the the ventilation module (C, Fig.8) must first be com- appliance is installed and operates. -
Page 21: Procedures To Be Followed
Procedures to be followed Trouble shooting • If the AirCom Zentral should not work for any reason, Do not block the free passage of convected air please first check the following procedures: below the appliance. Do not block the air intake •... -
Page 22: Technical Data
Technical Data Type 36/011-2 36/012-2 36/013-2 36/014-2 Dimensions 595x1150x198 595x1350x198 595x1550x198 595x1750x198 HxWxD in mm Dimensions niche 825x1350 825x1550 8025x1750 825x1950 Min. HxW in mm Weight incl. 65 kg 84 kg 103 kg 120 kg water-filled radiator Voltage / Frequency 1/N/PE ~ 230 V / 50 Hz Air flow volume 20 - 60 m³/h... - Page 23 Olsberg GmbH Hüttenstraße 38 59939 Olsberg T +49 2962 805-0 F +49 2962 805-180 info@olsberg.com olsberg.com...
