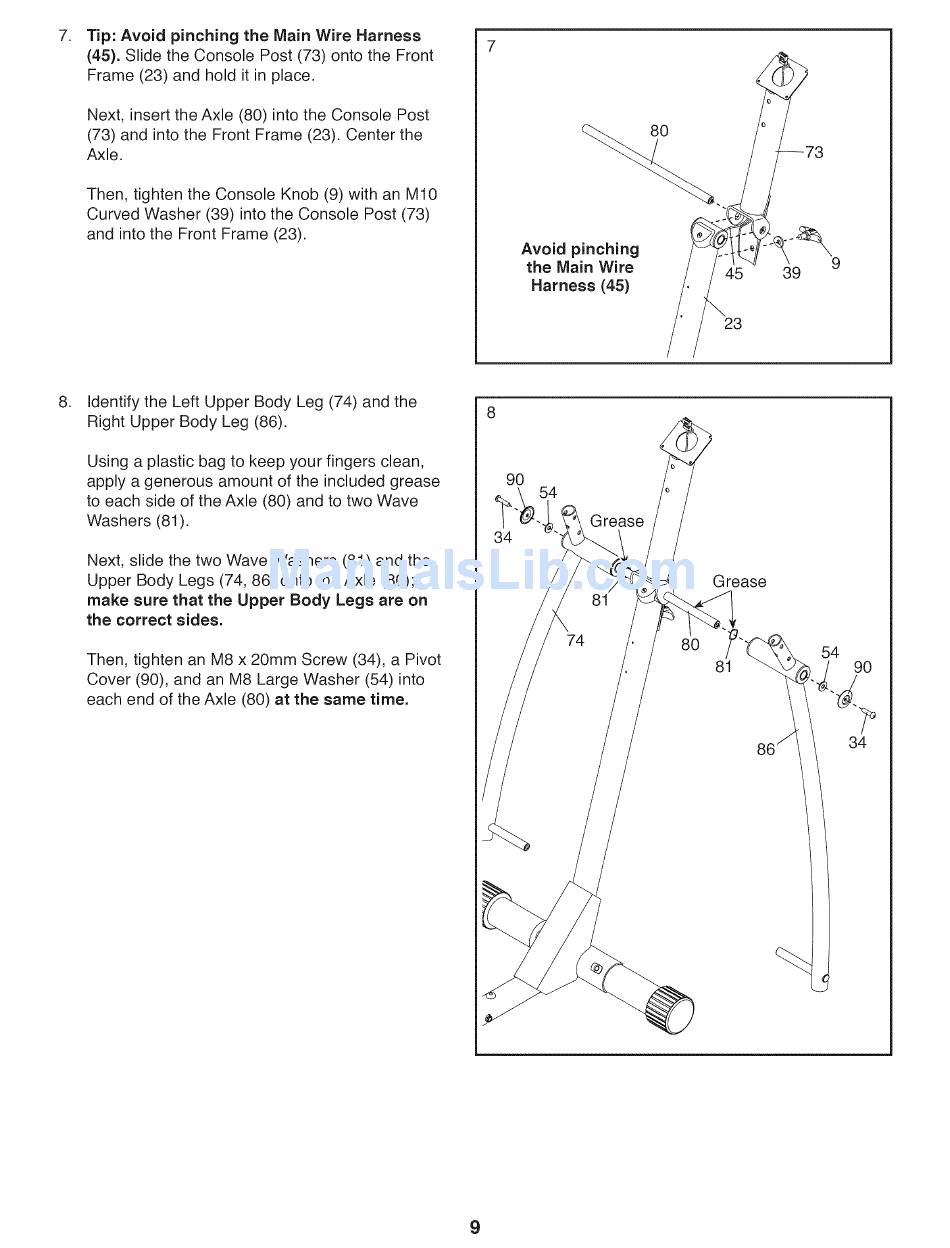

Tip: Avoid pinching the Main Wire Harness
(45). Slide the Console Post (73) onto the Front
Frame (23) and hold it in place.
Next, insert the Axle (80) into the Console Post
(73) and into the Front Frame (23). Center the
Axle.
Then, tighten the Console Knob (9) with an M10
Curved Washer (39) into the Console Post (73)
and into the Front Frame (23).
Avoid pinching
the Main Wire
Harness (45)
45 39
23
9
.
Identify the Left Upper Body Leg (74) and the
Right Upper Body Leg (86).
Using a plastic bag to keep your fingers clean,
apply a generous amount of the included grease
to each side of the Axle (80) and to two Wave
Washers (81).
Next, slide the two Wave Washers (81) and the
Upper Body Legs (74, 86) onto the Axle (80);
make sure that the Upper Body Legs are on
the correct sides.
Then, tighten an M8 x 20mm Screw (34), a Pivot
Cover (90), and an M8 Large Washer (54) into
each end of the Axle (80) at the same time.
90
54
34
Grease
81
74
80
Grease
81
54
34
9
