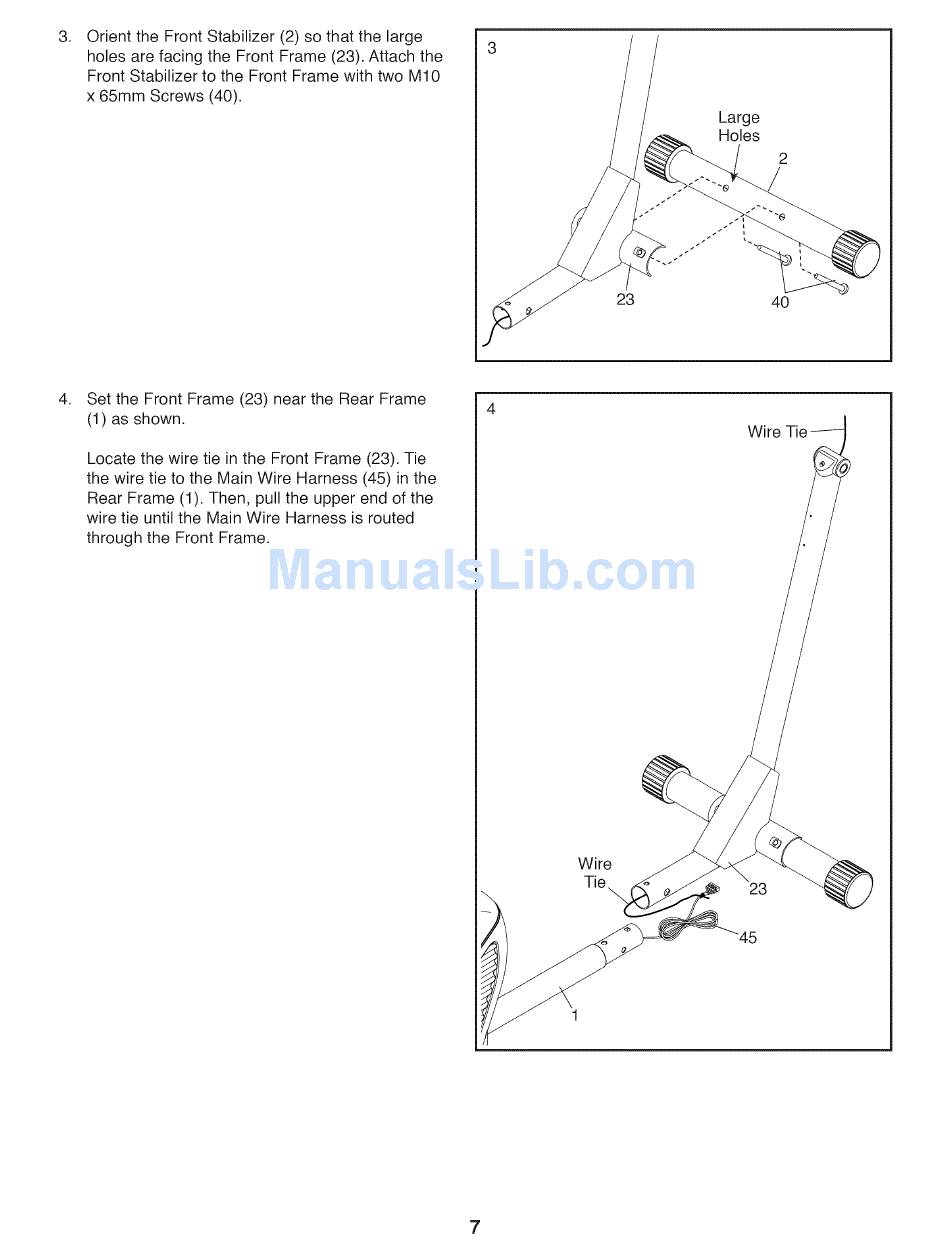

Orient the Front Stabilizer (2) so that the large
holes are facing the Front Frame (23). Attach the
Front Stabilizer to the Front Frame with two M10
x 65mm Screws (40).
23
Large
Holes
40
.
Set the Front Frame (23) near the Rear Frame
(1) as shown.
Locate the wire tie in the Front Frame (23). Tie
the wire tie to the Main Wire Harness (45) in the
Rear Frame (1). Then, pull the upper end of the
wire tie until the Main Wire Harness is routed
through the Front Frame.
Wire
Tie_
Wire Tie
23
7
