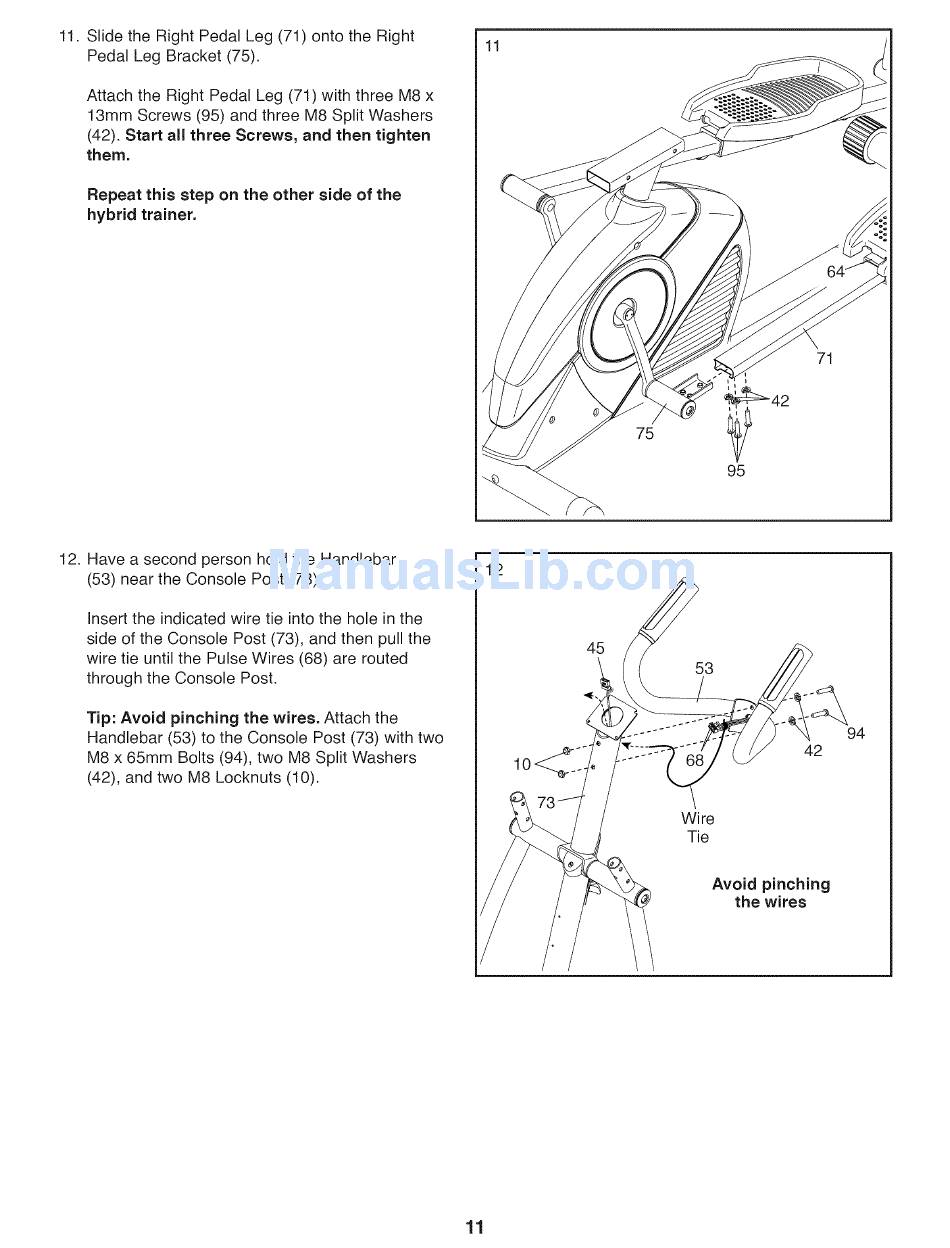

11. Slide the Right Pedal Leg (71) onto the Right
Pedal Leg Bracket (75).
Attach the Right Pedal Leg (71) with three M8 x
13mm Screws (95) and three M8 Split Washers
(42). Start all three Screws, and then tighten
them.
Repeat this step on the other side of the
hybrid trainer.
11
75
95
71
12. Have a second person hold the Handlebar
(53) near the Console Post (73).
Insert the indicated wire tie into the hole in the
side of the Console Post (73), and then pull the
wire tie until the Pulse Wires (68) are routed
through the Console Post.
Tip: Avoid pinching the wires. Attach the
Handlebar (53) to the Console Post (73) with two
M8 x 65mm Bolts (94), two M8 Split Washers
(42), and two M8 Locknuts (10).
12
10
45
53
42
Wi re
Tie
Avoid pinching
the wires
94
