Wing Assembly - Model Tech Blue Max Assembly Instructions Manual

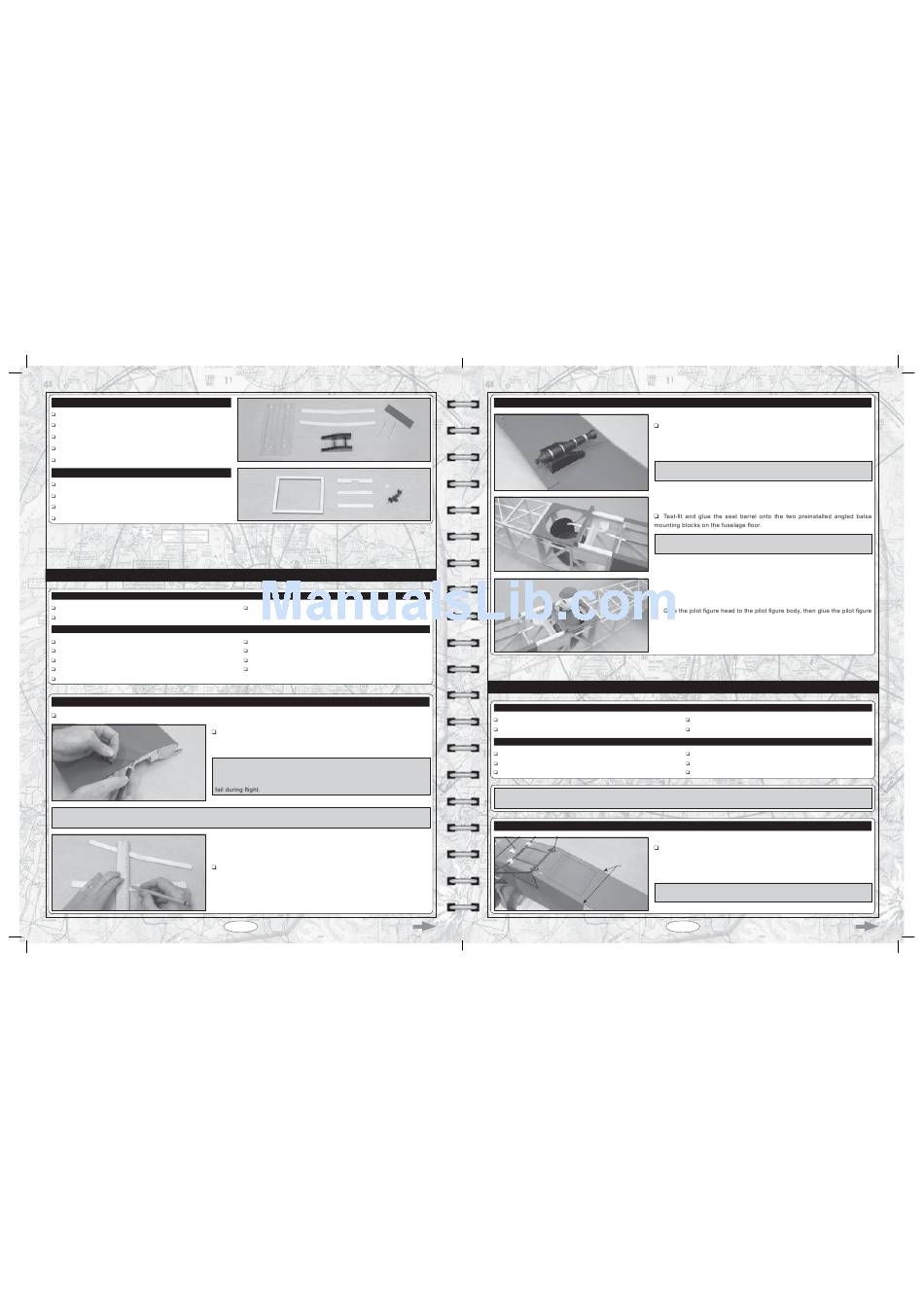

MISCELLANEOUS WING PARTS
(1) Plywood Wing-Screw Doubler
(2) M5 x 65mm Nylon Wing Screws
(2) Hardwood Wing Joiners
(1) Cannon Mount
(1) Plastic Cannon Halves
BATTERY HATCH ASSEMBLY - ELECTRIC VERSION
(1) Plywood Hatch Frame
(3) Plywood Hatch Cover Reinforcement Plates
(1) Balsa Hatch Latch Shim
(1) Hatch Latch

WING ASSEMBLY

YOU'LL NEED THE FOLLOWING PARTS FROM THE KIT:
(1) Right Wing Panel with Aileron
(1) Left Wing Panel with Aileron
YOU'LL NEED THE FOLLOWING TOOLS AND SUPPLIES:
30 Minute Epoxy
Modeling Knife
Straight Edge Ruler
Pencil
220 Grit Sandpaper with Sanding Block
STEP 1: ALIGNING THE WING PANELS
Remove the aileron and hinges from each of the two wing panels and set them aside for now.
Cut away the excess covering material that overlaps onto the root ribs of
each wing panel, leaving about 1/16" (1.6mm) overlapped so it does not
pull away.
IMPORTANT It's very important to the integrity of the wing centre-section
joint that you remove as much covering material from the root ribs as
possible. Do not omit this procedure or the wing centre-section joint may
IMPORTANT There are two wing joiners that support the wing panels. The larger wing joiner is the forward wing joiner and the
smaller wing joiner is the rear wing joiner.
Locate and draw a vertical centreline on one side of each of the two wing
joiners.
(2) Hardwood Wing Joiners
Paper Towels
Rubbing Alcohol
Epoxy Mixing Sticks
Epoxy Mixing Cups
Page 8
STEP 3: INSTALLING THE CANNON AND PILOT FIGURE
Glue the cannon into the cannon mount, then align and glue the cannon
mount to the top of the wing. When positioned properly, the back edge of the
cannon mount should be pushed up against the front edge of the wing-screw
doubler and the cannon mount should be centred over the wing's centreline.
IMPORTANT Remember to cut away the covering material from the gluing
surfaces to ensure a strong glue joint.
IMPORTANT You will need to cut a small notch in each side of the seat
barrel backrest to clear the elevator and rudder pushrod guide tubes.
to the top of the seat barrel.
BATTERY HATCH INSTALLATION - ELECTRIC VERSION ONLY
YOU'LL NEED THE FOLLOWING PARTS FROM THE KIT:
(1) Plywood Hatch Frame
(3) Plywood Hatch Cover Reinforcement Plates
YOU'LL NEED THE FOLLOWING TOOLS AND SUPPLIES:
Thin and Thick C/A
Modeling Knife
Straight Edge Ruler
IMPORTANT This section details the installation of the LiPO battery access hatch. If you are using a glow engine, please skip to
the Final Assembly section on page 39.
STEP 1: ASSEMBLING THE HATCH COVER
Cut out a battery access hatch on the bottom of the fuselage. The hatch
should be 3" (76mm) wide and 3-3/4" (95mm) long. The hatch should be
A
centred between the fuselage sides and the back edge of the hatch should be
1/2" (13mm) in front of the "step" (A) in each side of the fuselage.
IMPORTANT Use a straight edge ruler and a sharp modeling to ensure
accurate and straight cuts.
(1) Balsa Hatch Latch Shim
(1) Hatch Latch
Pencil
220 Grit Sandpaper with Sanding Block
Airplane Stand
