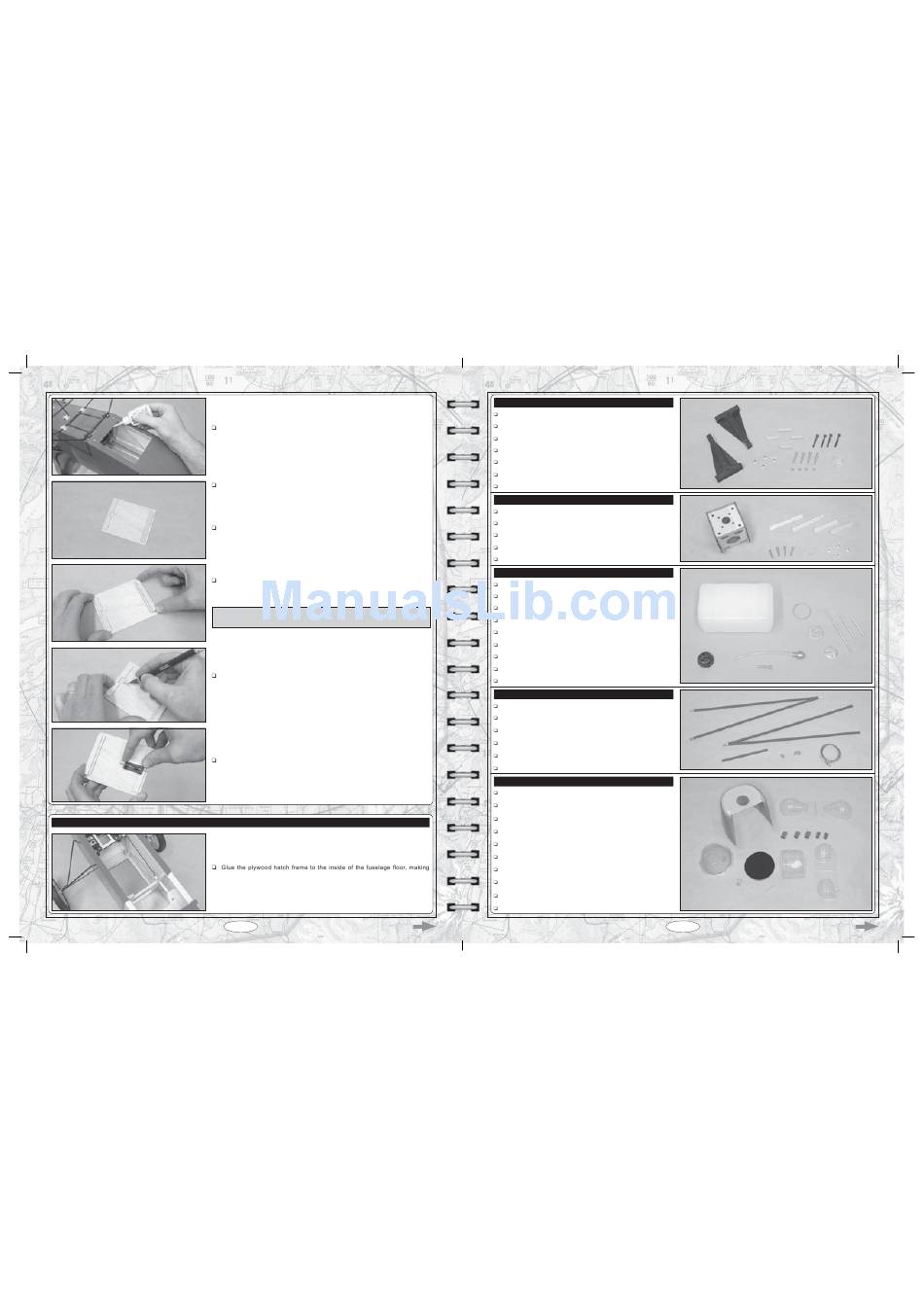

Carefully apply a light coat of thin C/A to the edges of both the hatch cover
and the hatch. This will secure the edges of the covering material into place
so that it doesn't peel up in the future.
Glue the reinforcement plate with a notch cut into it to the front of the hatch
cover, making sure that the front edge of the reinforcement plate is 1/8" (3mm)
behind the front edge of the hatch cover and that the reinforcement plate is
centred between the sides of the hatch cover.
Glue one reinforcement plate to the back of the hatch cover, making sure
that the back edge of the reinforcement plate is 1/8" (3mm) in front of the back
edge of the hatch cover and that the reinforcement plate is centred between
the sides of the hatch cover.
Glue the remaining reinforcement plate onto the top of the rear reinforcement
plate, making sure that it overlaps the back edge of the rear reinforcement plate
halfway.
IMPORTANT These two reinforcement plates will create a tab that will hold
the back of the hatch cover in place.
Cut a 1/8" (3mm) wide by 3/4" (18mm) long slot in the centre of the hatch
cover for the hatch latch. Position the front of the slot 9/16" (14mm) behind the
front edge of the hatch cover.
Glue the hatch latch to the hatch cover, making sure not to get any glue in
the latch mechanism.
STEP 2: INSTALLING THE HATCH COVER
sure that it's centred over the hatch cutout.
Page 38
ENGINE MOUNT ASSEMBLY - GLOW VERSION
(2) Engine Mounting Beams
(4) Plywood Filler Blocks
(4) M3 x 25mm Socket-Cap Screws
(4) M3 x 20mm Machine Screws
(4) M3 Lock Nuts
(4) M3 Blind Nuts
(12) M3 Flat Washers
MOTOR MOUNT ASSEMBLY - ELECTRIC VERSION
(1) Plywood Motor Mounting Box
(4) Balsa Triangle Supports
(4) M3 x 16mm Machine Screws
(4) M3 Blind Nuts
(4) M3 Flat Washers
FUEL TANK ASSEMBLY
(1) 240cc Fuel Tank
(3) Aluminium Tubes
(1) Rubber Stopper
(1) Metal Plate - Small
(1) Metal Plate - Large
(1) Fuel Pick-up (Clunk)
(1) Silicone Fuel Tubing
(1) Metal Support Ring
(1) M3 x 20mm Machine Screw
WING STRUT AND FLYING WIRES ASSEMBLIES
(1) Right Wing Strut
(1) Left Wing Strut
(1) Flying Wires Mounting Post
(2) Flying Wires
(10) M3 x 10mm Machine Screws
(10) M3 Flat Washers
MISCELLANEOUS FUSELAGE PARTS
(1) Cowl
(5) Cowl Mounting Blocks
(1) Plastic Seat Barrel
(1) Balsa Seat Barrel Support Plate
(1) Plastic Seat Barrel Backrest
(1) Plastic Pilot Figure Body Halves
(1) Plastic Pilot Figure Head Halves
(5) M2 x 10mm Flange-Head Wood Screws
(1) Clear Vinyl Tubing
(1) Decal Set (Not Pictured)
