Section 5: Wing Assembly - Model Tech Magic Formula 3D ARF Manual

MISCELLANEOUS WING PARTS
(1) Plywood Wing Joiner (W34)
(1) Plywood Wing-Screw Doubler (W35)
(2) M4 x 40mm Machine Screws
(2) M4 Flat Washers
A complete replacement parts list, along with part numbers for ordering convenience,

SECTION 5: WING ASSEMBLY

(1) Right Wing Panel w/Aileron
(1) Left Wing Panel w/Aileron
Kwik Bond 30 Minute Epoxy
# 1 Phillips Head Screwdriver
Excel Modeling Knife
Electric Drill
1/16" Drill Bit
Ruler
Pencil

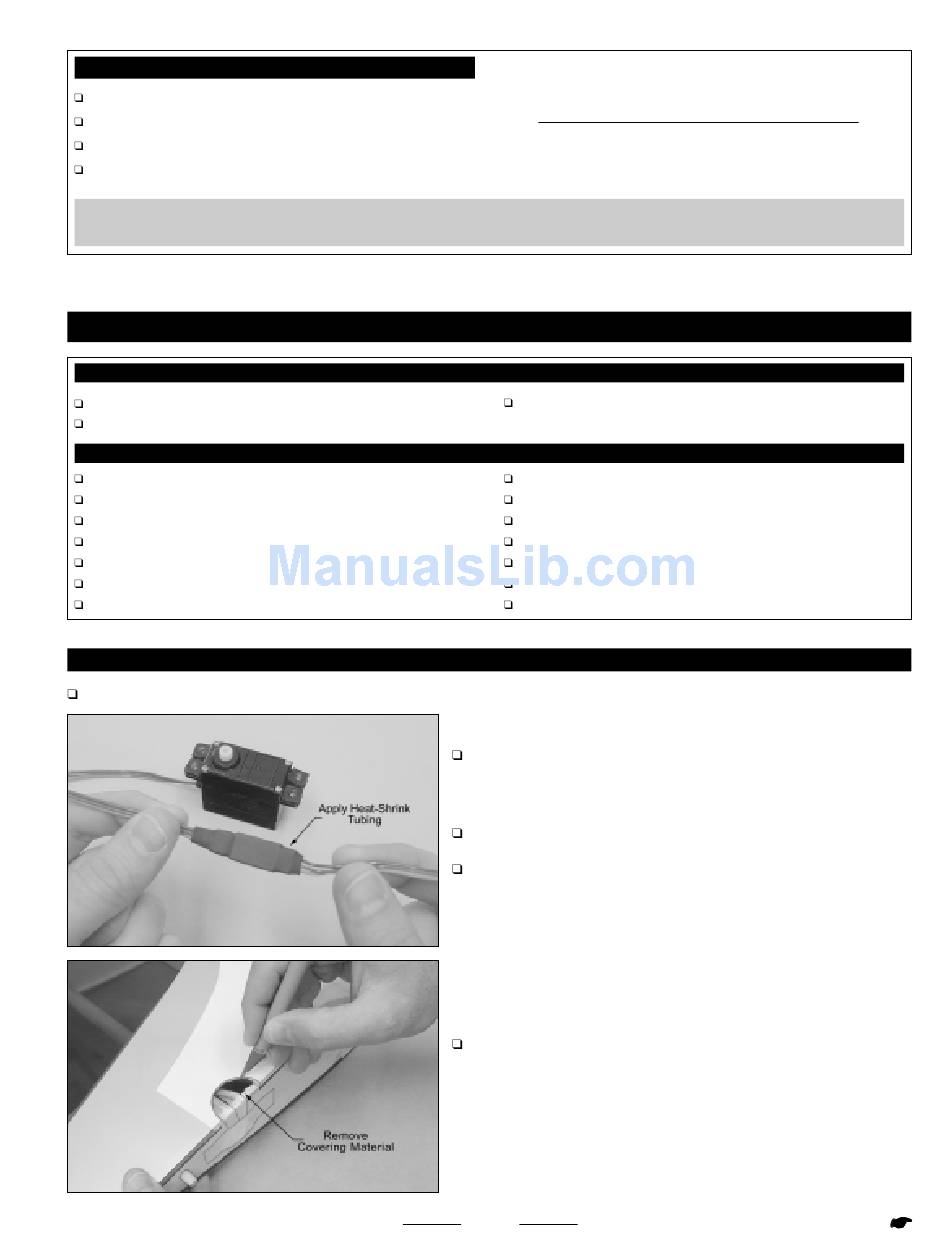

STEP 1: INSTALLING THE AILERON SERVOS
Remove the aileron and hinges from one wing panel and set them aside.
can be found on page # 44.
YOU'LL NEED THE FOLLOWING PARTS FROM THE KIT:
YOU'LL NEED THE FOLLOWING TOOLS AND SUPPLIES:
making sure to install the collets with the flanges toward the bottom of
the servo.
during flight, secure the plugs together, using a short piece of 3/8"
diameter heat-shrink tubing. Use a heat gun to shrink the tubing tight.
from over the aileron servo lead exit hole in the top of the wing panel.
The hole is located on the edge of the root rib, 4-3/4" in front of the
trailing edge.
To convert inches into millimeters:
Inches x 25.4 = mm
To convert millimeters into inches:
Millimeters / 25.4 = in
(1) Plywood Wing Joiner (W34)
220 Grit Sandpaper w/Sanding Block
Masking Tape
Paper Towels
Rubbing Alcohol
NHP Epoxy Mixing Sticks
NHP Epoxy Mixing Cups
Global Heat Gun
Install the rubber grommets and brass collets onto one aileron servo,
Plug one 12" servo extension onto the aileron servo lead.
To prevent the plugs from pulling apart during assembly, or worse,
Using a modeling knife, cut away and remove the covering material
7 Continued On Next Page
