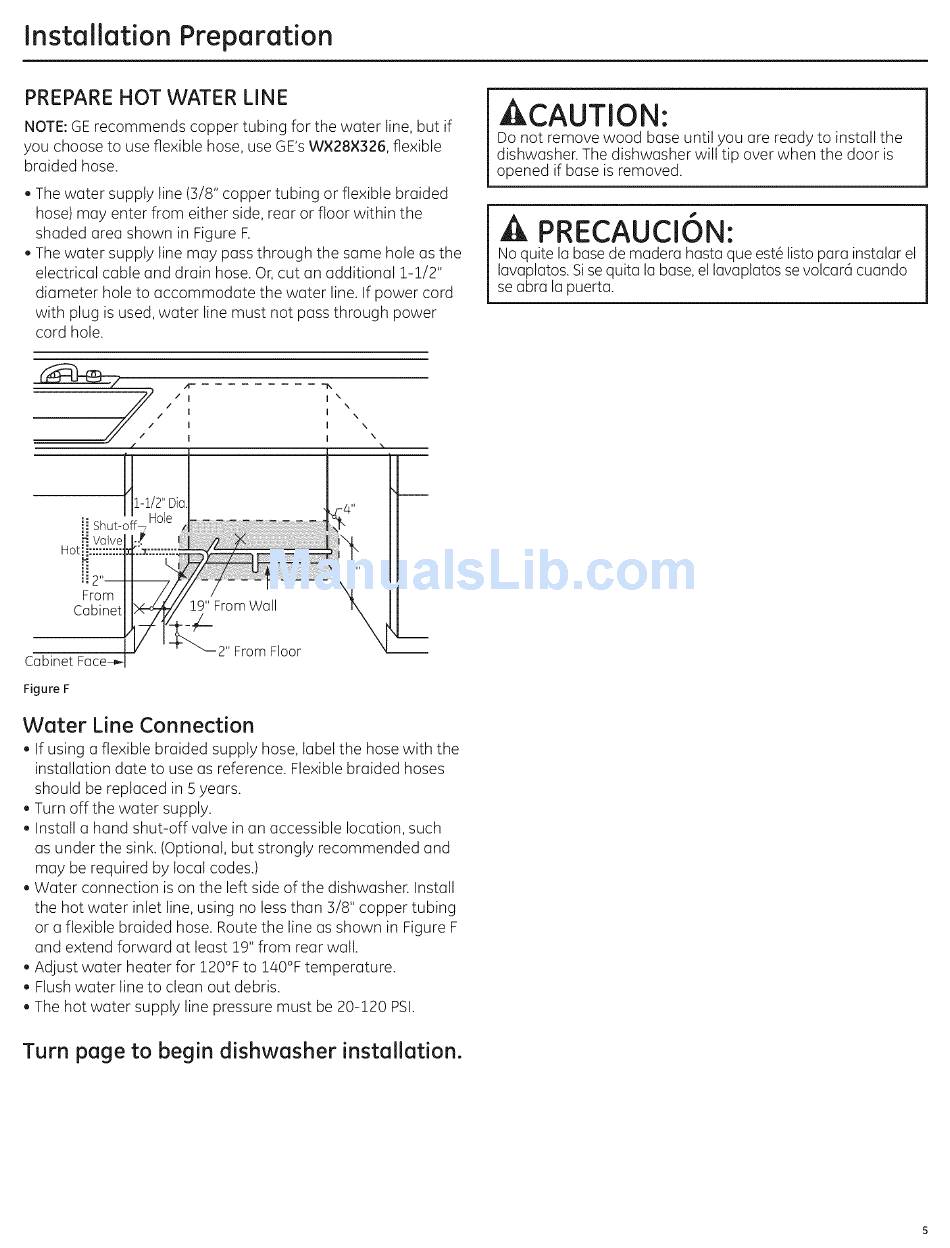

Installation Preparation
PREPARE HOT WATER LINE
NOTE:GE recommends copper tubing for the water line, but if
you choose to use flexible hose, use GE'sW×28×326, flexible
braided hose.
. The water supply line (3/8" copper tubing or flexible braided
hose) may enter from either side, rear or floor within the
shaded area shown in Figure F.
. The water supply line may pass through the same hole as the
electrical cable and drain hose. Or,cut an additional 1-1/2"
diameter hole to accommodate the water line. If power cord
with plug is used, water line must not pass through power
cord hole.
ACAUTION:
Do not remove wood base until you are ready to install the
dishwasher. The dishwasher will tip over when the door is
opened if base is removed.
PRECAUCION:
No quite la base de madera hasta que est_ listo para instalar el
lavaplatos. Si se quita la base, el lavaplatos se volcar6 cuando
se abra la puerta.
il Shut-off_
Hot
From
Cabinet
Cabinet
Figure F
2" From Floor
Water Line Connection
. If using a flexible braided supply hose, label the hose with the
installation date to use as reference. Flexible braided hoses
should be replaced in 5 years.
. Turn off the water supply.
. Install a hand shut-off valve in an accessible location, such
as under the sink. (Optional, but strongly recommended and
may be required by local codes.)
. Water connection is on the left side of the dishwasher. Install
the hot water inlet line, using no less than 3/8" copper tubing
or a flexible braided hose. Route the line as shown in Figure F
and extend forward at least 19" from rear wall.
. Adjust water heater for 120°F to 1/40°Ftemperature.
. Flush water line to clean out debris.
. The hot water supply line pressure must be 20-120 PSI.
Turn page to begin dishwasher installation,
