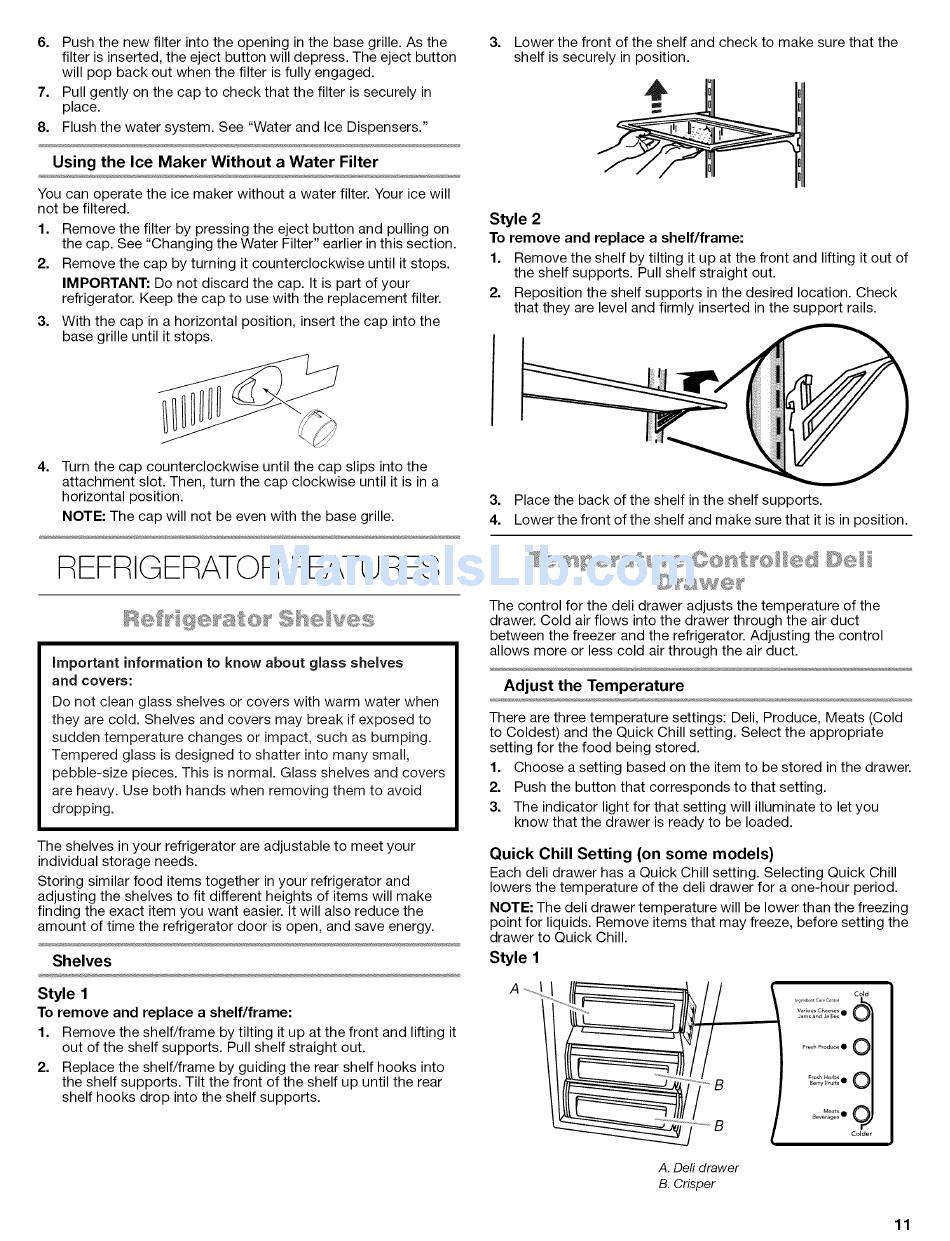

Refrigerator Features; Refrigerator Shelves; Temperature Controlled Dell Drawer - Jenn-Air JS42NXFXDW10 Use & Care Manual

6. Push the new filter into the opening in the base grille. As the
filter is inserted, the eject button will depress. The eject button
will pop back out when the filter is fully engaged.
7. Pull gently on the cap to check that the filter is securely in
place.
8. Flush the water system. See "Water and Ice Dispensers."
Using the Ice Maker Without a Water Filter
You can operate the ice maker without a water filter. Your ice will
not be filtered.
1. Remove the filter by pressing the eject button and pulling on
the cap. See "Changing the Water Filter" earlier in this section.
2. Remove the cap by turning it counterclockwise until it stops.
IMPORTANT: Do not discard the cap. It is part of your
refrigerator. Keep the cap to use with the replacement filter.
3,
With the cap in a horizontal position, insert the cap into the
base grille until it stops.
4,
Turn the cap counterclockwise until the cap slips into the
attachment slot. Then, turn the cap clockwise until it is in a
horizontal position.
NOTE: The cap will not be even with the base grille.
REFRIGERATOR FEATURES
Important information to know about glass shelves
and covers:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
Tempered glass is designed to shatter into many small,
pebble-size pieces. This is normal. Glass shelves and covers
are heavy. Use both hands when removing them to avoid
dropping.
The shelves in your refrigerator are adjustable to meet your
individual storage needs.
Storing similar food items together in your refrigerator and
adjusting the shelves to fit different heights of items will make
finding the exact item you want easier. It will also reduce the
amount of time the refrigerator door is open, and save energy.
Shelves
Style 1
To remove and replace a shelf/frame:
1. Remove the shelf/frame by tilting it up at the front and lifting it
out of the shelf supports. Pull shelf straight out.
2. Replace the shelf/frame by guiding the rear shelf hooks into
the shelf supports. Tilt the front of the shelf up until the rear
shelf hooks drop into the shelf supports.
3,
Lower the front of the shelf and check to make sure that the
shelf is securely in position.
Style 2
To remove and replace a shelf/frame:
1. Remove the shelf by tilting it up at the front and lifting it out of
the shelf supports. Pull shelf straight out.
2. Reposition the shelf supports in the desired location. Check
that they are level and firmly inserted in the support rails.
3. Place the back of the shelf in the shelf supports.
4. Lower the front of the shelf and make sure that it is in position.
The control for the dell drawer adjusts the temperature of the
drawer. Cold air flows into the drawer through the air duct
between the freezer and the refrigerator. Adjusting the control
allows more or less cold air through the air duct.
Adjust the Temperature
There are three temperature settings: Dell, Produce, Meats (Cold
to Coldest) and the Quick Chill setting. Select the appropriate
setting for the food being stored.
1. Choose a setting based on the item to be stored in the drawer.
2. Push the button that corresponds to that setting.
3. The indicator light for that setting will illuminate to let you
know that the drawer is ready to be loaded.
Quick Chill Setting (on some models)
Each dell drawer has a Quick Chill setting. Selecting Quick Chill
lowers the temperature of the dell drawer for a one-hour period.
NOTE: The dell drawer temperature will be lower than the freezing
point for liquids. Remove items that may freeze, before setting the
drawer to Quick Chill.
Style 1
A
A. Deft drawer
B. Crisper
