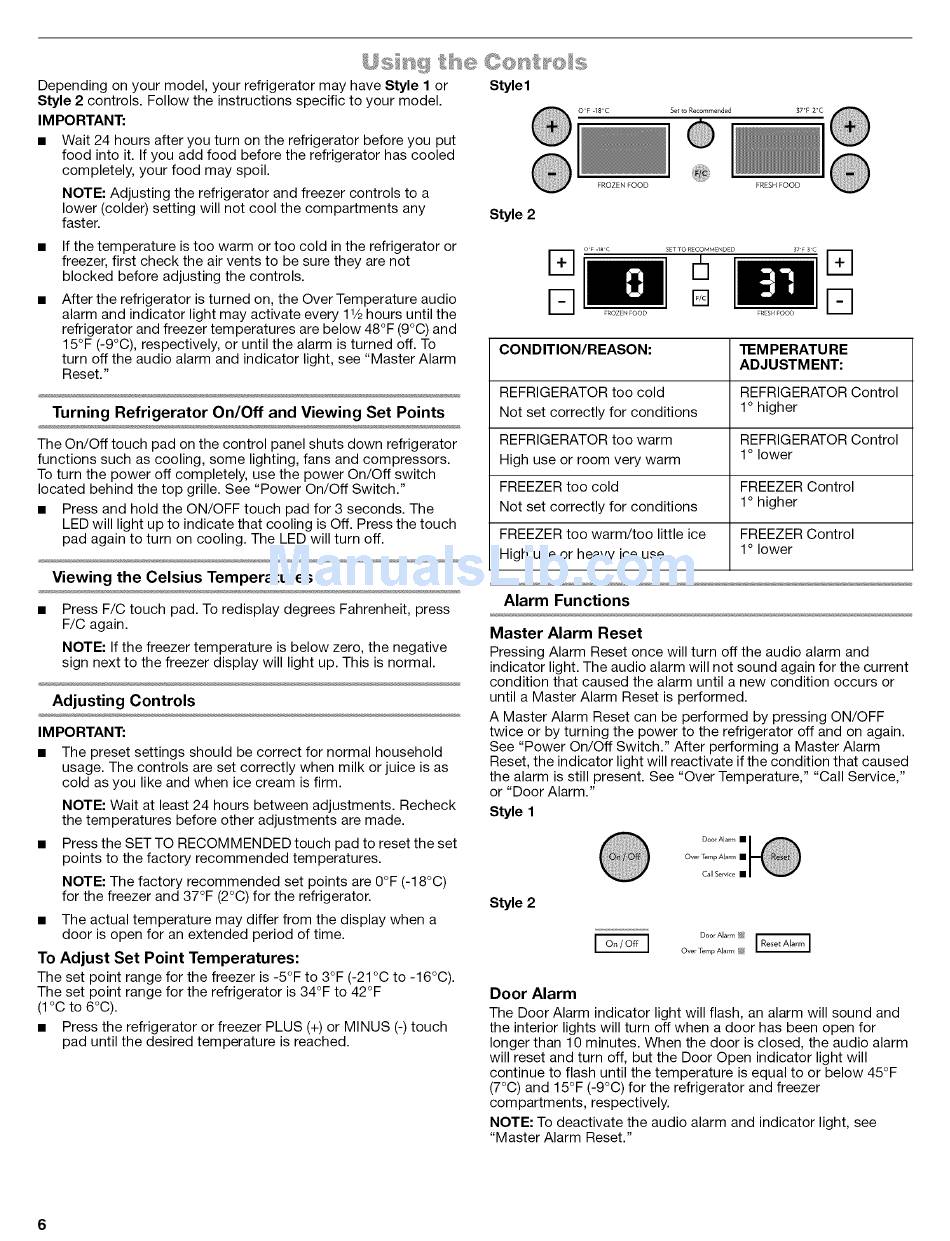

Using The Controls - Jenn-Air JS42NXFXDW10 Use & Care Manual

Depending on your model, your refrigerator may have Style 1 or Style1
Style 2 controls. Follow the instructions specific to your model.
OF -18C
IM PORTANT:
• Wait 24 hours after you turn on the refrigerator before you put
food into it. If you add food before the refrigerator has cooled
completely, your food may spoil.
NOTE: Adjusting the refrigerator and freezer controls to a
lower (colder) setting will not cool the compartments any
faster.
Style 2
FROZEN FOOD FRESH FOOD
If the temperature is too warm or too cold in the refrigerator or
freezer, first check the air vents to be sure they are not
blocked before adjusting the controls.
After the refrigerator is turned on, the Over Temperature audio
alarm and indicator light may activate every 1_/2hours until the
refrigerator and freezer temperatures are below 48°F (9°C) and
15°F (-9°C), respectively, or until the alarm is turned off. To
turn off the audio alarm and indicator light, see "Master Alarm
Reset."
Turning Refrigerator On/Off and Viewing Set Points
The On/Off touch pad on the control panel shuts down refrigerator
functions such as cooling, some lighting, fans and compressors.
To turn the power off completely, use the power On/Off switch
located behind the top grille. See "Power On/Off Switch."
• Press and hold the ON/OFF touch pad for 3 seconds. The
LED will light up to indicate that cooling is Off. Press the touch
pad again to turn on cooling. The LED will turn off.
Viewing the Celsius Temperatures
Press F/C touch pad. To redisplay degrees Fahrenheit, press
F/C again.
NOTE: If the freezer temperature is below zero, the negative
sign next to the freezer display will light up. This is normal.
Adjusting Controls
IM PORTANT:
• The preset settings should be correct for normal household
usage. The controls are set correctly when milk or juice is as
cold as you like and when ice cream is firm.
NOTE: Wait at least 24 hours between adjustments. Recheck
the temperatures before other adjustments are made.
Press the SET TO RECOMMENDED touch pad to reset the set
points to the factory recommended temperatures.
NOTE: The factory recommended set points are 0°F (-18°C)
for the freezer and 37°F (2°C) for the refrigerator.
The actual temperature may differ from the display when a
door is open for an extended period of time.
To Adjust Set Point Temperatures:
The set point range for the freezer is -5°F to 3°F (-21°C to -16°C).
The set point range for the refrigerator is 34°F to 42°F
(1°C to 6°C).
• Press the refrigerator or freezer PLUS (+) or MINUS (-) touch
pad until the desired temperature is reached.
SET TO RECOMMENDED 37"F 3 c
E] ....... €1 E]
F1 ....... [] .......... F-1
CONDITION/REASON: TEMPERATURE
ADJUSTM ENT:
REFRIGERATOR too cold REFRIGERATOR Control
Not set correctly for conditions 1° higher
REFRIGERATOR too warm REFRIGERATOR Control
1o lower
High use or room very warm
FREEZER too cold FREEZER Control
Not set correctly for conditions 1° higher
FREEZER too warm/too little ice FREEZER Control
High use or heavy ice use 1° lower
Alarm Functions
Master Alarm Reset
Pressing Alarm Reset once will turn off the audio alarm and
indicator light. The audio alarm will not sound again for the current
condition that caused the alarm until a new condition occurs or
until a Master Alarm Reset is performed.
A Master Alarm Reset can be performed by pressing ON/OFF
twice or by turning the power to the refrigerator off and on again.
See "Power On/Off Switch." After performing a Master Alarm
Reset, the indicator light will reactivate if the condition that caused
the alarm is still present. See "Over Temperature," "Call Service,"
or "Door Alarm."
Style 1
Door Alarm •
Over [emp AIsrm •
Call Service •
Style 2
Door Alarm _
Over lemp Alarm _'_
Door Alarm
The Door Alarm indicator light will flash, an alarm will sound and
the interior lights will turn off when a door has been open for
longer than 10 minutes. When the door is closed, the audio alarm
will reset and turn off, but the Door Open indicator light will
continue to flash until the temperature is equal to or below 45°F
(7°C) and 15°F (-9°C) for the refrigerator and freezer
compartments, respectively.
NOTE: To deactivate the audio alarm and indicator light, see
"Master Alarm Reset."
