3. 3

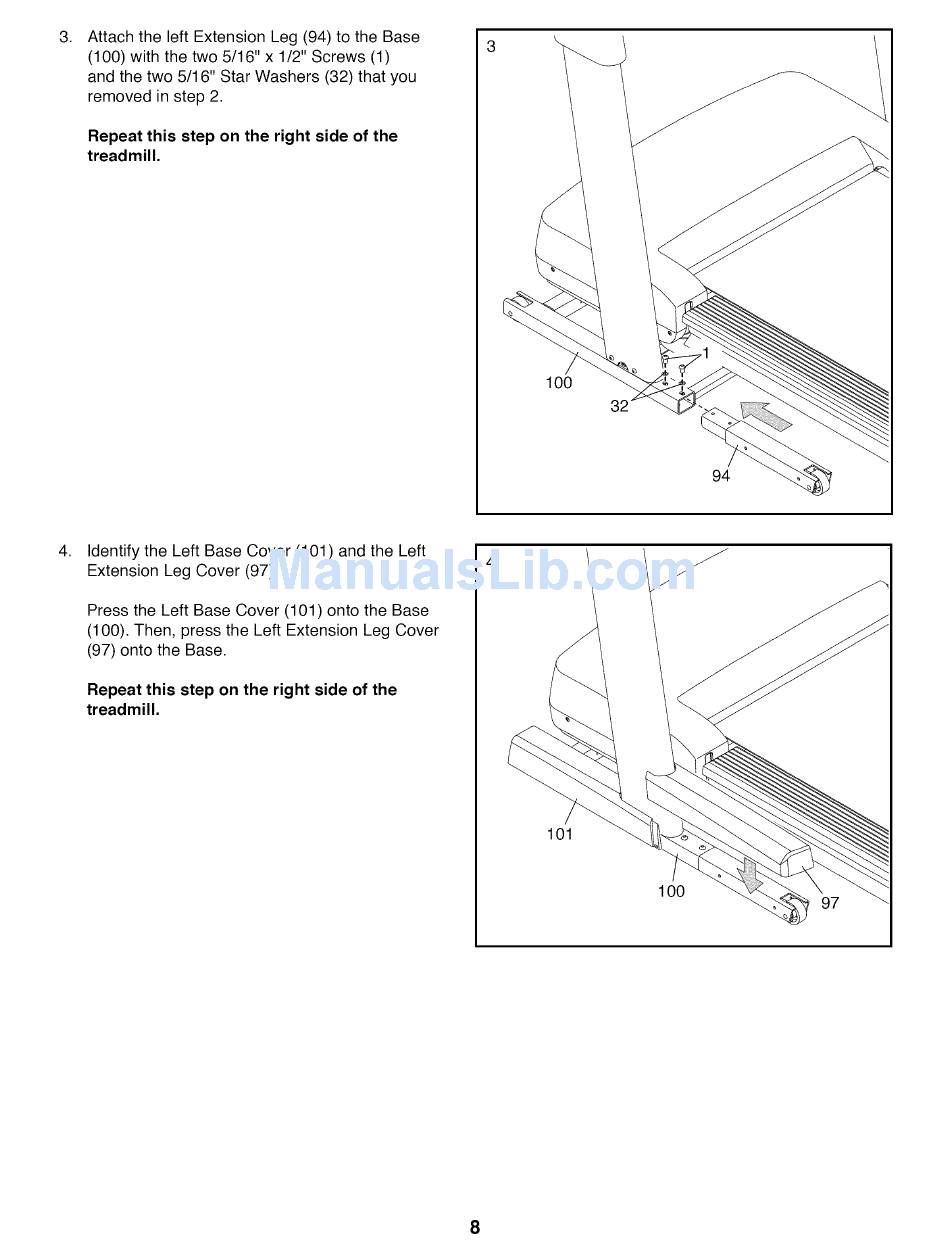

Attach the left Extension Leg (94) to the Base
(100) with the two 5/16" x 1/2" Screws (1)
and the two 5/16" Star Washers (32) that you
removed in step 2.
Repeat this step on the right side of the
treadmill.
100
94
,
Identify the Left Base Cover (101) and the Left
Extension Leg Cover (97).
Press the Left Base Cover (101) onto the Base
(100). Then, press the Left Extension Leg Cover
(97) onto the Base.
Repeat this step on the right side of the
treadmill.
4
101
100
97
8
