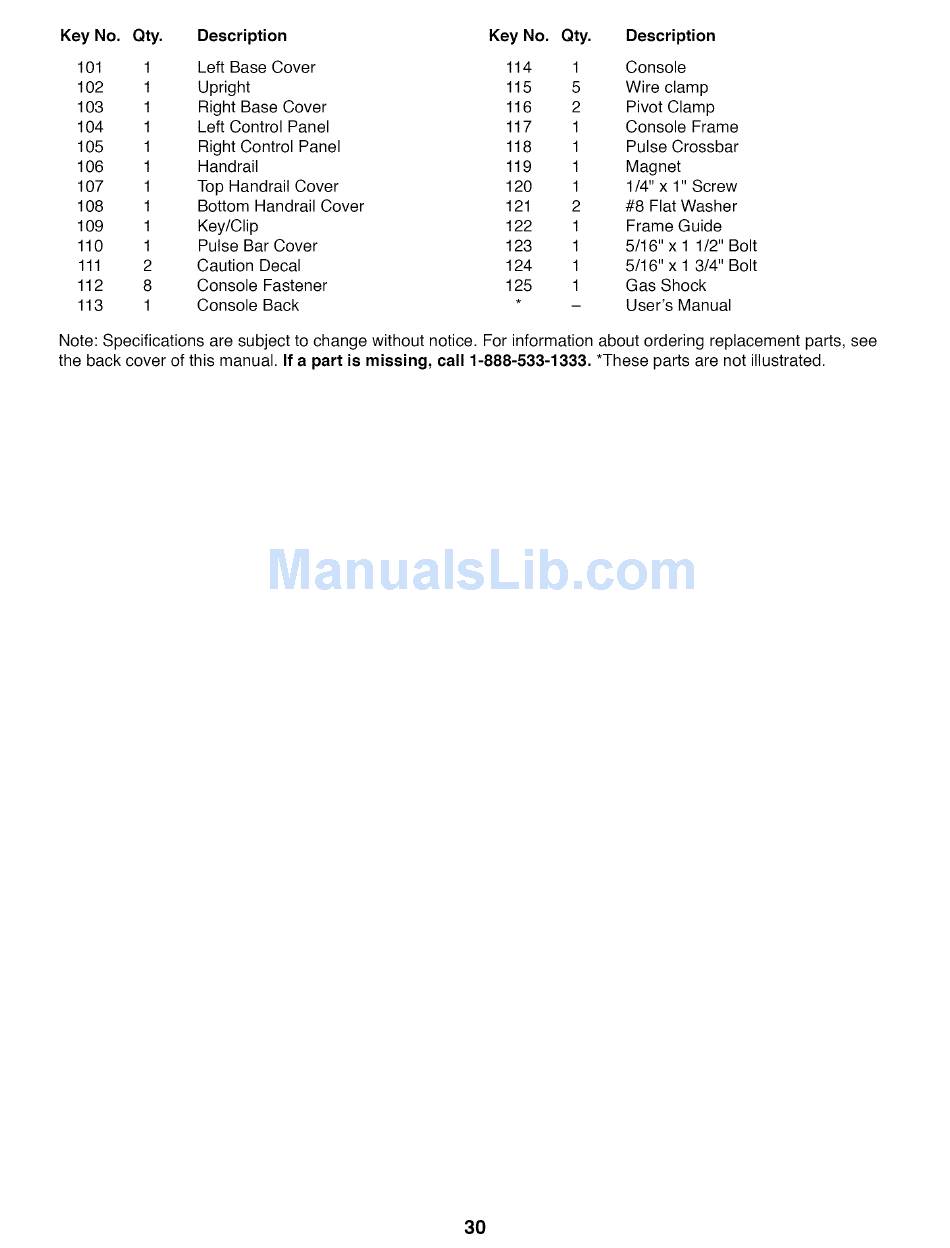

Key No. Qty.
Description
Key No. Qty.
Description
101
1
Left Base Cover
114
1
Console
102
1
Upright
115
5
Wire clamp
103
1
Right Base Cover
116
2
Pivot Clamp
104
1
Left Control Panel
117
1
Console Frame
105
1
Right Control Panel
118
1
Pulse Crossbar
106
1
Handrail
119
1
Magnet
107
1
Top Handrail Cover
120
1
1/4" x 1" Screw
108
1
Bottom Handrail Cover
121
2
#8 Flat Washer
109
1
Key/Clip
122
1
Frame Guide
110
1
Pulse Bar Cover
123
1
5/16" x 1 1/2" Bolt
111
2
Caution Decal
124
1
5/16" x 1 3/4" Bolt
112
8
Console Fastener
125
1
Gas Shock
113
1
Console Back
*
-
User's Manual
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. If a part is missing,
call 1-888-533-1333.
*These parts are not illustrated.
