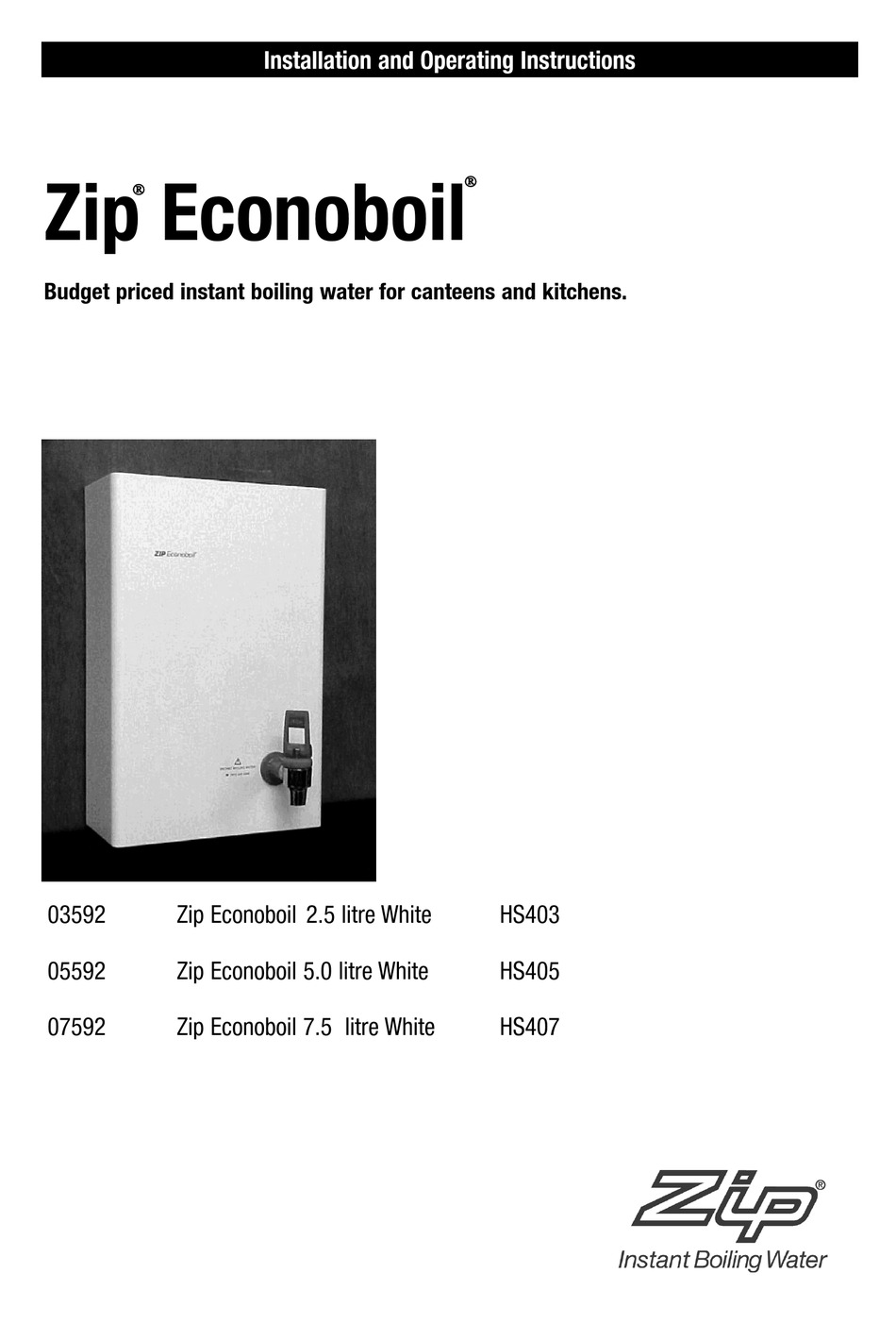

- Page 1 Installation and Operating Instructions Zip Econoboil Budget priced instant boiling water for canteens and kitchens. 03592 Zip Econoboil 2.5 litre White HS403 05592 Zip Econoboil 5.0 litre White HS405 07592 Zip Econoboil 7.5 litre White HS407...
- Page 2 Page 2 of 12 Zip Econoboil Installation & Operating Instructions - 82790 - January 2004...
-
Page 3: Table Of Contents
Exploded View Diagram ....11 Warranty Information ....12 Zip Econoboil - Installation & Operating Instructions - 82790 - January 2004 Page 3 of 12... -
Page 4: Read These Warnings First
The cold water supply to this appliance must be potable and fall within your local authorities guidelines. The Zip Econoboil instant boiling water heater is not intended for use by young children or infirm people without supervision. Young children should be prevented from having access to ensure that they are not able to use or play with the heater. -
Page 5: Installation Procedures
Approximate Weight When Filled (Please refer to the table on the left). 2.5 Litre model 10 kg 5.0 Litre model 13 kg 7.5 Litre model 16 kg Zip Econoboil - Installation & Operating Instructions - 82790 - January 2004 Page 5 of 12... -
Page 6: Step 3 - Connecting
Minimum - 0.2 bar, maximum - 10 bar.. Warning: If pressure is likely to exceed 10 bar, a pressure limiting valve must be installed in the cold water supply line. Zip recommends a valve rated at 3.5 bar Concealed power and water are connected through rear. -
Page 7: C) Electrical
Operating Procedures Tap Operation Zip Econoboil is fitted with a two-way safety tap for instant boiling water. For instant boiling water, gently pull the top of the tap forward. Boiling water will flow until the tap handle is released. -
Page 8: Cleaning Case
Outlet tap dripping. Overflow from vent. As above. As above. Excess team from the vent or overload tripping. Overload tripping but no excess steam. Low water temperature. Page 8 of 12 Zip Econoboil Installation & Operating Instructions - 82790 - January 2004... -
Page 9: Wall Mounting Template Dimensions & Electrical Diagram
1000 meters or there is excessive 2.5 litre to 5 litre Switch No. 1 is ON. steam evident set No’s. 1 & 2 ON. All switches OFF. Zip Econoboil - Installation & Operating Instructions - 82790 - January 2004 Page 9 of 12... -
Page 10: Spare Parts List
Level Sensor Kit 5ltr 90575 Level Sensor Kit 3ltr 90581 Tank Gasket Kit 5 & 7ltr 90580 Tank Gasket Kit 3ltr 90587 Temperature Probe Kit Page 10 of 12 Zip Econoboil Installation & Operating Instructions - 82790 - January 2004... -
Page 11: Exploded View Diagram
Exploded View Diagram Zip Econoboil - Installation & Operating Instructions - 82790 - January 2004 Page 11 of 12... -
Page 12: Warranty Information
Furthermore, this warranty does not displace any statutory warranty, but, to the extent to which Zip is entitled to do so, the liability of Zip under any statutory warranty will be limited at Zip's option to the replacement of the appliance or...
