Zip hydroboil plus Installation And Operating Instructions Manual
Filtered instant boiling water plus filtered ambient drinking water
Hide thumbs
Also See for hydroboil plus:
- Installation instructions manual (28 pages) ,
- Installation and operating instructions manual (16 pages)
Subscribe to Our Youtube Channel
Related Manuals for Zip hydroboil plus
Summary of Contents for Zip hydroboil plus

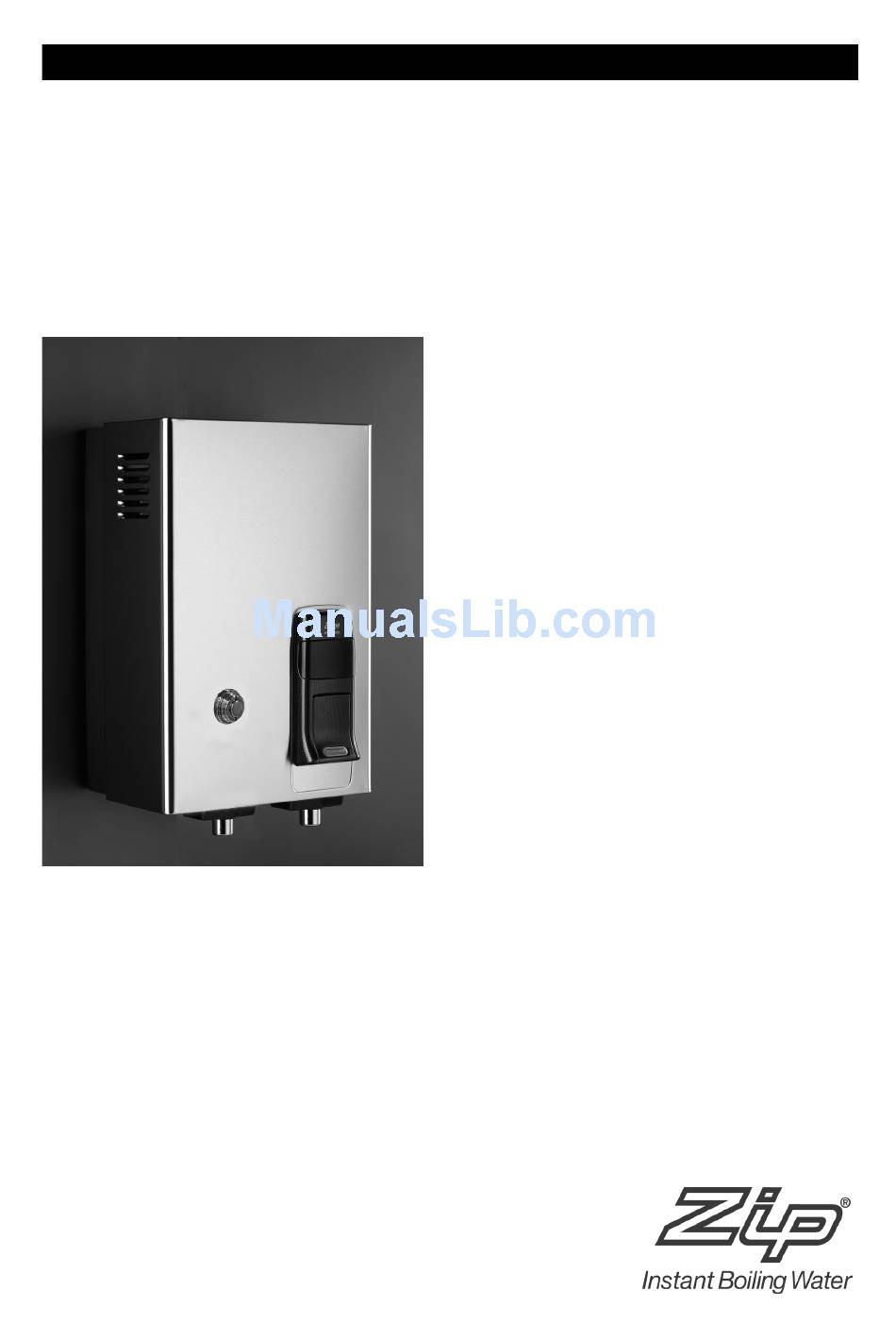

- Page 1 Installation and Operating Instructions ® Zip Hydroboil Plus Filtered instant boiling water plus filtered ambient drinking water 03481 Zip Hydroboil Plus 3 Litre 85680 - February 2004...
-
Page 2: Table Of Contents
Warranty ......16 Page 2 of 16 Zip Hydroboil Plus- Installation & Operating Instructions - 85680 - February 2004... -
Page 3: Read These Warnings First
All plumbing connections must be made in accordance with local plumbing regulations. The Zip Hydroboil Plus instant boiling water heater is not intended for use by young children or infirm people without supervision. Young children should be prevented from having access to ensure that they are not able to use or play with the heater. - Page 4 In all installation instances the walls of the heater must be vertical and the base horizontal, there can be no exceptions to this rule. Page 4 of 16 Zip Hydroboil Plus- Installation & Operating Instructions - 85680 - February 2004...
-
Page 5: Installation Procedures
Important precaution:- All cold water inlet pipes must be flushed before connection to avoid the risk of the heater clogging due to sediment or metal fines. Concealed Vent Concealed Inlet Zip Hydroboil Plus - Installation & Operating Instructions - 85680 - February 2004 Page 5 of 16... -
Page 6: B) Filtration
45 mm from the wall. Alternatively attach a tun dish to the wall as shown and plumb away to waste. Zip Hydroboil Plus - Installation & Operating Instructions - 85680 - February 2004 Page 6 of 16... -
Page 7: D) Electrical
15°C 10°C 3.0 Litre models 16 minutes 17 minutes 5.0 Litre models 16 minutes 17 minutes 7.5 Litre models 23 minutes 24 minutes Zip Hydroboil Plus - Installation & Operating Instructions - 85680 - February 2004 Page 7 of 16... -
Page 8: Wall Mounting Diagram
416 3.O L 448 5.O L 561 7.5 L POSITIONING PIN COLD EXTERNAL PLUMBING INLET VENT ELECTRICAL WIRING POSITION INTERNAL PLUMBING BENCH TOP Zip Hydroboil Plus - Installation & Operating Instructions - 85680 - February 2004 Page 8 of 16... -
Page 9: Problem Solving
Warning- the water may be boiling - show extra care. 5. Test that in every instance the electrical resistance does not exceed 1 ohm. Zip Hydroboil Plus - Installation & Operating Instructions - 85680 - February 2004 Page 9 of 16... -
Page 10: Operating Procedures
This operation allows the vessel to be filled without holding your hand where it may be affected by steam. Drinking water Zip Hydroboil Plus is also fitted with a chrome plated push button tap for filtered drinking water. For filtered drinking water, press the push button inwards. Filtered ambient temperature water will flow until the button is released. -
Page 11: How To Replace The Filter
Note: Freshly installed filters may cause water to appear milky. The water upwards, turn one should clear after running a few litres of water through the filter. quarter turn left to right until secure Zip Hydroboil Plus - Installation & Operating Instructions - 85680 - February 2004 Page 11 of 16... -
Page 12: Information For Ambient Chilled Conversions
NOTE: All procedures described below require the special key supplied with your Hydroboil Plus. 1. Use the key supplied with your Hydroboil Plus heater and turn the chrome plated locking ring anti-clockwise to remove it. The button will also be released at this point. -
Page 13: Connecting John Guest Fittings
Refer to diagram at left for setup of a hydroboil with connection to a chilled water unit. 1. When using water from a Zip chiller unit, ensure that the relief valve supplied has it’s outlet plumbed away to a safe waste relief point as per local regulations. -
Page 14: Spare Parts
Sensor Probe Kit 90107 Filter kit Cold Inlet Bush 90223 Cartridge Valve Kit 90593 John Guest Fittings Kit 90592 Conversions Kit Ambient to Chilled Unit Zip Hydroboil Plus - Installation & Operating Instructions - 85680 - February 2004 Page 14 of 16... - Page 15 Spare Parts Zip Hydroboil Plus - Installation & Operating Instructions - 85680 - February 2004 Page 15 of 16...
-
Page 16: Warranty
Furthermore, this warranty does not displace any statutory warranty, but, to the Postal Address: PO Box 34 extent to which Zip is entitled to do so, the liability of Zip under any statutory Milnerton 7435 South Africa warranty will be limited at Zip's option to the replacement of the appliance or...
