Zip Econoboil HS507 Installation And Operating Instructions Manual

Zip Econoboil HS507 Installation And Operating Instructions Manual

Advertisement

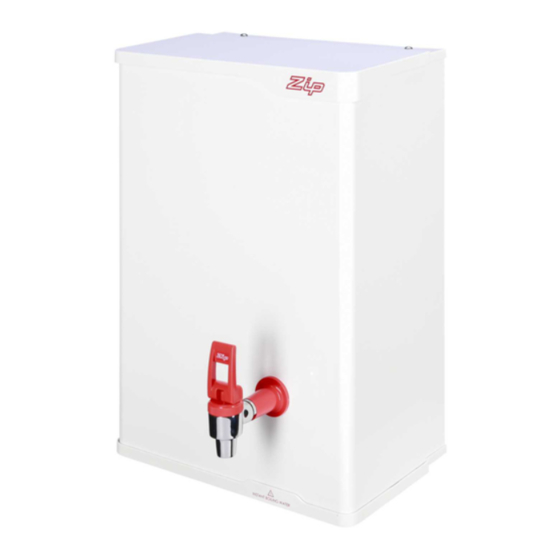

Zip Econoboil
Budget priced instant boiling water for canteens and kitchens.
103592 Zip Econoboil 3.0 litre White HS503
105592 Zip Econoboil 5.0 litre White HS505
107592 Zip Econoboil 7.5 litre White HS507
Zip Econoboil - Installation & Operating Instructions - 87546 - May 2012 v1.01
Installation and Operating Instructions
®
Page 1 of 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Econoboil HS507 and is the answer not in the manual?

Questions and answers

Summary of Contents for Zip Econoboil HS507

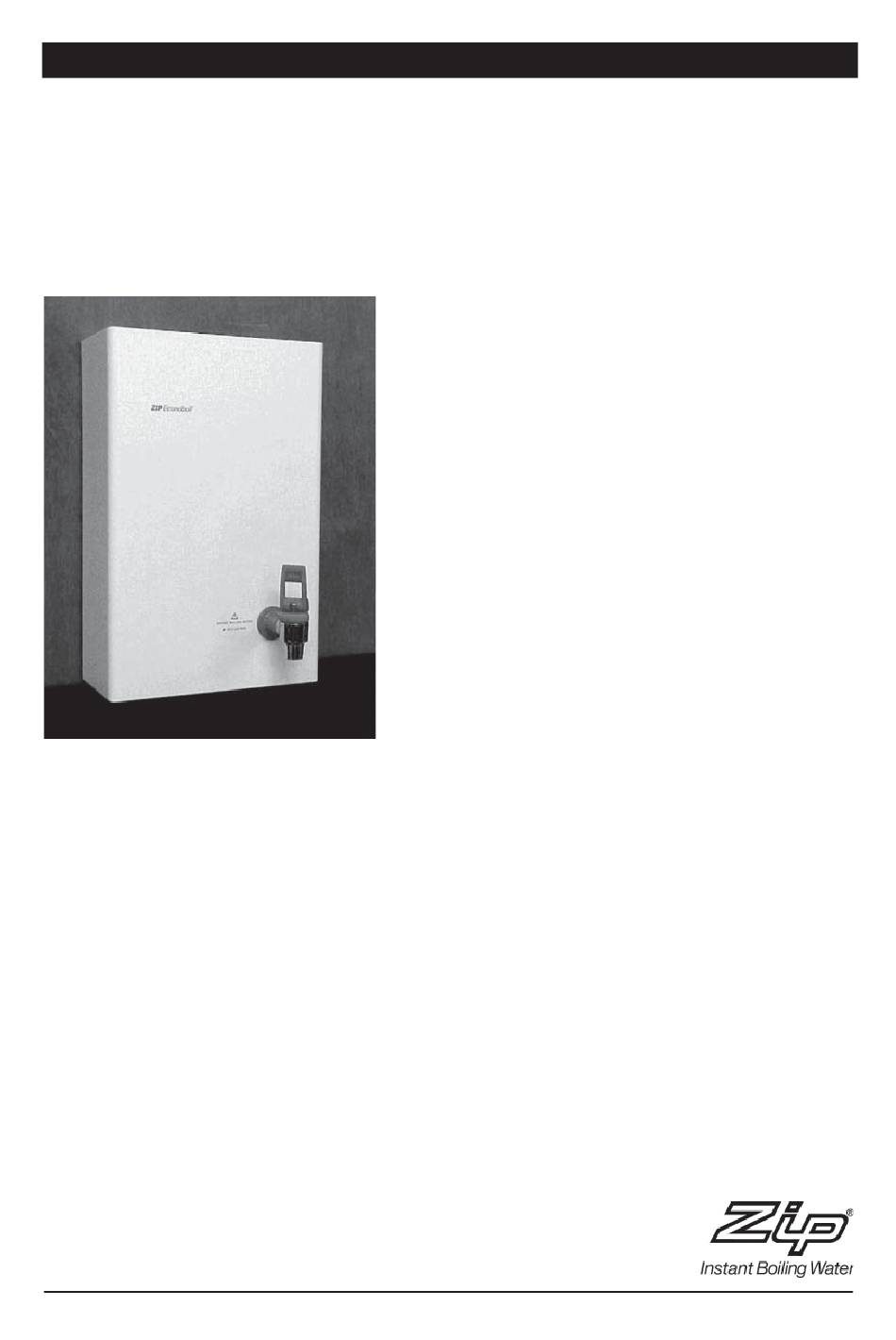

  • Page 1 Budget priced instant boiling water for canteens and kitchens. 103592 Zip Econoboil 3.0 litre White HS503 105592 Zip Econoboil 5.0 litre White HS505 107592 Zip Econoboil 7.5 litre White HS507 Zip Econoboil - Installation & Operating Instructions - 87546 - May 2012 v1.01 Page 1 of 12...
  • Page 2 This page intentionally left blank Page 2 of 12 Zip Econoboil Installation & Operating Instructions - 87546 - May 2012 v1.01...
  • Page 3: Table Of Contents

    Dimensions ..........9 End of Life Disposal ........9 Spare Parts List ..........10 Exploded View Diagram ......... 11 Warranty Information ........12 Zip Econoboil - Installation & Operating Instructions - 87546 - May 2012 v1.01 Page 3 of 12...
  • Page 4: Read These Warnings First

    The cold water supply to this appliance must be potable and fall within your local authorities guidelines. The Zip Econoboil instant boiling water heater is not intended for use by young children or infirm people without supervision. Young children should be prevented from having access to ensure that they are not able to use or play with the heater.
  • Page 5: Installation Procedures

    12.5 kg (Refer to table to the left). 5.0 Litre model 16.5 kg Step 3 – Connecting 7.5 Litre model 20.5 kg a) Plumbing Zip Econoboil - Installation & Operating Instructions - 87546 - May 2012 v1.01 Page 5 of 12...
  • Page 6: B) Venting

    Minimum - 0.7 bar, maximum - 7 bar. Warning: If pressure is likely to exceed 7 bar, a pressure limiting valve must be installed in the cold water supply line. Zip recommends a valve rated at 3.5 bar for this application.
  • Page 7: C) Electrical

    23 minutes 24 minutes Operating Procedures Tap Operation Zip Econoboil is fitted with a two-way safety tap for instant boiling water. Pull handle For instant boiling water, gently pull the top of the tap forward. down for water Boiling water will flow until the tap handle is released.
  • Page 8: Cleaning Case

    Excessive steam from vent. Contact Zip authorised agent. Power “on” but no heat. Overload repeatedly tripping with excessive steam. Overload repeatedly tripping without excessive steam. Page 8 of 12 Zip Econoboil Installation & Operating Instructions - 87546 - May 2012 v1.01...
  • Page 9: Wall Mounting Template Dimensions

    In order to help preserve our environment we ask that you dispose of this product correctly. Please contact your local city council for collection centre details Zip Econoboil - Installation & Operating Instructions - 87546 - May 2012 v1.01 Page 9 of 12...
  • Page 10: Spare Parts List

    CISTERN LID & GASKET KIT 90779 CISTERN GROMMET & GASKET KIT EB SS CISTERN 90493 METERING TUBE KIT 1500W 90494 METERING TUBE KIT 2400W Page 10 of 12 Zip Econoboil Installation & Operating Instructions - 87546 - May 2012 v1.01...
  • Page 11: Exploded View Diagram

    Exploded View Diagram Zip Econoboil - Installation & Operating Instructions - 87546 - May 2012 v1.01 Page 11 of 12...
  • Page 12: Warranty Information

    Furthermore, this warranty does not displace any statutory warranty, but, to the extent to which Zip is entitled to do so, the liability of Zip under any statutory warranty will be limited at Zip’s option to the replacement of the...
