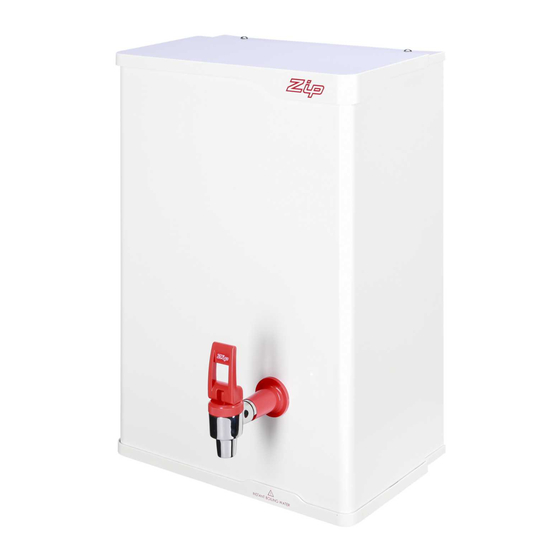

Zip Econoboil
Budget priced instant boiling water heater for beverages .
Model No.
HS503
HS505
Zip Econoboil - Installation & Operating Instructions - 87546 - March 2008
Installation and Operating Instructions
Description
Zip Econoboil 3.0 litre White
Zip Econoboil 5.0 litre White
® ®
Reg.No.
Part No.
EB003
103592
EB005
105592
Page 1 of 12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Zip Econoboil HS503
Summary of Contents for Zip Econoboil HS503
- Page 1 Budget priced instant boiling water heater for beverages . Model No. Description Reg.No. Part No. HS503 Zip Econoboil 3.0 litre White EB003 103592 HS505 Zip Econoboil 5.0 litre White EB005 105592 Zip Econoboil - Installation & Operating Instructions - 87546 - March 2008 Page 1 of 12...
- Page 2 INTENTIONALLY BLANK Page 2 of 12 Zip Econoboil Installation & Operating Instructions - 87546 - March 2008...
-
Page 3: Table Of Contents
Exploded View Diagram ....11 Warranty Information ....12 Zip Econoboil - Installation & Operating Instructions - 87546 - March 2008 Page 3 of 12... -
Page 4: Read These Warnings First
The cold water supply to this appliance must be potable and fall within your local authorities guidelines. The Zip Econoboil instant boiling water heater is not intended for use by young children or infirm people without supervision. Young children should be prevented from having access to ensure that they are not able to use or play with the heater. -
Page 5: Installation Procedures
Screw heater chassis to the wall using screws or bolts suited to the walling. Screws or bolts must be capable of supporting the heater weight when filled. (Refer to table to the left). Zip Econoboil - Installation & Operating Instructions - 87546 - March 2008 Page 5 of 12... -
Page 6: Step 3 - Connecting
Minimum - 0.7 bar, maximum - 7 bar. Warning: If pressure is likely to exceed 7 bar, a pressure limiting valve must be installed in the cold water supply line. Zip recommends a valve rated at 3.5 bar for this application. -
Page 7: C) Electrical
16 Min. 17 Min. Operating Procedures Tap Operation Zip Econoboil is fitted with a two-way safety tap for instant boiling water. Pull handle For instant boiling water, gently pull the top of the tap forward. down for water Boiling water will flow until the tap handle is released. -
Page 8: Cleaning Case
Excessive steam from vent. Contact Zip authorised agent. Power “on” but no heat. Overload repeatedly tripping with excessive steam. Overload repeatedly tripping without excessive steam. Page 8 of 12 Zip Econoboil Installation & Operating Instructions - 87546 - March 2008... -
Page 9: Wall Mounting Template Dimensions
In order to help preserve our environment we ask that you dispose of this product correctly. Please contact Zip Customer Service for advice on 0845 602 4533 Zip Econoboil - Installation & Operating Instructions - 87546 - March 2008... -
Page 10: Spare Parts List
90488 CISTERN LID & GASKET KIT 90779 CISTERN GROMMET & GASKET KIT EB SS CISTERN 90493 METERING TUBE KIT 1500W 90494 METERING TUBE KIT 2400W Page 10 of 12 Zip Econoboil Installation & Operating Instructions - 87546 - March 2008... -
Page 11: Exploded View Diagram
Exploded View Diagram Zip Econoboil - Installation & Operating Instructions - 87546 - March 2008 Page 11 of 12... -
Page 12: Warranty Information
Furthermore, this warranty does not displace any statutory warranty, but, to the extent to which Zip is entitled to do so, the liability of Zip under any statutory warranty will be limited at Zip’s option to the replacement of the appliance or...
