Zip Hydroboil HBE6 15L White Installation And Operating Instructions Manual

Zip hydroboil electronic large boiling water

Advertisement

Zip Hydroboil Electronic
Large boiling water
211061

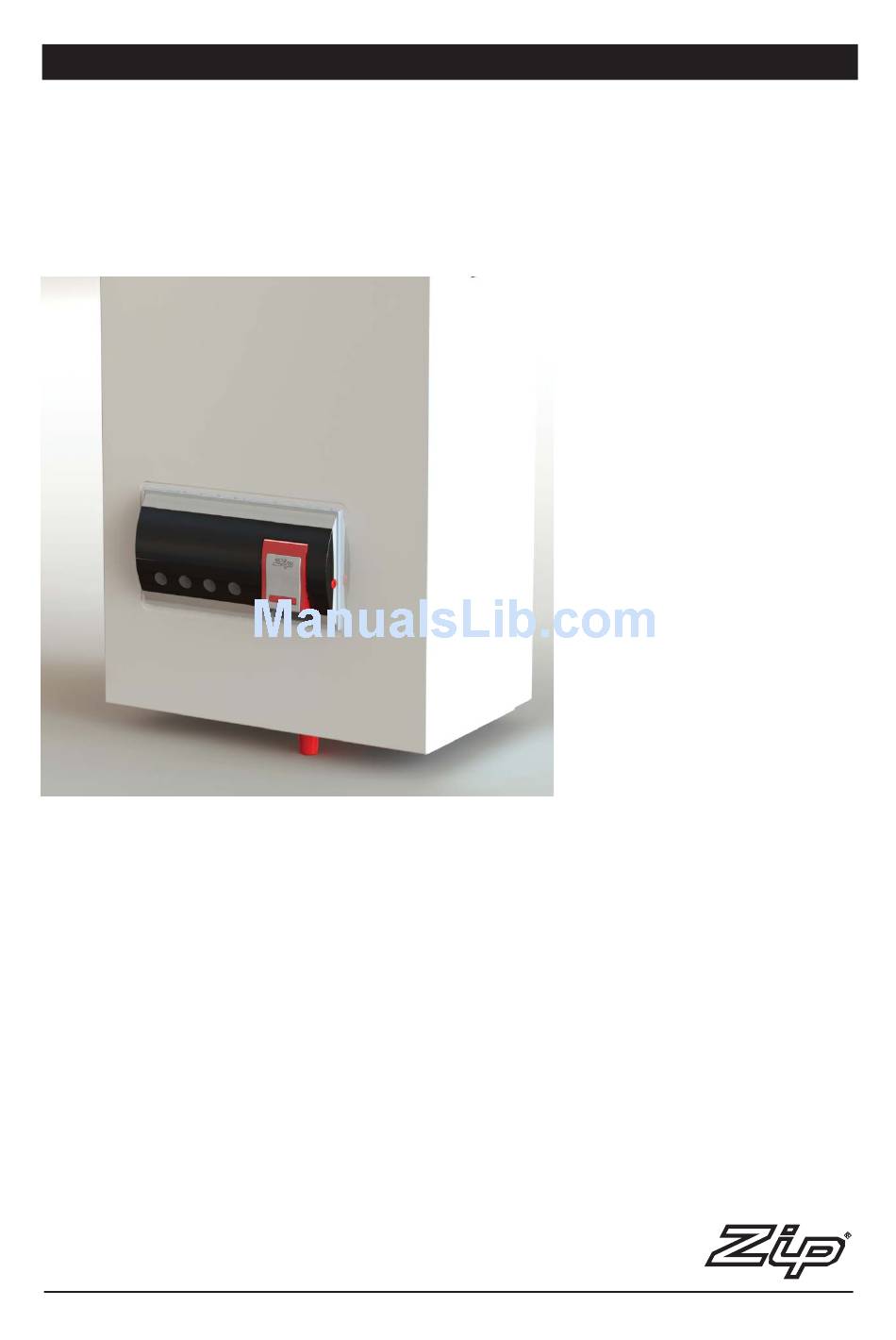

Hydroboil HBE6 15L S/S
211062
Hydroboil HBE6 15L White
212061
Hydroboil HBE6 25L S/S
212062
Hydroboil HBE6 25L White
204061
Hydroboil HBE6 40L S/S
204062
Hydroboil HBE6 40L White
Zip Hydroboil Electronic - Installation & Operating Instructions - 89956 - Feb 2013 v1.07
Installation and Operating Instructions
®
Page 1 of 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hydroboil HBE6 15L White and is the answer not in the manual?

Questions and answers

Summary of Contents for Zip Hydroboil HBE6 15L White

  • Page 1 Hydroboil HBE6 15L White 212061 Hydroboil HBE6 25L S/S 212062 Hydroboil HBE6 25L White 204061 Hydroboil HBE6 40L S/S 204062 Hydroboil HBE6 40L White Zip Hydroboil Electronic - Installation & Operating Instructions - 89956 - Feb 2013 v1.07 Page 1 of 16...
  • Page 2 This page intentionally left blank Zip Hydroboil Electronic - Installation & Operating Instructions - 89956 - Feb 2013 v1.07 Page 2 of 16...
  • Page 3: Table Of Contents

    All plumbing must comply with AS3500.4.1 & AS3500.4 All electrical must comply with AS/NZS3000 Zip Hydroboil Electronic - Installation & Operating Instructions - 89956 - Feb 2013 v1.07 Page 3 of 16...
  • Page 4: Read These Warnings First

    Please read all installation requirements, installation procedures and precautions before installing any Zip Hydroboil instant boiling water heater. Never attempt to install any Zip Hydroboil instant boiling water heater without reading all of the applicable instructions. In some hard water areas where mineral scale accumulation in the boiling chamber of the Zip Hydroboil may become a problem, consideration should be given to the maintenance required.
  • Page 5: Installation Requirements

    Elbow Screws or bolts must be able to support the weight as shown in the chart on the left. 40 Litre ONLY Zip Hydroboil Electronic - Installation & Operating Instructions - 89956 - Feb 2013 v1.07 Page 5 of 16...
  • Page 6: Step 3 - Connecting

    Minimum - 70 kpa, maximum - 700 kpa. Warning: If pressure is likely to exceed 700 kpa, a pressure limiting valve must be installed in the cold water supply line. Zip recommends a valve rated at 350 kpa for this application. Concealed...
  • Page 7: C) Electrical

    Warning- the water may be boiling - show extra care. 5. Test that in every instance the electrical resistance does not exceed 1 ohm. Zip Hydroboil Electronic - Installation & Operating Instructions - 89956 - Feb 2013 v1.07 Page 7 of 16...
  • Page 8: Tap Operating Procedures

    Tap Operation Safety feature. Zip Hydroboil has a unique safety device designed to reduce the incidence of accidental operation of the tap.The tap can be “Locked” to prevent the Hydroboil from dispensing hot water In order to “lock” the tap, ensure the safety button is protruding from the right hand side of the control panel and the...
  • Page 9: Operating Procedures

    Sleep Mode is indicated by the Sleep symbol on the LCD. Low Light Mode is indicated by the Low Light symbol on the LCD. Zip Hydroboil Electronic - Installation & Operating Instructions - 89956 - Feb 2013 v1.07 Page 9 of 16...
  • Page 10: Operational Procedure Settings

    In Normal operation mode the LCD will display as follows: Note: The BOILING WATER symbol is not displayed until the water reaches temperature. Zip Hydroboil Electronic - Installation & Operating Instructions - 89956 - Feb 2013 v1.07 Page 10 of 16...
  • Page 11: Configurational Mode

    CHANGE FILTER icon, the user must re-enter Configuration, set the Filter Expiration Time to OFF and return to Normal Operation. Zip Hydroboil Electronic - Installation & Operating Instructions - 89956 - Feb 2013 v1.07 Page 11 of 16...
  • Page 12 If no action is sensed on the CSS’s for 20 seconds, the unit will revert to Normal Mode. After SAT OFF-TIME 2 pressing either CSS1 or CSS4 will revert the unit to Normal Mode. Zip Hydroboil Electronic - Installation & Operating Instructions - 89956 - Feb 2013 v1.07 Page 12 of 16...
  • Page 13: Problem Solving

    In order to help preserve our environment we ask that you dispose of this product correctly. Please contact your local city council for collection centre details Zip Hydroboil Electronic - Installation & Operating Instructions - 89956 - Feb 2013 v1.07 Page 13 of 16...
  • Page 14: Spare Parts

    Tap Handle Kit 90997 Cap Drain Sensor Assy Kit 90998 PCB Kit 90531 Metering Tube Kit 3000w 90526 Metering Tube Kit 6000w Zip Hydroboil Electronic - Installation & Operating Instructions - 89956 - Feb 2013 v1.07 Page 14 of 16...
  • Page 15 Spare Parts Contactor Only for 40L Zip Hydroboil Electronic - Installation & Operating Instructions - 89956 - Feb 2013 v1.07 Page 15 of 16...
  • Page 16: Contact Details

    Images in this booklet have been modified and may not be true representations of the finished goods. Zip Hydroboil Electronic - Installation & Operating Instructions - 89956 - Feb 2013 v1.07 Page 16 of 16...
