Customer Display

Both the Low Profile and Adjustable Display case styles support an
optional Customer Display that mounts directly to the rear of the
workstation. The LP version consists of a display board and
housing, assembled and ready to attach to the rear of the
workstation base. The AD version consists of the display board only,
which mounts to the AD support bracket at the rear of the base.
LP Procedure:
1. Power-off the workstation, remove all cables from the rear
2. Remove the shipping materials from the customer display.
3. Refer to Figure 3-23 and attach the customer display assembly

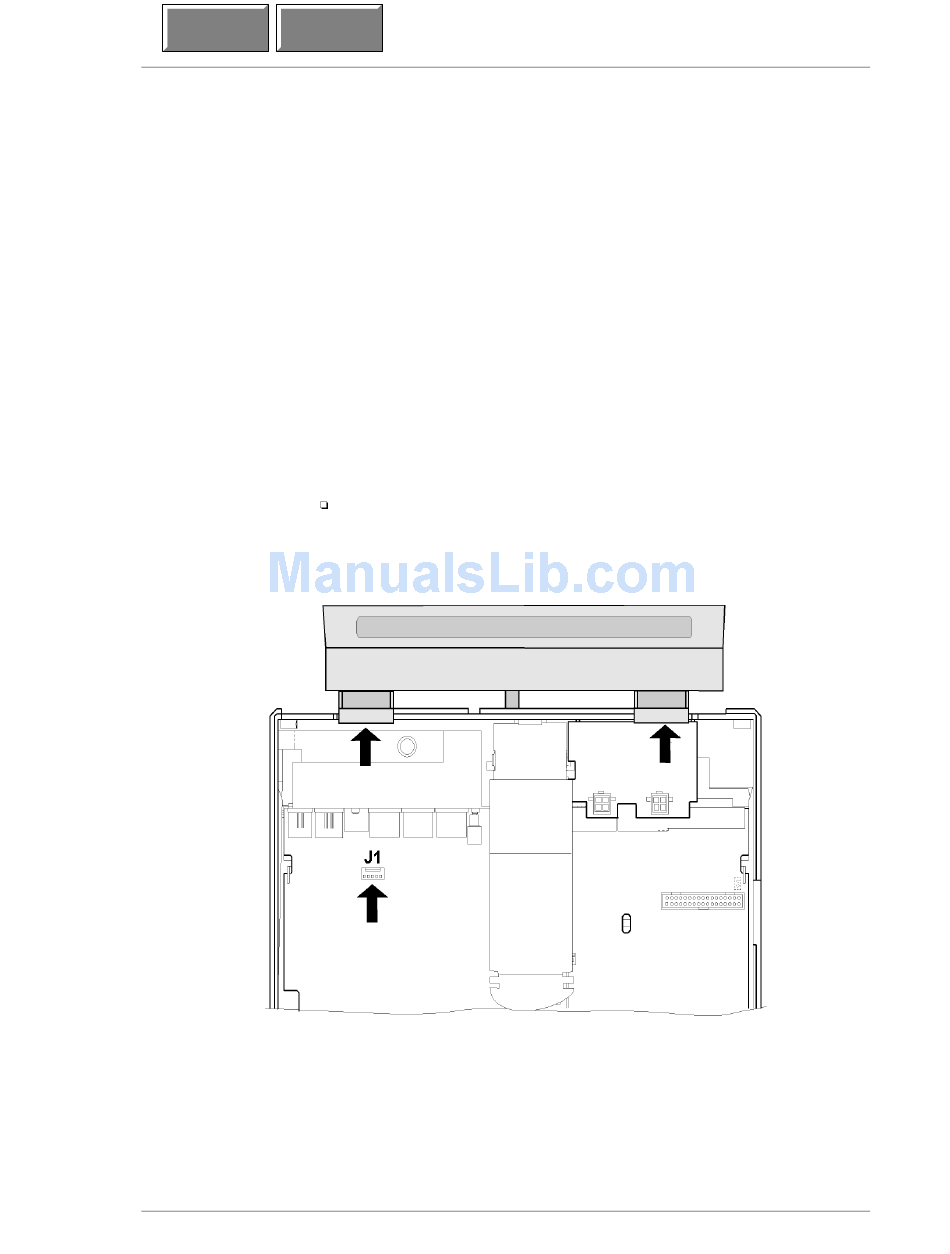

Figure 3-23: Attaching the Customer Display (Low Profile Case)

4. Power-up the workstation.
5. The Customer Display is ready to run.
PCWS Ultra Setup Guide
connector panel, then remove the cover.
to the case at the points shown.
Route the cable through the slot on the PCWS case, behind
the rear fan shroud, then connect it to J1 on the system
board.
PCWS Ultra Hardware Configuration
Customer Display
3-29
