Summary of Contents for Smeg SHC520X

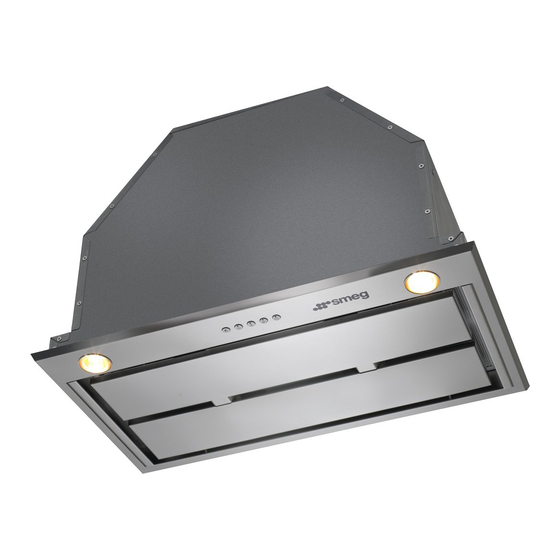

- Page 1 Instructions Manual SHC520X - SHC700X...
-
Page 2: Table Of Contents
INDEX RECOMMENDATIONS AND SUGGESTIONS ........................3 CHARACTERISTICS ................................4 INSTALLATION..................................5 USE ......................................7 MAINTENANCE ..................................8... -
Page 3: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. -
Page 4: Characteristics
CHARACTERISTICS Dimensions Components Ref. Q.ty Product Components Hood Body, complete with :Controls, Light, Blower, Filters Directioned grid Reducer Flange ø 150-120 mm Ref. Q.ty Installation Components Screws Screws 2,9 x 9,5 Q.ty Documentation Instruction Manual... -
Page 5: Installation
INSTALLATION Fitting the Hood canopy BEFORE FITTING THE HOOD TO THE WALL UNIT, PROCEED AS FOLLOWS: • Open the Panel by pulling it. • Remove grease filters. • Disconnect the wires to the Commands at the connectors. • Remove the frame by unfastening the 4 screws (2 on the right and 2 on the left). - Page 6 Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe ø 150 or 120 mm, the choice of which is left to the installer. • To install a ø 120 mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.
-
Page 7: Use
Control panel Button Function Turns the lighting system on and off. Press and hold for approx. 2 seconds to turn the lighting system on and off at reduced intensity. Turn the suction motor on and off at speed one. Press and hold the button for approximately 2 After 100 working hours all the seconds, with all the loads turned off (Motor and LEDs (L1-L2-L3-L4) will light up... -
Page 8: Maintenance
MAINTENANCE Opening Panel • Open the Panel by pulling it. • Clean the outside with a damp cloth and neutral detergent. • Clean the inside using a damp cloth and neutral detergent; do not use wet cloths or sponges, or jets of water; do not use abrasive substances. - Page 9 Activated Charcoal Filter (Recirculation Version) • This cannot be washed or regenerated, and must be changed when all the command LEDs start to flash, or at least once every 4 months. Activating the alarm signal • In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on installation or at a later date.
- Page 12 991.0264.134_ver2...
