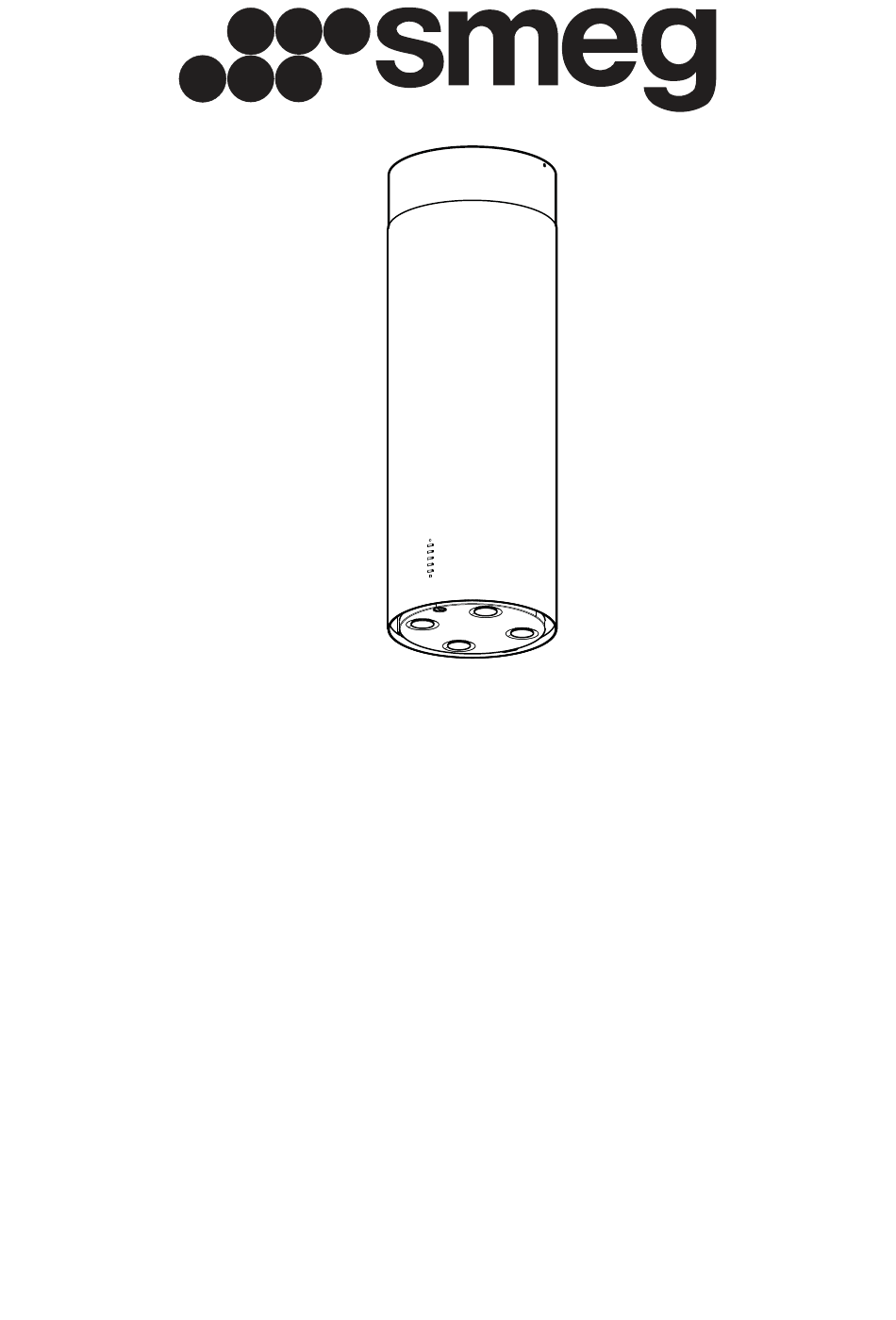

- Page 1 Instructions Manual SHI410X1 - SHI410N1...
-
Page 2: Table Of Contents
INDEX SAFETY INFORMATION ................................. 3 CHARACTERISTICS ................................6 INSTALLATION ..................................8 USE ...................................... 12 CARE AND CLEANING ................................. 13... -
Page 3: Safety Information
SAFETY INFORMATION For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance. The wire connection has to be done by specialized technician. - Page 4 • If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
- Page 5 • The appliance is not to be used by persons (including children) with re- duced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. Accessible parts may become hot when used with cooking appliances. •...
-
Page 6: Characteristics
CHARACTERISTICS Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Chimney Upper Telescopic frame complete with extractor, consisting of: 7.1a Upper frame 7.1b Lower frame Reducer Flange ø 150-120 mm Flange ø 120 mm Flaps Recirculation Air Outlet Connection Pipe clamps (not included) Ref. - Page 7 Dimensions 600mm 650mm Dimensions of the hood in ducting version. ** Dimensions of the hood in recycling version.
-
Page 8: Installation
INSTALLATION Drilling the Ceiling/shelf and fixing the frame DRILLING THE CEILING/SHELF • Use a plumb line to mark the centre of the hob on the ceiling/support shelf. • Place the drilling template 21 provided on the ceiling/support shelf, making sure that the template is in the correct position by lining up the axes of the template with those of the hob. - Page 9 PREPARATION OF THE FRAME FOR THE HOOD IN RECYCLING VERSION In case the hood is used in recycling version it is necessary to prepare the frame with all the necessary connection pieces. In order to make the installation easier it is necessary to lengthen the frame: •...
- Page 10 FIXING THE FRAME • Lift the frame up, making sure that the index over the frame plate is turned forwards. • Fit the frame slots onto the two screws inserted in the ceiling as above, and turn until reaching the centre of the adjustment slot.
- Page 11 Installing of the chimney and fixing of the hood When the hood is installed in recycling version the chimney has to be positioned with the slots upwards. When the hood is in- stalled in ducting version it has to be positioned in the opposite way.
-
Page 12: Use
Control panel Button Function Turns the lighting system on and off. Press and hold for approx. 2 seconds to turn the lighting system on and off at reduced intensity. Turn the suction motor on and off at speed one. Press and hold the button for approximately 2 After 100 working hours all the seconds, with all the loads turned off (Motor and LEDs (L1-L2-L3-L4) will light up... -
Page 13: Care And Cleaning
CARE AND CLEANING Metal grease filters These can also be washed in the dishwasher, and need to be cleaned when all the command LEDs light up in a continuous manner or at least once every 2 months use, or more frequently if use is particularly intensive. - Page 14 Activated Charcoal Filter (Recirculation Version) • This cannot be washed or regenerated, and must be changed when all the command LEDs start to flash, or at least once every 4 months. Activating the alarm signal • In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on installation or at a later date.
- Page 16 991.0640.988_ver1 - 201216 - D00007445_00...
