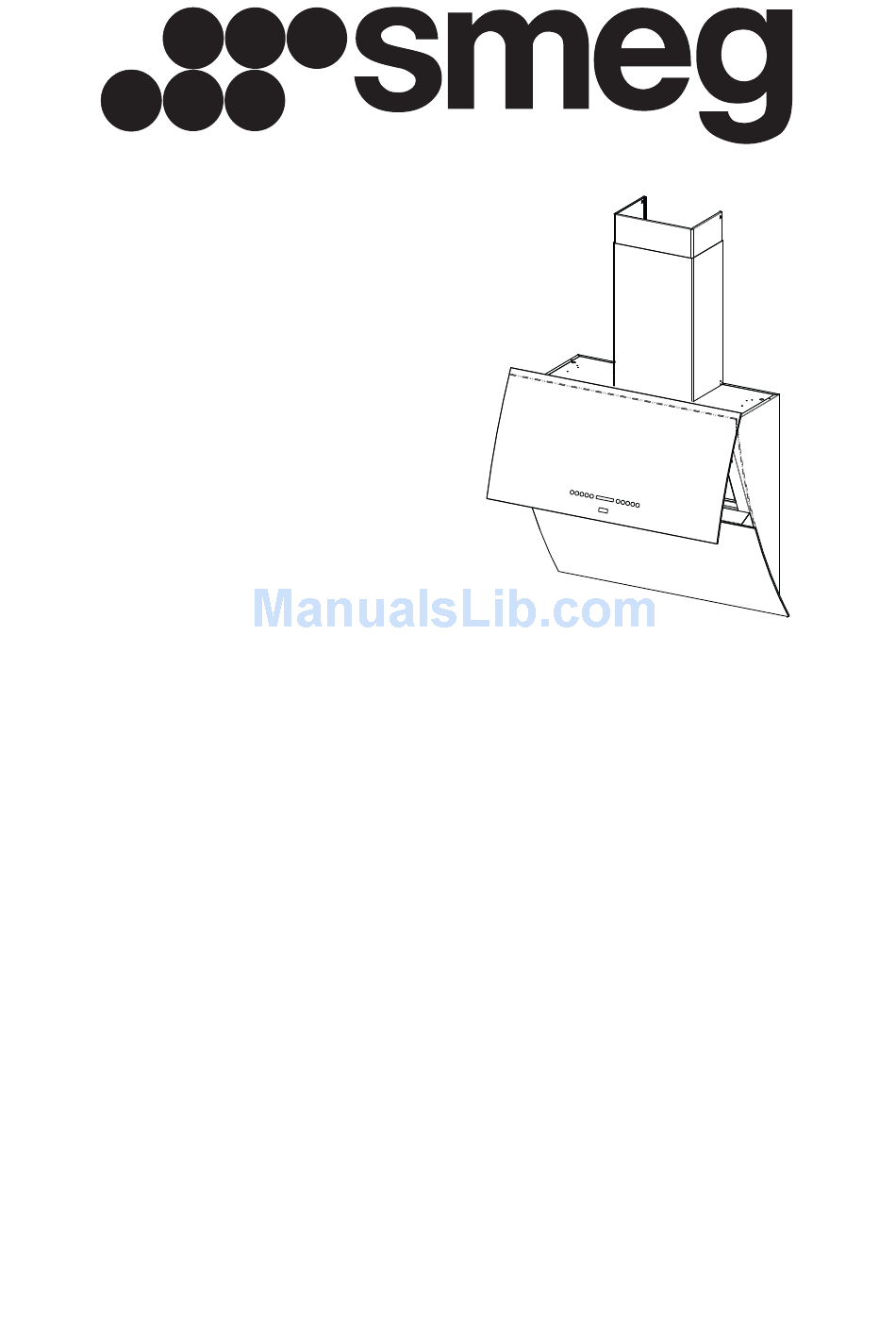

- Page 1 Instructions Manual SHW800B...
-
Page 2: Table Of Contents
INDEX RECOMMENDATIONS AND SUGGESTIONS ........................3 CHARACTERISTICS ................................4 INSTALLATION..................................6 USE ......................................9 MAINTENANCE ................................... 11... -
Page 3: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. -
Page 4: Characteristics
CHARACTERISTICS Components 7.2.1 Ref. Q.ty Product components Cooker hood with control unit, lights, blower unit, filters Upper chimney Lower chimney Air outlet grid Reducer flange Ø 150-120 Damper Cover for recycling version Ref. Q.ty Installation components 7.2.1 Fixing brackets for upper chimney Plugs Plugs SB 12/10 Screws 4,2 x 44,4... - Page 5 Dimensions Min. Min. 368mm 368mm...
-
Page 6: Installation
INSTALLATION Wall drilling and bracket fixing 1÷2 7.2.1 292 292 As a first step, proceed with the following drawings: • a vertical line up to the ceiling or up to the upper limit, at the centre of the area in which the hood is to be fitted;... - Page 7 Hood body mounting • Firstly, it is necessary to adjust the two Vr-screws of the 11a-brackets, at minimun (B). • Hang the hood body on the two brackets 11a. • Connect the hood to the mains supply by means of a bipolar switch with at least 3 mm contact gap.
- Page 8 RECYCLING VERSION AIR OUTLET To install the hood in recycling version, the optional charcoal filter kit must be purchased. • Remove the chimney angle bracket. • Screw the filter cover onto the air outlet, using four screws 12c (2.9 x 12.5). •...
-
Page 9: Use
Control panel Button Function Display Door Closed: Press and hold for approximately 2 Sec- Displays the set speed. onds to open the door and turn the motor on at the last speed set. Door Open: Press briefly to turn the motor Off or On. Decrease the working speed. - Page 10 REMOTE CONTROL The appliance can be controlled using a remote control powered by a 1.5 V carbon-zinc alkaline batteries of the standard LR03-AAA type (not included). • Do not place the remote control near to heat sources. • Used batteries must be disposed of in the proper manner.
-
Page 11: Maintenance
MAINTENANCE Metal grease filters Filters can be washed in the dish machine. They need to be washed when Drop-sign appears on the display or in any case every 2 months, or even more frequently in case of particularly intensive use of the hood. Alarm reset •... - Page 12 Charcoal filter (recycling version) This filter cannot be washed or regenerated. It must be replaced when the C appears on the display or at least once every 4 months. The filter saturation alarm has to be activated already before. Activation of the alarm signal •...
- Page 13 Replacing the fuser • The fuser is placed up on the right side. Turn the fuser holder as indicated. Replace the fuser with one having the same features. 1 13...
- Page 16 991.0266.554_ver1...
