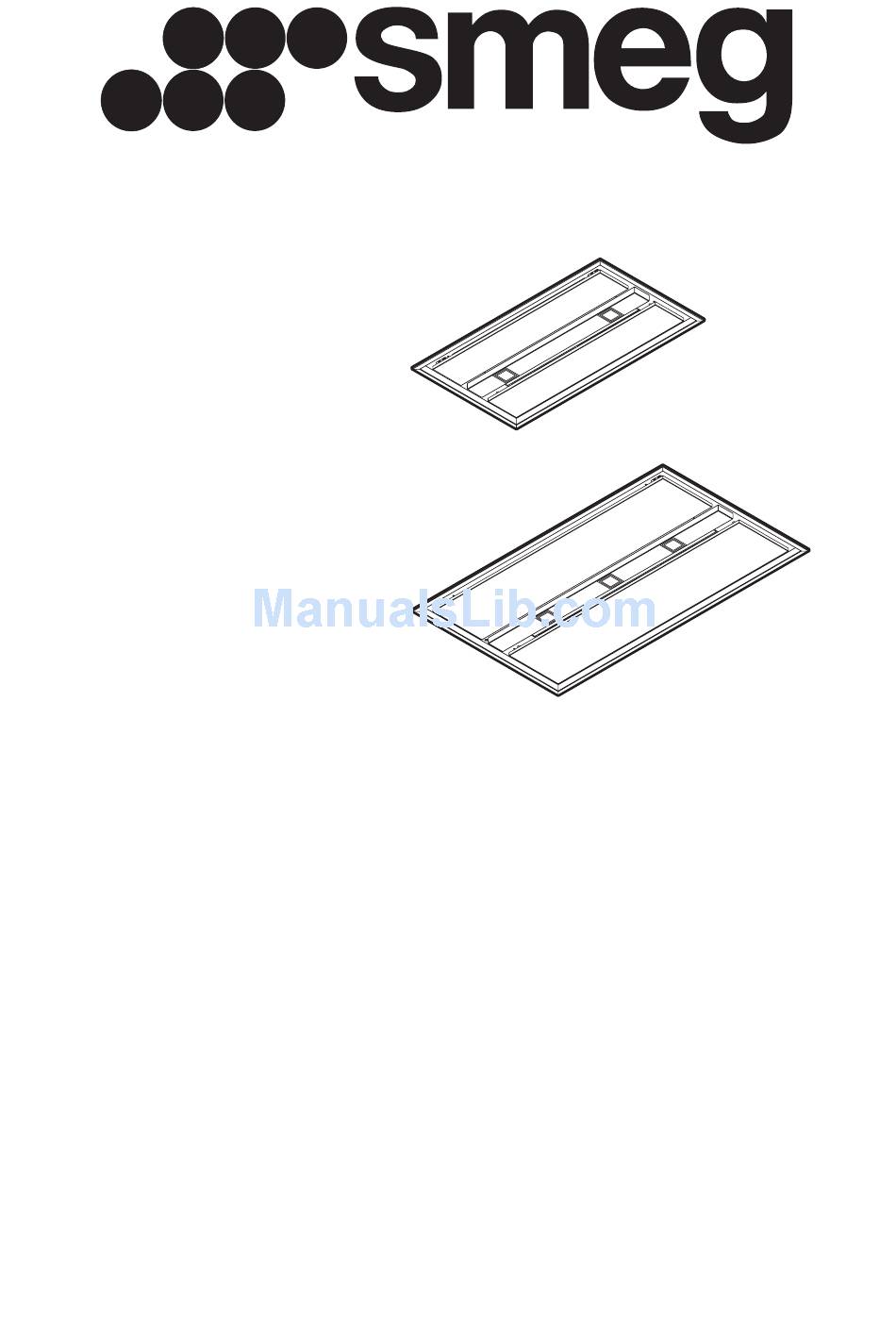

- Page 1 User Manual SHR900X - SHR1200X...
-
Page 2: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. - Page 3 CHARACTERISTICS Dimensions Components Ref. Q.ty Product components – Hood Body complete with: Controls, Light, Suction Unit, Filters – Reinforced ceiling Q.ty Documents Instruction and maintenance Installation instructions Warning: do not exceed a distance of 1600 mm between the cooker Hob and the Hood (in this case the ceiling) to guarantee that the cooking fumes will be captured properly.
-
Page 4: Installation
INSTALLATION ELECTRICAL CONNECTION • Connect the hood to the mains through a two-pole switch hav- ing a contact gap of at least 3 mm. • Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan. - Page 5 Control panel Button Function Turns the lighting system on and off. Press and hold for approx. 2 seconds to turn the lighting system on and off at reduced intensity. Turn the suction motor on and off at speed one. Press and hold the button for approximately 2 After 100 working hours all the seconds, with all the loads turned off (Motor and LEDs (L1-L2-L3-L4) will light up...
-
Page 6: Maintenance
MAINTENANCE REMOTE CONTROL The appliance can be controlled using a remote control powered by a 1.5 V carbon-zinc alkaline batteries of the standard LR03-AAA type (not included). • Do not place the remote control near to heat sources. • Used batteries must be disposed of in the proper manner. -
Page 7: Light Replacement
Metal grease filters These can also be washed in the dishwasher, and need to be cleaned when all the command LEDs light up in a continuous manner or at least once every 2 months use, or more frequently if use is particularly intensive. Resetting the alarm signal •... - Page 8 991.0264.532_01 - 120807...
