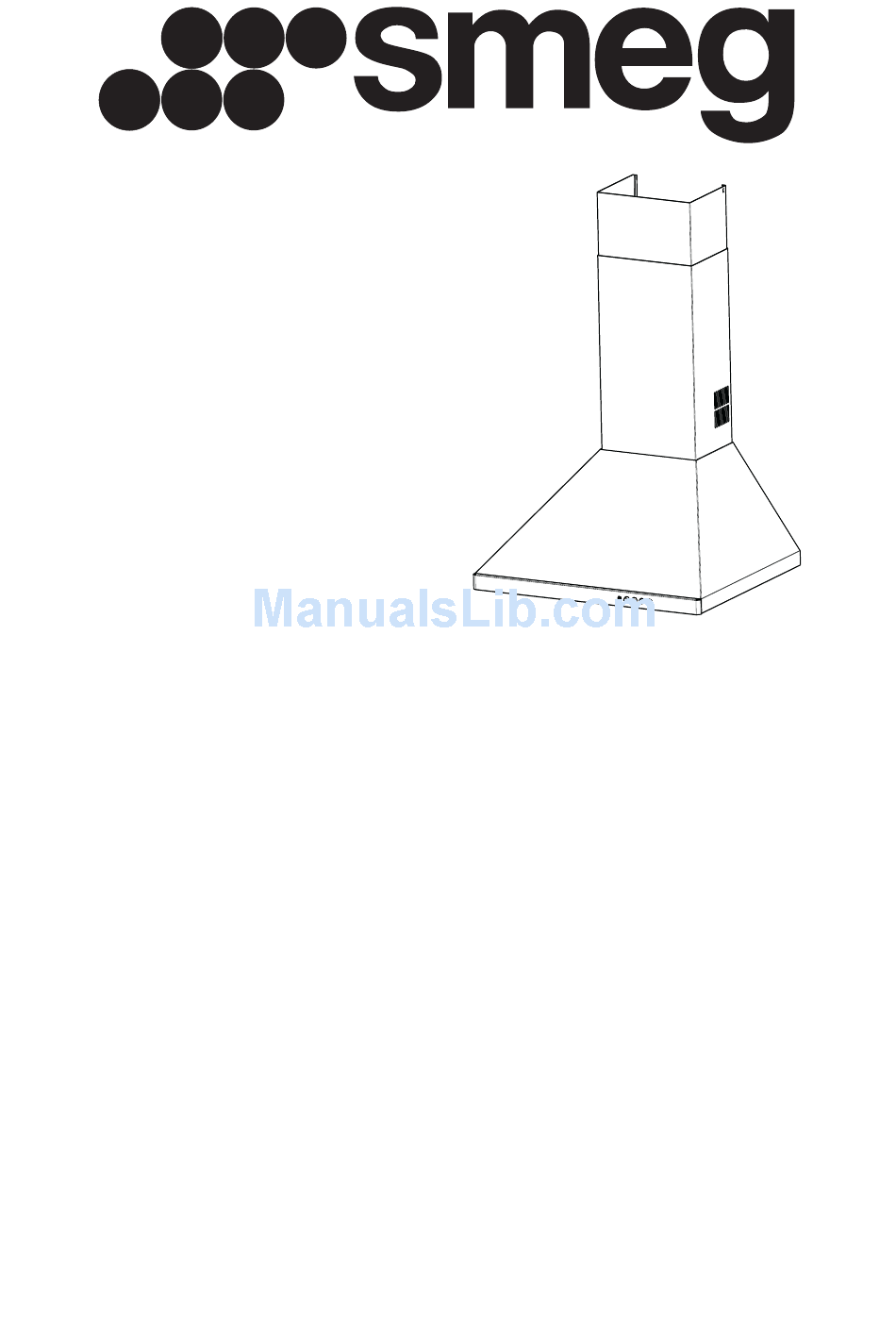

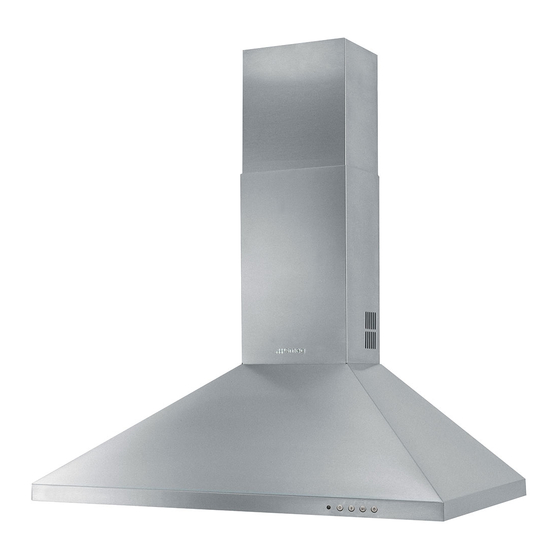

- Page 1 Instructions Manual SHW910X...
- Page 2 INDEX WARNINGS - COMPONENTS .............................. 3 INSTALLATION..................................4 USE - MAINTENANCE ................................5...
- Page 3 WARNINGS - COMPONENTS WARNINGS INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. • The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
- Page 4 INSTALLATION The cooker hood must be installed centrally over a cooking appliance. The minimum distance between the cooking surface and the metal grease filters on the underside of the hood must be at least 650mm. To install the hood proceed as follows: 1) Drill six 8mm diameter holes at X1-X2-J and insert the plastic rawl plugs supplied as illus- trated in fig.
- Page 5 USE - MAINTENANCE The cooker hood functions are controlled by a series of slider or push button switches mounted on the front of the hood and control the worktop lighting and fan motor speeds. This cooker hood will not remove steam. 1) SLIDER SWITCHES (fig.11): - A switch controls the wotktop lighting - ON/OFF.
- Page 6 750 min 1140 max 590 min X X1...
- Page 8 436005999_ver3...
