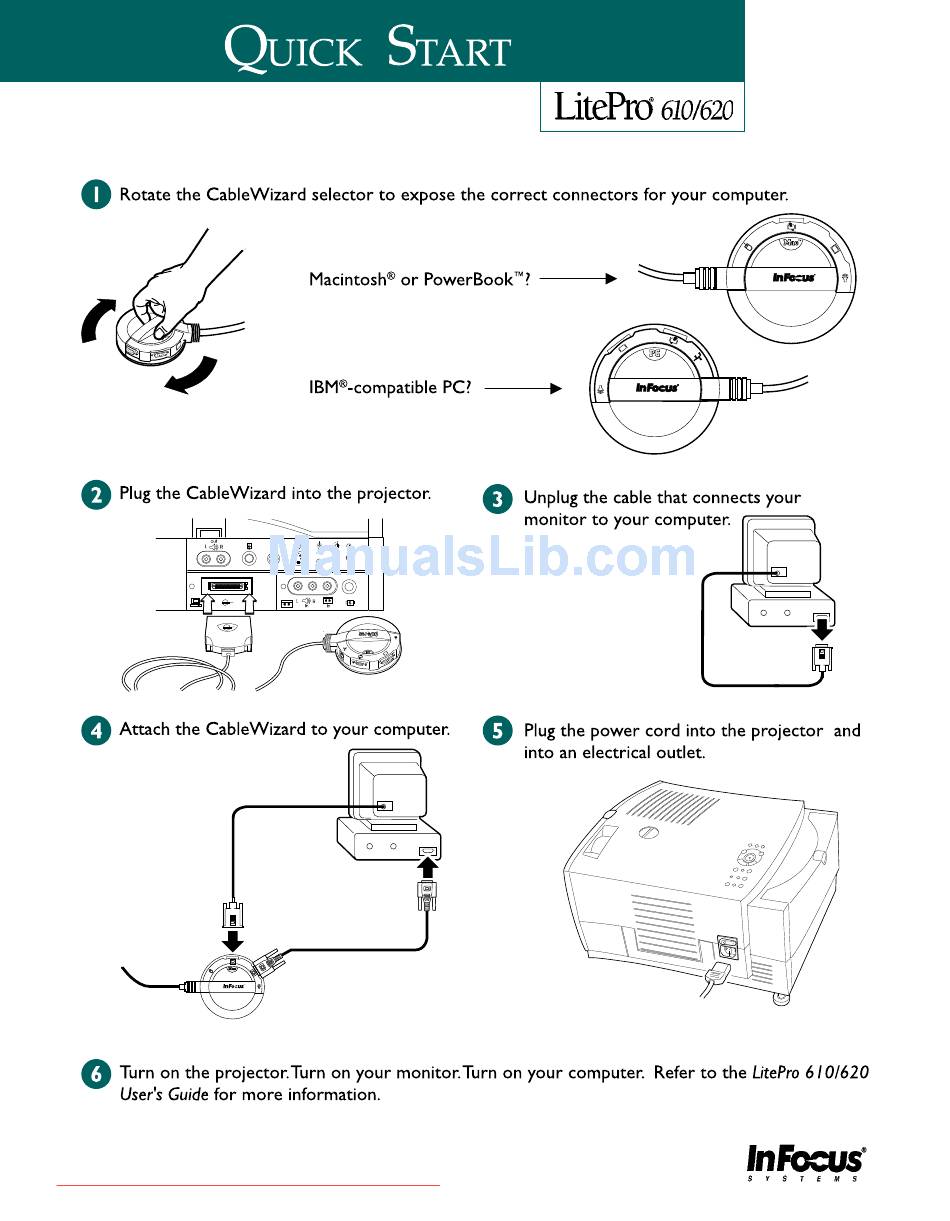

InFocus LitePro 610 Quick Start Manual

InFocus LitePro 610 Quick Start Manual

Hide thumbs Also See for LitePro 610:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
009-0279-00 (English)
Downloaded from ProjectorsManual.com Manuals

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LitePro 610 and is the answer not in the manual?

Questions and answers

Related Manuals for InFocus LitePro 610

Summary of Contents for InFocus LitePro 610

  • Page 1 009-0279-00 (English) Downloaded from ProjectorsManual.com Manuals...
  • Page 2 Do not open the projector’s case! Doing so exposes you to an electric shock haz- ard. Except for the projection lamp, there are no user-serviceable parts. All service using your LitePro 610 or 620. must be performed by an In Focus Systems Authorized Service Provider.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Safety Summary Introduction Image Resolution Compatibility Unpacking the Projector Usage Guidelines If You Need Assistance Warranty Setting up the Projector Connecting the CableWizard to the Projector Selecting Connectors on the CableWizard Preparing to Connect Your Equipment to the Projector Connecting an IBM-Compatible Desktop Computer Connecting an IBM-Compatible Laptop Computer Connecting a Macintosh Desktop Computer...
  • Page 4 Maintenance & Troubleshooting Cleaning the Lens Replacing the Projection Lamp Resetting the Lamp Monitor Light Replacing the Batteries in the Remote Control Using the Kensington Lock Troubleshooting Solutions to Common Problems Appendix Specifications Accessories Portable and Laptop Activation Chart Using Video Mirroring with a PowerBook Computer Projected Image Size Index Downloaded from ProjectorsManual.com Manuals...

  • Page 5: Safety Summary

    SAFETY SUMMARY Please read these instructions carefully before using your LitePro 610 or 620. Failure to comply with them could result in fire, elec- trical shock, personal injury or damage to equipment. These graphics are used throughout this manual to draw your attention to important information about the projectors.
  • Page 6 Do not look into the lens! Be extremely careful not to look into the projection lens when the LitePro is turned on. The bright light may harm your eyes. Be especially careful to keep children from looking into the lens. Turning projector on and off Allow the projector to warm up for three minutes before turning it off;...
  • Page 7 Lamp compartment To avoid burns or an explosion hazard, do not open the lamp module door until the projector is turned off and the lamp has cooled. The hot lamp contains high pressure and can explode if damaged or old. Follow the instructions in this manual for lamp replacement carefully.

  • Page 8: Introduction

    User’s Guide applies to both products. Image Resolution LitePro 610 The VGA resolution of the projected image of the 610 is 640x480. The projector displays computer images that are 640x480 or lower just as they appear on your computer’s monitor.

  • Page 9: Compatibility

    In Focus dealer immediately. If you are experienced in setting up presentation systems, use the LitePro 610/620 Quick Start card that was included in the shipping box. For complete details on connecting and operating the projec- tor, refer to the appropriate sections of this User’s Guide.
  • Page 10 IGURE Shipping box contents LitePro 610 or 620 projector CableWizard LitePro 610/620 User’s Guide CableWizard computer cable power cord CableWizard mouse cable remote and batteries CableWizard audio cable RCA audio/video (A/V) cable Not shown: Quick Start card, remote cable Downloaded from ProjectorsManual.com Manuals...

  • Page 11: Usage Guidelines

    Usage Guidelines Do not look directly into the projection lens when the projector • is turned on. The bright light may harm your eyes. The top and bottom of the projector can be very hot to the • touch after use. Use extreme care or let it cool before lifting it. Do not block the grills at the front, side, top or bottom of the •...

  • Page 12: Setting Up The Projector

    If you are installing the projector on the ceiling, see the • increase the distance between the LitePro 610/620 Ceiling Mount Installation Guide for recom- projector and your computer to 50 mendations. To turn the image upside down, see “Ceiling”...

  • Page 13: Connecting The Cablewizard To The Projector

    25 ft. 10 ft. 5 ft. PROJECTOR IGURE Projected image size for LitePro 620 Connecting the CableWizard to the Projector The CableWizard™ simplifies the connection process by provid- ing a central hub for all the connections between the projector and your computer. The connectors on the CableWizard are labeled with icons.

  • Page 14: Selecting Connectors On The Cablewizard

    Selecting Connectors on the CableWizard Turn the selector on the top of the CableWizard to reveal the correct connectors for your computer. IGURE Selecting connectors on the CableWizard If you’re connecting an • IBM-compatible desktop or laptop com- , turn the selector until the window displays “PC”. puter computer monitor...

  • Page 15: Preparing To Connect Your Equipment To The Projector

    monitor computer mouse audio IGURE Selecting the Macintosh connectors on the CableWizard Preparing to Connect Your Equipment to the Projector Now you’re ready to connect your equipment. Computers are connected to the CableWizard. Video players and other equip- ment, such as external speakers, are connected directly to the projector.

  • Page 16: Connecting An Ibm-Compatible Desktop Computer

    Connecting an IBM-Compatible Desktop Computer 1 Locate the cable that connects your monitor to your computer. Unplug it from the computer. 2 Plug the end of the CableWizard computer cable into the video connector on your computer. 3 Plug the end of the CableWizard computer cable into the connector on the CableWizard.

  • Page 17: Figure

    Do you want to control your computer’s mouse from the projector’s remote or keypad? 1 Unplug the mouse cable from your computer. 2 Plug the end of the CableWizard mouse cable into the mouse connector on your computer. 3 Plug the end of the CableWizard mouse cable into the connector on the CableWizard.

  • Page 18: Connecting An Ibm-Compatible Laptop Computer

    Connecting an IBM-Compatible Laptop Computer 1 Plug the end of the CableWizard computer cable into the video connector on your computer. 2 Plug the end of the CableWizard computer cable into the connector on the CableWizard. NOTE: Many laptop computers do not automatically turn on their external video port when a second- ary display device such as a projec-...
  • Page 19 Do you want to control the computer’s mouse from the projector’s remote or keypad? 1 Locate the mouse cable and unplug it from your computer. 2 Plug the end of the CableWizard mouse cable into the mouse connector on your computer. 3 Plug the end of the CableWizard mouse cable into the connector on the CableWizard.

  • Page 20: Connecting A Macintosh Desktop Computer

    Connecting a Macintosh Desktop Computer 1 Locate the cable that connects the monitor to your computer. Unplug it from the computer. 2 Plug the end of the CableWizard computer cable into the video connector on your computer. 3 Plug the end of the CableWizard computer cable into the connector on the CableWizard.
  • Page 21 Do you want to control the computer’s mouse from the projector’s remote or keypad? 1 Unplug the mouse from your Macintosh or locate an unused ADB connector. 2 Plug the end of the CableWizard mouse cable into the mouse or the (ADB) connector on your Macintosh.

  • Page 22: Connecting An Apple Powerbook Computer

    Connecting an Apple PowerBook Computer 1 Plug the end of the CableWizard computer cable into the video connector on your PowerBook. 2 Plug the end of the CableWizard computer cable into the NOTE: Some PowerBooks connector on the CableWizard. require the Apple-supplied video- 3 If you want the projector’s display to be the same as the out cable for external video.
  • Page 23 Do you want to control the computer’s mouse from the projector’s remote or keypad? 1 Locate the mouse cable and unplug it from your PowerBook. 2 Plug the end of the CableWizard mouse cable into (ADB) connector on your PowerBook. 3 Plug the end of the CableWizard mouse cable into the connector on the CableWizard.

  • Page 24: Connecting A Video Player

    Connecting a Video Player 1 If your video player uses a round, one-prong composite video connector, you’ll need only the A/V cable that shipped with the projector. If your video player uses a round, four-prong S-video con- • nector, you’ll also need an S-video cable in addition to the A/V cable.
  • Page 25 A/V cable S-video cable IGURE Connecting the projector to a video player using an S-video cable and the audio con- nectors on the standard A/V cable 4 Plug the A/V cable’s white connector into the left “audio out” port on your video player. Plug the cable’s red connector into the right “audio out”...

  • Page 26: Connecting An External Speaker And A Subwoofer

    Connecting an External Speaker and a Subwoofer To connect one or two external speakers, plug the speaker • cables into the separate red and white L R (audio out) con- nectors on the projector. To connect a subwoofer, plug the subwoofer’s cable into the •...

  • Page 27: Connecting A Ps/2-Compatible Mouse

    Connecting a PS/2-Compatible Mouse The mouse connector on the projector will be used to connect a PS/2-compatible mouse. Call your In Focus dealer for availability. PS/2-compatible mouse connector IGURE The PS/2-compatible mouse connector on the projector Connecting the Remote Control Cable If the projector cannot receive the remote’s signal, as may be the case if you’re using rear projection, connect the remote directly to the projector with the remote cable.

  • Page 28: Powering Up The Projector And Adjusting The Image

    Powering up the Projector and Adjusting the Image 1 Plug the power cord into the projector (Figure 22), then plug it into your electrical outlet. A surge-protected power strip is NOTE: Always use the power recommended if power surges are common in your area. cord that shipped with the projec- tor.
  • Page 29 4 Turn on your monitor if you’ve connected it. 5 Turn on your computer. The computer image should display on the projection screen. The computer source indicator LED displays a solid green • indicating the computer source is active (Figure 23). NOTE: With some computers, If necessary, use the buttons on the remote con-...

  • Page 30: Turning Off The Projector

    Turning Off the Projector If you want to turn off the projector for a short period of time, press the button on the remote control or keypad. This standby turns off the lamp but keeps the projector running. The power/ standby indicator LED (Figure 23) blinks green while the projec- tor is in standby.

  • Page 31: Using The Projector

    USING THE PROJECTOR This section describes how to use and make adjustments to the projector. It also provides a reference to the remote control but- tons and the options available from the on-screen menus. Basic Image Adjustment 1 Make sure you have powered up your equipment in the right order (page 21).

  • Page 32: Adjusting The Projector

    Adjusting the Projector To focus the image, rotate the projection lens until the image is clear. The projector is equipped with a self-locking, quick-release eleva- tor button and adjustable-height feet. By raising the back of the projector, you lower the projected image. elevator button IGURE Quick-release elevator button and adjustable feet...
  • Page 33 IGURE Adjusting the angle of the projected image To lower the projector (raise the image): 1 Press the elevator’s quick release button. 2 Push the projector down. 3 If necessary, rotate the elevator feet (Figure 25) to readjust the angle of the projected image. Downloaded from ProjectorsManual.com Manuals...

  • Page 34: Changing Between Color And Monochrome Modes

    Changing between Color and Monochrome Modes The color dial on the top of the projector (Figure 26) allows you to select either color or monochrome modes. A monochrome image is significantly brighter than a color image. To change color mode: 1 Insert a coin or other flat object into dial on the top of the pro- jector.

  • Page 35: Using The Remote And Keypad Buttons

    Using the Remote and Keypad Buttons This section provides an alphabetical reference to the remote and keypad buttons. IGURE Remote control and keypad Brightness Adjusting the brightness lightens or darkens the image. To darken the image, press • To lighten the image, press •...
  • Page 36 Freeze button halts, or “freezes” the projected image. Use this freeze button to freeze a frame of video (the video continues to run but the image is frozen). You also can freeze an image from a com- puter source on the screen, allowing you to perform other opera- tions on the computer without the audience seeing them.
  • Page 37 2 Press the right disk mouse button to display the color selector. Position the cursor on the desired color, then press the left mouse button. Press the right button again to close the color selector. 3 Move the pencil to where you want to start the annotation. 4 Press the left mouse button on the disk mouse.

  • Page 38: Using The Disk Mouse

    Using the Disk Mouse Press anywhere on the edge of the disk mouse to move the cursor on the screen. For example, if you press the top edge of the disk, NOTE: Using a light touch on the the cursor moves up the screen; if you press the bottom edge, the disk mouse often gets the best cursor moves down (Figure 28).
  • Page 39 To change a menu setting, use the disk mouse to move the cursor to the setting you want to change, then use one of the two buttons below the disk mouse to make the changes. The status bar at the top of each menu indicates the source that is currently active.

  • Page 40: Display Menu Functions

    Display Menu Functions IGURE Display menu Brightness Adjusting the brightness changes the intensity of the image. Press the left mouse button to darken the image. • Press the right mouse button to lighten the image. • Contrast NOTE: Changing the brightness Contrast controls the degree of difference between the lightest using the menu is the same as and darkest parts of the picture.

  • Page 41: Audio Menu Functions

    Audio Menu Functions IGURE Audio menu Volume Volume adjustments you make are saved for each source. Press the left mouse button to decrease the volume. • Press the right mouse button to increase the volume. • NOTE: Changing the volume Mic Volume using the menu is the same as Press the left mouse button to decrease the microphone...
  • Page 42 Press the right mouse button to increase the amount of sound • coming from the right speakers. Fade Fade controls the balance between the internal and external speakers. The setting appears gray and won’t highlight if external speakers aren’t connected. Press the left mouse button to increase the amount of sound •...

  • Page 43: Image Menu Functions

    Image Menu Functions IGURE Image menu Auto Image Auto Image adjusts tracking, signal synchronization and vertical and horizontal position automatically for most computers. If you want to adjust these features manually, you must turn off Auto Image first by clicking it. Auto Resize Auto Resize automatically resizes the image by scaling it up or NOTE: Some screen savers inter-...
  • Page 44 1 Click the Auto Image button to turn Auto Image off. 2 Move the cursor to Manual Sync, then press the left or right mouse buttons repeatedly until the image is sharp and free of streaks. Manual Tracking The tracking function adjusts the projector to match the signal NOTE: The Manual Sync, from your computer.

  • Page 45: Controls Menu Functions

    Controls Menu Functions IGURE Controls menu Video Standard When Auto is selected, the projector attempts to pick the correct video standard (NTSC, PAL or SECAM) based on the input sig- NOTE: If you already know the nal it receives. If the projector is unable to detect the standard, the standard used in your geographical colors might not look right or the image might appear “torn.”...
  • Page 46 Rear Projection When you select Rear Projection, the projector reverses the image so you can project from behind a translucent screen. Click either mouse button to reverse the image for rear projec- • tion. Monitor Connect When Auto is selected, the projector attempts to pick the correct monitor connection based on the input signal it receives.

  • Page 47: Maintenance & Troubleshooting

    MAINTENANCE & TROUBLESHOOTING This chapter describes how to: clean the lens • replace the projection lamp and reset the lamp monitor light • replace the batteries in the remote control • use the Kensington lock feature • troubleshoot the projector •...
  • Page 48 & Using a small, flat-blade screw driver, remove the two • screws on the bottom of the projector on the outside of the lamp module cover. Pull the lamp cover up and remove it. • CAUTION: Never operate the projector with the lamp cover open or removed.
  • Page 49 Pull the handle out to remove the module. • IGURE Removing the lamp module 5 Fit the new lamp module in place (Figure 38). Align the module in the correct direction (with the screw • fastener at the top). Gently push the module in as far as it goes. •...

  • Page 50: Resetting The Lamp Monitor Light

    & 6 Replace the lamp cover. Reposition the cover. • NOTE: You must reset the lamp Replace the screws and tighten them. • monitor light so the projector can 7 Turn the projector back on. keep track of the usable life of the Resetting the Lamp Monitor Light new lamp.

  • Page 51: Troubleshooting

    IGURE Installing the Kensington lock Troubleshooting If you’re experiencing trouble with the projector, follow these steps to make sure everything is properly connected before you call Customer Service for assistance. 1 Check cable connections. Verify that all computer, CableWiz- ard and power cables are properly connected. 2 Verify that all power is switched on.

  • Page 52: Solutions To Common Problems

    & 6 If you’re using a laptop computer and its monitor is not dis- playing your presentation, make sure you have re-activated the computer’s monitor. Most laptop computers de-activate their own monitor when a second display device, such as a projector, is connected.
  • Page 53 Problem: The screen resolution is not right Make sure the computer’s graphics card is set for a resolution • of no greater than 800x600 for the 610, 1024x768 for the 620. Problem: Image isn’t centered on the screen Reposition the image. Refer to “Horiz. Position” on page 38 •...
  • Page 54 & 3 Verify that the Desktop area is set to 800x600 or less, pref- erably 640x480. Also check the following: Does your computer have a compatible graphics board? The • projectors aren’t CGA or EGA compatible. Is your computer’s graphics board turned on? This is especially •...
  • Page 55 Problem: the projector displays vertical lines, “bleeding” or spots Adjust the brightness. See “Brightness” on page 29. • Check the projection lens to see if it needs cleaning. • Problem: Image is “noisy” or streaked 1 Deactivate your computer’s screen saver. 2 Turn off and then back on.
  • Page 56 & Problem: Remote not operating correctly You might need to replace the batteries. See page 44. • Make sure you’re pointing the remote either at the back or • front of the projector, or at the projection screen. Make sure the remote is within its operating range of 40 feet. •...

  • Page 57: Appendix

    APPENDIX Specifications The LitePro 610 and 620 must be operated and stored within the temperature and humidity ranges specified. Temperature ° Operating 10 C to 40 ° Non-operating -20 to 60 Humidity Operating and non-oper. 10% to 95% relative humidity, non-condensing Dimensions 8.3 x 13 x 15.6 inches (21.3 x 33.3 x 40 cm)
  • Page 58 Microphone Input Input Impedance 3.5 K ohm nominal 60 mVrms for THD ≤ 0.3%, main inputs off Maximum Input Voltage Sensitivity 800 Vrms at 1 KHz for 88 dB SPL at 1 meter Microphone Impedance < 8K ohms Connector Type 6.3 mm (1/4 inch) monaural phone jack (unbalanced) Lamp...

  • Page 59: Accessories

    Accessories Standard Accessories (ship with the projector) Part Number LitePro 610/620 Quick Start card 009-0279-xx LitePro 610/620 User’s Guide 010-0115-xx Shipping Box 110-0143-xx CableWizard and Cables 591-0182-xx CableWizard Audio Cable 210-0079-xx CableWizard Computer Cable 210-0076-xx CableWizard Mouse Cable 210-0078-xx Projection Lamp Module...
  • Page 60 591-0203-xx JBL Subwoofer 591-0204-xx S-Video Cable 515-0027-xx Microphone 591-0201-xx LitePro Ceiling Mount Kit SP-CEIL-LP6. 1 Year Extended Warranty for: LitePro 610 EW-LP610 LitePro 620 EW-LP620 2 Year Extended Warranty for: LitePro 610 EW-LP610-2 LitePro 620 EW-LP620-2 Downloaded from ProjectorsManual.com Manuals...

  • Page 61: Portable And Laptop Activation Chart

    Portable and Laptop Activation Chart NOTE: Most laptop computers Key command to Key command to Computer activate port de-activate port de-activate their built-in monitors Acer Ctrl-Alt-Esc (for setup) Ctrl-Alt-Esc (for setup) when a second display device is AST* ** FN-D or Ctrl-D FN-D or Ctrl-D connected.
  • Page 62 Key command to Key command to Computer activate port de-activate port Compaq* ** Ctrl-Alt-< Ctrl-Alt-> FN-F4 FN-F4 automatic automatic mode/? (for setup option) mode/? (for setup option) Compuadd* ** automatic automatic Alt-F for screen setup Alt-F for screen setup option option Data General Ctrl-Alt-Command...
  • Page 63 Key command to Key command to Computer activate port de-activate port IBM ThinkPad** reboot, enter setup menu FN-F2 FN-F7, select choice from setup menu FN-F1, select choice FN-F5, select choice PS/2 SC select choice (CRT, LCD, etc.) Kaypro boot up, monitor plugged unplug monitor Kris Tech FN-F8...
  • Page 64 Key command to Key command to Computer activate port de-activate port Packard Bell** FN-F2 FN-F2 Ctrl-Alt-< Ctrl-Alt-> Panasonic FN-F2 FN-F2 Samsung* setup screen option setup screen option Sanyo setup screen option setup screen option Sharp dip switch to CRT dip switch to LCD Sun SPARC- Ctrl-Shift-M Ctrl-Shift-M...

  • Page 65: Using Video Mirroring With A Powerbook Computer

    Using Video Mirroring with a PowerBook Computer When you turn video mirroring on, the projector displays the same information that appears on your PowerBook’s built-in screen. When video mirroring is off, the projector acts like a sepa- rate display. To turn on video mirroring for the first time: 1 Open the Monitors control panel, then click Monitor 2.

  • Page 66: Projected Image Size

    Projected Image Size Use the chart and the table to help you determine projected image sizes. IGURE Projected image size Downloaded from ProjectorsManual.com Manuals...
  • Page 67 Table 1: Image Size, Width and Height for LitePro 610 Distance to Diagonal Width Height Screen (feet) (inches) (inches) (inches) 40.8 32.6 24.5 81.6 65.3 49.0 122.4 97.9 73.4 163.2 130.6 97.9 204.0 163.2 122.4 244.8 195.8 146.9 285.6 228.5 171.4...
