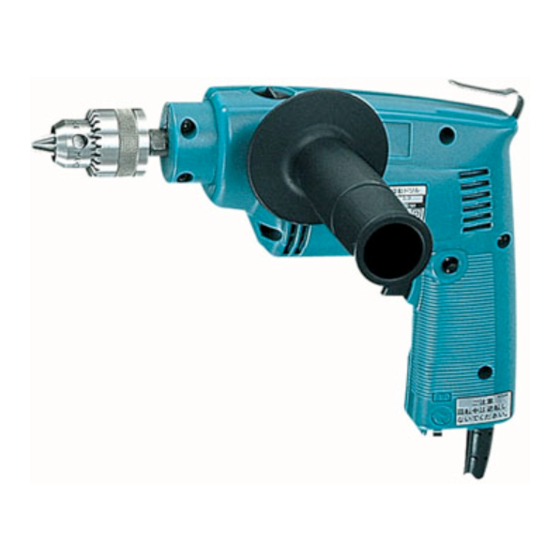

Hammer Drill
10 mm (3/8")
MODEL NHP1030
I N S T R U C T I O N
WARNING:
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
DOUBLE
INSULATION
M A N U A L
002468

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NHP1030 and is the answer not in the manual?

Questions and answers

Related Manuals for Makita NHP1030

Summary of Contents for Makita NHP1030

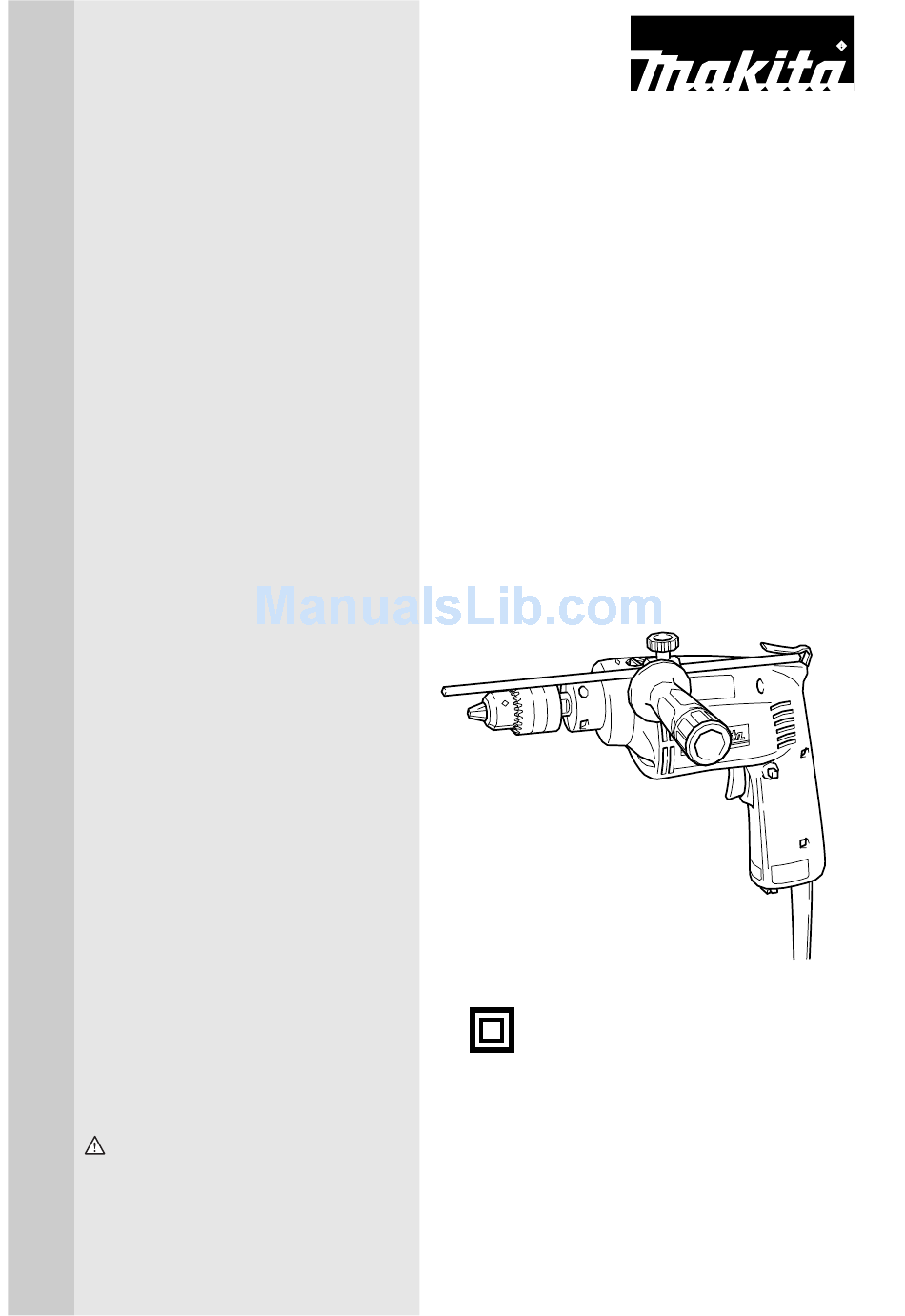

  • Page 1 Hammer Drill 10 mm (3/8”) MODEL NHP1030 I N S T R U C T I O N WARNING: For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. DOUBLE INSULATION M A N U A L...

  • Page 2: Specifications

    Steel Wood Overall length Net weight 3. Keep bystanders, children, and visitors Electrical Safety 4. Double insulated tools are equipped with NHP1030 10 mm (3/8”) 10 mm (3/8”) 18 mm (3/4”) 0 - 2,700/min. 0 - 29,700 270 mm (10-5/8”) 1.6 kg (3.5 lbs)
  • Page 3 trician to install a polarized outlet. Do not change the plug in any way. Double insula- tion eliminates the need for the three wire grounded power cord and grounded power supply system. 5. Avoid body contact with grounded sur- faces such as pipes, radiators, ranges and refrigerators.

  • Page 4: Specific Safety Rules

    22. Use only accessories that are recom- mended by the manufacturer for your model. Accessories that may be suitable for one tool, may become hazardous when used on another tool. SERVICE 23. Tool service must be performed only by qualified repair personnel. Service or main- USE PROPER EXTENSION CORD: Make sure your extension cord is in good condition.
  • Page 5 7. Some material contains chemicals which may be toxic. Take caution to prevent SAVE THESE INSTRUCTIONS WARNING: MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. working dust inhalation and skin contact. Follow material supplier safety data.

  • Page 6: Functional Description

    FUNCTIONAL DESCRIPTION 002406 1. Lower 2. Higher 3. Speed control screw 4. Switch trigger 5. Lock button 002412 1. Reversing switch lever CAUTION: • Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool.
  • Page 7 002423 1. Diamond marking 2. Action mode changing knob ASSEMBLY 002428 1. Side grip 002433 1. Chuck key Selecting the action mode This tool has an action mode changing knob. For rotation with hammering, turn the knob so that the mark is towards the small diamond marking on the tool body.

  • Page 8: Depth Gauge

    002441 1. Depth gauge 2. Clamp screw OPERATION 002446 Depth gauge The depth gauge is convenient for drilling holes of uniform depth. Loosen the clamp screw and adjust the depth gauge to the desired depth. After adjusting, tighten the clamp screw. Hammer drilling operation CAUTION: •...

  • Page 9: Drilling Operation

    002449 1. Blow-out bulb Blow-out bulb (optional accessory) After drilling the hole, use the blow-out bulb to clean the dust out of the hole. Drilling operation CAUTION: • Pressing excessively on the tool will not speed up the drilling. In fact, this excessive pressure will only serve to damage the tip of your bit, decrease the tool performance and shorten the service life of the tool.

  • Page 10: Maintenance

    CAUTION: • These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.
  • Page 11 Memo...
  • Page 12 Memo...
  • Page 13 Makita Canada Inc. 1950 Forbes Street, Whitby, Ontario L1N 7B7 Fold Stamp Timbre...
  • Page 14 Street Address City AGE: Under 19 Occupation: Dealer's Name & Address: Paste Paste Paste 3. How did you first learn of Makita Power Tools? Magazine/Newspaper From dealer Store display 4. Most favored points are? Design Features Size Price Model No.
  • Page 15 When you need service... • Explain the problem in a letter • Enclose the letter with the tool • Package carefully and send prepaid to the nearest Makita factory or authorized service centre (905) 571 - 2200 1-800-263-3734 (604) 272 - 3104 1-800-663-0909...

  • Page 16: Warranty Policy

    WARRANTY. “The Makita Warranty is the only and the entire written warranty given by Makita for the Makita tools. No dealer or his agent or employee is authorized to extend or enlarge upon this warranty by any verbal or written statement or advertisement.”...
