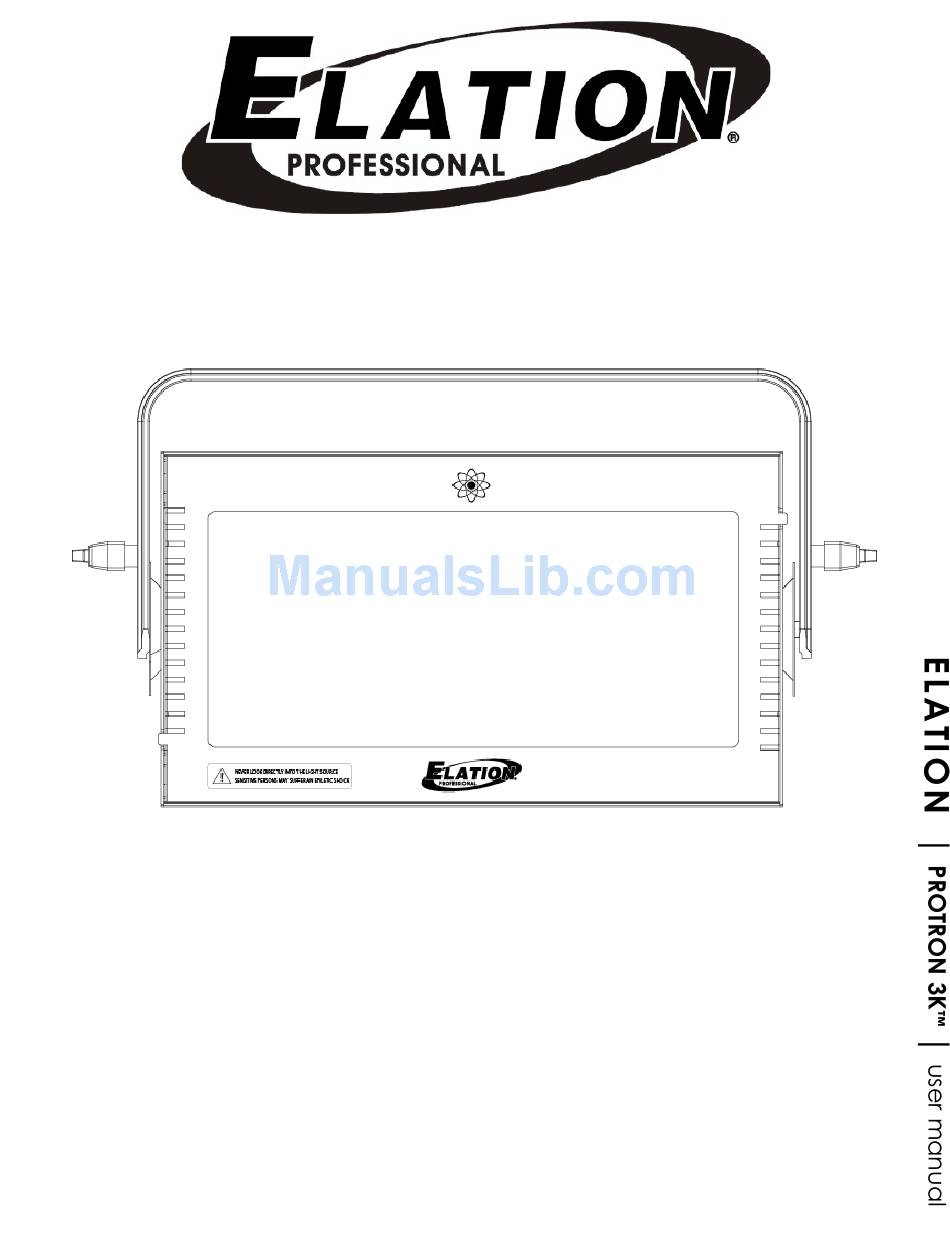

- Page 1 PROTRON 3K™ user manual ...
- Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | Elation Professional B.V.
-
Page 3: Table Of Contents
C O N T E N T S General Information Limited Warranty Safety Instructions General Guidelines Fixture Overview Fixture Installation Understanding DMX Fixture Menu DMX Channel Functions And Values Cleaning and Maintenance Technical Specifications Optional Accessories PROTRON 3K™ User Manual ver 1... -
Page 4: General Information
Congratulations, you have just purchased one of the most innovative and ™ revolutionary new hybrid lighting fixtures on the market today! The PROTRON 3K has been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit. - Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...
-
Page 6: Limited Warranty
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. -
Page 7: Safety Instructions
Do not operate this fixture if the power cord has become frayed, crimped and/or damaged. If • the power cord is damaged, replace it immediately with a new one of similar power rating. PROTRON 3K™ User Manual ver 1... -
Page 8: General Guidelines
• Use the original packaging and materials to transport the fixture in for service. DO NOT TOUCH the housing bare-hand during its operation. Turn OFF the power • and allow approximately 15 minutes for the fixture to cool down before replacing or serving. PROTRON 3K™ User Manual ver 1... -
Page 9: Fixture Overview
F I X T U R E O V E R V I E W powerCON OUT powerCON IN FUSE LED Indicators - DMX Signal, Flash MENU, UP, DOWN, ENTER Buttons LCD Menu Function Display 3/5pin DMX IN/OUT PROTRON 3K™ User Manual ver 1... -
Page 10: Fixture Installation
• Never stand directly below the device when mounting, removing or servicing. P O W E R L I N K I N G Max number of units that can be power linked is 2 units @120V. PROTRON 3K™ User Manual ver 1... - Page 11 S A F E T Y C A B L E Always use a Safety Cable whenever installing this fixture in a suspended environment to ensure the fixture will not drop if the clamp fails. PROTRON 3K™ User Manual ver 1...
- Page 12 Be sure to only use this designated rigging point to attach the safety cable. S A F E T Y C A B L E R I G G I N G P O I N T PROTRON 3K™ User Manual ver 1...
-
Page 13: Understanding Dmx
1 to that fixture no matter where it is located in the DMX chain. The PROTRON 3K™ can be controlled via DMX-512 protocol and the DMX address is set via the control menu. - Page 14 Connect the provided XLR cable to the female XLR output of your controller and the other side to the male XLR input of the PROTRON 3K™. The diagram below illustrates a typical DMX-512 connection when the fixture is in the 4 Channel Mode. You can chain multiple panels together through serial linking.
- Page 15 5pin XLR fixtures may be implemented in a 3pin XLR DMX line. When inserting standard 5pin XLR connectors in to a 3pin line a cable adaptor must be used, these adaptors are readily available at most electric stores. The following chart details a proper cable conversion. PROTRON 3K™ User Manual ver 1...
- Page 16 In the case of the PROTRON 3K™, when in the 4 Channel Mode you should set the starting DMX address of the first unit to 1, the second unit to 5 (1 + 4), the third unit to 9 (5 + 4), the forth unit to 13 (9 + 4), and so on.
-
Page 17: Fixture Menu
F I X T U R E M E N U ON-BOARD SYSTEM MENU The PROTRON 3K™ comes with an easy to navigate system menu. The next section will detail the functions of each command in the system menu. LCD MENU CONTROL PANEL The control panel (see image below) located on back of the fixture allows you to access the main menu and make all necessary adjustments to the PROTRON 3K™. - Page 18 Turn LCD Display Back Light On/Off Auto Test Run Self-Test Using Internal Programs Temp T x x x Displays Fixture Temperature Fixture Hours x x x x Displays Total Fixture Run Time Firmware Version Displays Fixture Software Version PROTRON 3K™ User Manual ver 1...
-
Page 19: Dmx Channel Functions And Values
FLASH RATE NO FLASH (single FLASH with CH 1) 6-255 0.5-25Hz AC / 0.6-30Hz AC SPECIAL EFFECTS NO Effect 6-42 Ramp UP 43-85 Ramp DOWN 86-128 Ramp UP-DOWN 129-171 Random 172-214 Lighting 215-255 Spikes PROTRON 3K™ User Manual ver 1... -
Page 20: Cleaning And Maintenance
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer. -
Page 21: Technical Specifications
CE | IP20 INSTALLATION Rigging: Integrated Yoke Working Position: Any (360°) Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. PROTRON 3K™ User Manual ver 1... -
Page 22: Photometric Data
. e l a t i o n l i g h t i n g . c o m PHOTOMETRIC DATA DIMENSIONAL DRAWINGS Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. PROTRON 3K™ User Manual ver 1... -
Page 23: Optional Accessories
PLC3 3' (1m) powerCON PRO Link Cable PLC6 6' (1.8m) powerCON PRO Link Cable AC3PDMX5PRO 5 ft. (1.5m) 3pin PRO DMX Cable AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable Additional Cable Lengths Available PROTRON 3K™ User Manual ver 1...
