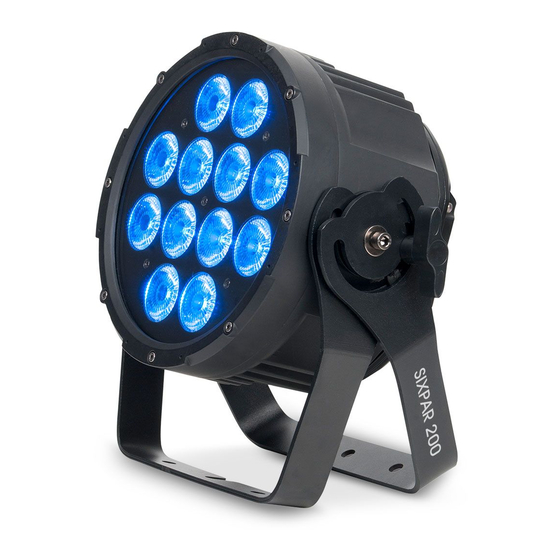

Summary of Contents for Elation SIXPAR 200

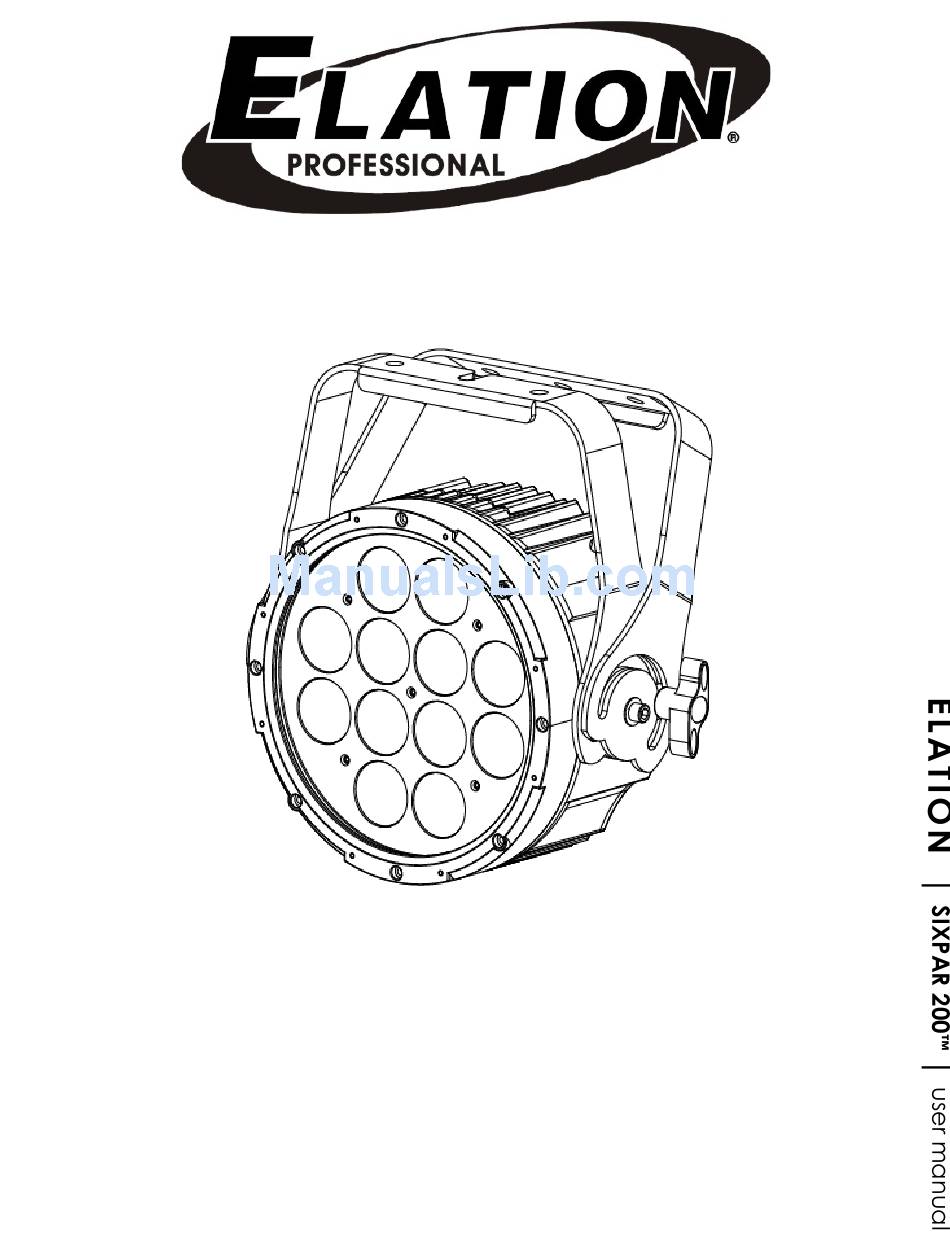

  • Page 1 SIXPAR 200™ user manual    ...
  • Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com Elation Professional B.V.

  • Page 3: Table Of Contents

    C O N T E N T S General Information Warranty Safety Instructions General Guidelines Fixture Overview Fixture Installation Understanding DMX Fixture Menu DMX Channel Functions And Values Cleaning and Maintenance Technical Specifications Optional Accessories SIXPAR 200™ User Manual Ver. 1...

  • Page 4: General Information

    INTRODUCTION Congratulations, you have just purchased one of the most innovative and ™ reliable lighting fixtures on the market today! The SIXPAR 200 has been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit.
  • Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...

  • Page 6: Warranty

    No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof.

  • Page 7: Safety Instructions

    Do not operate this fixture if the power cord has become frayed, crimped and/or damaged. If • the power cord is damaged, replace it immediately with a new one of similar power rating. SIXPAR 200™ User Manual Ver. 1...

  • Page 8: General Guidelines

    • Use the original packaging and materials to transport the fixture in for service. DO NOT TOUCH the housing bare-hand during its operation. Turn OFF the power • and allow approximately 15 minutes for the fixture to cool down before replacing or serving. SIXPAR 200™ User Manual Ver. 1...

  • Page 9: Fixture Overview

    F I X T U R E O V E R V I E W powerCON IN Fuse MODE Button UP Button DOWN Button ENTER Button powerCON OUT LCD Menu Display 3pin DMX IN 3pin DMX OUT 5pin DMX IN 5pin DMX OUT SIXPAR 200™ User Manual Ver. 1...

  • Page 10: Fixture Installation

    M10 screw fitted through the center hole of the Dual Yoke / Floor Stand. SECURING ™ Regardless of the rigging option you choose for your SIXPAR 200 always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable on the hanging bracket as illustrated above.
  • Page 11 S A F E T Y C A B L E Always use a Safety Cable whenever installing this fixture in a suspended environment to ensure the fixture will not drop if the clamp fails. SIXPAR 200™ User Manual Ver. 1...

  • Page 12: Understanding Dmx

    1 to that fixture no matter where ™ it is located in the DMX chain. The SIXPAR 200 can be controlled via DMX-512 protocol and the DMX address is set via the control menu.
  • Page 13 Connect the provided XLR cable to the female XLR output of your controller and the ™ other side to the male XLR input of the SIXPAR 200 . The diagram below illustrates a typical DMX-512 connection when the fixture is in the 12 Channel Mode. You can chain multiple panels together through serial linking.
  • Page 14 ™ In the case of the SIXPAR 200 , when in the 12 Channel Mode you should set the starting DMX address of the first unit to 1, the second unit to 13 (1 + 12), the third unit to 25 (13 + 12), and so on.

  • Page 15: Fixture Menu

    F I X T U R E M E N U ON-BOARD SYSTEM MENU The SIXPAR 200™ comes with an easy to navigate system menu. The next sections will cover how to access each menu function. LCD CONTROL PANEL DISPLAY...
  • Page 16 Adjust SPEED 01 SLOW - 99 FAST S00-99 Adjust STROBE SPEED 00 SLOW (0.1Hz) - 99 FAST (20Hz) DimCurve Standard, Stage, TV, Architec, Theatre Set Dimming Curve Blackout NO Output NO DMX Hold Hold Last Setting Fade Fade SIXPAR 200™ User Manual Ver. 1...
  • Page 17 . e l a t i o n l i g h t i n g . c o m DIMMING CURVES The DimCurve menu allows you to select one of the following preset dimming curves: Standard, Stage, TV, Architec, or Theatre. (See diagram below for more details) Dimmer SIXPAR 200™ User Manual Ver. 1...

  • Page 18: Dmx Channel Functions And Values

    Strobe Effect SLOW to FAST 96-127 LED ON (NO STROBE) 128-159 Strobe Pulse Effect In Sequences SLOW to FAST 160-191 LED ON (NO STROBE) 192-223 Random Strobe Effect SLOW to FAST 224-255 LED ON (NO STROBE) SIXPAR 200™ User Manual Ver. 1...
  • Page 19 GREEN + BLUE + WHITE 132-135 GREEN + BLUE + AMBER 136-139 GREEN + BLUE + UV 140-143 GREEN + WHITE + AMBER 144-147 GREEN + WHITE + UV 148-151 GREEN + AMBER + UV SIXPAR 200™ User Manual Ver. 1...
  • Page 20 Color Fade Chase 81-255 NO Function COLOR CHASE MACROS SPEED 00-255 Chase Speed of CHANNEL 10 - SLOW to FAST DIMMING MODES 0-20 STANDARD 21-40 STAGE 41-60 61-80 ARCHITECTURAL 81-100 THEATER 101-255 NO Function SIXPAR 200™ User Manual Ver. 1...

  • Page 21: Cleaning And Maintenance

    Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer.

  • Page 22: Technical Specifications

    5°F to 113°F (-15°C to 45°C) APPROVALS / RATINGS CE | IP20 Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. SIXPAR 200™ User Manual Ver. 1...

  • Page 23: Photometric Data

    . e l a t i o n l i g h t i n g . c o m PHOTOMETRIC DATA DIMENSIONAL DRAWINGS Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. SIXPAR 200™ User Manual Ver. 1...

  • Page 24: Optional Accessories

    PLC3 3' (1m) powerCON PRO Link Cable PLC6 6' (1.8m) powerCON PRO Link Cable AC3PDMX5PRO 5 ft. (1.5m) 3pin PRO DMX Cable AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable Additional Cable Lengths Available SIXPAR 200™ User Manual Ver. 1...
